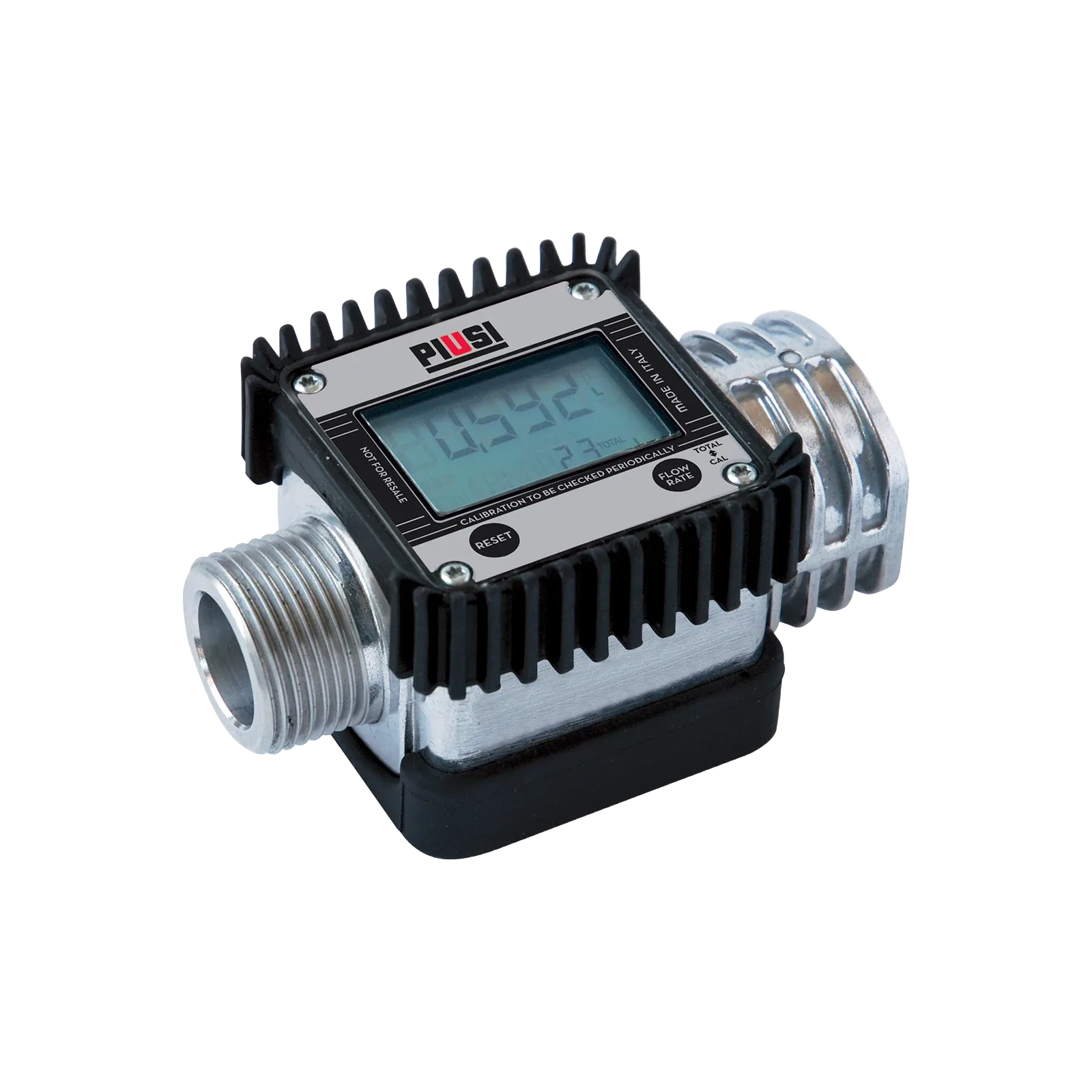

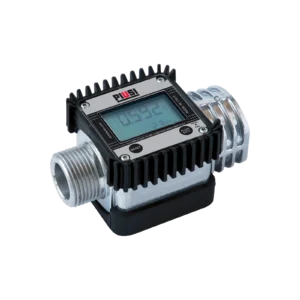

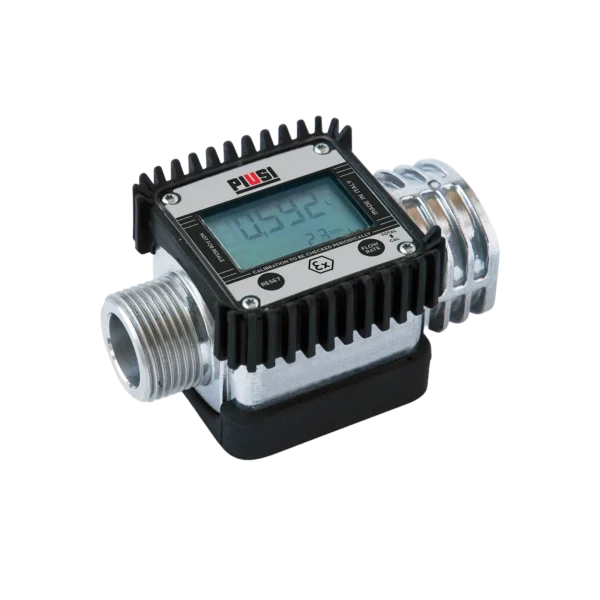

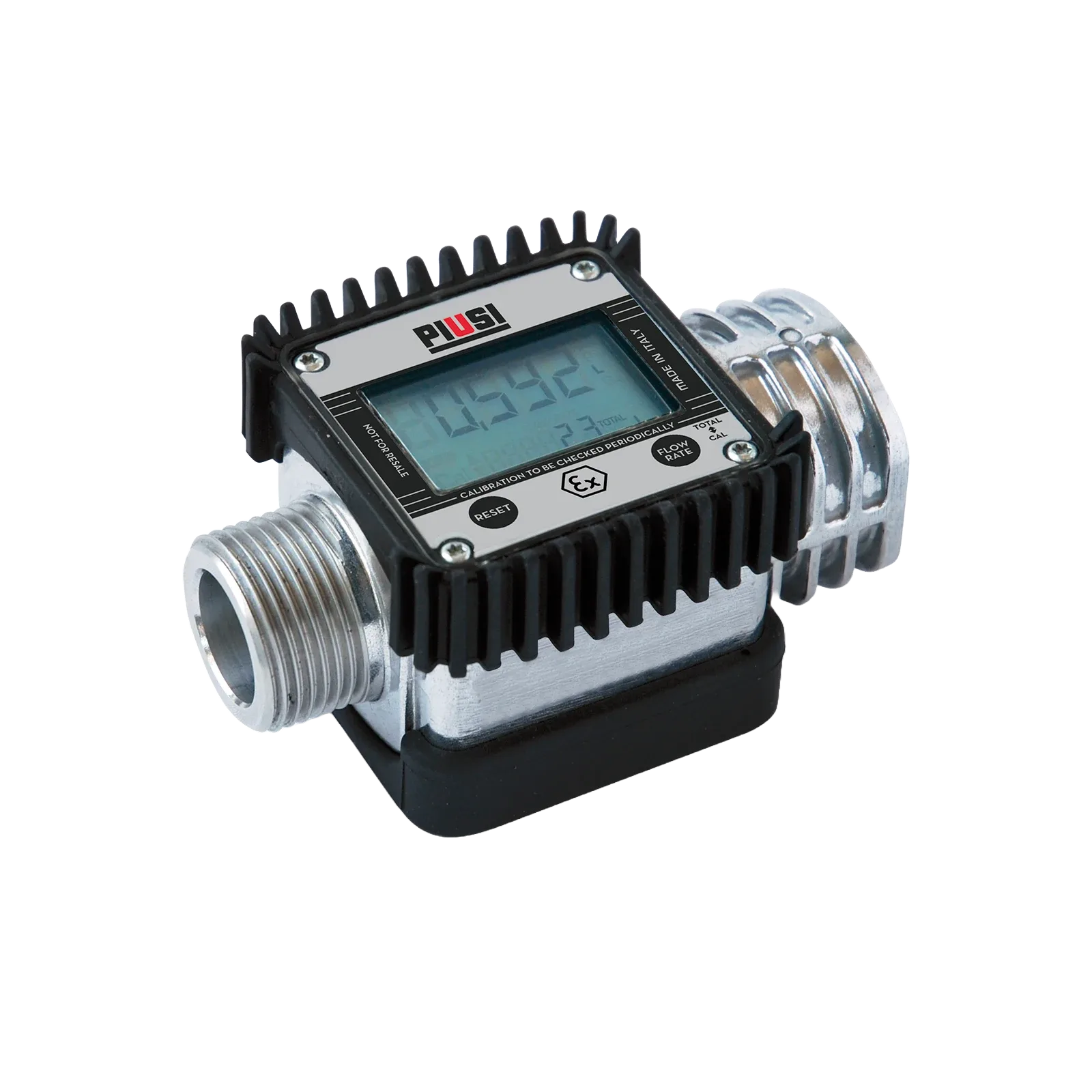

The PIUSI K24-A is an extremely reliable digital flow meter, specifically designed for the accurate measurement and digital management of low-viscosity fluids such as diesel, gasoline, kerosene, and biodiesel. This device offers an ideal solution for agricultural, logistical, and industrial applications where precise dosing control is essential.
The K24-A flow meter combines PIUSI quality and durability with a user-friendly design, ensuring long-term, trouble-free operation even in the most varied working conditions.
The K24-A digital flow meter utilizes turbine technology, which guarantees outstanding measurement accuracy.
Measurement Accuracy: The device ensures a measurement accuracy of +/- 1%. Should the measurement prove inaccurate, the K24-A can be easily calibrated for maximum operational precision.
Repeatability: Extremely high repeatability rate of 0.2%.
Low Pressure Drop: Results in a pressure drop of only < 0.03 bar at a flow rate of 120 l/min, minimizing energy loss in the system.
Robust Construction: The aluminum housing and polypropylene turbine guarantee a long service life. The internal electronic board is completely sealed, making it resistant to adverse working conditions.
High Burst Pressure: 100 BAR.
During the design of the K24-A, great emphasis was placed on the simplicity of installation and the convenience of data reading.
Thanks to the structural design of the K24-A, compatible with any type of biodiesel, it can be safely used for measuring biodiesel of any blending ratio and origin.
The device operates on two AAA batteries, ensuring wireless and flexible operation.
The technical parameters of the PIUSI K24-A digital flow meter can be summarized as follows:
| Parameter | Spezification | Note |
|---|---|---|
| Product Category | Fluid Flow Meter | |
| Application Area | Agriculture, Logistics, Industry | |
| Measurable Fluids | Diesel, HVO/XTL, Biodiesel | |
| Measurement Principle | Turbine, single-channel, Reed switch | |
| Housing Material | Alu | |
| Turbine Material | Polypropylene | |
| Maximum Flow Rate | 120 l/perc | |
| Pontosság | +/- 1% | Calibratable |
| Repeatability | 0,2% | |
| Pressure Loss | < 0.03 bar (at 120 l/min) | |
| Burst Pressure | 100 BAR | |
| Display Type | LCD Digital | Rotatable |
| Partial Totalizer | 5 digits (from 0.1 to 99999) | Resettable |
| Totalizer | 6 digits (from 1 to 999999) | |
| Power supply | 2 x AAA Battery | |
| Connection | 1″ BSP (depending on the product version) |
The K24-A digital LCD display provides comprehensive information to the user:
The K24 series is available in several configurations to meet user requirements (e.g., measuring unit or pulser version).
| Product code | Description | Connection |
|---|---|---|
| F0040700A | K24 MEASURING UNIT M/MF LITER | 1″ BSP |
| F00408100 | K24-A M/F | 1″ BSP |
| F0040722A | K24 PULSER M/MF LITER | 1″ BSP |
The outstanding feature of the K24-A model is the Easy calibratability, which ensures that the measuring instrument always operates with the highest level of accuracy, even against changes in operating conditions. This digital flow meter is an essential tool for any business that has strict accounting and inventory management requirements during fluid transfer.
