The PIUSI A60 and A140 ATEX certified fuel filler nozzles are designed to meet the strictest safety requirements, specifically for safe fuel transfer in potentially explosive environments. These nozzles offer an ideal solution for agricultural, mining, construction, industrial, and marine applications where the safe dispensing of diesel, HVO/XTL, gasoline, and kerosene is essential.
The two main models in the series, the A60 and A140, offer outstanding reliability and user-friendly functions, with special attention to protection against overfilling.
The A60 and A140 ATEX nozzles represent PIUSI quality and safety, featuring several key functions:
ATEX Certification: Both models have certification according to the European ATEX directive, guaranteeing safe use in potentially explosive zones.
Automatic Shut-Off: Both the A60 and A140 are equipped with a built-in mechanism that automatically shuts off the fuel flow as soon as the vehicle or tank is full. This prevents overfilling, fuel waste, and environmental contamination.
Excellent Compatibility: They can be widely used for various fluids, including Gasoline, Diesel fuel, Kerosene, as well as HVO/XTL (Hydrotreated Vegetable Oil / XTL) fuels.
Robust Construction: The robust construction of the nozzles ensures a long service life even under the harshest industrial conditions.
Könnyű Kezelhetőség: The A140 model features a plastic handle for a comfortable and secure grip, ideal for quickly and cleanly filling large tanks (e.g., agricultural machinery).
Ready State: The products are supplied in a „READY TO USE” condition, with minimal installation requirements.
In the PIUSI range, the A60 and A140 models serve different design and usage preferences.

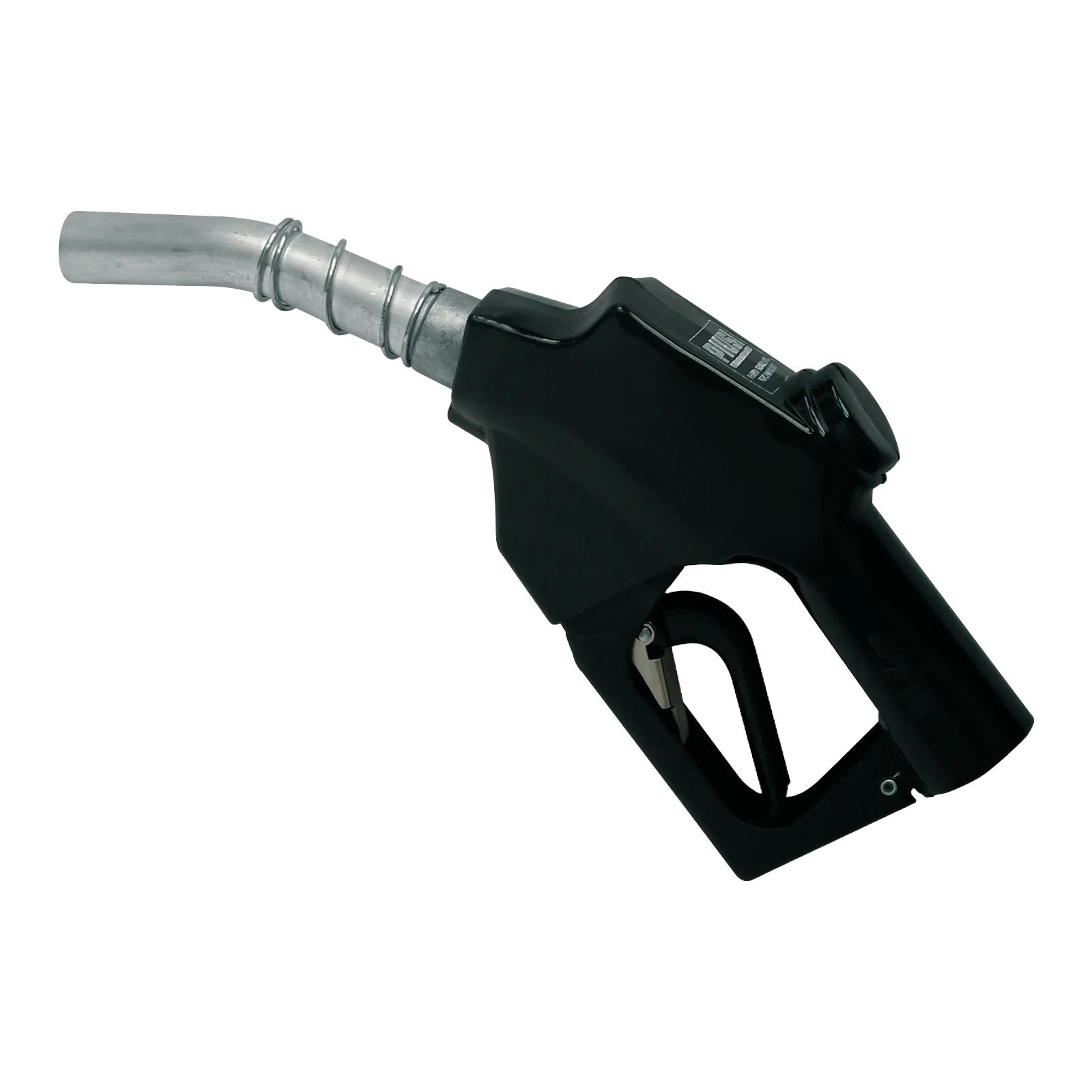

The A60 model is an automatic filler nozzle specifically designed to comply with strict safety requirements.
Main Feature: Automatic operation with a built-in overfill shut-off mechanism.
Configuration: As standard equipment, with a swivel connector it is equipped, which increases handling flexibility and reduces hose twisting during filling.
Area of Application: General, safety-critical fuel transfer tasks.

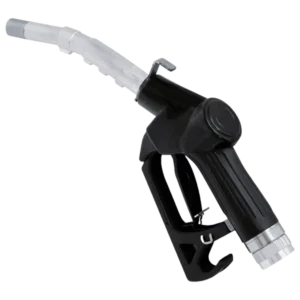

The A140 model is a more robust automatic diesel nozzle optimized for the quick and clean filling of high-capacity tanks.
Main Feature: Automatic shut-off, specifically for large vehicles (e.g., agricultural and construction machinery).
Configuration: Available in two main versions: with swivel connector (swivel) vagy without (without swivel). The handle has a plastic coating for better ergonomics.
Advantage: Practical and economical solution for fast dispensing of large quantities of fuel.
The table below summarizes the most important technical parameters and product codes.
| Product Code | Description | Fluid Compatibility | Main Feature | Connection |
|---|---|---|---|---|
| F00613020 | (Ex) AUTOMATIC NOZZLE A60 1″ | Petrol, Diesel, Kerosene, HVO/XTL | Automatic shut-off, With swivel connector | 1" |
| F22675000 | (Ex) AUTOMATIC NOZZLE A140 W/OUT SWIVEL | Petrol, Diesel, Kerosene, HVO/XTL | Automatic shut-off, Plastic handle | Not specified (typically 1″) |
The PIUSI A60-A140 ATEX series is ideal for the following sectors:
Agriculture: Safe fueling of tractors, combines, and other large agricultural machinery.
Mining & Construction: Refueling of high-performance machinery, loaders, and trucks in explosive atmospheres.
Industrial Plants: Private fuel storage depots where strict safety regulations apply.
Marine Applications: Fueling of boats and watercraft (provided that the appropriate marine certifications are available).
The quality and reliability of PIUSI products are certified by independent certification bodies. The ATEX certification ensures that the nozzles comply with European directives regarding use in explosive atmospheres. The product line meets the strictest safety requirements, allowing users maximum protection during fuel transfer.
The product line is part of PIUSI's wider offering, which also includes fuel dispensing equipment, lubrication management systems, and AdBlue® dispensing solutions, ensuring a complete fluid management infrastructure.
