The PIUSI BATTERY KIT is an exceptionally designed, portable diesel (as well as Diesel/HVO/XTL) and oil transfer kit, specifically developed for work environments where mains power supply is missing or where fast, flexible, and safe fuel transfer is required. This mobile solution is ideal for agricultural, mining, and construction applications where refueling heavy machinery requires complex logistics.
The main strength of the BATTERY KIT lies in the combination of reliability, durability, and ease of installation, all condensed into a compact, easy-to-handle unit.
The design of the BATTERY KIT prioritizes maximum mobility and long-term reliability:
Portability and Mobility: The handle fixed to the pump body, small size, and low weight allow the kit to be easily carried anywhere on the work site.
Robust Design: The pump features a cast iron housing, which guarantees a long service life and excellent resistance against harsh working conditions.
Simple Operation: Installation is quick and easy. It can be put into operation immediately with the built-in ON/OFF switch.
Flexible Operation: Designed specifically for situations where only a battery power source is available, ensuring safe fuel transfer.
Cleanliness and Quality: The filter located at the bottom of the suction hose ensures that the pumped diesel is free from contaminants, thereby protecting the fuel system of the machines.
Optional Drum Version: Available upon request in a drum kit version, which further increases flexibility.
The BATTERY KIT portable unit is equipped with a self-priming, vane pump driven by a 12 V or 24 V DC motor.
| Technical Parameter | Value | Note |
|---|---|---|
| Product Category | Fuel | |
| Field of application | Agriculture, Mining, Construction Industry | |
| Pump Type | Self-priming vane electric pump | |
| Operating Voltage | 12 V DC or 24 V DC | Depending on the model |
| Flow Rate | Up to 45–80 liters/minute | Depending on the pump type (e.g., 3000 series) |
| Duty Cycle | 30 minutes | Maximum continuous operating time |
| Suction Head | Up to 2 meters | |
| Suction and Discharge Hose Length | Suction hose: 2 meters (including cables) | |
| Fuel Hose Length | 4 méter | |
| Fuel Hose Diameter | 3/4" | |
| Pump Housing | Cast iron | For durability |
| Connection Cables | 2 meters long, with battery terminal clamps | |
| Dispensing Gun | Aluminum manual dispensing gun | |
| Filter | Bottom strainer on the suction hose | To ensure the cleanliness of the pumped fuel |

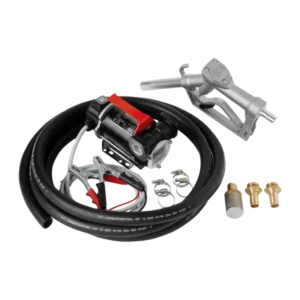

The standard BATTERY KIT configuration includes the following components, which enable quick deployment:
Cast Iron Housing Pump: Reliable, durable design.
DC Motor: Available in 12V or 24V options.
Connection Cables: 2 meter long cables equipped with battery clamps for power supply.
Fuel Hose: 4 meter long, 3/4″ diameter fuel-resistant hose.
Suction Hose: 2 meters long, equipped with a bottom strainer.

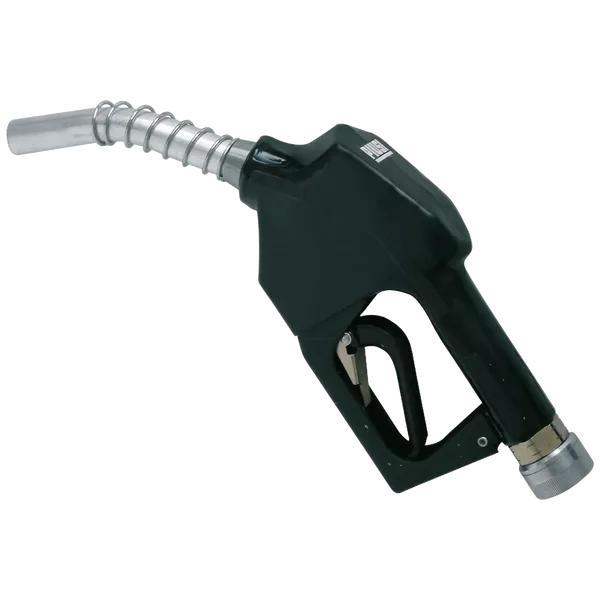

Dispensing Gun: Aluminum-made gun with manual operation.
Built-in Switch: Simple ON/OFF control.
The BATTERY KIT is ideally suited for:
In Construction Sites: On-site refueling of heavy construction machinery (excavators, loaders).
In Agriculture: Quick refueling of tractors, combines, and other agricultural equipment in the fields.
In Mining: Fuel supply for machinery in remote areas where no infrastructure is established.
Marine Applications: Refueling smaller boats or offshore installations (if properly certified).
PIUSI offers several BATTERY KIT versions tailored to different power and voltage requirements, including various pump and nozzle combinations:
| Product code | Designation | Voltage | Main Components |
|---|---|---|---|
| F0022500C | BATTERY KIT 3000 | 12V | Basic 3000 pump |
| F00225410 | BATTERY KIT 3000/12V BO ¾”SELF2000 1″F | 12V | 3000 pump, ¾” connection, SELF2000 nozzle (1″) |
| F0022600C | BATTERY KIT 3000 | 24V | Basic 3000 pump |
| F00226380 | BATTERY KIT 3000/24V BO ¾”SELF2000 1″F | 24V | 3000 pump, ¾” connection, SELF2000 nozzle (1″) |
| F0034003B | BATTERY KIT PANTHER DC | 12V | PANTHER DC pump |
| F0034103C | BATTERY KIT PANTHER DC | 24V/12V | PANTHER DC pump, dual voltage |
| F00341220 | PANTHER DC 24/12V+PARK 1″x20 5MT+A60 | 24V/12V | PANTHER DC, with A60 nozzle, with 5m hose |
| F00309060 | BATTERY KIT VISCOMAT 60/2 | 12V | VISCOMAT 60/2 pump (for more viscous fluids) |
| F00310070 | BATTERY KIT VISCOMAT 60/2 | 24V | VISCOMAT 60/2 pump (for more viscous fluids) |
| F00363280 | BATTERY KIT BIPUMP | 12V | BIPUMP pump, with A120 nozzle, with 4m cable |
A VISCOMAT versions are specifically suitable for pumping higher viscosity fluids, such as lubricating oils, while the PANTHER and BIPUMP models offer further options regarding performance and accessories.
The PIUSI BATTERY KIT is the ideal choice for anyone looking for a reliable, mains power independent, fast, and safe fuel transfer solution, even in the toughest industrial environments.
