Piusi is committed to high-quality fluid management solutions, and the fittings and couplings intended for AdBlue® systems are no exception. These products are designed to ensure maximum reliability, easy installation, and long service life for the transport and handling of AdBlue® (urea solution).
Piusi solutions are practical, versatile for use in various installation environments, and made from materials that resist the corrosive effects of urea, thereby ensuring system integrity and fluid cleanliness.
These fittings are ideal for various industrial and commercial applications where the safe and efficient handling of AdBlue® is essential.
Excellent Material Quality: The fittings are made from durable, resistant materials that are specifically compatible with AdBlue® (urea) fluid, guaranteeing long-term reliability and chemical resistance.
Egyszerű Telepítés: The product design allows for quick and hassle-free assembly, thus reducing installation time and labor requirements.
Versatile Application: Different connection types and angles are available, allowing flexible adaptation to existing or new fluid transfer systems.
Reliable Performance: Designed to maintain excellent performance in AdBlue® systems, minimizing the risk of leakage.
Piusi AdBlue® fittings and couplings can be widely used in the following sectors:
Garage Equipment: Professional vehicle maintenance workshops.
Agriculture: Refilling agricultural machinery with AdBlue®.
Logistics: Truck fleets and logistics centers.
Mining & Construction: Operation of high-performance, heavy machinery.
Industrial Applications: General industrial fluid management processes.
Piusi offers a wide selection to meet various connection needs, including Hose tails, Elbows, Straight connections, Sleeves, and Swivel unions.
The table below details the main available product codes and descriptions:
| Product code | Description | Category | Connection Type |
|---|---|---|---|
| F15522000 | HOSETAIL M 1" X D.20 PLASTIC | Hose tail | Male thread (M) 1" BSP x 20 mm |
| F16435000 | HOSETAIL F 1" X D.20 WITH NUT | Hose tail | Female thread (F) 1" BSP, with nut, 20 mm |
| F15450000 | HOSETAIL 90° D.19 F ¾” BSP | 90° Elbow | Female thread (F) ¾” BSP, 19 mm |
| F15484000 | HOSETAIL 90° D.19 F 1″ BSP FOR GAUGE | 90° Elbow | Female thread (F) 1″ BSP, optimized for K24 gauge, 19 mm |
| F15485000 | HOSETAIL 90° D.19 1″ BSP WITH NUT AND NIPPLE | 90° Elbow | 1″ BSP, with nut and coupling (nipple) |
| F16433000 | PIPE FITTING 90° 2/F 1″ BSP WITH GASKET | 90° pipe fitting | Coupling female thread (2/F) 1″ BSP, with gasket |
| F16434000 | STRAIGHT CONNECTOR WITH 2 NUTS F 1″ BSP | Straight connector | Coupling female thread (F) 1″ BSP, with 2 nuts |
| F16073000 | SLEEVE F 1″ BSP / F 1″ BSP (20 PCS) SS | Sleeve | Coupling female thread 1″ BSP / 1″ BSP, stainless steel (SS) |
| F16074000 | SLEEVE F 1″ NPT / F 1″ NPT (20 PCS) SS | Sleeve | Coupling female thread 1″ NPT / 1″ NPT, stainless steel (SS) |
| F16458000 | SLEEVE F 1″ NPT / F 1″ BSP (20 PCS) SS | Sleeve | Double female threaded 1″ NPT / 1″ BSP, stainless steel (SS) |
| F15176000 | NIPPLE M 1″ BSP / M 1″ BSP PLASTIC | Pipe Coupling (Nipple) | Double male threaded (M) 1″ BSP, plastic |
| F15776000 | SWIVEL FITTING M 1" BSP / F 1" BSP | Swivel Union | Male threaded (M) 1″ BSP / Female threaded (F) 1″ BSP |
1. Hose Tails:
These connectors ensure the rigid and leak-proof fastening of flexible hoses to stiffer piping systems or equipment. They are available in plastic design (e.g., F15522000) or in a version equipped with a nut (e.g., F16435000), which provides extra fastening security.

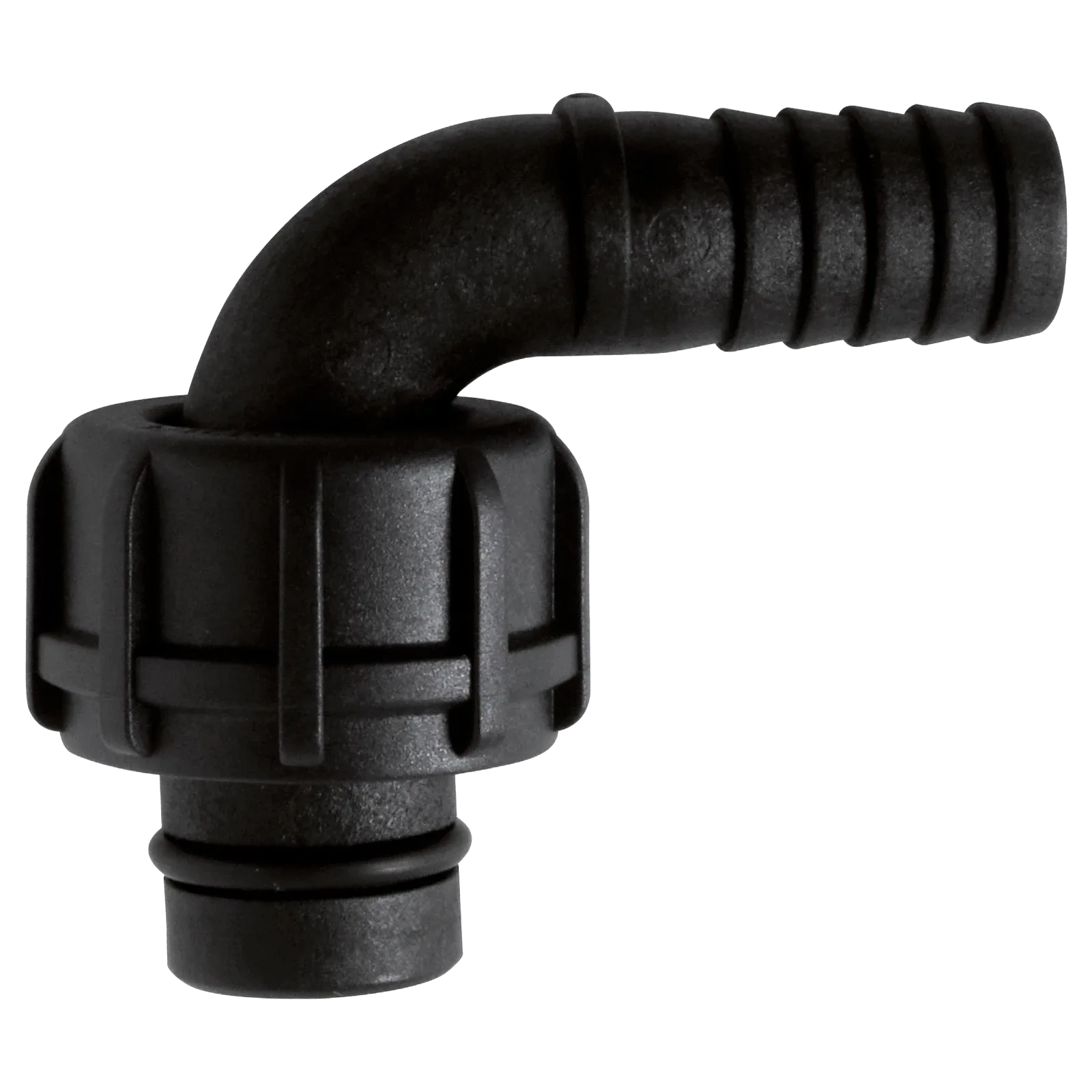

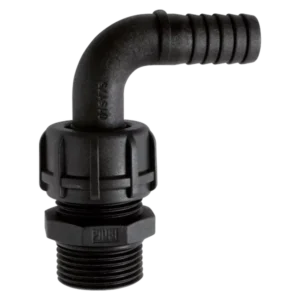

2. Elbows:
The 90-degree elbows (e.g., F15450000, F15485000) are essential for changing direction in tight spaces. Type F15484000 is particularly important, as it is specifically designed for the K24 type AdBlue® flow meter, ensuring precise fit and measurement integrity.
3. Pipe Fittings and Couplings:
Straight couplings (e.g., F16434000) and 90° pipe fittings (e.g., F16433000) allow for the rigid, threaded connection of pipes, often using two nuts for maximum securing.
4. Sleeves:
Sleeves made of stainless steel (e.g., F16073000, F16074000, F16458000) are ideal for joining or repairing pipe ends. Combinations of different thread types (BSP and NPT) are also available, increasing the system's flexibility in cases of different standard pipe connections. These are usually supplied in packs of 20 pieces.
5. Swivel Unions:
Swivel unions (e.g., F15776000) allow the connected hose or device to rotate without causing the connection to loosen or the hose to twist, significantly increasing handling convenience and reducing premature hose wear.
Piusi products are manufactured in compliance with the strictest industry standards, ensuring that the AdBlue® fluid is not contaminated, and the system meets environmental and safety regulations in the long run. This product line is specifically optimized for the particular requirements of AdBlue® (a two-component diesel exhaust fluid aftertreatment system).
Detailed data sheets and manuals regarding the products are available among the manufacturer's official documentation, providing assistance for correct installation and maintenance. Spare part support is provided based on product codes, guaranteeing the long-term operational capability of the systems.
