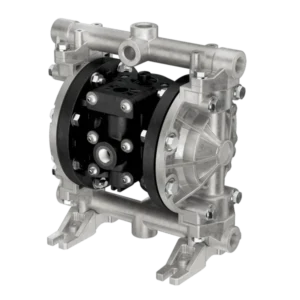

The PIUSI PRO ONE 15 MA pneumatic oil pump combines the latest technology with a robust design to ensure smooth and efficient fluid transfer even in the most demanding industrial environments. This Air Operated Double Diaphragm (AODD) pump is a product of PIUSI's innovative philosophy, developed with excellent performance and optimized operational efficiency in mind.
The PRO ONE 15 MA is the ideal solution for oil transfer in areas such as vehicle workshops, mining and construction sites, and general industrial applications where reliable, air-operated pumping is required.
The PRO ONE 15 MA pump is a prime example of reliability and versatility, designed to operate continuously without stopping even under the toughest conditions.
The pump features a self-priming design, which facilitates startup, and an anti-stall design, thus ensuring extremely high operational reliability.
Adjustable Flow Rate: The freely adjustable flow rate in the range between 0 and 52 liters/minute allows for precise dosing and adaptation to various tasks.
Low Air Consumption: Thanks to its optimized design, the pump operates with extremely low air consumption, resulting in significant energy efficiency and cost reduction.
Quiet Operation: The noise level of only 78 dB(A) contributes to a more pleasant and safer working environment, reducing noise pollution in the workplace.
The PRO ONE 15 MA pump is equipped with sophisticated mechanical components that ensure a long service life and consistent performance.
Ball Valve System: Its suction and discharge valves have a ball design, which guarantees a constant and smooth fluid flow, minimizing pulsation.
Excellent Suction Height: The pump's dry suction height is 4.5 meters, and its wet suction height reaches 7 meters, providing exceptional flexibility in accessing the fluid source.
Robust Construction: The pump is capable of handling more viscous fluids and small solid particles, thanks to a design that allows passage of solid particles up to a maximum permitted diameter of 2.5 mm.
The PRO ONE 15 MA is widely applicable due to its versatility:
Vehicle Workshops: Efficient transfer of lubricants, engine oils, and other hydraulic fluids.
Mining & Construction: Oil and fluid handling in harsh environments.
General Industrial Applications: Any process requiring reliable, pneumatically driven pumping.
The precise technical parameters of the PRO ONE 15 MA pump ensure the designed performance and perfect integration into the system.
| Parameter | Value | Note |
|---|---|---|
| Product Category | Lubricants, Oil | |
| Application | Garage Equipment, Mining & Construction, Industrial | |
| Adjustable Flow Rate | 0 – 52 l/min | |
| Suction and Delivery Valves | Ball type | For constant flow |
| Fluid Connections | 1/2” G (Gas) Thread (4+4) | Suction and delivery side connection |
| Max. Equivalent Solid Particle Diameter | 2.5 mm | |
| Suction Height (Dry / Wet) | 4.5 m / 7 m | |
| Pneumatic Supply Inlet | 3/8” G (Gas) | |
| Supply Pressure (Min. / Max.) | 1 bar / 6.8 bar | Variable pressure range |
| Noise Level | 78 dB(A) | Working environment comfort |
| Weight | 5.2 kg | |
| Product code | F00808A00 | (EX) PRO ONE 15 – MA 50 L/MIN |
Thanks to the durability characteristic of PIUSI products and the optimized design, the PRO ONE 15 MA offers a cost-effective solution even in the long run. Easily accessible components and detailed datasheets support simple maintenance and spare parts supply, ensuring the continuous operational capability of the equipment.
The PRO ONE 15 MA is the perfect combination of advanced technology, durability, and versatility, making it the ideal choice for those looking for a reliable, high-performance pneumatic oil pump that minimizes downtime and reduces operating costs.
