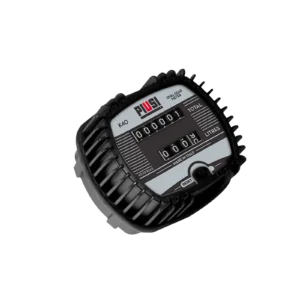

The Piusi K40 mechanical flow meter is an extremely reliable and precise measuring device specifically designed for dosing medium and high viscosity oils and lubricants. This robust oval gear flow meter provides an ideal solution for industrial environments where accurate quantity control is essential, without the need for an external power source or complex calibration.
The K40 is the easiest and simplest way to measure various lubricants, perfectly suited for both mobile and fixed installations.
The Piusi K40 flow meter has several features that set it apart from competitors, especially in terms of durability and user-friendly design:
Compact Design: Its small size allows for easy integration into tight spaces or mobile units.
No Component Required: Thanks to its fully mechanical operation, it does not require a battery or external power supply, making it ready for immediate use anywhere.
Simple Reset: The partial meter can be easily reset to zero, facilitating the tracking of individual dispensing operations.
Non-Resettable Totalizer: The totalizer (grand total) is not resettable, ensuring an accurate and continuous record of the total volume measured to date.
Bump Protection: The built-in shock absorption increases the lifespan of the device, especially in demanding, mobile environments.
Ready For Use: Factory calibrated, ready for immediate installation and use within the specified viscosity range.
Partial and Total Metering: It offers two metering functions: a resettable partial meter for current tasks, and a fixed total meter for long-term auditing.
Versatility: Widely applicable across various industrial segments.
The K40 flow meter performs excellently in the following sectors where precise lubricant dispensing is critical:
Vehicle Services and Garages: Precise measurement of engine oils, gear oils, and other lubricants.
Agriculture: Machine maintenance and lubricant replenishment.
Logistics: Fleet management and vehicle fleet maintenance.
Mining & Construction: Lubricant supply for high-performance machinery under harsh operating conditions.
General Industrial Applications: Measurement of industrial fluids with different viscosities.
The detailed technical specifications of the Piusi K40 mechanical flow meter ensure reliable operation within the specified parameters.
| Parameter | Spezification |
|---|---|
| Product Category | Lubrication Fluid Flow Meters |
| Operating Principle | Mechanical Oval Gear |
| Applicable Fluids | Medium and high viscosity oils |
| Connection Type | BSP (British Standard Pipe) |
| Connection Size | 1/2 inch |
| Pontosság | ±1% within the full measurement range (for suitable viscosity) |
| Maximum Flow Rate | 100 liters/minute (LPM) |
| Minimum Flow Rate | 5 liters/minute (LPM) |
| Maximum Operating Pressure | 50 bar (725 PSI) |
| Maximum Operating Temperature | 60 °C |
| Meter Type | Partial (resettable) and Total (non-resettable) |
| Calibration | No recalibration required within the specified viscosity range |
| Protection | Protective housing |
| Power supply | No external power source required (fully mechanical) |
| Product code | F00490020 (K40 METER 1/2” BSP) |
The following documents are available for the complete installation and maintenance of the product:
| Product code | Description | Datasheets and Manuals | Spare parts |
|---|---|---|---|
| F00490020 | K40 Flow Meter 1/2” BSP | K40-PIUSI-DATASHEET-LUBE-EN | Search by code |
The Piusi K40 flow meter guarantees accurate verification of dispensed quantities even during the most demanding lubrication management tasks, minimizing waste and ensuring compliance with maintenance schedules. The robust, battery-free design allows for long-term, trouble-free operation.
