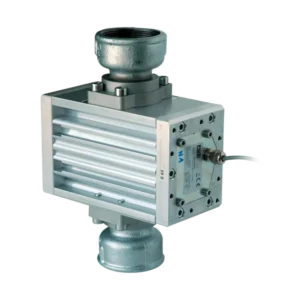

The PIUSI K700 PULSER is a robust, mechanical flow meter specifically designed for the precise monitoring of diesel and similar fluid dispensing. This device is an ideal choice for industrial, construction, mining, and marine applications where a reliable, maintenance-free, and easy-to-install measurement solution is required. The K700 PULSER represents PIUSI quality, guaranteeing accurate volume measurement at medium and high flow rates.
The K700 PULSER is the result of PIUSI's engineering expertise, offering a durable flow meter equipped with a mechanical display. The main advantages of the device are its reliability and ease of installation, while providing excellent measurement accuracy.
Easy Installation and Calibration: The K700's design allows for quick and simple commissioning, as well as on-site calibration, minimizing downtime.
High Flow Rate Handling: Optimized for medium and high flow rates, with a capacity of up to 220 liters/minute.
Robust Design (Heavy Duty): Thanks to its massive housing and mechanical display system, the K700 performs excellently even in the most demanding, harsh industrial environments.
Versatility: Widely applicable for measuring various fluids, including diesel fuel, HVO (Hydrotreated Vegetable Oil), XTL fuels, as well as lubricating oils and antifreeze fluids.
The K700 PULSER is based on the oval gear principle, which ensures extremely accurate measurement of the dispensed fluid volume. This mechanical technology guarantees long-term reliability without electronic components.
Display System:
The device features a mechanical counter that displays two types of data:
Partial Total: 4 digits, measuring up to a maximum of 9999 liters. This value can be reset for daily or shift measurements.
Total: 7 digits, recording the total dispensed volume measured throughout the entire service life of the device.
Measurement Accuracy: The measurement accuracy of the K700 PULSER is +/- 1,5% consistent across the entire flow range, which represents excellent performance at an industrial level.
The K700 PULSER is an ideal solution for monitoring fuel consumption in the following sectors:
Mining & Construction: Precise tracking of fuel supply for high-power machinery.
Industrial Plants: Auditing on-site refueling processes.
Marine (Naval): Measuring fuel replenishment for boats.
General Fuel Transfer: For any location where a reliable, non-electronic measuring instrument is required.
The reliability of the K700 PULSER is supported by stringent technical parameters that enable operation under extreme conditions.
| Parameter | Value | Note |
|---|---|---|
| Product code | F0049800A | |
| Product Category | Flow Meter (Meter) | |
| Fluids Handled | Diesel, HVO, XTL, Antifreeze, Oil | |
| Connection Type | 2″ BSP | |
| Maximum Flow Rate | 220 l/min | Medium and high flow range |
| Operating Pressure (Max.) | 10 bar | |
| Discharge Pressure (Max.) | 30 bar | |
| Measurement Accuracy | +/- 1,5% | |
| Display Type | Mechanical | Partial total (4 digits) and Cumulative total (7 digits) |
| Partial Total Capacity | 9999 liters | Resettable |
| Cumulative Capacity | 9,999,999 liters | Cumulative |
| Features | Easy to install, calibratable, high throughput, high load capacity |
Durability was the main consideration during the design of the PIUSI K700 PULSER. The mechanical operation minimizes the risk of electronic failures, which is particularly advantageous in dusty, vibrating, or extreme temperature environments. The device exceptionally withstands high pressure, ensuring a long service life and continuous, accurate measurement.
Dedicated to the product datasheets and manuals, as well as spare parts are also available through the PIUSI support systems, ensuring long-term operation and serviceability. The PIUSI quality guarantee ensures that the K700 is manufactured according to the highest industrial standards.
