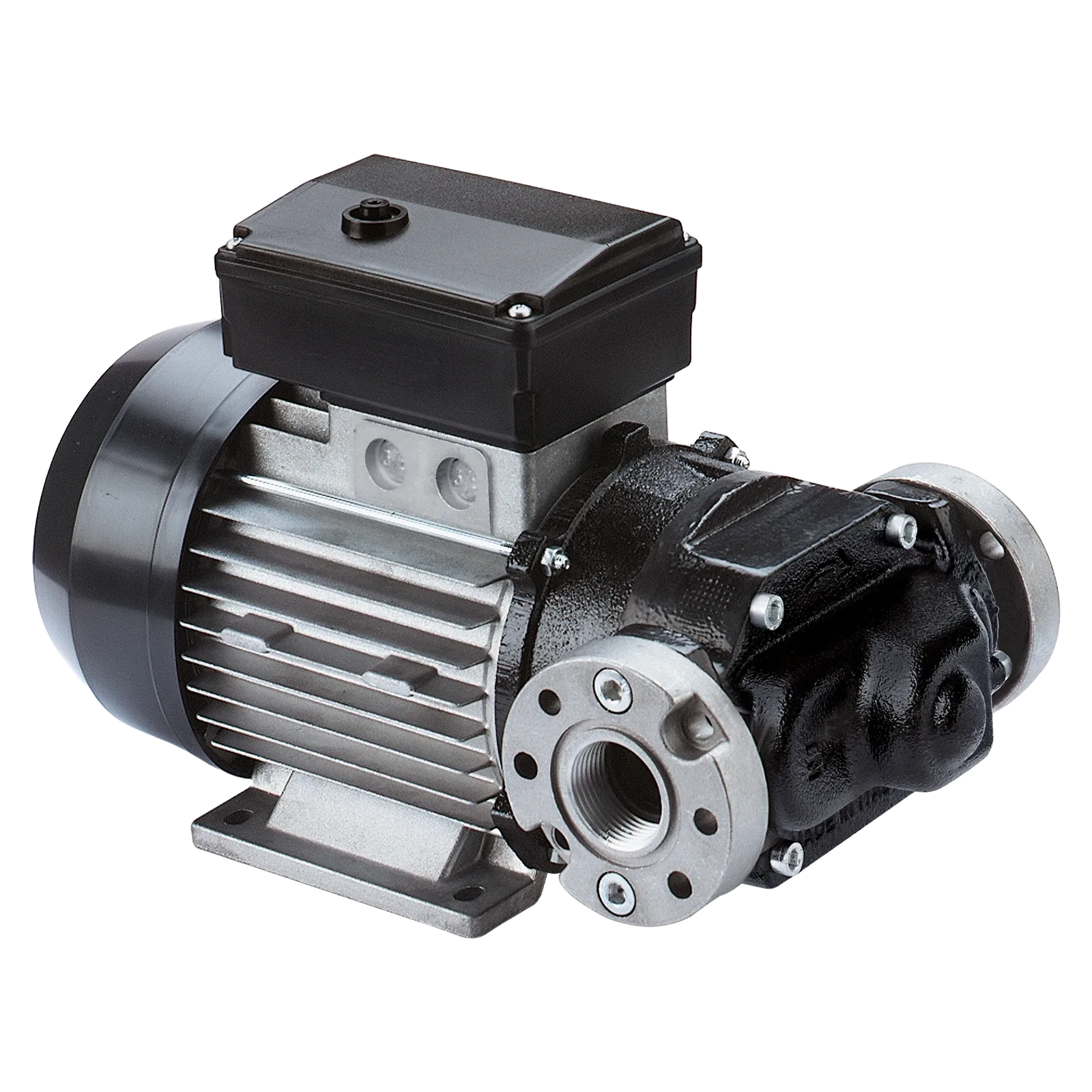

The PIUSI E120 is a high-quality, electrically driven diesel transfer pump, specifically designed for the most demanding industrial applications. This robust and reliable device offers an ideal solution for the automotive, agricultural, logistics, transport, and construction sectors where continuous, high-performance fluid transfer is required. The E120 combines PIUSI's Italian manufacturing quality with long life and outstanding performance.
The E120 pump is one of the versatile members of the PIUSI range of diesel transfer pumps. Its design allows for extremely versatile use and ensures reliable operation even in low-temperature conditions.
Versatility and Application Areas:
The E120 is the ideal choice for the following areas:
Agriculture: Fast and safe transfer of large quantities of fuel.
Logistics & Transport: Efficient fuel supply for vehicle fleets.
Mining & Construction: Reliable operation in robust environments.
Automotive Industry and Garages: For fixed fuel dispensing systems and meters.
Excellent Design and Durability:
The pump features a massive and resistant cast iron body, which guarantees a long service life and mechanical stability. The compact design facilitates integration into various systems.
High-Performance Flow:
The E120 volumetric, self-priming vane pump can achieve up to 100 liters/minute flow rate, enabling precise dosing.
Precise Adjustment:
The pump is equipped with a built-in by-pass valve which allows for precise adjustment of the transferred quantity during dosing, maximizing accuracy.
Engine Protection:
The pump's induction motor is equipped with a is equipped with thermal protection which protects the motor from damage caused by overload, ensuring the reliability of continuous cycle operation.
Easy Installation and Handling:
The E120 is easy to install, and its user-friendly design allows it to be easily integrated into existing diesel dispensing systems or fixed fuel transfer stations.
The internal structure of the PIUSI E120 pump serves reliability and long-term performance.
| Component | Material/Specification | Function |
|---|---|---|
| Pump Type | Volumetric, self-priming vane | Efficient fluid transfer |
| Rotor | Sintered steel | Durability and wear resistance |
| Vanes | Acetal resin | Excellent sealing and reliability |
| Motor | Induction motor | Suitable for continuous cycle operation |
| Motor Casing | Alu | Light weight and good heat conduction |
| By-pass Valve | Built-in | Precise control of flow rate |
| Thermal Protection | Integrated | Overload protection |
| Connections | Flanges | Safe and leak-free fixing |
| Maximum Flow Rate | 100 l/min | High-capacity transfer |
The E120 electric diesel transfer pump includes the following main components for installation and operation:
E120 pump unit
Built-in by-pass valve
Induction motor with thermal protection
Flange connectors for mounting
The E120 pump has been specifically optimized for the safe and efficient transfer of the following fluids:
Diesel
HVO (Hydrotreated Vegetable Oil)
XTL (Fossil-based synthetic diesel)
This wide compatibility ensures that the pump meets modern fuel standards and future expectations.
PIUSI is committed to providing comprehensive support for its products. Detailed datasheets and user guides are available for the E120 model to facilitate installation and maintenance.
Available Documentation:
Datasheet and Manuals: Detailed technical information and installation guides.
Spare Parts: Easily identifiable spare parts based on product codes ensure the long-term operability of the equipment.
Example of Support Codes (for completeness):
| Product code | Description |
|---|---|
| 000312000 | E 120/T 400V/50Hz 460V/60Hz FLANGE D.80 |
| 000326000 | E120/M |
The PIUSI E120 electric diesel transfer pump guarantees reliability, performance, and Italian quality for all critical fluid transfer tasks.
