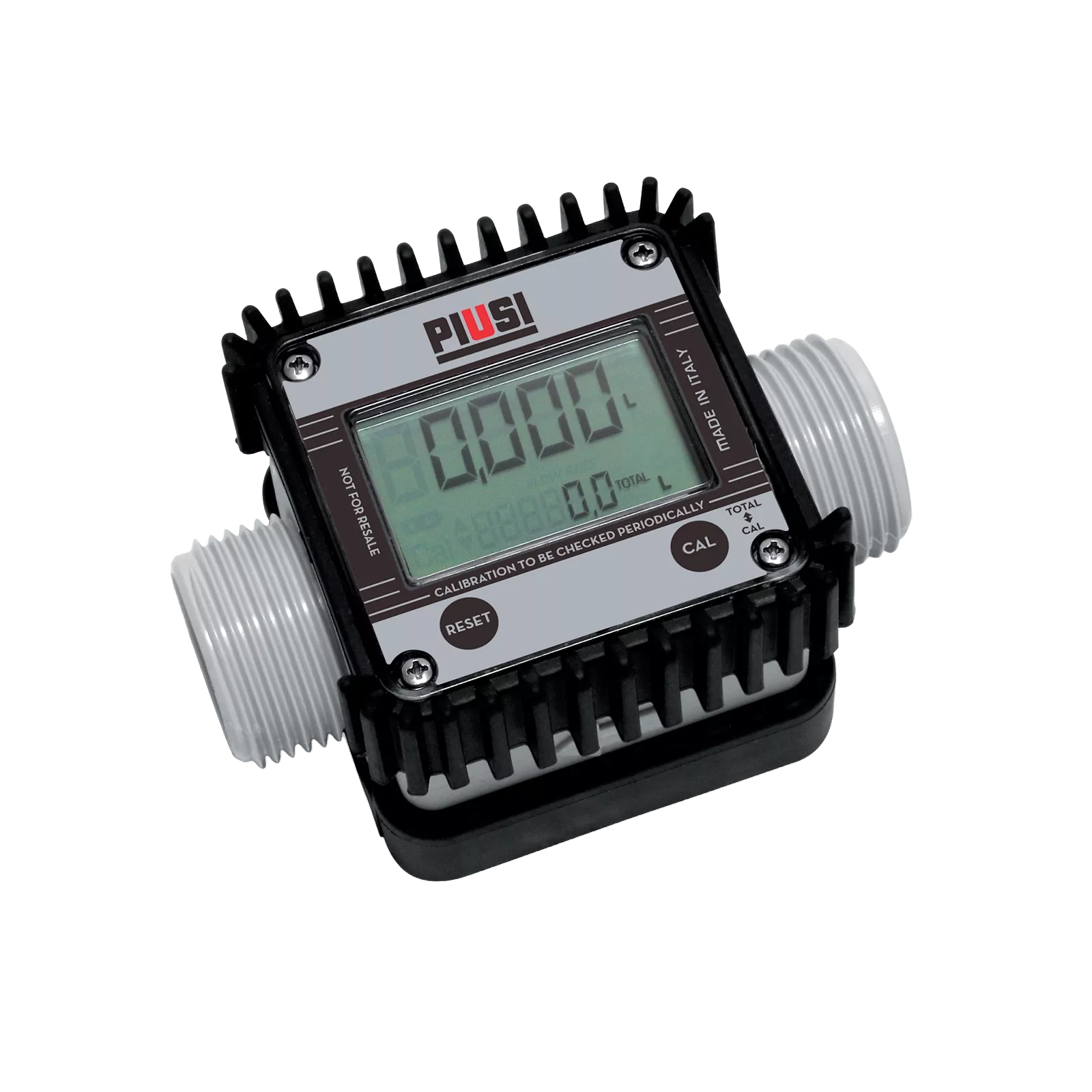

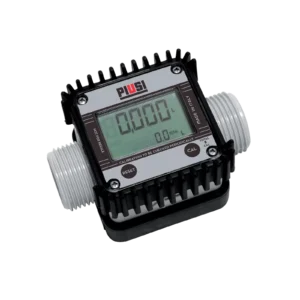

A PIUSI K24 AdBlue® Flow Meter An extremely easy-to-install, reliable meter specifically designed for the precise volumetric measurement of AdBlue® (urea solution). Its compact design and easily readable digital display make it ideal for numerous industrial, logistics, and agricultural applications where precise dosing of AdBlue® used for SCR (Selective Catalytic Reduction) systems is essential.
This device is suitable not only for measuring AdBlue® but can also be used to measure other non-hazardous fluids, such as antifreeze and windshield washer fluid.
The K24 AdBlue® flow meter combines user-friendly design with precise measurement, ensuring efficient and error-free fluid management:
Egyszerű Telepítés: The flow meter can be installed directly into the line (inline) or at the end of the spout. It can even be mounted directly onto the dispensing nozzle for maximum convenience.
Easy-to-Read Display: The digital LCD display is compact yet highly visible, allowing the user quick and accurate data acquisition.
Four-Way Display Rotation: The display unit can be rotated into four different positions, ensuring optimal readability regardless of the installation location.
Simple Battery Replacement: The device operates on standard AAA batteries, which can be quickly and easily replaced by the user.
Low Energy Consumption: The electronics have extremely low power consumption, guaranteeing a long operating time with the batteries.
Protective Casing: The device is equipped with a rubberized protection that increases resistance to mechanical damage in harsh working environments.
Pulse Output: The K24 PULSE-METER version features a single-channel reed switch signal output, enabling integration with external data acquisition systems.
The K24 flow meter delivers reliable performance according to the parameters specified in the specifications.
| Characteristic | Description |
|---|---|
| Product Category | AdBlue® / Other Fluids |
| Measured Fluids | AdBlue®, Antifreeze, Windshield Washer Fluid |
| Application Areas | Garage equipment, Agriculture, Logistics, Mining and Construction Industry, Industrial use |
| Display Type | LCD Digital Display |
| Partial Total | 5 digits (from 0.1 to 99999) |
| Total Amount (Total) | 6 digits (from 1 to 999999) |
| Resettable Total | Yes (Resettable total available) |
| Additional Functions | Flow rate indication |
| Tápellátás | Standard AAA batteries |
| Display Rotatability | 4 positions |
The K24 PULSE-METER version is ideal for those who want to transmit measured data to external systems:
| Characteristic | Value |
|---|---|
| Output Signal Type | Raw signal (reed switch), single channel |
| Maximum Voltage | 28 V AC/DC |
| Maximum Current | 100 mAmp |
The versatility of the K24 AdBlue® flow meter allows for wide application:
Logistics & Transport: Precise tracking of AdBlue® refueling for diesel vehicles to optimize fleet management.
Agriculture: Monitoring AdBlue® consumption in agricultural machinery (tractors, combine harvesters).
Construction and Mining: Precise measurement of AdBlue® supply for high-power, frequently used machinery on sites.
Industrial Plants: Any process where the dosing of AdBlue® or other compatible fluids (antifreeze, windshield washer fluid) needs to be measured and documented.
The K24 flow meter is available in two main versions with different functionalities: the standard measuring unit (METER) and the version with a pulse output (PULSER).
| Product Code | Description |
|---|---|
| F0040710A | K24 METER ADBLUE 1″ M/F BSP (Standard meter version) |
| F0040721B | K24 PULSER ADBLUE 1″ M/F BSP (Pulse version) |
The K24 AdBlue® flow meter represents the reliability and quality of PIUSI, ensuring that AdBlue® dispensing is always accurate and verifiable.
