The PIUSI Pitstop is a complete, ready-to-install mobile diesel dispensing solution designed for use with fixed tanks or tanks mounted on vehicles. This high-quality, robust system is the ideal choice for those seeking a reliable and efficient fuel transfer solution for agricultural, construction, automotive, or marine applications. The unique feature of the Pitstop is the integrated automatic hose reel, which significantly simplifies and makes fuel transfer safer.
The PIUSI Pitstop system has been designed with maximum user convenience and long-term reliability in mind.
Ready-to-Install Solution: The Pitstop is a complete unit that includes the pump, hose, couplings, and automatic nozzle. This minimizes installation time and ensures the system is operational immediately.
Integrated Automatic Hose Reel: The core element of the system is the reel equipped with an automatic rewind mechanism. This feature ensures the tidy storage of the hose, prevents trip hazards, and significantly increases handling speed.
Adjustable Arms: The adjustability of the reel arms allows for fine-tuning the end-stop (terminal position), enabling faster and safer working operations.
Robust and Compact Structure: The entire unit – including the automatic hose reel, the direct current (DC) pumps, and the automatic nozzle – is integrated into a solid, durable metal support frame. This design ensures excellent resistance even in harsh working environments.
Motor Protection with Filter: The system's integrated absorbent (water-separating) cartridge filter is a crucial guarantee for motor protection. This filter ensures that the diesel fuel transferred is free from contaminants and water that could damage the fuel system.
Versatile Application: Ideal solution for supplementing mobile or fixed tanks in agriculture, construction, fleet management, and the marine sector.
The PIUSI Pitstop delivers reliable performance thanks to the quality components housed within it.
| Technical Parameter | Details |
|---|---|
| Product Category | Fuel Transfer |
| Fuel Types | Diesel, HVO (Hydrotreated Vegetable Oil), XTL |
| Application Areas | Agriculture, Mining, Construction Industry |
| Pump Type | Direct Current (DC) self-priming rotary vane pumps |
| Flow Rate (Guaranteed) | Up to 45 liters/minute |
| Hose Size (3/4″) | 14 meters |
| Hose Size (1″) | 10 meters |

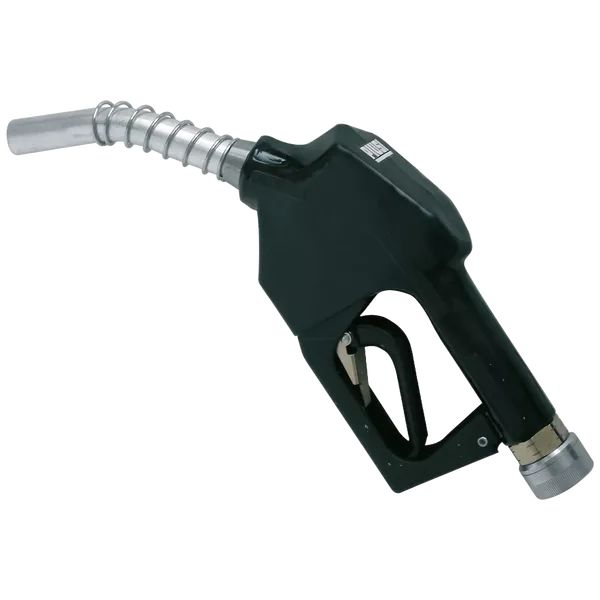

| Nozzle Type | Automatic Dispensing Nozzle |
| Filter System | Integrated, absorbent cartridge water separator filter |
| Structure | Robust metal support frame |
| Voltage Optional | 12V DC or 24V DC (depending on the product code) |
The Pitstop system is available in different voltage versions, which have specific product codes:
| Product code | Description | Voltage | Hose length |
|---|---|---|---|
| F00212000 | PITSTOP 12V 14 MT HOSE | 12V DC | 14 meters (3/4") |
| F00213000 | PITSTOP 24V 14 MT HOSE | 24V DC | 14 meters (3/4") |
Note: The 3/4" hose is available in a length of 14 meters, while the 1" hose is available in a length of 10 meters in the basic configuration of the system.
The Pitstop unit is equipped with two independent, self-priming electric rotary vane pumps, which guarantee continuous and reliable fuel supply.
Self-Priming Capability: The pumps are capable of sucking air from the suction side, which simplifies initial startup and maintenance.
Bypass Valve: The pumps are equipped with a bypass valve, which ensures optimal pressure ratios and protects the pump from overloading, especially when the nozzle is closed but the pump is still running.
Power: The guaranteed flow rate of 45 l/min ensures fast refueling, which is critical at high-traffic sites.
Due to the flexibility of the PIUSI Pitstop, it is an indispensable tool in many industries:
Agriculture: Ideal for supplying large-capacity machinery (tractors, harvesters) with fuel in the field or on the site. The possibility of mobile installation allows fuel to be taken to where the work machines are operating.
Mining & Construction: The robust design and reliable filtration are essential in dusty and demanding construction environments. The Pitstop ensures that heavy equipment always has fuel of the proper quality.
Fleet Management: For small or medium-sized fleets where vehicles do not stop at a central filling station, the Pitstop enables on-site, controlled refueling.
Marine Applications: Suitable for the safe and efficient transfer of diesel fuel for boats or smaller watercraft where space is limited.
One of the most important components of the Pitstop system is the built-in filter cartridge. Modern diesel engines are extremely sensitive to contamination, especially water, which can cause corrosion and serious engine damage.
The PIUSI Pitstop provides the following:
Water Separation Capacity: The special filter cartridge effectively binds the water present in the diesel, preventing it from reaching the engine's fuel supply system.
Particle filtration: By filtering out mechanical impurities (rust, dust), the filter protects the injectors and fuel pumps, thus extending the engine's lifespan.
As part of the system maintenance, regular replacement of the filter cartridge is recommended for maximum protection.
The PIUSI Pitstop is a premium integrated mobile dispensing system that combines convenience (automatic hose reel), reliability (dual-flow pumps), and engine protection (water-blocking filter) in a single, easily installable unit. It is the ideal choice for all professional users where on-site, fast, and clean diesel fuel transfer is essential.
