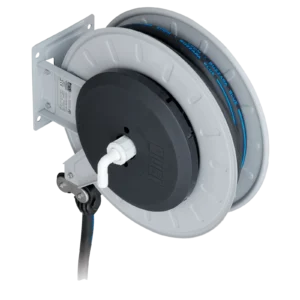

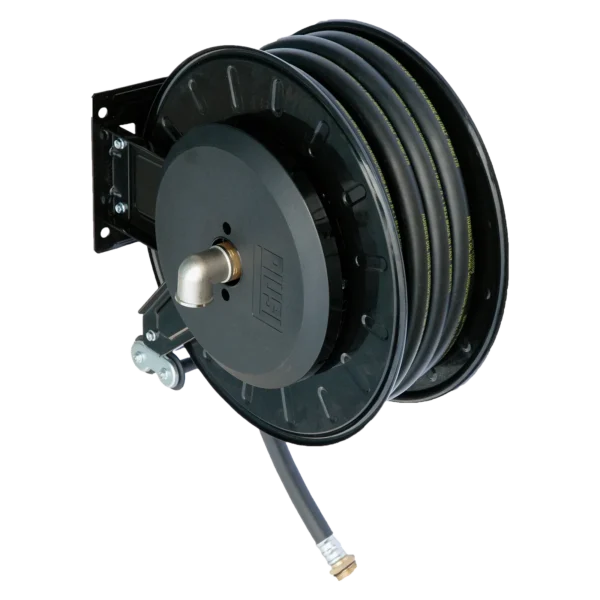

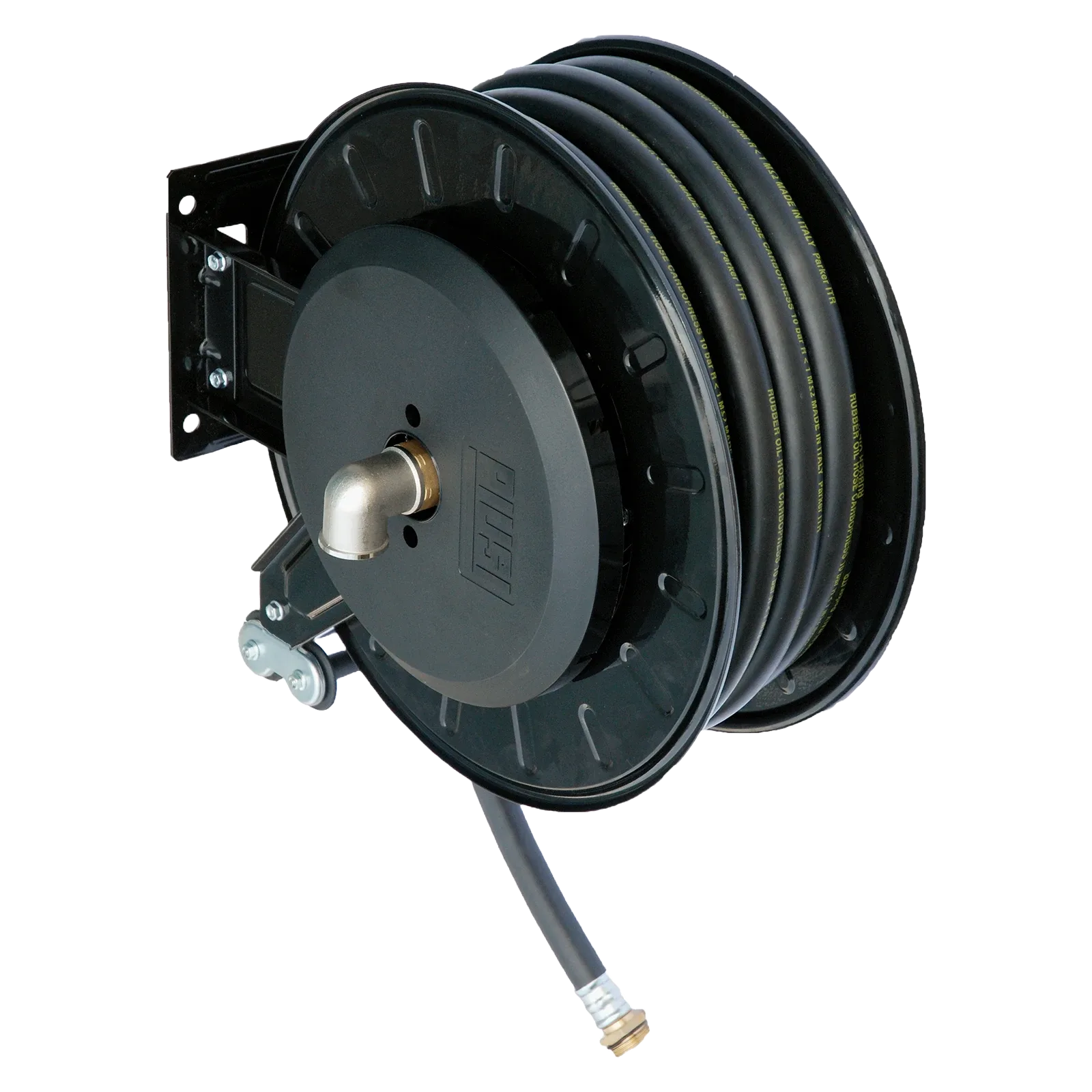

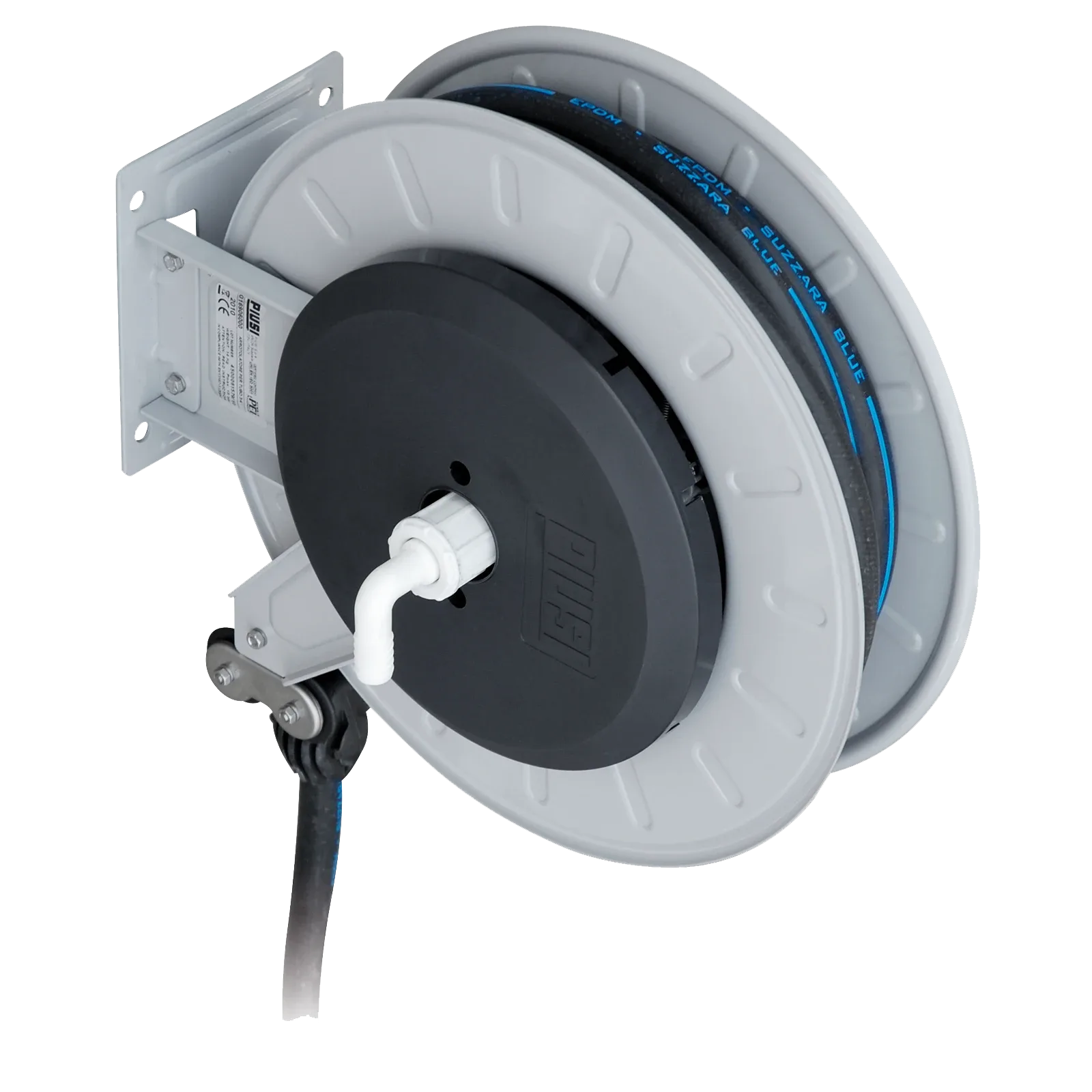

Discover the Piusi automatic diesel fuel hose reel, designed for the highest efficiency and reliability, even in the most demanding industrial environments. This robust, high-performance retractable hose reel guarantees optimal performance for diesel and HVO/XTL fuel logistics, mining, construction, agricultural, and marine applications. Choose Piusi quality for durable and efficient fluid transfer.
Piusi automatic diesel hose reels offer the perfect blend of durability and user-friendly design. The main advantages are as follows:
Extremely Robust Construction: The design guarantees excellent performance even in heavy-duty environments, ensuring long service life and reliability.
Corrosion Resistance: The structure's from stainless steel made, which resists corrosion, making it ideal for various environmental conditions.
Reduced Pressure Loss: Optimizing the internal flow path minimizes pressure loss, ensuring faster and more efficient fuel transfer.
Simple and Versatile Installation: A rotating mounting plate and the adjustable arm positions allow for flexible and easy installation on almost any surface.
Safe Hose Stop System: The built-in side protective covers and the safe hose stop mechanism increases handling safety and protects the hose from damage.
Hand Protection: The design ensures operator safety during hose retraction.
This hose reel is ideally suited for fluid handling in the following sectors:
Logistics
Mining and Construction Industry
Industrial facilities
Agriculture
Marine (Naval) applications
The product is compatible with Diesel, HVO (Hydrogenated Vegetable Oil) and XTL fuels.
Piusi automatic diesel hose reels are available in a wide range, equipped with or without a hose, in different sizes and connection options.
| Characteristic | Description |
|---|---|
| Product Category | Fluid Transfer Products |
| Product Family | Fuel |
| Compatible Media | Diesel / HVO / XTL, Gasoline |
| Application | Logistics, Mining & Construction, Industrial, Agriculture, Marine |
| Construction Material | Corrosion-Resistant (Stainless Steel Elements) |
| Construction | Automatic Retractable |
The table below details the models supplied from the factory with a hose, including the hose size and connection type.
| Product code | Description | Hose Diameter x Length | Connection | Design |
|---|---|---|---|---|
| F0075002B | HOSE REELS W/HOSE | D25 x 8m | 1″ BSP | BIG |
| F0075003B | HOSEREEL W/HOSE | D25 x 10m | 1″ BSP | BIG |
| F0075004B | HOSEREEL W/HOSE | D20 x 10m | 1″ BSP | BIG |
| F0075009B | HOSE REEL W/HOSE | D20 x 8m | 1″ BSP | SMALL |
| F0075010B | HOSE REEL W/HOSE | D20 x 14m | 1″ BSP | BIG |
| F0075012B | HOSEREEL HOSE | D20 x 10m | ¾” BSP | DIESEL |
| F0075019B | HOSEREEL XL W/HOSE | D25 x 15m | 1″ BSP | DIESEL |
| F0075023B | HOSEREEL | D25 x 10m | 1″ BSP | DIESEL/BIG STEEL |
| F0075026B | HOSEREEL XL HOSE | D25 x 15m | 1″ BSP | DIESEL STEEL |
For users who wish to equip the reel with their own hose, the following bare versions are available:
| Product code | Description | Hose Size | Connection | Design |
|---|---|---|---|---|
| F0075000A | HOSE REELS (BARE) | ¾” | BSP BIG | Bare |
| F0075001A | HOSE REELS (BARE) | 1" | BSP BIG | Bare |
| F0075008A | HOSE REELS (BARE) | ¾” | BSP SMALL | Bare |
| F0075018B | HOSEREEL NKED XL | D25 15m | 1″ BSP DIE | Bare XL |
| F0075025A | HOSEREEL NKED XL | D25 15m | 1″ BSP DIE STEEL | Bare XL Steel |
| F00750310 | HOSEREEL NKED XL HOSE | D20 20m | ¾” BSP DIE | Bare XL |
In the design of Piusi hose reels, great attention was paid to ease of installation. The rotating mounting plate allows the reel to rotate 360 degrees during installation, so the optimal angle for hose entry can be easily set for the desired position. The adjustable arm positions further increase flexibility, ensuring that the hose pulls out and retracts evenly and without obstruction.
A lateral protective covers not only serve an aesthetic function but also protect the internal mechanism from external physical impacts, which is essential in harsh industrial environments. The handguard design minimizes the risk of injury during handling.
This automatic hose reel is the ideal solution for any location requiring fast, clean, and safe refueling, minimizing the inconvenience and risk of accidents associated with hose handling. Stainless steel components guarantee that the equipment will withstand corrosive effects and continuous, heavy use.
