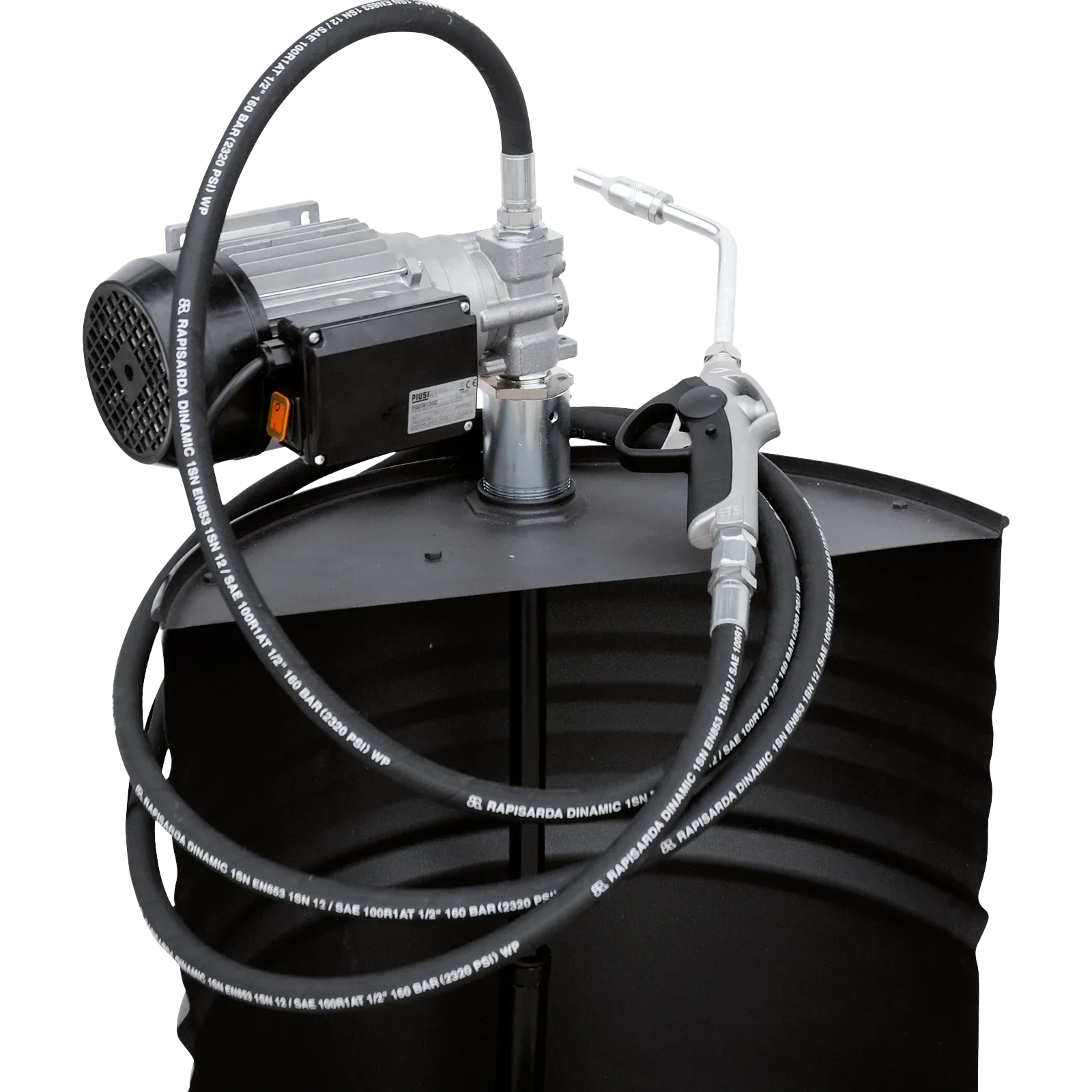

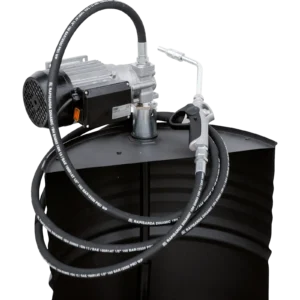

A PIUSI VISCOMAT GEAR DRUM A robust, high-speed oil transfer pump set specifically developed for high-demand workshops and the industrial, agricultural, and construction sectors. This equipment guarantees the fast, safe, and precise dispensing of medium-to-high viscosity oils, thus optimizing workflows.
The VISCOMAT GEAR DRUM set is available in both AC (alternating current) and DC (direct current) versions, allowing for flexible integration into existing power supply infrastructure.
The VISCOMAT GEAR DRUM is not just a pump, but a complete solution that prioritizes reliability and efficiency:
Greater Reliability: Unlike traditional vane pumps, the PIUSI Viscomat Gear is an electric gear pump, which provides up to capable of transferring oils up to 500 cSt viscosity. The gear rotor design provides exceptional resistance to viscosity, increasing the lifespan of the unit.
High Flow Rate: With 9 l/min flow rate, ensuring rapid oil dispensing, which is essential for busy workshops.
Simple and Quick Installation: Connection to the barrel is extremely simple thanks to the 2″ quick coupling . The set includes a telescopic suction tube for direct connection, as well as a dedicated holder near the pump, ensuring a clean and tidy work environment during dispensing.
Safe Operation: The pump incorporates a non-return valve which ensures that the oil flows only in one direction through the pump's delivery pipe. This prevents backflow or system emptying in case the pump is switched off.

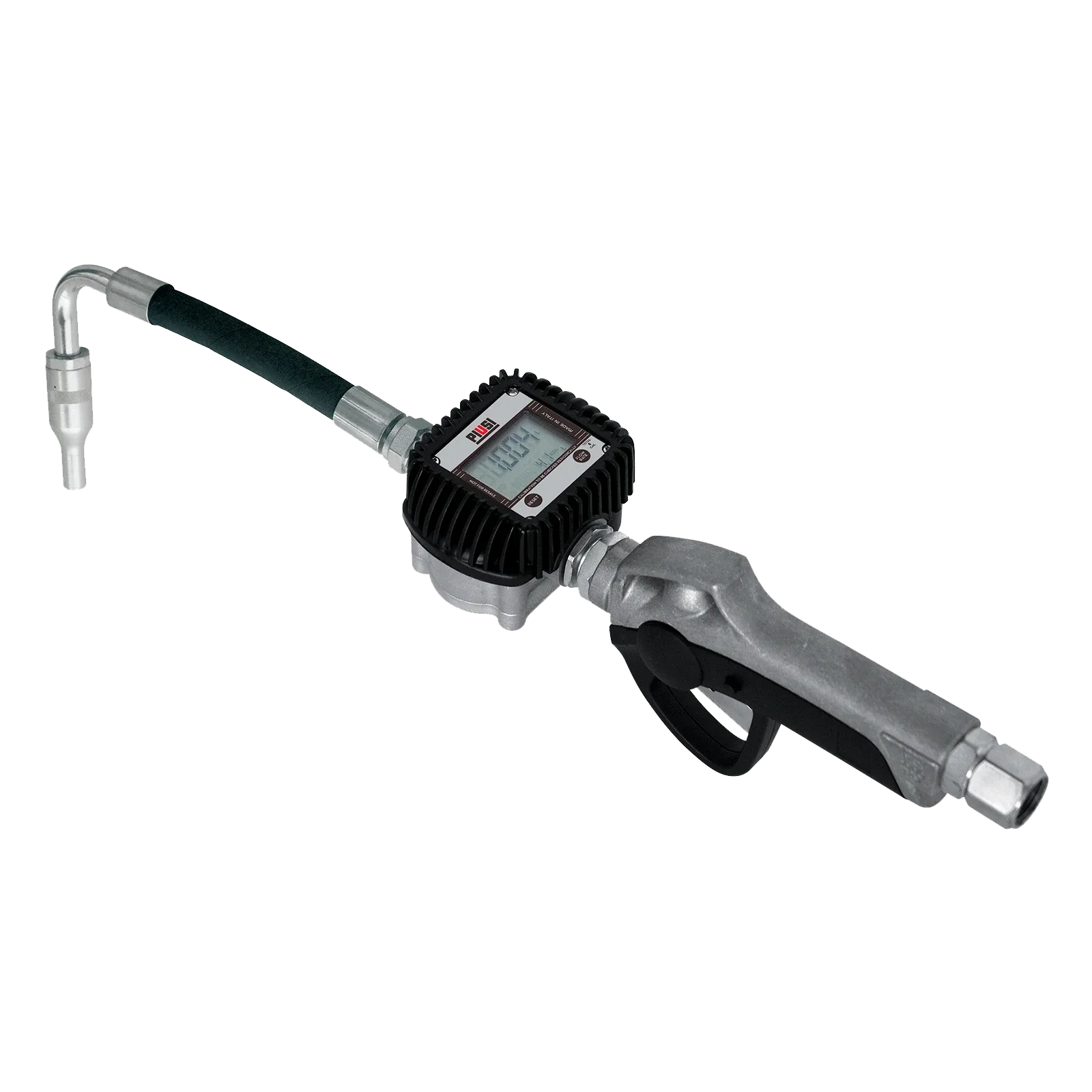

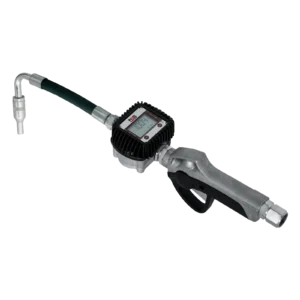

Precise Dispensing: As standard, the set includes the Easy Oil vagy az Easy K400 dispensing nozzle, as well as the K400 digital flow meter. The latter enables precise dispensing and tracking of individual consumption. On request, the K24 digital flow meter is.

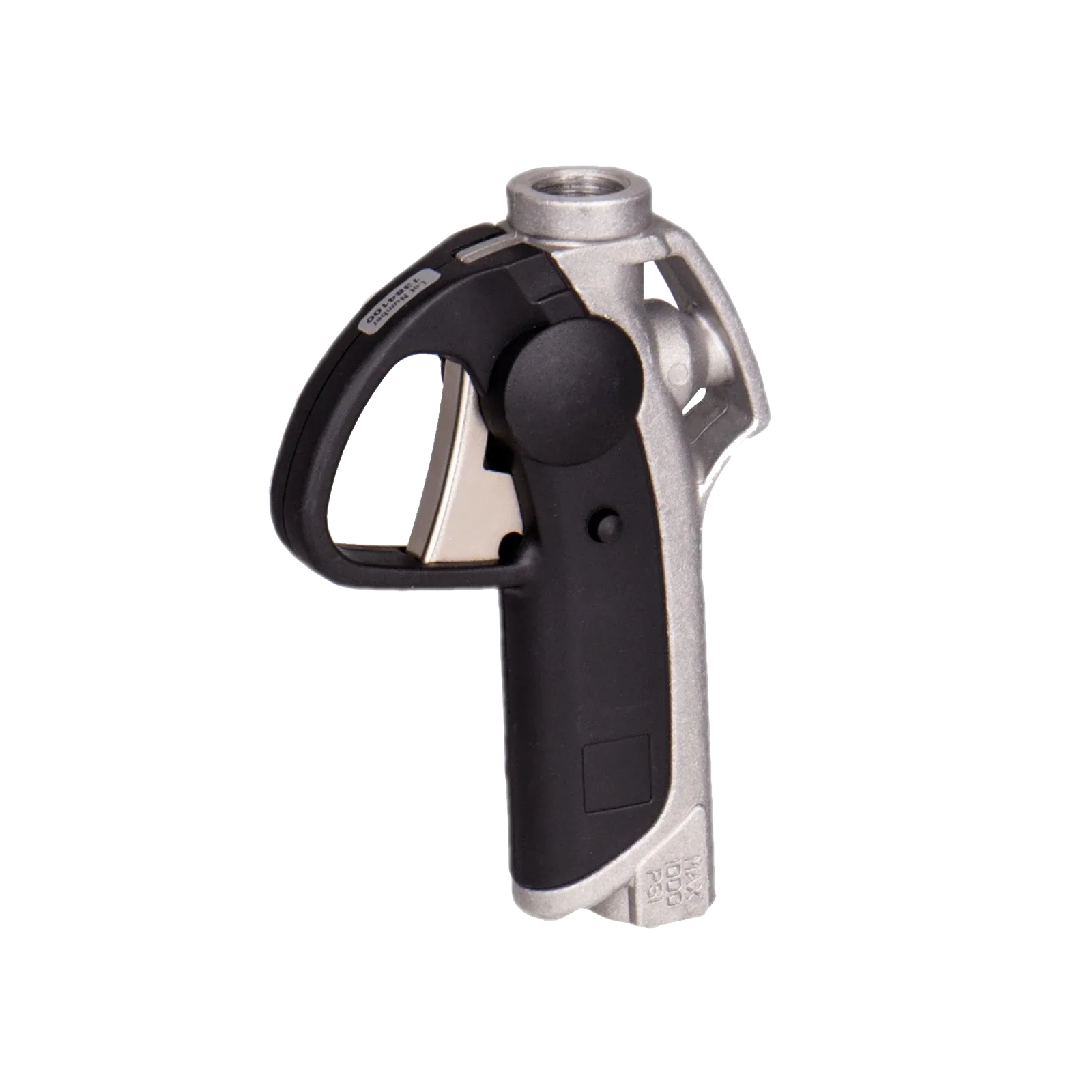

Ergonomic Design: The set includes a pistol equipped with an ergonomic grip, which ensures comfortable and safe use.
Easy Calibration: For versions equipped with the K400 meter, calibration can be easily performed, ensuring the maintenance of measurement accuracy.
The VISCOMAT GEAR DRUM is an ideal choice for the following areas:
Automotive Repair Shops (Garage Equipment)
Agriculture (Agriculture)
Mining & Construction (Mining & Construction)
General Industrial Use (Industrial)
The product line is available in different configurations that serve varying voltage requirements and metering options.
| Product code | Description | Power supply | Flow Meter |
|---|---|---|---|
| F0026100D | DRUM VISCOMAT 200/2 | 230V 50/60Hz (AC) | None (basic pistol) |
| F0026200D | DRUM VISCOMAT 200/2 K400 | 230V 50/60Hz (AC) | K400 Digital |
| F00268010 | DRUM VISCOMAT 60/1 K400 | 24V (DC) | K400 Digital |
General Technical Parameters (Basic characteristics of the pumps):
Product Category: Lubricants, Oil
Pump Type: Electric Gear Pump (Gear Pump)
Maximum Viscosity Tolerance: Up to 500 cSt
Maximum Flow: 9 l/min (depending on configuration)
Connection: 2″ quick connector for the drum
Configuration: Drum Mounted (Drum Mounted)
The VISCOMAT GEAR DRUM set can be assembled according to user requirements, but generally includes the following components:

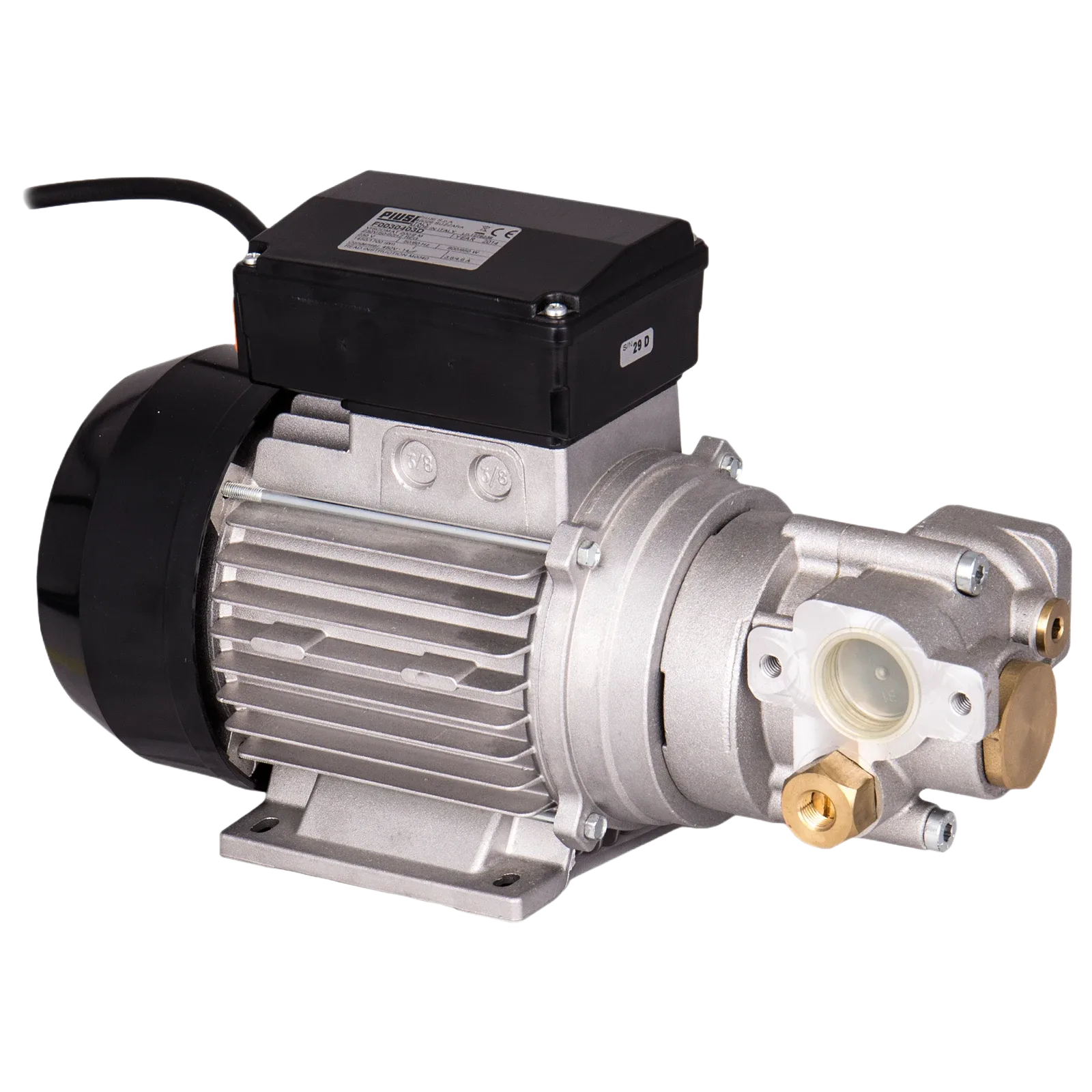

PIUSI Viscomat Gear Pump: High-performance gear pump block.
Telescopic Suction Hose: Hose with adjustable length for the bottom of the barrel.
Dispensing Gun: Optionally Easy Oil (manual) or Easy K400 (metering).
Flow Meter (Optional/Standard Equipment): K400 digital measuring unit for precise quantity tracking.
Connection Components: Elements required for mounting onto the barrel.
The 230V versions are ideal for workshops with fixed installations where stable mains power is available. These models ensure continuous, high-performance oil transfer even for the most demanding tasks.

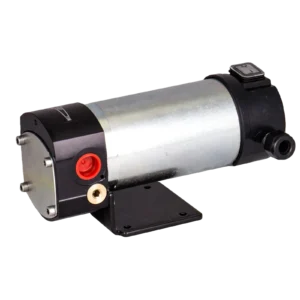

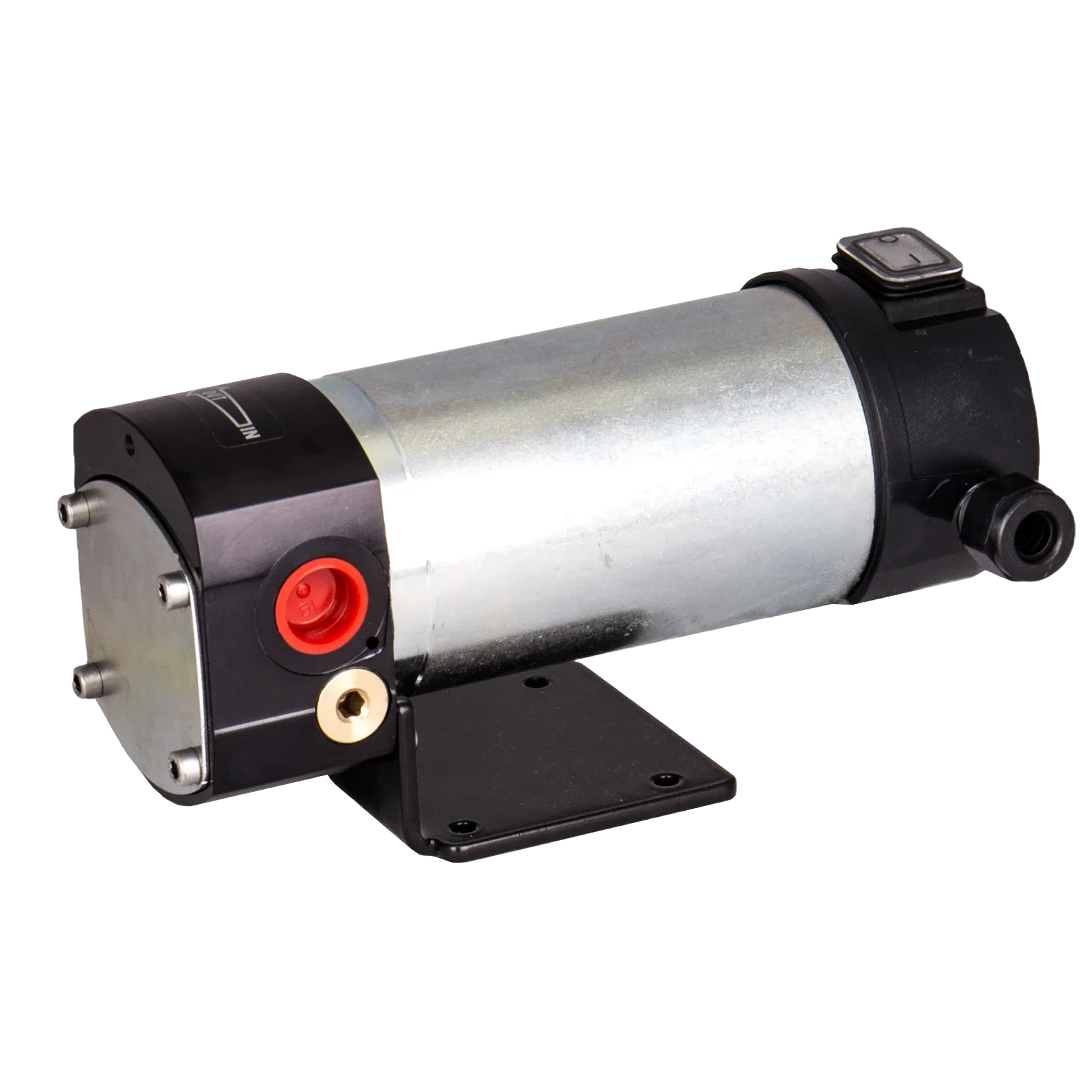

The 24V direct current configuration offers maximum flexibility. This version is perfect for mobile applications or locations without access to mains power (e.g., fieldwork, construction sites). The 24V system enhances safety in certain industrial environments.
In the manner typical for PIUSI products, the VISCOMAT GEAR DRUM is also designed for durability. The robust construction and quality materials guarantee that the pump will withstand harsh operating conditions and continuous use. The use of gear technology highlights PIUSI's commitment to reliable, long-term solutions for handling viscous fluids.
A VISCOMAT GEAR DRUM the perfect fusion of efficiency, safety, and precision in oil dispensing.
