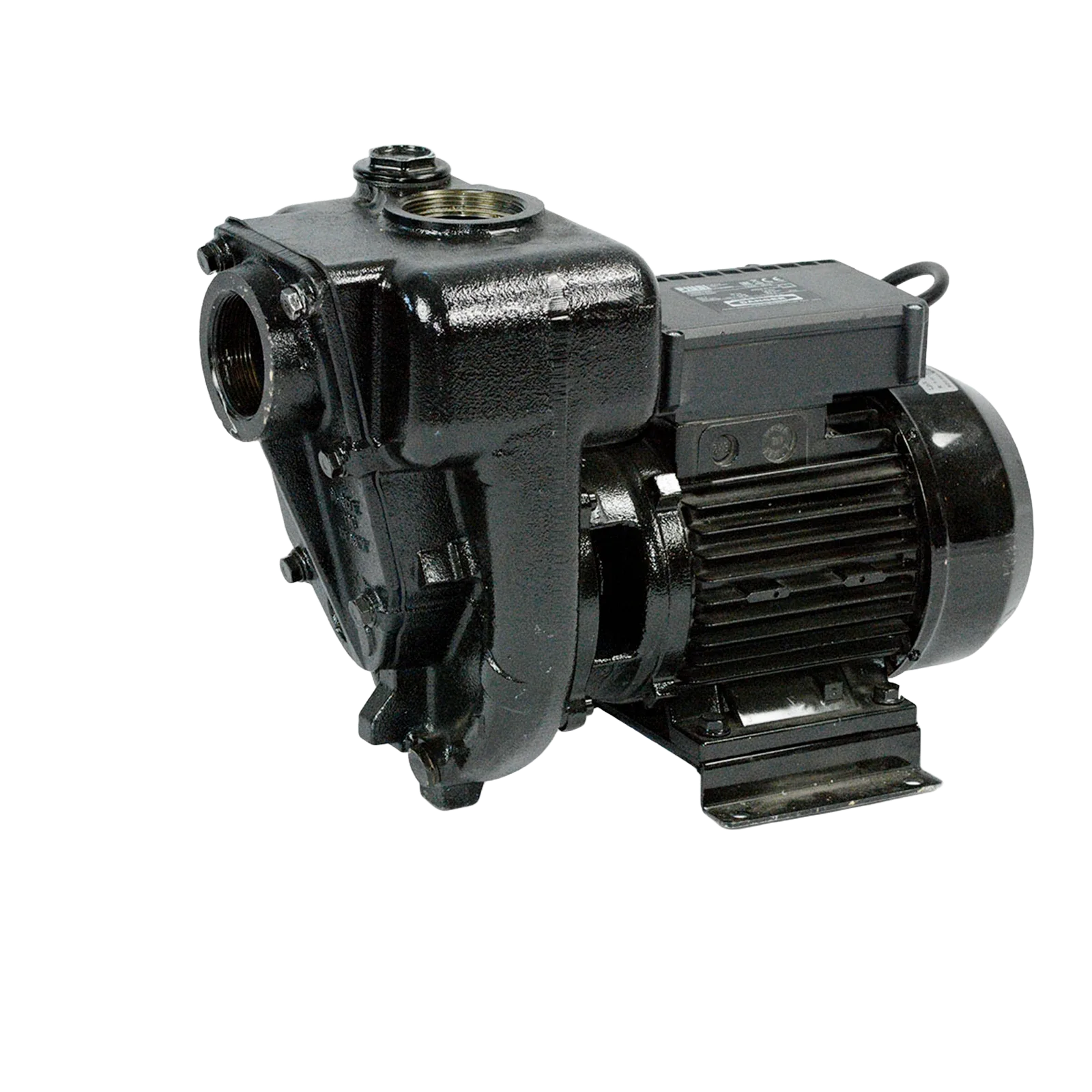

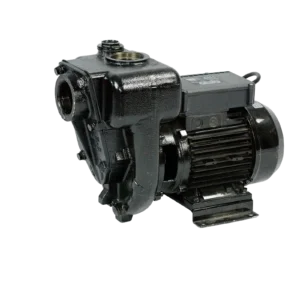

The E300 is a Heavy Duty diesel fuel flow pump, specifically designed for the most demanding industrial applications where high volumes of diesel need to be pumped quickly and at high pressure. This Piusi pump offers an excellent solution in mining, construction, transport, automotive, and agricultural sectors where reliability and durability are essential.
The E300 pump features an open impeller, making it ideal for high-speed transfer of diesel and similar fluids (Diesel/HVO/XTL). The product represents the quality manufactured in Italy by Piusi in the 100%, ensuring a long service life and continuous, high-performance operation.
The E300 pump is the perfect blend of speed and reliability, significantly reducing pumping time while guaranteeing safe operation.
The pump has up to 500 liters/minute capable of ensuring maximum flow rate, which allows for extremely fast filling and transfer. The maximum operating pressure 1.7 bar, which is sufficient for the efficient movement of large quantities of diesel.
The pump is equipped with a cast iron impeller, which ensures excellent resistance to high workloads, guaranteeing a long service life even under intensive use. The structure of the pump is extremely sturdy (Sturdy Structure), specifically optimized for heavy-duty applications (Heavy Duty Application) optimized.
The device is equipped with a built-in check valve on the suction pipe, which effectively prevents the formation of a siphon effect, thereby increasing safety and operational stability. The pump has an IP55 protection rating , which ensures protection against dust and splashing water.
E300 features include optimized suction capacity, sliding rotation, high efficiency, and the use of carefully selected materials. Every single unit is tested in the 100% released to the market.
The E300 pump is the ideal choice for all industrial sectors where fast and high-volume fuel transfer is required:
Mining & Construction: Rapid filling of large equipment fleets on the work site.
Industrial Plants: Transfer between high-capacity tanks.
Transportation & Logistics: Efficient refueling of vehicle fleets.
Agriculture: Fuel supply for large agricultural machinery.
Automotive Industry and Garages: Handling of large quantities of diesel.
The detailed technical specifications for the E300 pump are as follows:
| Parameter | Value | Note |
|---|---|---|
| Product Category | Fluid Transfer | Fuel |
| Fluid Type | Diesel / HVO / XTL | |
| Application | Mining & Construction, Industrial | |
| Maximum Flow Rate | Up to 500 l/min | High Capacity |
| Maximum Operating Pressure | 1.7 bar | |
| Impeller Material | Cast iron | High durability |
| Motor Type | AC (Alternating Current) | Continuous 230 V operation |
| Connections (Inlet/Outlet) | 2” BSP | |
| Protection Rating | IP55 | Dust and splash-proof |
| Special Features | Built-in check valve | Prevention of siphoning effect |
| Features | High flow rate pump, Robust structure, Heavy-duty applications |
The following information is available for product identification and accessing related documentation:
| Product Code | Description | Spare Parts | Manuals |
|---|---|---|---|
| F00321000 | E300 PUMP | [Search for Spare Parts] | [Search for Manuals] |
Attached Documentation:
Detailed Datasheet: E300-PIUSI-DATASHEET-FUEL-EN
Catalogue: OFF-ROAD CATALOGUE-ENGLISH
By choosing the E300 high-performance diesel flow pump, you select a reliable, high-capacity solution that guarantees the efficiency of fuel management processes even in the harshest industrial environments.
