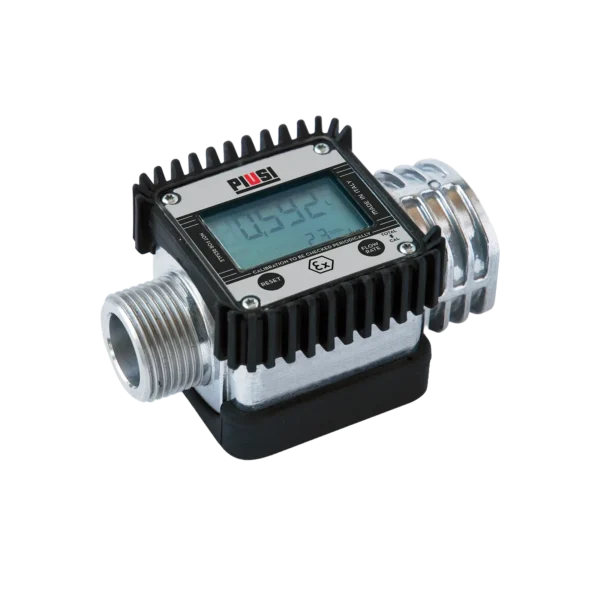

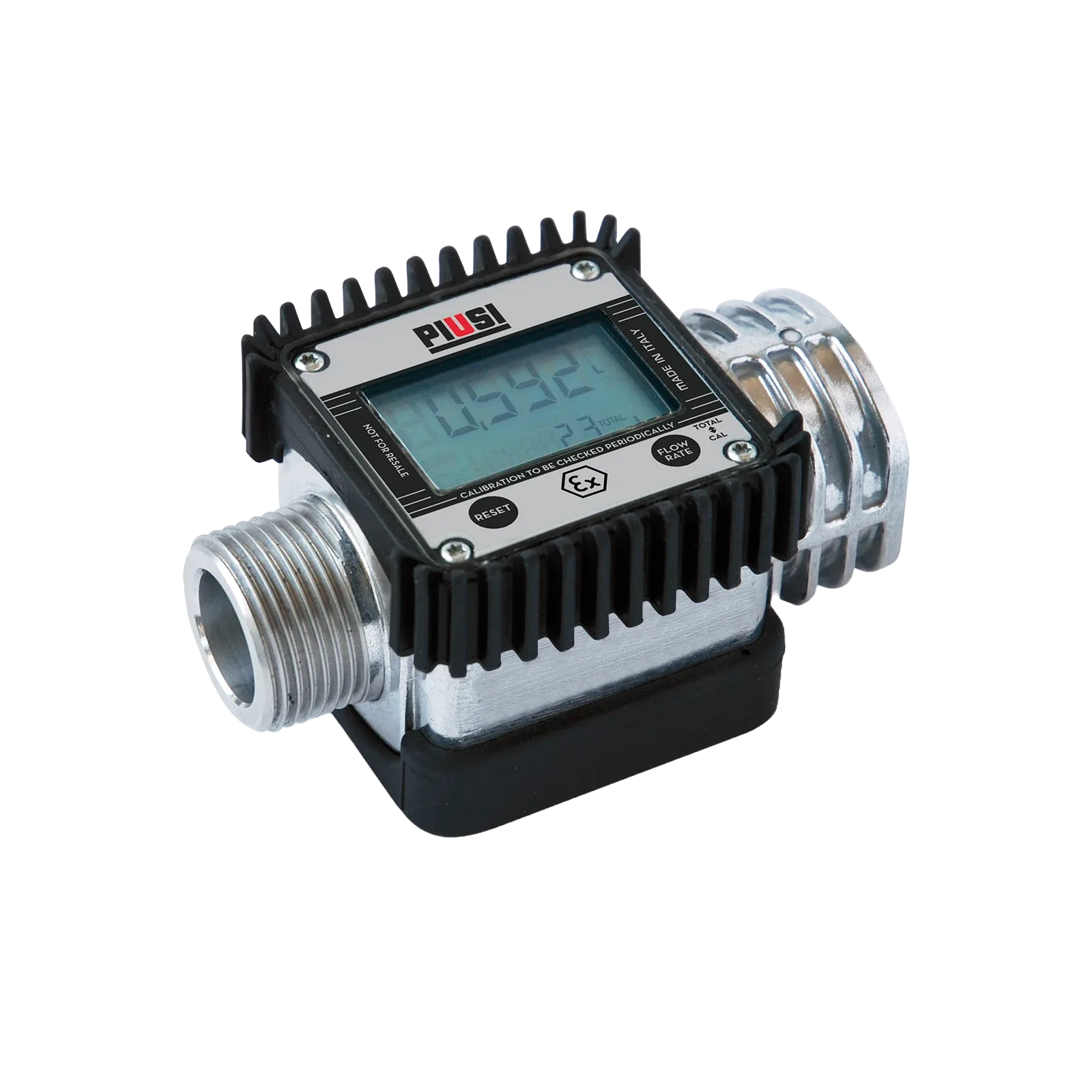

The PIUSI K24 ATEX/IECEx digital flow meter is the latest development for measuring non-commercial fluid dispensing, specifically designed for the safe and precise control of diesel, gasoline, and kerosene (including HVO/XTL fuels). This meter provides an ideal solution for strict industrial environments where the presence of explosive atmospheres (ATEX/IECEx zones) requires adherence to the highest safety standards.
The K24 ATEX/IECEx is excellently applicable in logistics, mining and construction, industrial, as well as agricultural sectors where fluid management is of critical importance.
The K24 ATEX/IECEx complies with the strictest ATEX/IECEx requirements, ensuring safe use in explosive environments regarding the materials used.
Robust Construction:
The device features a massive aluminum body that guarantees a long service life and mechanical resistance. The electronic circuit board is completely sealed (sealed electronic board), which provides protection against adverse working conditions.
Easy Installation and Flexible Use:
The K24 ATEX/IECEx is easy to install, whether connected in-line or mounted at the end of the dispensing hose. The position of the digital LCD display can also be oriented in multiple ways, making it easy to read the dispensed quantity from any installation angle. This meter is the ideal tool for ensuring precise fluid management.
Kalibrálhatóság:
The device is easily calibratable, allowing the user to adjust the measurement accuracy to the specific application.
The K24 ATEX/IECEx offers a number of advanced features to meet user needs:
| Parameter | Spezification | Note |
|---|---|---|
| Product Category | Flow Meter | Digital |
| Fluids Handled | Diesel, HVO/XTL, Gasoline, Kerosene | For non-commercial use |
| Signal Type | Pulse signal | Single channel, Reed switch |
| Display Type | LCD | With electronic circuit board |
| Partial Totalizer | 5 digits (from 0.1 to 99999) | Resettable |
| Totalizer | 6 digits (from 1 to 999999) | |
| Accuracy (Repeatability) | 0.3% | Extremely reliable measurement |
| Pressure | < 0.03 bar | At a flow rate of 120 l/min |
| Bursting Pressure | 100 bar | Maximum operating pressure |
| Additional Functions | Flow rate display, Resettable totalizer | |
| Connection | 1″ BSP (depending on model variant) | |
| Certifications | ATEX / IECEx | For explosive zones |
| Versions | UL variant also available |
The integrated LCD display is extremely user-friendly:
Due to the robust design and certifications of the K24 ATEX/IECEx, it is an ideal choice in the following sectors:
The K24 ATEX/IECEx is available in two main versions, which differ in terms of connection and signal output:
| Product code | Description | Connection | Certificate |
|---|---|---|---|
| F00408X00 | (Ex) K24-A M/F 1″ BSP | Flow Meter (Meter Version) | IECEx |
| F00408Y00 | (Ex) K24-A PULS M/F 1″ BSP | Pulse output (Pulse Version) | IECEx |
The K24 ATEX/IECEx is not just a measuring instrument; it is a reliable safety device that guarantees the dispensing of critical fuels meets the highest industrial and safety standards. The combination of PIUSI quality and ATEX/IECEx compliance ensures long-term, trouble-free operation.
