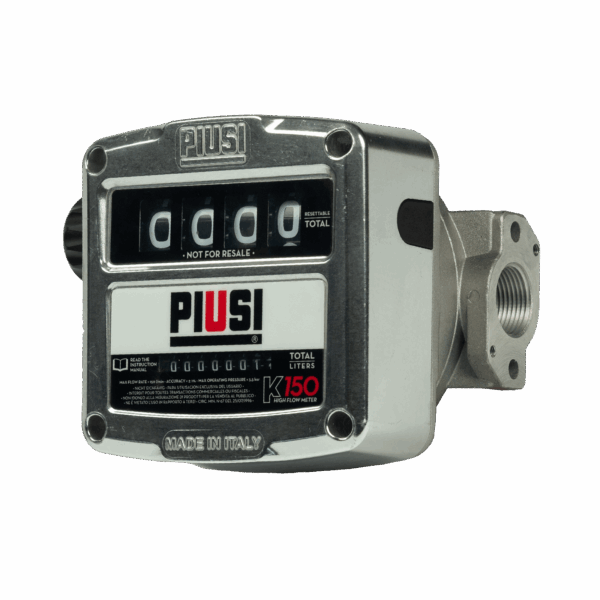

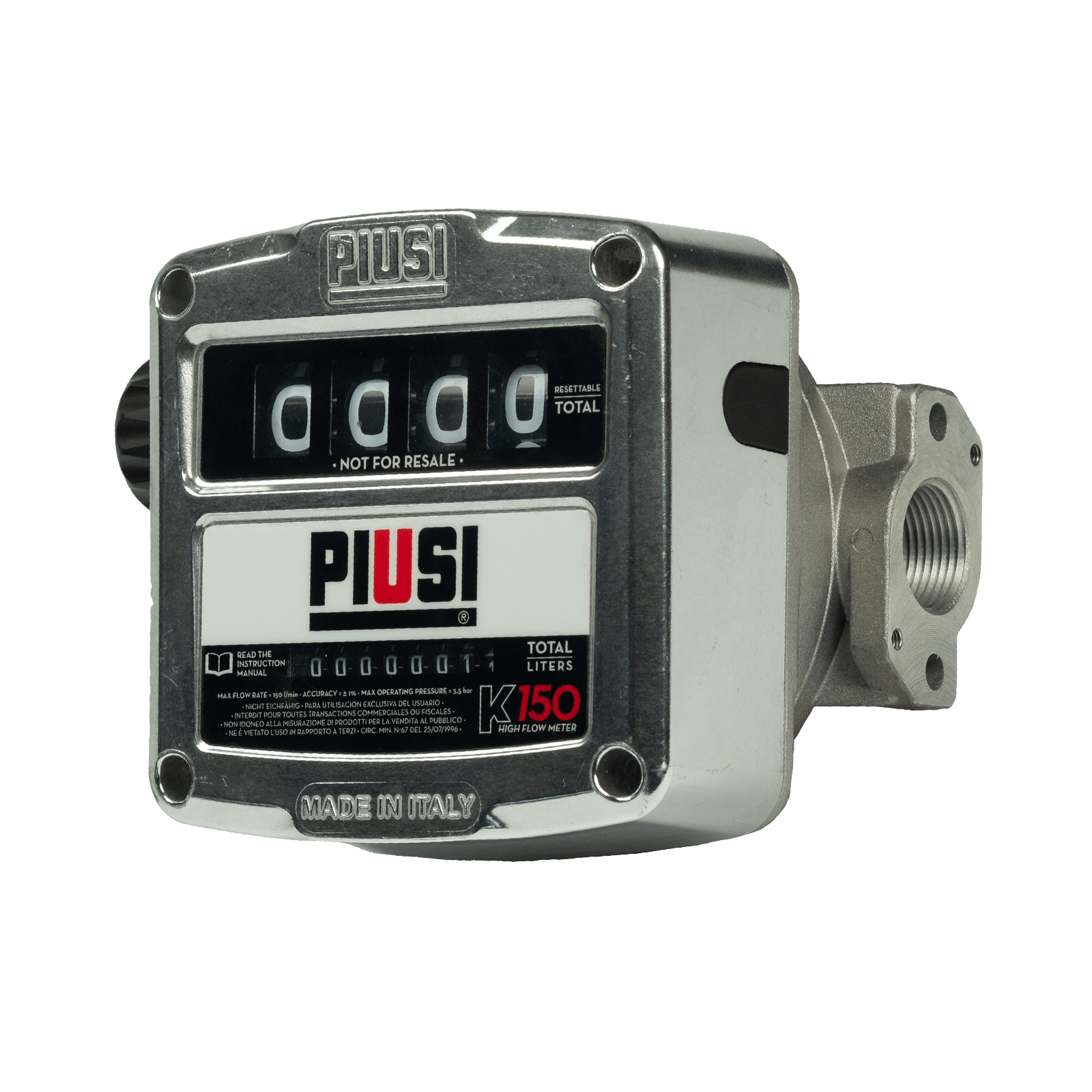

The PIUSI K150 ATEX mechanical flow meter is the flagship of the PIUSI fuel metering product line, specifically developed for high-demand industrial environments requiring high flow rates. This robust and extremely accurate measuring instrument offers an ideal solution in sectors such as agriculture, logistics, mining, construction, and general industrial applications where the fueling of vehicles and machinery with large capacity tanks needs precise control.
The K150 ATEX model combines reliability, accuracy, and safety while optimizing fuel transfer processes.
The K150 ATEX flow meter with a solid aluminum housing which guarantees exceptional resistance to high pressure and abrasion. This durability ensures long-term, reliable operation even in the toughest industrial conditions.
This high-capacity mechanical meter between 25 and 150 liters/minute (l/min) is capable of handling flow rates, thereby meeting the demands for rapid refueling of large fuel tanks. This wide range makes it ideal for refueling heavy trucks, construction earthmoving machinery, and agricultural machinery.
The K150 ATEX with an oscillating oval plate reading system is equipped, which at medium flow rates ±1% accuracy guarantees the measurement of the transferred fuel. This precision is essential for inventory management and cost control.
The device complies with ATEX and IECEx standards requirements, which allows for the safe measurement of, explosive fluids, such as gasoline and kerosene, in potentially explosive atmospheres. This certification is critically important for adhering to safety regulations.
A significant advantage of the K150 ATEX is that it results in up to 33% less pressure loss compared to other meters available on the market. This optimized hydraulic performance contributes to more efficient fuel transfer and reduces system load.
The K150 ATEX with a 4-digit volume counter is fitted, which simplifies reading and use. The device easy to install and calibrate, which minimizes downtime during installation and periodic checks.
The K150 ATEX is extremely versatile and compatible with numerous fluids, increasing flexibility across different sites:
Diesel
B7, B20 (Biodiesel blends)
Kerosene
petrol
Petrol E20
Avgas 100/100LL (Aviation gasoline)
JetA/A1 (Kerosene type turbine fuel)
Aspen 2/4 (Special gasoline)
Important note: The K150 ATEX is not suitable for measuring fuels intended for retail sale to the public.
The technical features of the K150 ATEX mechanical flow meter ensure professional performance:
| Characteristic | Spezification |
|---|---|
| Product Category | Fuel Flowmeter |
| Operating Principle | Mechanical, oscillating piston |
| Flow Rate Range | 25 – 150 l/min |
| Pontosság | ±1% |
| Maximum Pressure Loss | Up to 33% lower compared to competitors |
| Meter Type | 4-digit volume meter |
| Certifications | ATEX / IECEx |
| Application Areas | Agriculture, Logistics, Mining and Construction Industry, Industrial, Marine |
| Compatible Fluids | Diesel, B7, B20, Kerosene, Gasoline, E20, Avgas, JetA/A1, Aspen 2/4 |
| Body Material | Robust aluminum |
| Installation and Maintenance | Easy to install and calibrate |
The K150 ATEX performs excellently in the following sectors:
Agriculture: Precise measurement of fuel supply for heavy agricultural machinery and tractors.
Logistics: Monitoring fuel consumption of high-performance truck fleets.
Construction and Mining: Precise management of refueling for high-consumption earth-moving machinery and construction equipment.
Industrial and Marine Sector: Reliable measurement of fuel supply for larger vessels or industrial equipment where high flow rates are essential.
The PIUSI K150 ATEX is not just a meter; it is a robust, safe, and extremely accurate device that optimizes fuel management even in the most demanding industrial environments.
