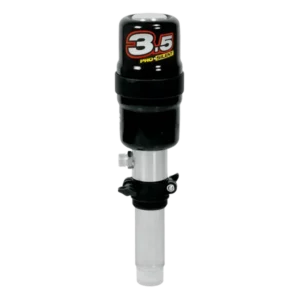

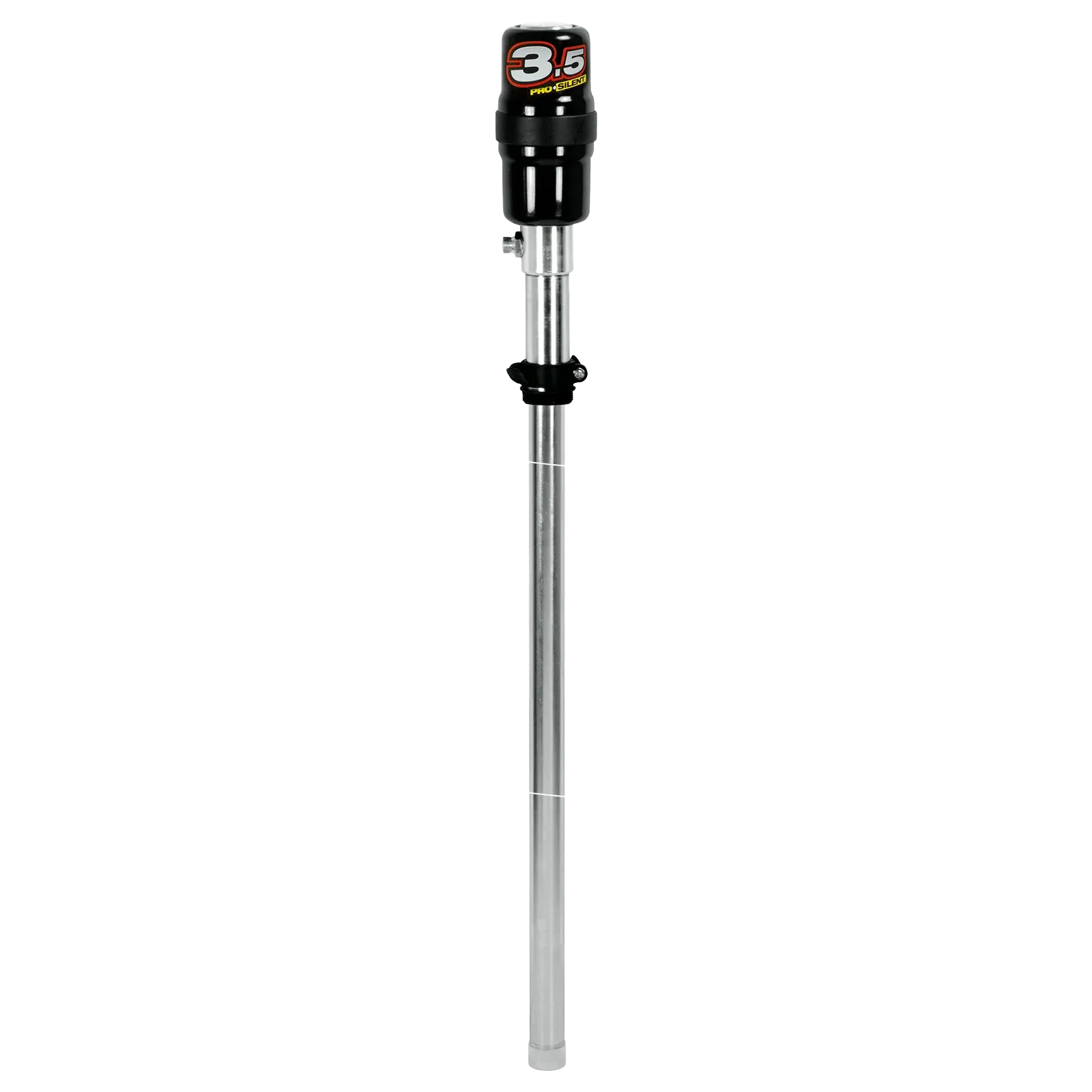

The PIUSI P3.5:1 pneumatic piston pump is an extremely reliable and high-performance solution designed for transferring lubricants. It is an apparatus optimized for dispensing medium-viscosity oils over short and medium distances, ideally suited for garage, mining, construction, and general industrial applications. PIUSI developed this pump using the most suitable materials, guaranteeing a long service life and continuous, high-level performance.
The P3.5:1 pump was born under the sign of durability and user-friendly operation, featuring several functions that set it apart from competitors:
This pneumatic oil transfer pump is the ideal choice for any workshop that requires a durable and reliable oil transfer system.
Robust Structure: The pump is equipped with a solid protective and sound-insulating structure that resists harsh operating conditions.
Maintenance-Free Design: The shock-free operation of the mechanical components minimizes wear, allowing the pump to operate maintenance-free over the long term.
Corrosion- and Particle-Resistant: The composite material housing ensures the pump does not oxidize and provides protection against particle ingress. The diffuser features a non-ferrous design.
The P3.5:1 pump offers an optimal balance between performance and energy efficiency.
Double-Acting Operation: True double-acting (double effect) operation results in better performance and lower compressed air consumption.
High Flow Rate: With 21.5 liters/minute transfer rate achievable with 3.5:1 ratio operation.
Strength Exceeding Market Standard: The P3.5:1 is 20% stronger, than market standard pumps.
Low Operating Speed: The low operating speed contributes to a longer service life and quieter operation.
The pump's noise level significantly improves the quality of the working environment.
The pump design allows for flexible integration into existing systems.
Installation Options: Can be mounted on carriers or connected to a complete dispensing system that includes multiple service stations, drums, and dispensing guns.
Locking mechanism: It is equipped with a threaded retaining ring, which guarantees secure fastening to the carrier or wall mount.
Extendable: Available in different lengths, and can be further extended with optional extensions.
The PIUSI P3.5:1 pump is the ideal choice for the following sectors:
Vehicle Service Centers and Garages: Efficient transfer of medium-viscosity motor oils, transmission oils, and other lubricants.
Mining & Construction: Lubricant supply for heavy machinery on site.
General Industrial Facilities: Continuous oil supply for production lines and machinery.
The technical features of the PIUSI P3.5:1 pump ensure professional performance:
| Characteristic | Value | Note |
|---|---|---|
| Product Category | Lubricants | |
| Application | Garage Equipment, Mining & Construction, Industrial | |
| Fluid Type | Medium viscosity oil | |
| Operating Principle | Pneumatic piston pump | |
| Flow Rate | 3.5:1 | |
| Maximum Flow Rate | Up to 21.5 l/min | Depending on the operating conditions |
| Noise Level | 77 dB | Low noise emission |
| Mode of Operation | Double Effect | Better efficiency, lower air consumption |
| Housing Material | Composite material | Brass-free diffuser, corrosion-resistant |
| Construction | Protective and soundproofing structure | |
| Maintenance | Maintenance-free | Frictionless mechanics |
| Power | Stronger than the market standard with 20% | |
| Speed | Low operating speed |
The PIUSI P3.5:1 pump is available in various configurations, according to the following product codes:
| Product code | Description |
|---|---|
| F0021400A | PIUSI P3.5 ST AIR OPERATED PISTON PUMP |
| F0021402A | PIUSI P3.5 940 AIR OPERATED PISTON PUMP |
The PIUSI P3.5:1 offers the ideal solution for professionals seeking quality, high performance, and long-term reliability for the efficient and safe transfer of lubricants.
