The PIUSI Remote Display is a robust and versatile device specifically designed to provide maximum convenience and accuracy in the remote monitoring of pulse meters. This unit is essential in any industrial, logistics, construction, or garage environment where precise and immediate monitoring of fluid transfer volume is crucial.
This remote control unit enables simple tracking of dispensed quantities and cumulative totals from up to 15 meters away, significantly improving the transparency and efficiency of operations.
The Remote Display is designed to complement PIUSI pulse meters, especially in applications where the receiving unit can only recognize discrete pulse quantities. When combined with pulse emitter models, the range of applications for the remote display expands considerably.
The unit features a large display that shows two main pieces of data in an extremely readable format:
Partial Total: 5-digit display with floating point, covering a range from 0.001 to 99999 (display height 11.5 mm). This value shows the current dispensed quantity.
Non-Resettable Total: 8-digit display capable of recording a range from 1 to 99999999 (display height 5 mm). This function ensures the recording of the total, auditable quantity, which cannot be modified by the user.
The display includes software applications for calibrating the meters, ensuring maximum accuracy when measuring fluids of different viscosities and types.
Pulse/Liter Settings: The unit is flexibly configurable to match the meter unit with the following settings: 1, 2, 10, 20, 50, or 100 pulses per liter.
Unit of measurement: Various meter unit setting options are available.
Flow Rate Indication: The display is capable of showing the current flow rate.

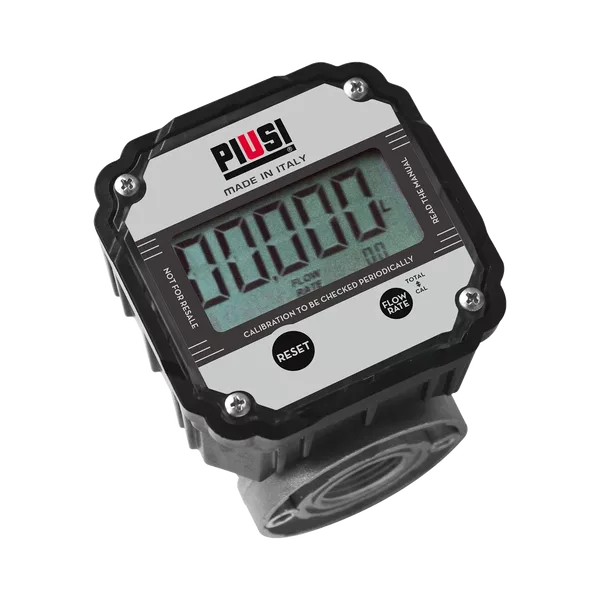

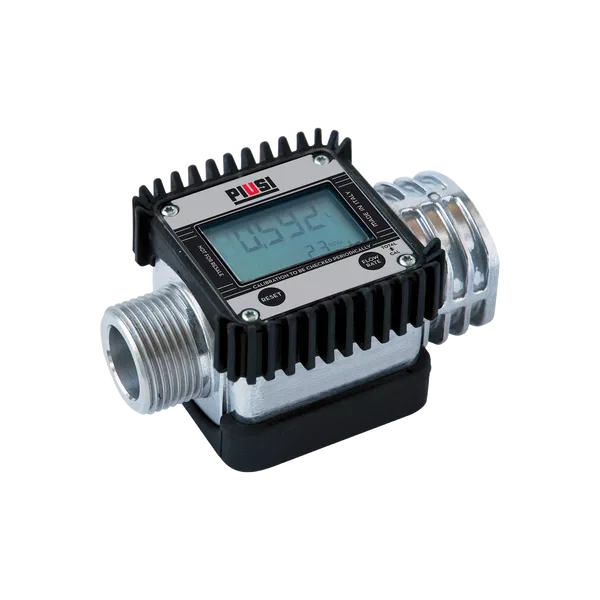

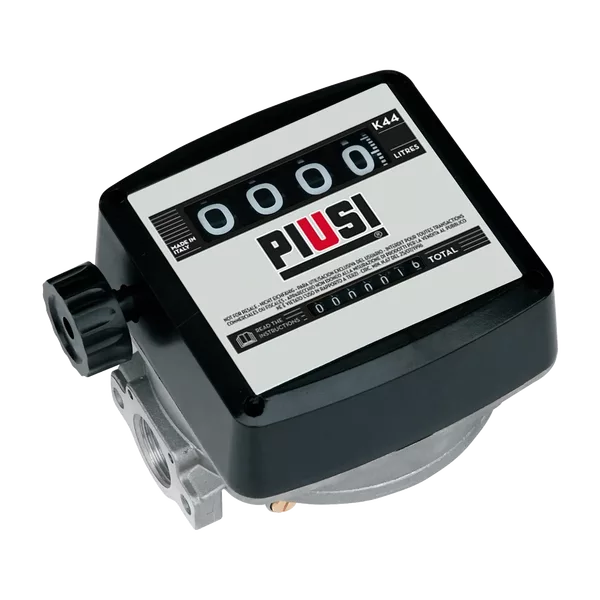

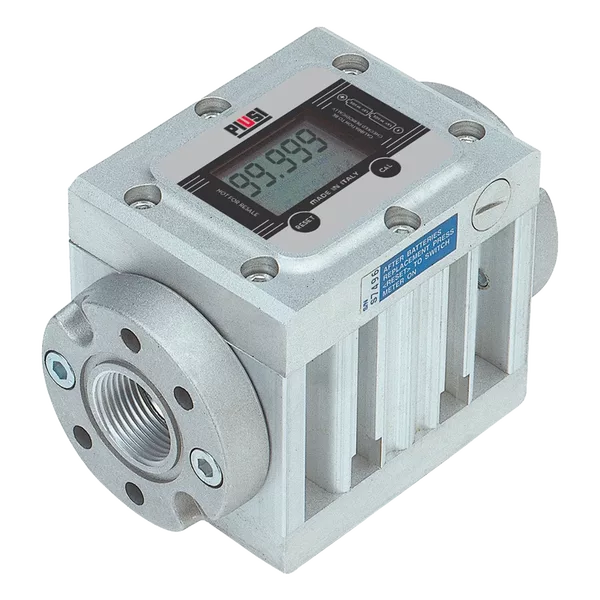

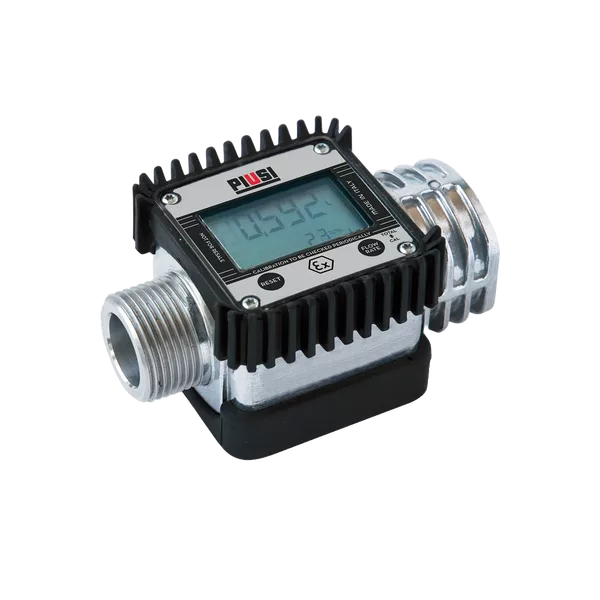

Compatibility: Fully compatible with all PIUSI pulse meters.
The unit has flexible power supply options:
Battery Mode: Operable with a standard battery.
Mains Power Supply: Can also be operated with a mains adapter.
Low charge level indication: Gives a warning when the battery charge level is low.
The PIUSI Remote Display is an ideal choice for the following sectors:
Garage Equipment: Precise dispensing control.
Logistics: Fuel consumption tracking in fleets.
Industrial use: Precise measurement of various fluids (oils, antifreeze, etc.).
Mining & Construction: Reliable operation in harsh environments.
The device is suitable for a wide range of fluid management tasks, including:
Diesel / HVO / XTL
Lubricating Oils (Oil)
Water
Antifreeze (Antifreeze)
Food-grade fluids (Food)
Gasoline
Grease
Kerosene
Windscreen Washer Fluid (Windscreen)
AdBlue® (Urea solution)
The Remote Display is available in different configurations that offer varying functions and compatibility (e.g., pulse output or input).
| Product code | Description |
|---|---|
| F0049503B | REMOTE DISPLAY PULSE OUT 100 ADBLUE |
| F0049504A | REMOTE DISPLAY ADBLUE |
| F1175200B | REMOTE DISPLAY PULSE OUT K600 |
| F1175300B | REMOTE DISPLAY PULSE OUT K600/4 |
| F1175400B | REMOTE DISPLAY PULSE OUT K700 |
| F0049501A | REMOTE DISPLAY PULSE OUT UNIVERSAL |
| F0049502A | UNIVERSAL REMOTE DISPLAY PULSE IN |
| Characteristic | Detail |
|---|---|
| Display Type | Large size, digital |
| Partial Total | 5 digits, with decimal point (max. 99999) |
| Total (Non-resettable) | 8 digits (max. 99999999) |
| Tápellátás | Battery or mains power |
| Cable length (Max.) | 15 meters |
| Pulse Settings | 1, 2, 10, 20, 50, 100 pulses/liter |
| Functions | Meter calibration, Flow indication, Low battery indication |
| Compatibility | With all pulse meters |
The PIUSI Remote Display combines reliability and user-friendly design, ensuring that fluid management processes always occur with the highest level of accuracy.
