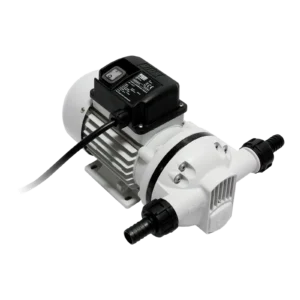

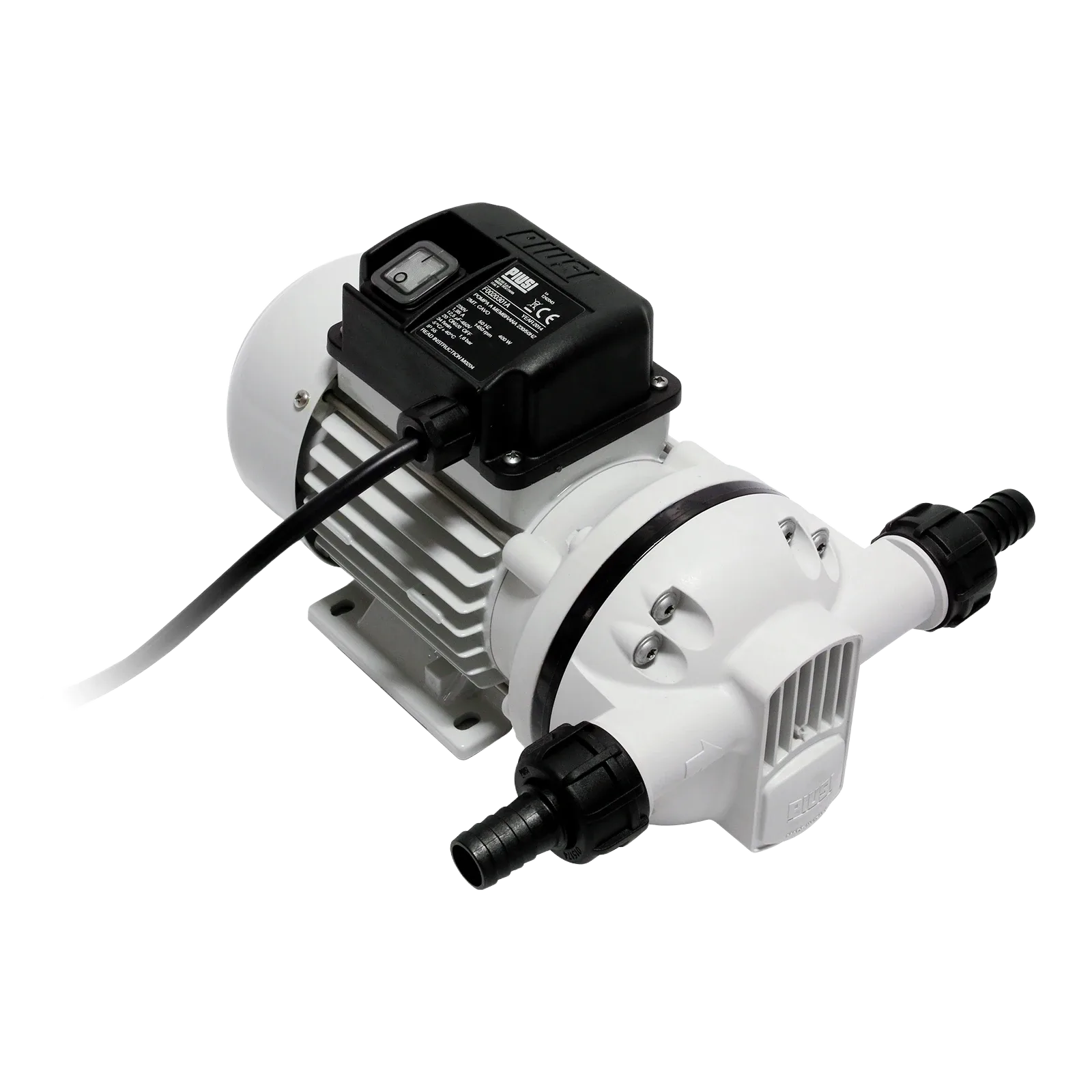

The PIUSI SUZZARABLUE PUMP AC is an electric motor-driven diaphragm pump specifically designed for industrial use, offering an excellent solution for the safe and efficient transfer of AdBlue® (DEF – Diesel Exhaust Fluid) and other similar aggressive fluids. Developed based on PIUSI's market knowledge and decades of experience in handling aggressive media, the SUZZARABLUE PUMP AC is the ideal choice for dispensing from drums or IBC tanks, regardless of the working environment.
This pump is a combination of reliability, versatility, and ease of use, ensuring a safe, long-term AdBlue® transfer system compliant with ISO 22241 standards.
The SUZZARABLUE PUMP AC is among PIUSI's most popular AdBlue® transfer diaphragm pumps, equipped with an electric motor without dynamic seals. This design guarantees increased operational reliability and minimizes the risk of leakage, which is particularly critical for AdBlue®.
Motor Without Dynamic Seal: The absence of seals between the pump body and the drive increases reliability and reduces maintenance requirements.
Easy Installation and Handling: The pump is ready for use, easy to install, and ideal for workshop and industrial environments.
Self-Priming Capability (Self-Priming): The pump is capable of priming air from the suction side, facilitating startup.
Built-in By-pass Valve: The built-in by-pass valve protects the pump from overload and pressure surges when the outlet nozzle is closed.
The materials used in the development of the SUZZARABLUE PUMP AC have been carefully selected to meet the stringent requirements of AdBlue® (ISO 22241), ensuring long service life and safe operation.
Technopolymer Construction: The pump body, rotor, and gears are entirely made of durable technopolymers, which provide excellent chemical resistance when handling AdBlue® and other compatible fluids (e.g., antifreeze, water).
Continuous Operating Cycle: At a flow rate of 36 l/min, the pump is capable of ensuring a continuous operating cycle of up to 20 minutes with excellent performance.
Thanks to its versatility, the SUZZARABLUE PUMP AC can be used in numerous industrial sectors:
Workshops and Service Centers
Agriculture
Logistics
Mining and Construction Industry
General Industrial Fluid Transfer
Detailed technical specifications for the SUZZARABLUE PUMP AC pump can be found in the table below:
| Characteristic | Spezification |
|---|---|
| Product Category | AdBlue® / Other Fluid Transfer |
| Compatible Fluids | AdBlue®, Antifreeze, Water |
| Application Areas | Workshops, Agriculture, Logistics, Mining & Construction, Industrial |
| Pump Type | Diaphragm pump with electric motor |
| Motor Type | AC (Alternating Current) |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Flow Rate (Max.) | 36 l/min |
| Duty Cycle (Max.) | 20 minutes |
| Connections | 3/4″ hose connector |
| Control | ON/OFF switch |
| Cable length | 2 meters with plug |
| Construction | Without dynamic seal |
| Valves | Built-in by-pass valve |
| Base/Mounting | Mounting plate included |
The SUZZARABLUE PUMP AC pump is fully equipped for quick commissioning:
3/4″ hose connector
On/Off switch
2-meter cable with plug
Based on the product code (F00203090), the version supplied with 230V/50Hz, 2-meter cable is available, offering an immediate solution for AdBlue® transfer needs.
The PIUSI SUZZARABLUE PUMP AC guarantees durability and efficiency, ensuring that AdBlue® handling always meets the highest industrial standards.
