OCIO is an extremely precise remote measuring device developed for the continuous and reliable monitoring of fluid levels in tanks. This system offers an ideal solution for tracking the levels of storage tanks containing fuels, lubricants, antifreeze, diesel/HVO/XTL, food-grade fluids, oils, and water. OCIO ensures accurate measurement and can be integrated into existing systems via alarm or shut-off functions.
The OCIO system is designed to ensure maximum flexibility and reliability in managing fluid inventories:
Accurate Level Measurement: The system detects the static pressure generated by the fluid height through a tube placed in the tank and displays this height or volume.
Built-in Display: Control unit equipped with intuitive, comprehensive software, providing immediate visual feedback on the fluid level.
Low/High Level Alarms: Possibility to set programmable alarm levels that activate or deactivate the output contact.
Remote Control Switching: The control unit acts as a remote switch, activating alarms or interrupting the power supply to connected equipment (e.g., pumps) based on the set alarm levels.
Versatile Application: Widely used in garage equipment, agriculture, logistics, mining and construction, as well as in industrial and marine environments.

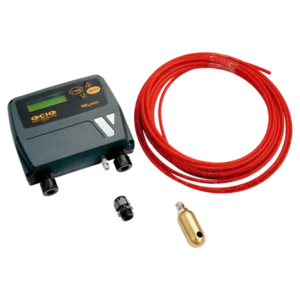

The OCIO level sensing system consists of two main parts:
Level indication and system management.
Equipped with intuitive, comprehensive software.
Allows connection of two alarm or shut-off devices.
Programming functions: setting tank dimensions and type, defining sensing levels, defining alarm thresholds, instrument calibration, setting measurement units.
Control of the output contact based on the set alarm levels.
The end of the tube is inserted from the top of the tank and submerged into the fluid until it reaches the bottom of the tank.
Tube length: 10 meters.
Maximum measurable height: 4 meters.
OCIO level sensors are available in different configurations with varying output interfaces.
| Product Code | Description | Output Type |
|---|---|---|
| F0075510D | LEVEL IND.OCIO LV230V 50/60Hz RS OUT-NW- | RS output |
| F00755160 | LEVEL IND.OCIO LV230V 50/60Hz 4-20 mA | 4-20 mA analog output |
General Technical Parameters:
| Parameter | Value |
|---|---|
| Product Category | Fuel, Lubricant, Antifreeze, Diesel/HVO/XTL, Foodstuff, Oil, Water |
| Application Area | Garage Equipment, Agriculture, Logistics, Mining and Construction, Industrial, Shipping |
| Sensor Probe Length | width 0.62 m |
| Maximum Measurable Height | 4 m |
| Display | Integrated digital display |
| Functions | Low/High level alarms, Fluid level indication |
For flexible system installation and special requirements, the following accessories are available:
| Product Code | Description |
|---|---|
| F12939000 | ITALIAN PROBE STOCK – OCIO |
| F1391300A | 50 METER OCIO PROBE STOCK |
| F15611000 | STAINLESS STEEL PROBE FOR ADBLUE-OCIO |
The OCIO system is designed to handle a wide range of fluids, including AdBlue® (separate AdBlue® version available). The system can be excellently integrated into the following sectors:
Logistics & Transport: Precise tracking of fleet fuel and lubricant stocks.
Agriculture: Level regulation of agricultural machinery fuel and AdBlue® tanks.
Industrial Plants: Continuous monitoring of critical fluid levels (e.g., hydraulic oil, antifreeze).
Food Industry: Secure monitoring of food industry fluid storage tanks.
OCIO ensures users always have up-to-date information on tank fill levels, thereby minimizing the risk of unexpected downtime and optimizing replenishment.
