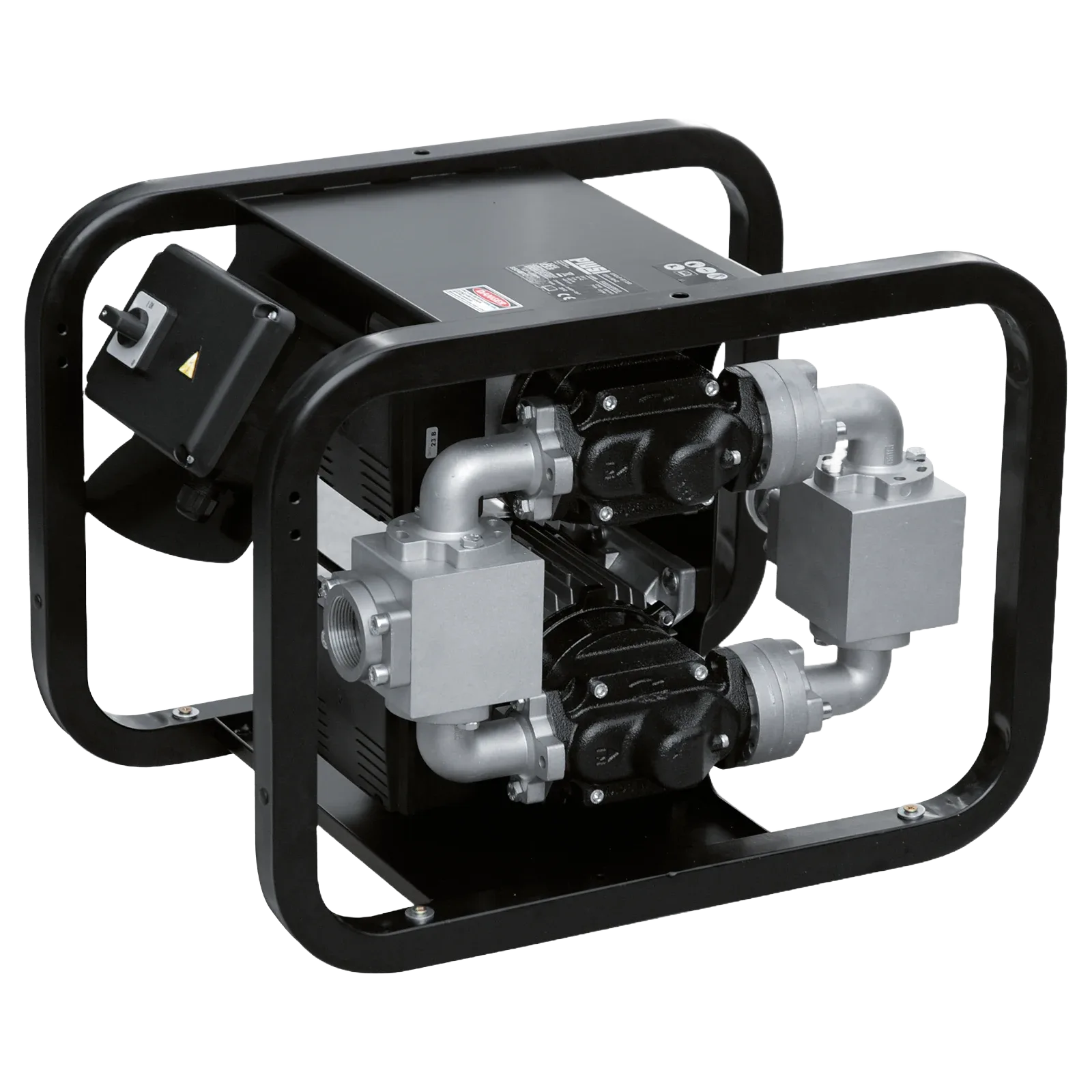

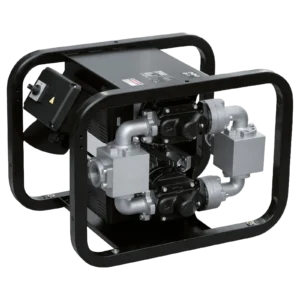

The ST 200 AC a high-performance, portable diesel flow meter unit specifically designed for industrial and construction applications where fast, safe, and precise fuel transfer is required. This robust system offers an ideal solution for situations where machinery cannot be fueled directly from a fixed fuel tank, such as refueling large agricultural or construction machinery on site.
The ST 200 AC unit combines reliability, high performance, and ease of handling, ensuring continuous and efficient operation even in the most demanding environments.
The unit is built on a 230V AC 50Hz is equipped with an electric motor powered by a mains electricity source, which enables an extremely high flow rate, up to 200 liters/minute This outstanding performance guarantees fast refueling times, minimizing downtime in the workplace.
The ST 200 AC features a solid steel frame which ensures excellent durability and resistance to harsh working environmental conditions (Heavy Duty design). The structure is designed to remain relatively low weight which provides extremely easy handling and flexible positioning. Depending on user requirements, the unit can also be optionally equipped with wheels , further increasing mobility during the on-site refueling of vehicles equipped with large tanks.
Reliability is crucial during fuel transfer. The ST 200 AC comes standard with a flow meter that ensures precise +/- 1% accuracy dispensing regarding the volume of fuel pumped.
Optional Metering Solutions:

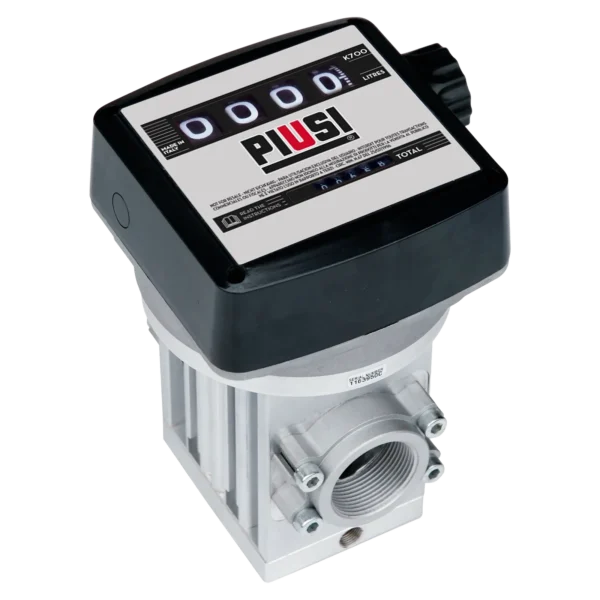

K700 M Hour Flow Meter: Upon request, the unit can be equipped with the K700 M type, oval gear system with a flow meter that ensures complete control over the amount of transferred fuel.

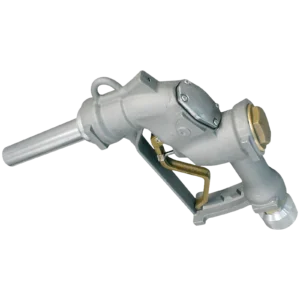

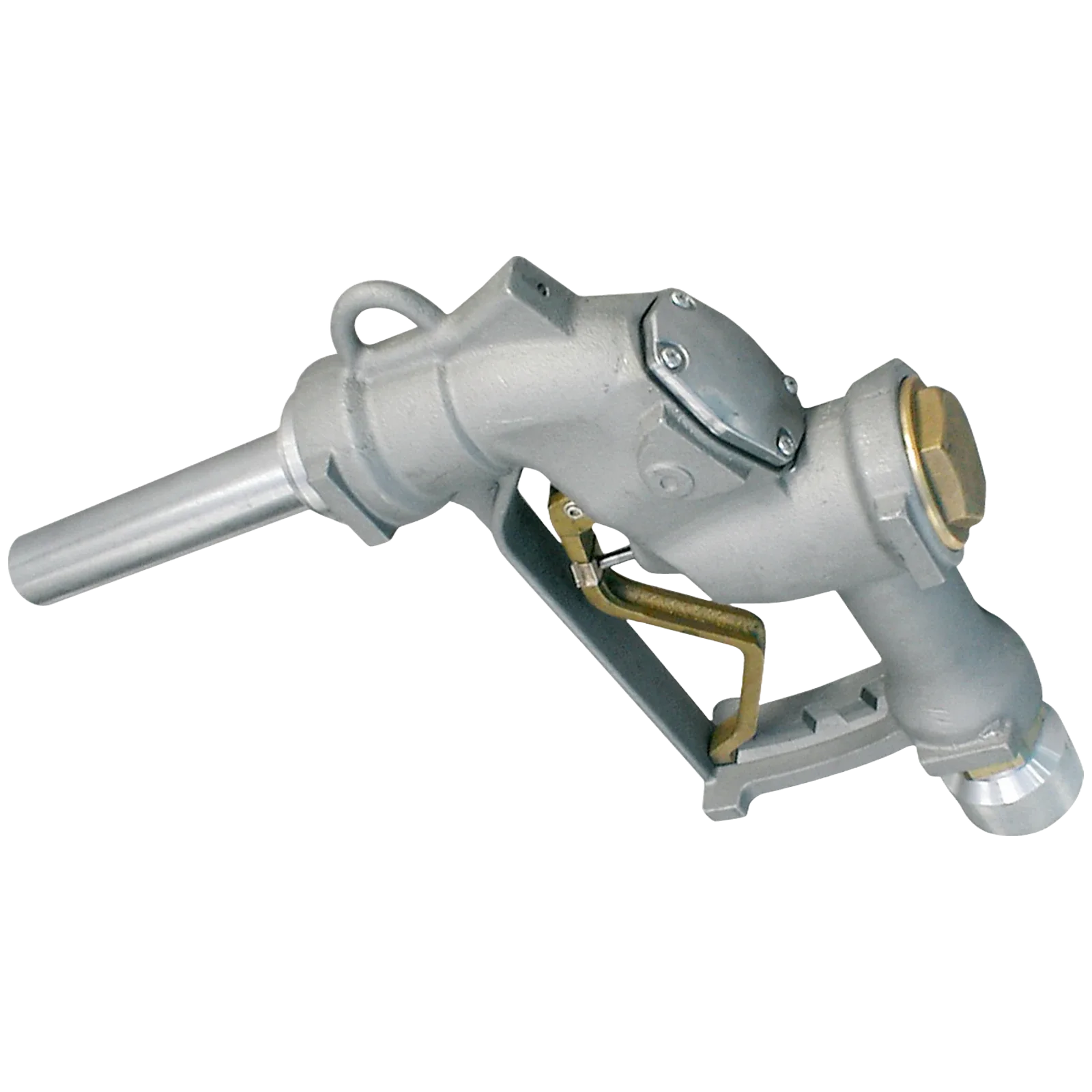

A280 Fuel Nozzle: Optionally, the unit can be equipped with the A280 automatic nozzle, which is capable of a flow rate of 74 GPM (gallons per minute), further optimizing the refueling process.
The unit for continuous AC operation designed. During operation, the noise level less than 75 dB, which enables optimal use in various work environments without being disruptive.
The ST 200 AC is ideally suited for the following sectors:
Mining & Construction (Mining & Construction)
Industrial Applications
Agricultural Applications
It is particularly advantageous in locations where direct refueling is not feasible due to the large fuel tanks of machinery (e.g., earth-moving equipment).
| Parameter | Spezification | Note |
|---|---|---|
| Product Category | Fluid Transfer, Diesel/HVO/XTL | |
| Model | ST 200 AC | Portable Flow Unit |
| Power source | Electric motor | 230V AC 50Hz |
| Maximum Flow Rate | 200 liters/minute | High-performance pumping |
| Accuracy (Basic) | +/- 1% | For the amount of pumped fuel |
| Frame Structure | Robust metal frame | Maximum Durability |
| Noise Level | < 75 dB | Optimal working environment |
| Portability | Easily movable | Can be further enhanced with optional wheels |
| Operating Mode | Continuous AC operation | |
| Optional Meter | K700 M (Oval Gear) | Total volume control |
| Optional Nozzle | A280 automatic nozzle | 74 GPM flow rate |
The ST 200 AC unit „READY TO USE” It is supplied in "ready to use" condition, with minimal installation requirements. For ease of maintenance and to ensure long service life, PIUSI provides detailed datasheets and manuals, as well as readily available spare parts.
Order Codes and Related Parts:
| Product code | Description |
|---|---|
| F00315000 | ST200 230V 50Hz (Base unit) |
| F16860000 | WHEEL / HANDLE KIT FOR ST200 |
The ST 200 AC represents PIUSI quality, guaranteeing reliable and safe fuel management even under the harshest industrial conditions.
