PT20™ CPU for Military Gauges

PT20™ CPU for Military Scales – Detailed Product Description

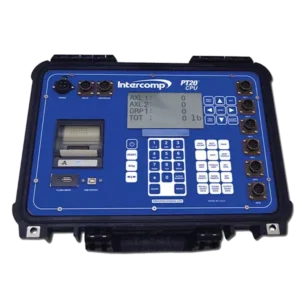

The PT20™ CPU is a robust and reliable display unit designed for Intercomp military weighing systems, critical for ensuring accurate weight measurement and data handling in the most demanding military applications. This Central Processing Unit (CPU) is optimized for integration with wheel weighers and axle load sensors used for measuring the weight of military vehicles, guaranteeing performance that meets strict military standards.

The PT20™ CPU is not just a display; it is the system's intelligent hub, processing signals from load sensors, ensuring calibration integrity, and offering a user-friendly interface for quick and accurate measurements. Specifically tailored to the challenges of the military environment, the PT20™ CPU delivers reliability and durability both in the field and on bases.

Key Features and Advantages

The PT20™ CPU is designed to maximize the efficiency and accuracy of military weighing tasks:

• Design Compliant with Military Standards: The device withstands extreme environmental conditions, including temperature fluctuations, vibration, and moisture, ensuring continuous operation in critical situations.
• Integrated Data Processing: The CPU directly manages the analog signals coming from the input signal conditioners, converts them into digital format, and instantly displays the weight data.
• User-Friendly Interface: Provides an intuitive interface for quick setups, calibration, and querying of measurement data, minimizing operator errors.
• System Compatibility: Seamlessly integrates with Intercomp's wide range of military weighing systems, including portable wheel weighers (e.g., PT300™ MIL, LP600™ MIL) and slow-speed Weigh-In-Motion (WIM) systems.
• Accuracy and Reliability: Advanced signal processing algorithms ensure extremely high measurement accuracy, which is essential for adhering to military logistics and load control regulations.

Technical Specifications

The PT20™ CPU features the following detailed technical parameters that support its robust performance:

Extended Functionality and Application Areas

As a key component of military weighing systems, the PT20™ CPU offers several special functions that go beyond simple weight display:

1. Vehicle Weight Management

The CPU is capable of handling the weighing protocols of various military vehicles. This includes:

• Wheel Weighing: Precise measurement of the load carried by individual wheels.
• Axle Load Calculation: Determines the load of individual axles by summing the weights of adjacent wheels.
• Total Vehicle Weight Summation: By summing the weights of all axles of the vehicle, the Gross Vehicle Weight (GVW) is obtained. This is essential for checking transport capacity and adhering to legal (or military) restrictions.

2. Integration into the Military Ecosystem

The PT20™ CPU is designed to support the data acquisition and reporting needs of military operations. Although the raw text does not detail communication ports, industrial CPUs of this type generally feature:

• Serial Communication Ports (e.g., RS-232/RS-485): Enables the transmission of data to external data acquisition systems, computers, or printers for on-site documentation.
• Network Capabilities (Optional): In certain configurations, it may also be capable of uploading data via a network connection to central logistics databases.

3. Robustness and Operating Environment

Military applications require measuring equipment to be not only accurate but also extremely durable. The design of the PT20™ CPU takes into account:

• Vibration Resistance: The strong vibrations occurring during vehicle movement and off-road use must not affect the stability of the internal electronics or the accuracy of the measurement.
• Weather Resistance: The housing design protects sensitive circuits from dust, moisture, and extreme temperatures, ensuring reliable operation in diverse climate zones.

4. Calibration Integrity

The credibility of military scales depends on the accuracy of calibration. The PT20™ CPU includes the necessary software functions for quick and verifiable calibration procedures, including weighing memory functions that allow the system to be quickly restored to a calibrated state.

Summary

The PT20™ CPU is the central brain of Intercomp's military wheel and axle weighing systems. Optimized specifically for military logistics and inspection tasks, this unit guarantees the fast, reliable, and standards-compliant acquisition, processing, and display of weight data, even under the harshest conditions. The user-friendly interface and robust hardware together make this CPU an indispensable tool for the precise monitoring of military vehicle loads.
