Product Identifier: 777281
A RivBox 1 Universal Rivet Assortment A comprehensive, professional assembly developed by Wielander+Schill for the XSeries professional riveting technology. This set is the ideal choice for any specialist who requires a versatile, reliable selection of fasteners for vehicle repair, metal processing, or general assembly work. The box contains hole punching rivets, blind rivets, Flow Form rivets, and blind nuts/rivets, all in an extremely practical, portable storage unit.
This assortment ensures that the correct size and type of fastener is immediately available for the most common applications, minimizing downtime during work execution.
Comprehensive Selection: The set includes the most important rivet types: hole punching (self-piercing), blind (cold-forming), Flow Form, and blind nuts/rivets.
Quality Materials: The rivets are made of aluminum and steel, ensuring the necessary mechanical strength and corrosion resistance for various applications.
Professional Accessory: The scope of delivery includes a WS Special Center Drill (628006), which is essential for the professional installation of hole punching rivets.
Organized Storage: The components are delivered in a robust, easy-to-handle storage system (RivBox), which facilitates the transport and organization of the set in the workshop.
OEM Compatibility: The set also contains BMW specific size blind rivets, indicating the product's suitability for high-level body and structural repairs.
The RivBox 1 offers a complete system that includes the following components:
| Part number | Product Name | Material | Dimensions (Diameter x Length) | Packaging Unit (PU) |
|---|---|---|---|---|
| 628006 | WS Special Center Punch 2F | – | – | 1 stück |
| 777218 | Self Piercing Rivet | Steel | Ø 3.3 mm × 3.5 mm | 100 pcs |
| 777200 | Self Piercing Rivet | Steel | Ø 3.3 mm × 4.0 mm | 100 pcs |
| 777202 | Self Piercing Rivet | Steel | Ø 5.3 mm × 4.0 mm | 200 pcs |
| 777219 | Self Piercing Rivet | Steel | Ø 5.3 mm × 5.0 mm | 100 pcs |
| 777221 | Self Piercing Rivet | Steel | Ø 5.3 mm × 6.0 mm | 100 pcs |
| 777228 | Blind Rivet | Alu | Ø 5.0 × 6.0 mm | 40 pcs |
| 777229 | Blind Rivet | Alu | Ø 6.0 × 8.0 mm | 40 pcs |
| 777243 | Blind Rivet | BMW specific | Ø 4.0 × 10.0 mm | 20 pcs |
| 777244 | Blind Rivet | BMW specific | Ø 4.0 × 12.0 mm | 20 pcs |
| 777209 | Flow Form Rivet A1 | Alu | Ø 5.6 × 8.1 mm | 10 pcs |
| 777210 | Flow Form Rivet A2 | Alu | Ø 5.6 × 9.3 mm | 10 pcs |
| 777211 | Flow Form Rivet A3 | Alu | Ø 5.6 × 10.6 mm | 10 pcs |
| 777212 | Flow Form Rivet S1 | Steel | Ø 5.6 × 8.1 mm | 10 pcs |
| 777213 | Flow Form Rivet S2 | Steel | Ø 5.6 × 9.3 mm | 10 pcs |
| 777214 | Flow Form Rivet S3 | Steel | Ø 5.6 × 10.6 mm | 10 pcs |
| 777205 | Blind Rivet Nut | Steel | M6 | Ø 9.0 × 15.5 mm |
| 777206 | Blind Rivet Nut | Steel | M8 | Ø 11.0 × 17.0 mm |
| 777208 | Blind Rivet Nut | Steel | M12 | Ø 15.9 × 23.0 mm |
Physical and material characteristics of the product package:
| Property | Value |
|---|---|
| Total Content | 1 set |
| Length × Width × Height | 330 x 55 x 235 mm |
| Materials | Aluminum (Alu, Aluminium), Steel (Acél) |
| Weight | 2.520 kg |
The purpose of the RivBox 1 assembly is to cover the modern bodywork and structural fastening requirements, where welding is not always the optimal solution.
These rivets have a special design that allows for the piercing and simultaneous joining of two or more material layers (especially high-strength steels) in a single operation, using a special riveting tool. The steel SPRs found in the set are ideally suited for high-load, fixed connections.

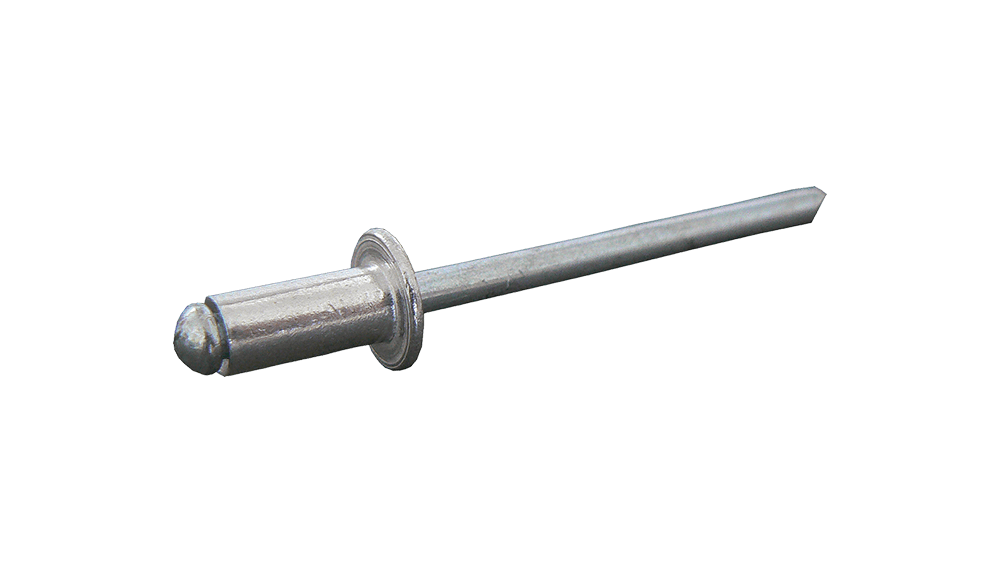

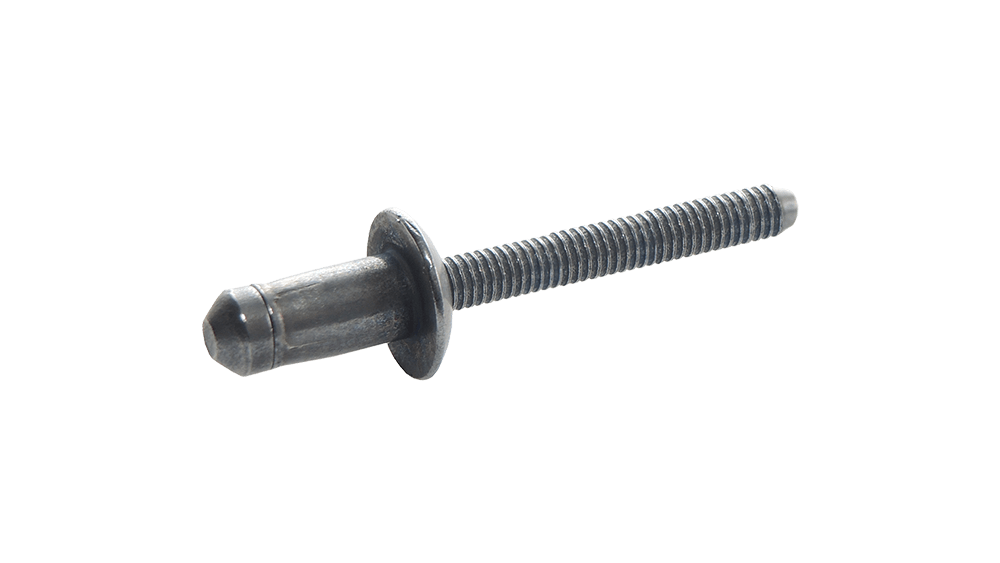

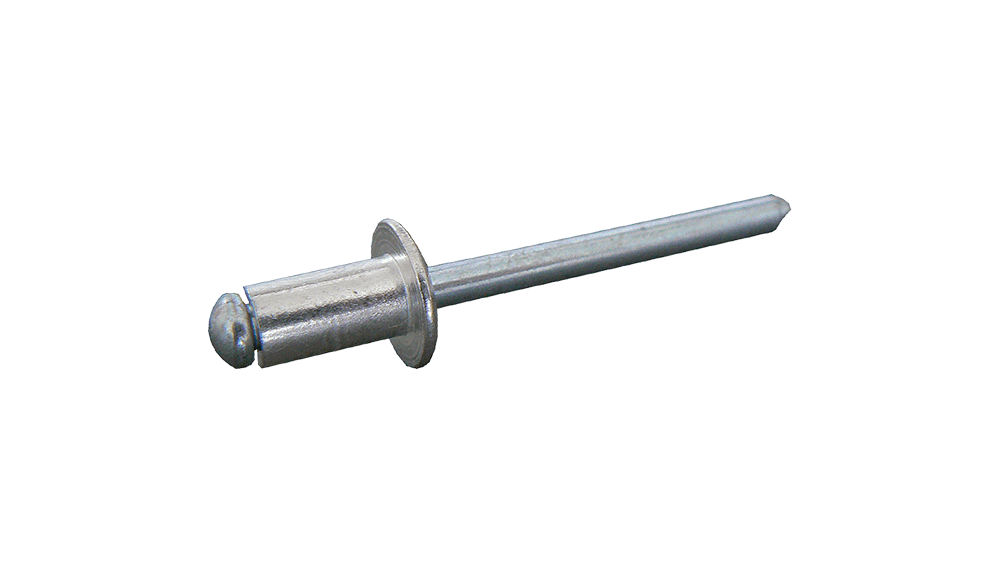

Blind rivets are ideal for applications where access to the connection is only possible from one side. The set also contains aluminum and special (BMW) versions, which provide flexibility for different material thicknesses and load requirements. The advantage of aluminum versions is their light weight and excellent corrosion protection.

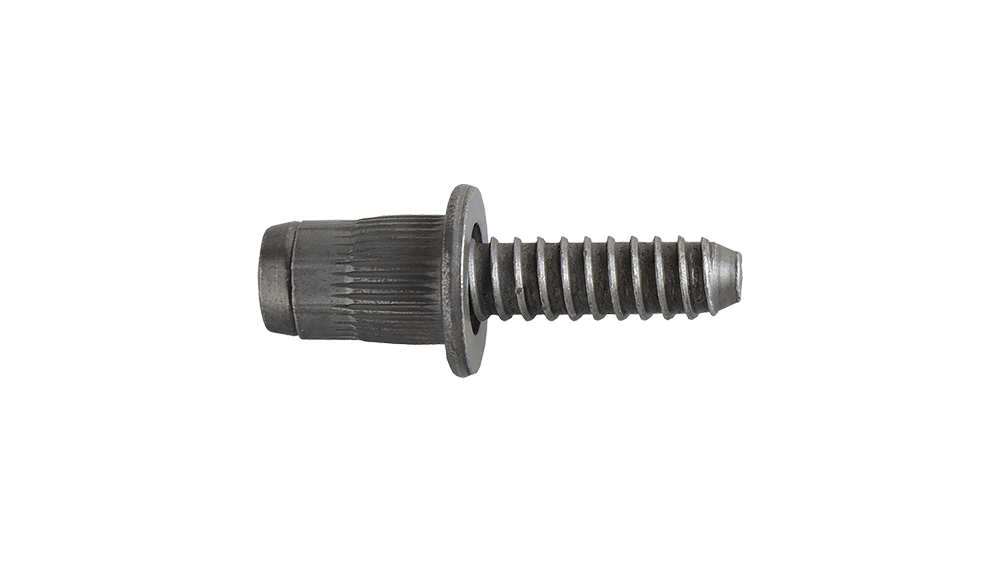

Flow Form technology is an advanced riveting process that results in better material interlocking and higher strength compared to traditional blind riveting, especially for thicker or dissimilar material sheets. Both aluminum (A1-A3) and steel (S1-S3) versions are available in the set, with a diameter of 5.6 mm, in various lengths.

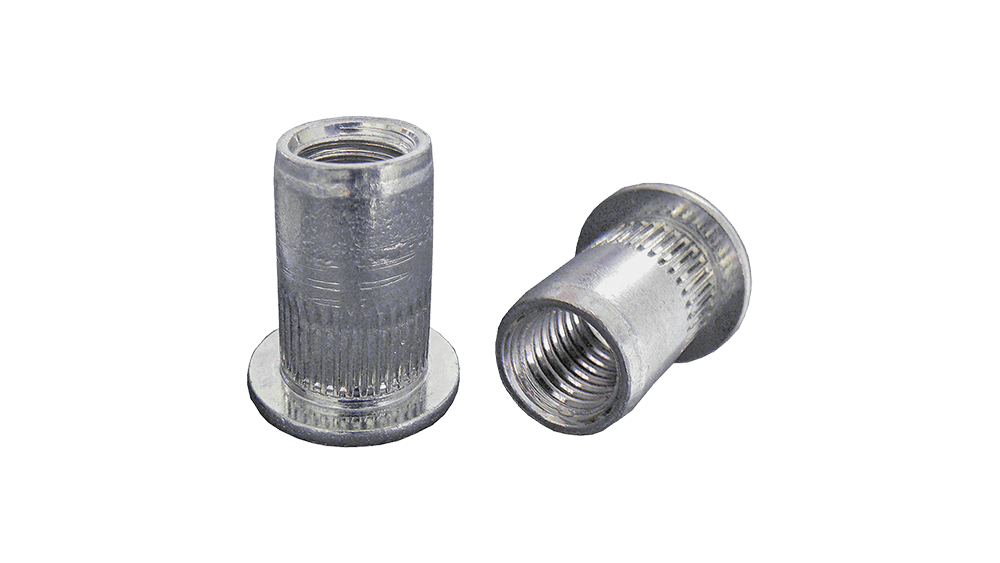

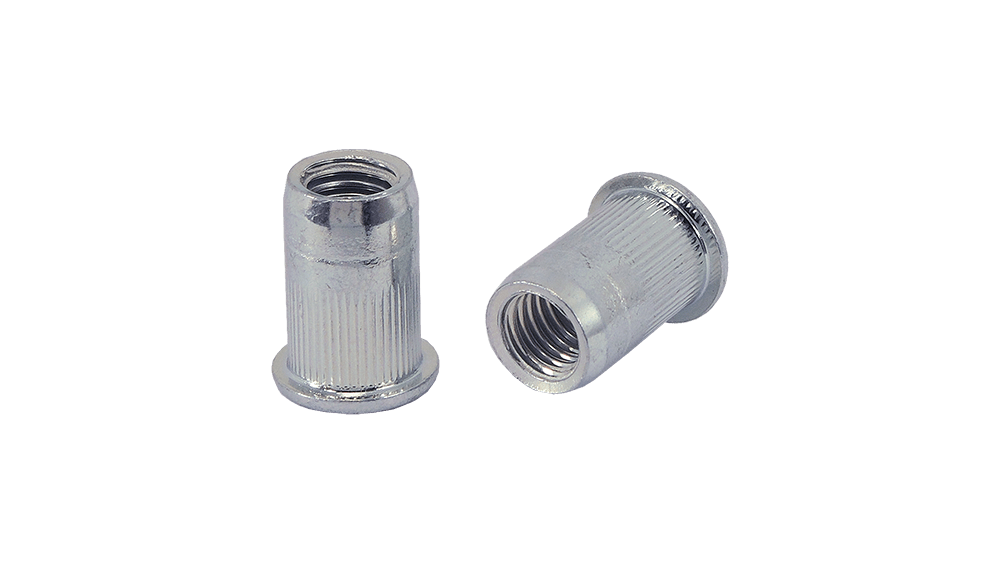

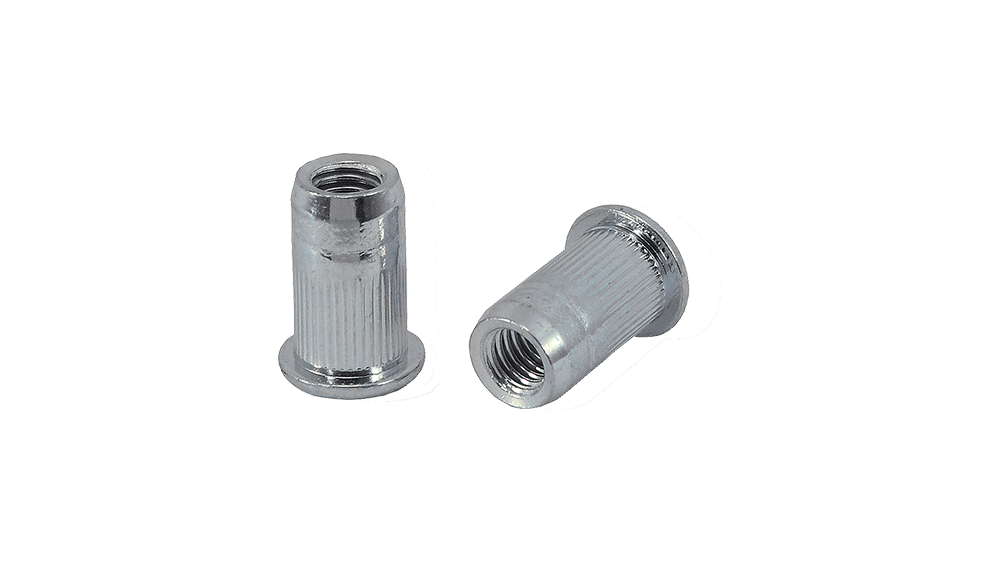

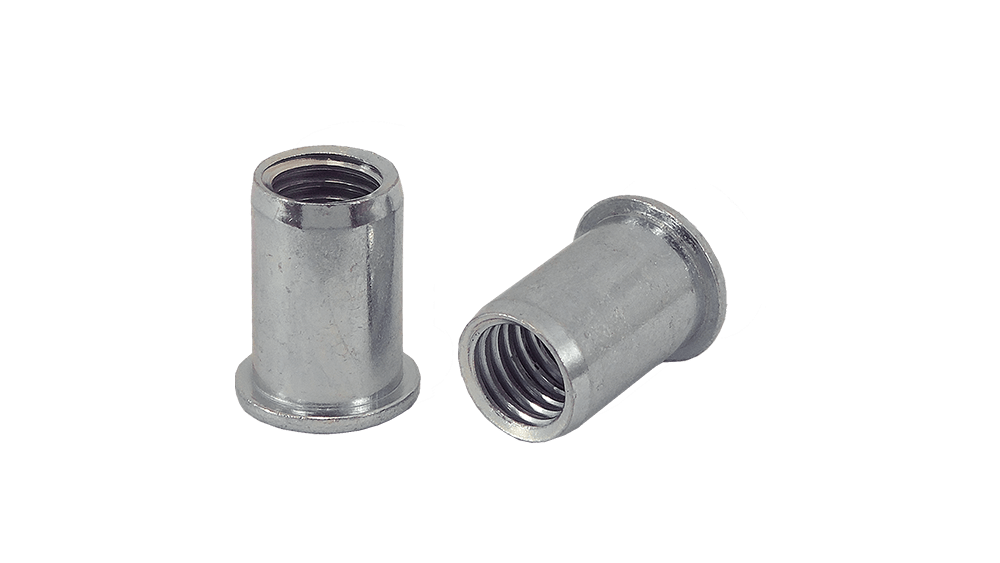

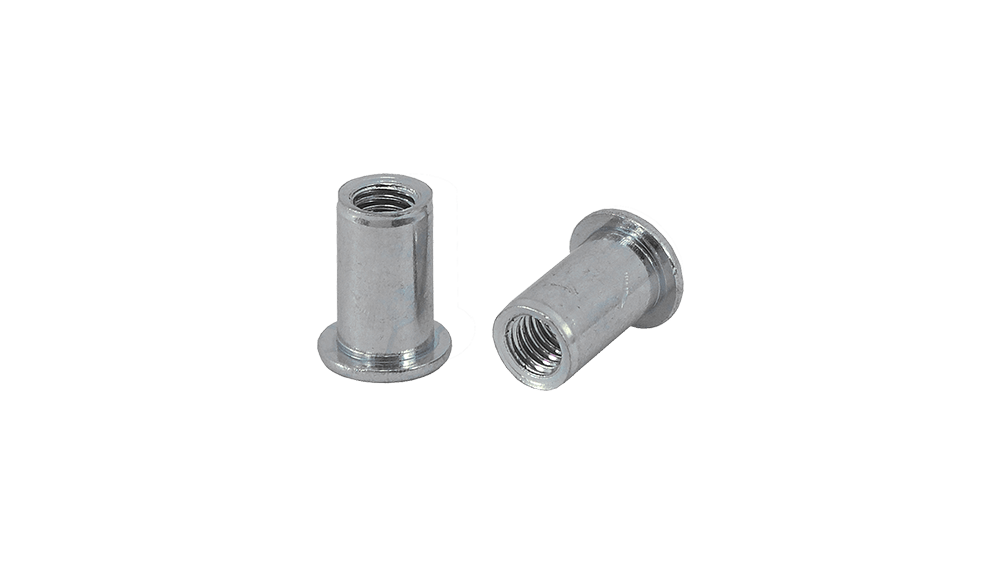

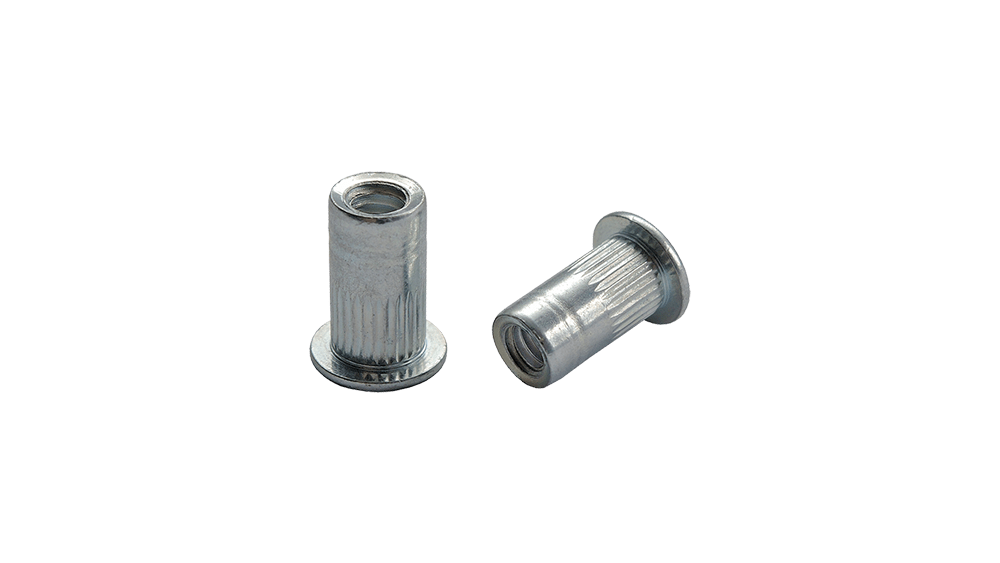

These fasteners are the most important accessory for creating threaded connections on surfaces where it is not possible to create a traditional threaded hole (e.g., thin sheets, tubes). The set contains M6, M8, and M12 size steel blind rivet nuts, which provide a strong, reliable thread for screws.
A RivBox 1 an integral part of the Wielander+Schill XSeries professional riveting technology. The rivets inside are compatible with the appropriate XSeries tools, including the center drill, which guarantees precise preparation for SPRs.
This selection is the ideal choice for:
Body repair shops.
Semi-industrial assembly tasks.
Prototyping and custom manufacturing.
Any application requiring a fast, strong, and access-restricted joint.
