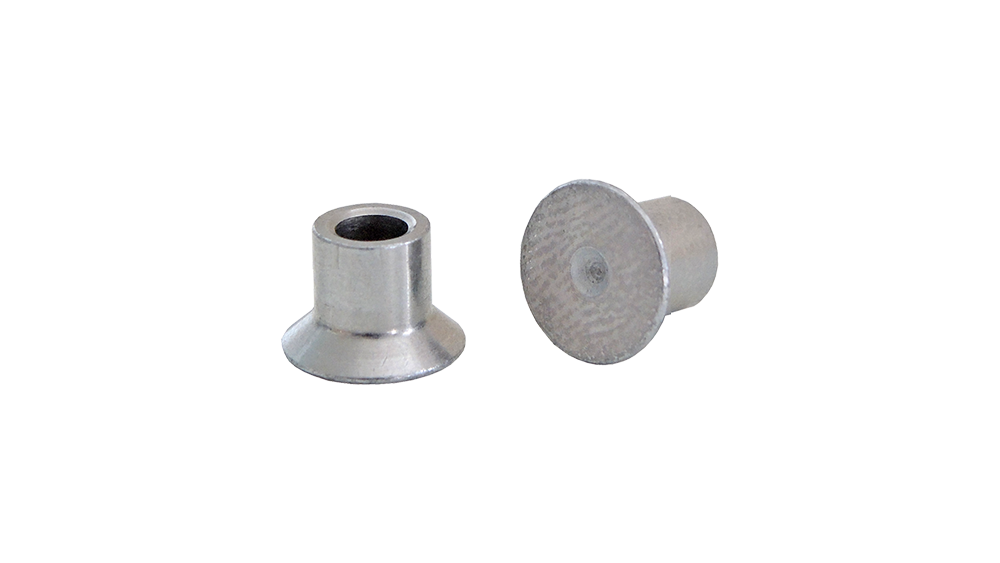

This detailed product description relates to a countersunk head, flow form rivet, which is part of the Wieländer+Schill professional body specialist tool range, designed for the professional and durable connection of various sheet metal parts. This product belongs to the XSeries – Professional Riveting Technology category, ensuring the highest level of industrial quality.
The CS0 type countersunk flow form rivet offers an ideal solution for body repair and assembly tasks where a smooth, flush surface finish (countersunk head) and a high-strength connection are essential. The „flow form” technology enables the material at the end of the rivet shank to spread upon insertion, filling the hole and creating an extremely strong, vibration-resistant joint, especially for thinner or varying thickness sheets.
This rivet is excellently applicable in the automotive industry, where the secure fastening of body components, panels, and reinforcements is of critical importance.
Rivets manufactured by Wieländer+Schill guarantee reliability and a long service life.
Countersunk Head: The rivet head fits completely flush with the surface of the part being fastened, which is aesthetically advantageous and prevents later injuries or interference with surface treatments (e.g., painting).
Flow Form Design: During rivet insertion, the end of the shank is formed, resulting in excellent filling and high tensile strength. This method is particularly effective in bridging different material thicknesses.
Material quality: Made of steel, which guarantees the necessary mechanical strength and durability, even against dynamic loads.
Precise Sizing: Strictly controlled dimensions ensure compatibility with professional riveting tools and precise fit into the holes.
Product specifications for maximum performance and professional installation:
| Property | Value | Note |
|---|---|---|
| Product Identifier (Part Number) | 777304 | Unique Identifier |
| Típus | Countersunk Flow Form Rivet (CS0) | |
| Package contents | 10 pieces | Packaging Unit |
| Diameter (Ø) | 5.7 mm | Nominal diameter of the rivet shank |
| Total Length (Length) | 5.8 mm | Total length of the rivet |
| Head length | 1.7 mm | Height of the countersunk head |
| Shank length (Schaftlänge) | 4.1 mm | Length of the rivet shank below the head |
| Overall dimensions (Length x Width x Height) | 5.93 x 8.86 x 5.93 mm | Extent of the rivet head and shank |
| Material | Steel | High-strength structural steel |
| Weight | 0.0132 kg | Package weight (approx.) |
Although this specific product has a length of 5.8 mm, the CS0 series may be available in other lengths for different material thicknesses:
5.8 mm
7.8 mm
9,0 mm
10.1 mm
11.5 mm
12.9 mm
13.9 mm
Wieländer+Schill is committed to the highest quality standards, which are also verified by the following certifications:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
These certificates ensure that manufacturing processes, including the production of rivets, comply with strict international requirements.
This countersunk flow rivet (777304) is a fundamental element of the Wieländer+Schill XSeries offering, enabling professional, durable, and aesthetic fastenings during modern metal processing and body repair work.
