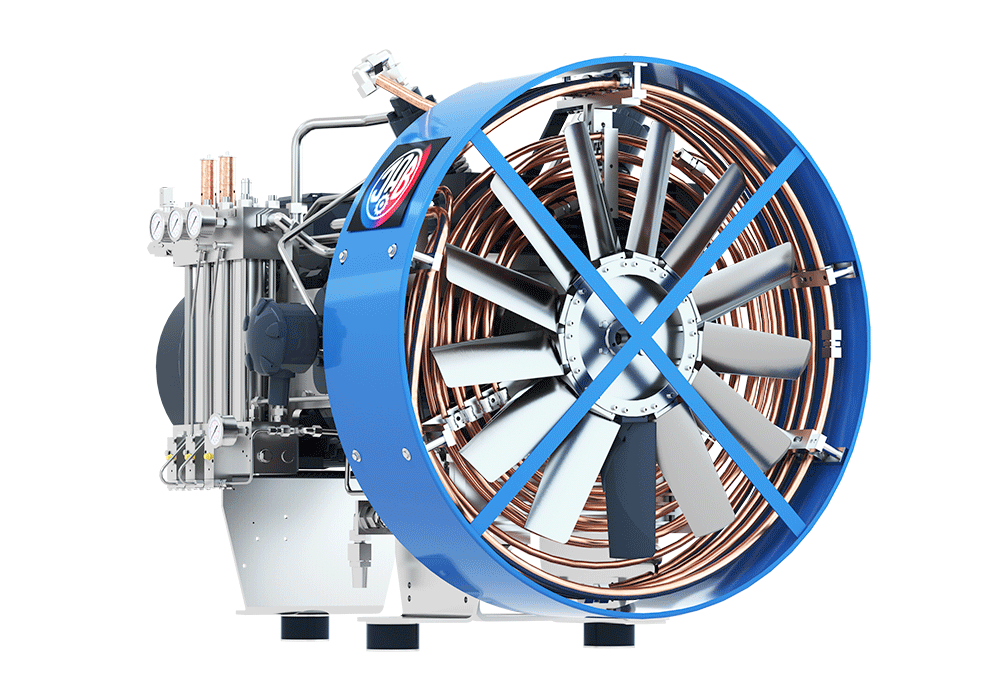

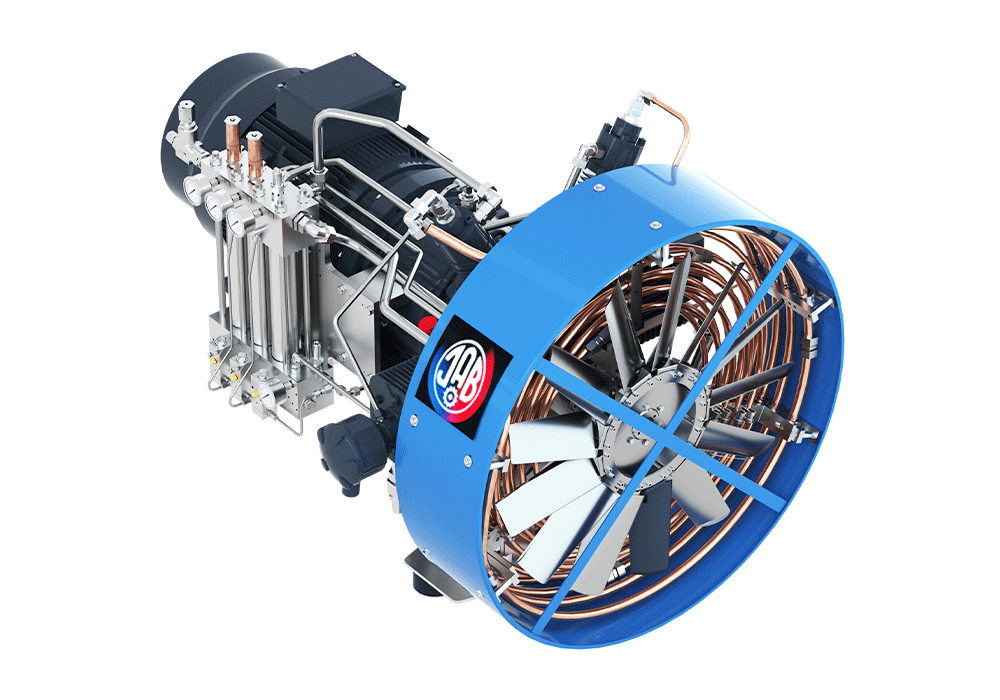

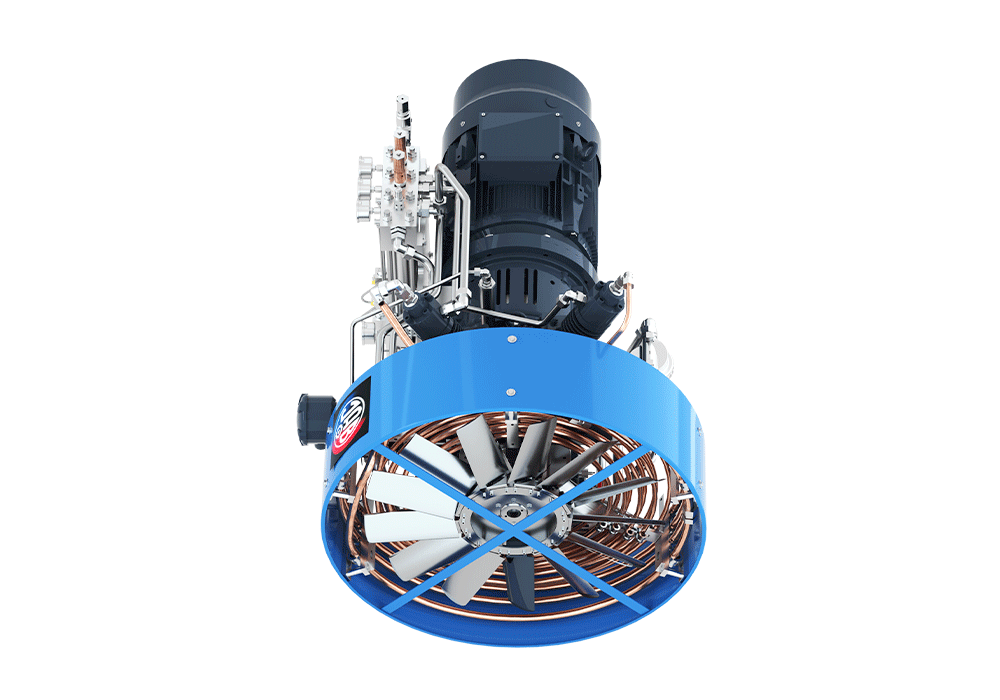

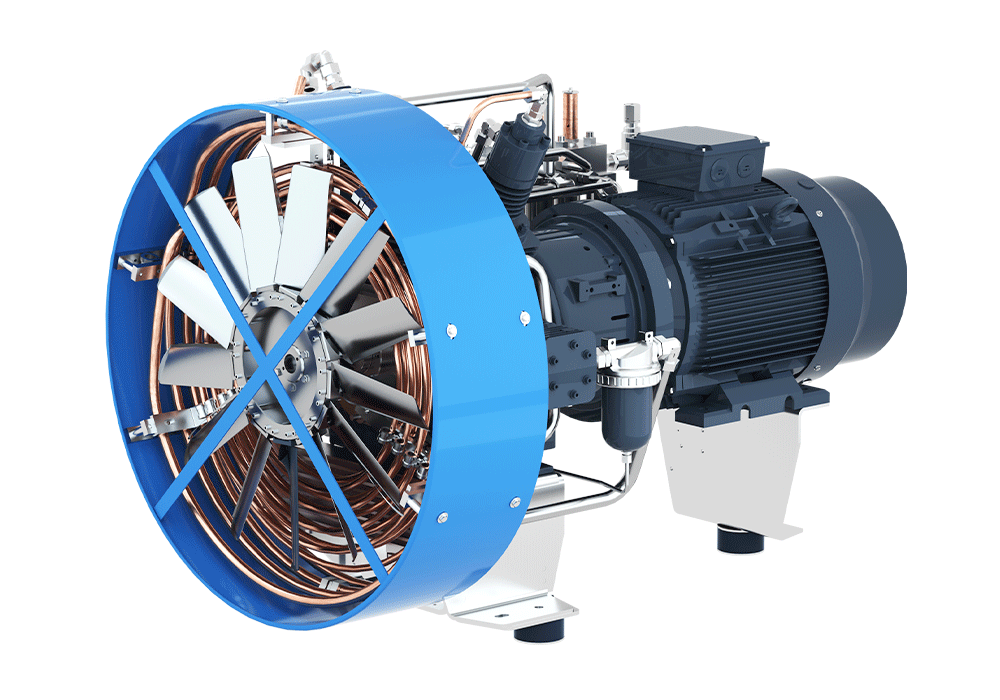

The J.A. Becker & Söhne SVB 1100/150 model is an extremely robust and high-performance, four-stage air compressor, specifically designed to meet the highest pressure demands. This equipment is ideally suited for industrial applications where reliable, high volumetric flow, and high-pressure compressed air is required. The unit reflects JAB's uncompromising quality, combining efficiency with long service life and low maintenance requirements.
The SVB 1100/150 is not an average, „eighteen-five” product. The highest quality standards were taken into account during design, which provides numerous advantages for the user:
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures the optimal operating temperature even under intense load. This not only increases reliability but also contributes to the quality of the compressed air by minimizing the formation of condensate.
Fully Automatic Drainage (Condensate Removal): The built-in, fully automated condensate removal system ensures the system always remains dry, thereby reducing the risk of corrosion and the need for regular manual intervention. This significantly increases system availability.
Long Maintenance Cycles: As a result of high-quality components and precise engineering work, maintenance intervals have been significantly extended. This reduces downtime and operating costs.
Robust Construction: The compressor is a first-class product in every respect, guaranteeing long-term, trouble-free operation even in the harshest industrial environments.
The performance and parameters of the SVB 1100/150 are detailed in the table below, highlighting the key specifications required for high-performance operation:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow rate (Suction side) | 1.130 | l/perc | Corresponds to 67.8 m³/h |
| Maximum Operating Pressure | 150 | bar | For extremely high-pressure applications |
| Nyomásfokozatok / Hengerek | 4 / 4 | – | Four-stage compression |
| Electric Motor Power | 22 | kW | Powerful Drive |
| Rotational speed | 1.500 | RPM (revolutions/minute) | Optimized operating speed |
To achieve a maximum pressure of 150 bar, the compressor operates in four separate pressure stages. This construction offers several benefits:
Temperature control: Cooling between the pressure stages effectively reduces the air temperature, which increases the compressor's lifespan and reduces internal stresses.
Energy Efficiency: Compression in multiple stages is generally more energy-efficient than compression in a single, large stage at extremely high pressures.
Longer Lifespan: The distribution of the load across the four cylinders reduces the mechanical stress exerted on individual components.
The SVB 1100/150 compressor is the ideal choice for critical areas where reliability and high pressure are essential:
High-Pressure Air Supply: General industrial application requiring 150 bar pressure.
Compression of Special Gases: Although primarily optimized for air, it may also be suitable for compressing other gases, provided the specifications are met (individual consultation required).
Automated Systems: Due to fully automatic operation and long maintenance cycles, it is ideal for installation in remote or hard-to-reach locations.
J.A. Becker & Söhne is committed to ensuring users have the latest and most accurate information about their products. Further detailed product information, including full technical data sheets and brochures, is available for download.
Downloadable Documents:
Technical Data Sheet: Detailed specifications for installation and operation.
Product Brochure: Comprehensive overview of the compressor technology and its advantages.
This compressor is the culmination of J.A. Becker & Söhne's engineering expertise, guaranteeing continuous, efficient, and reliable compressed air supply even in the most demanding industrial environments.
