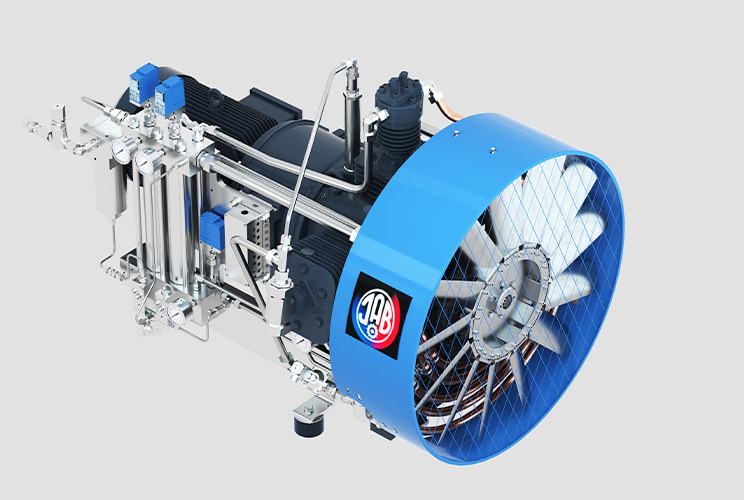

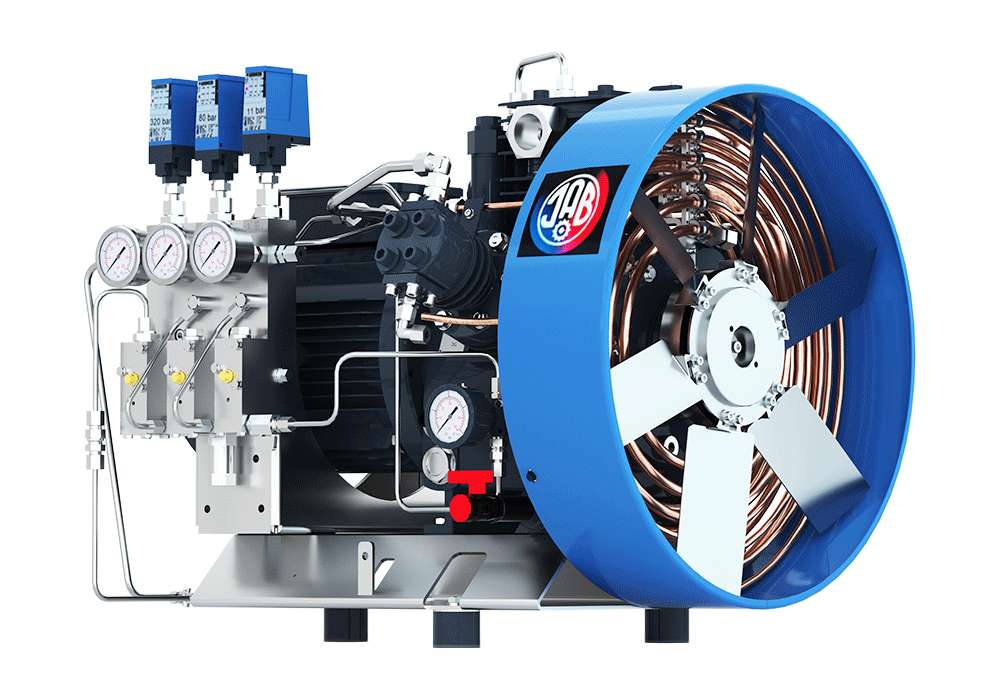

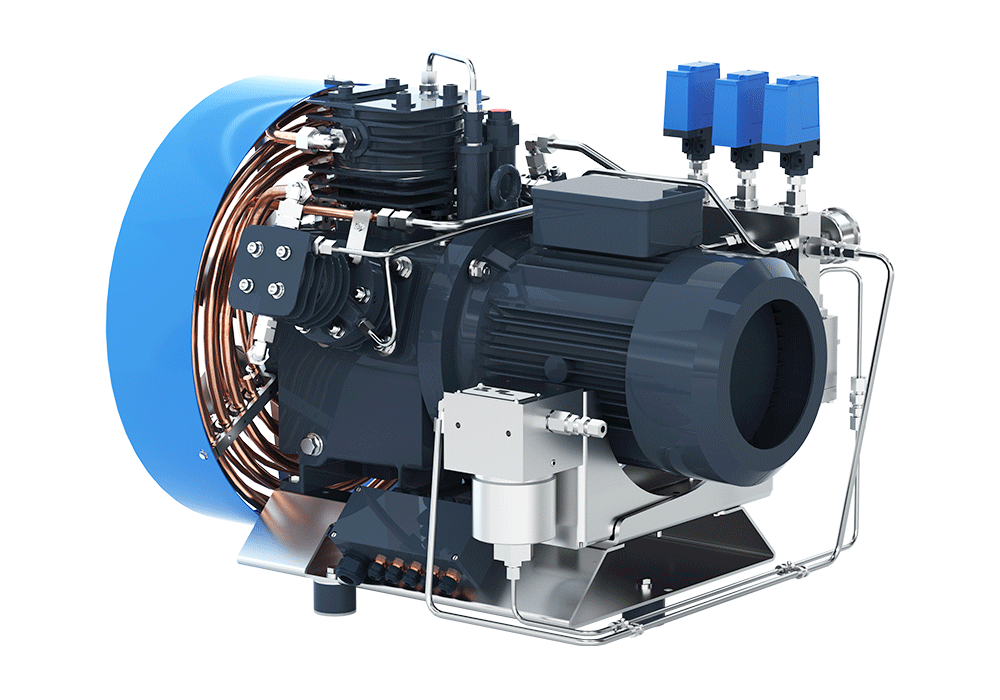

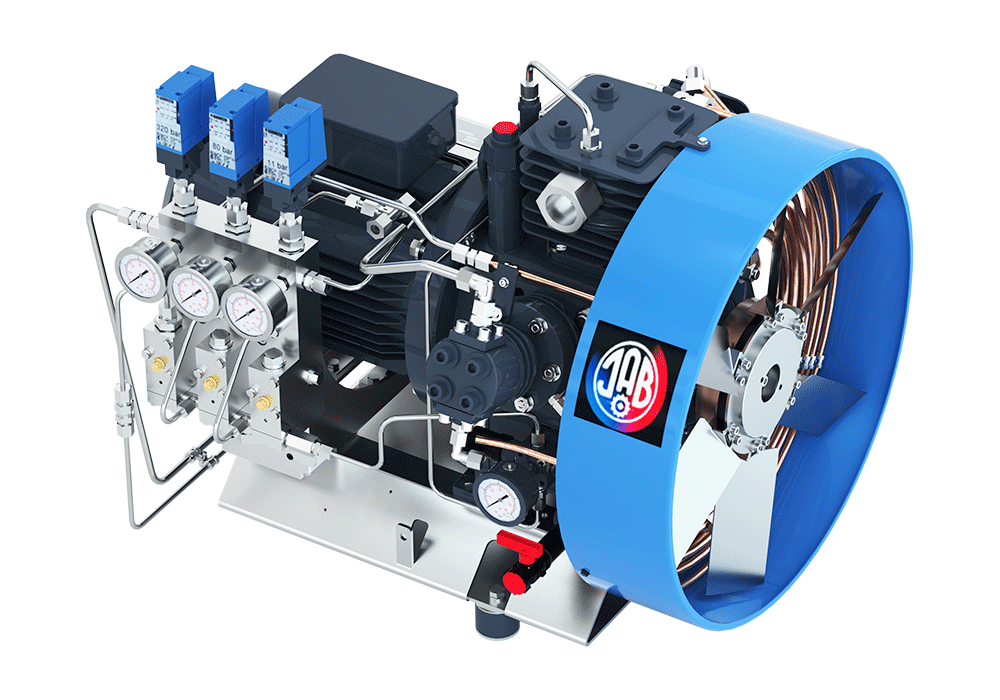

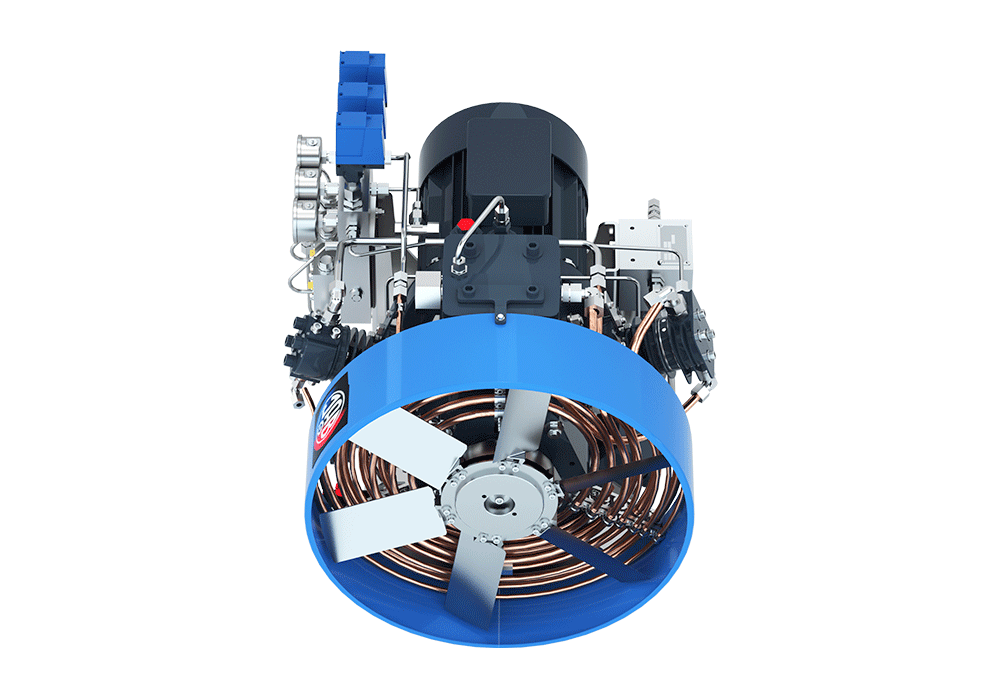

The SV 1100/40 type piston compressor represents the pinnacle of J.A. Becker & Söhne's engineering precision, developed specifically for high-pressure industrial applications. This three-stage, air-cooled compressor is ideally suited for tasks requiring reliable, high flow rate, and high-pressure compressed air.
The unit is not an „off-the-shelf” product; in line with J.A. Becker & Söhne's philosophy, the SV 1100/40 focuses on durability, efficiency, and long-term, trouble-free operation.
The SV 1100/40 compressor features several outstanding characteristics that ensure market-leading performance and low operating costs:
NOT AN AVERAGE PRODUCT (NO 08/15 PRODUCTS): During design, solutions meeting the highest quality and performance requirements were implemented instead of standard solutions.
High-Efficiency Cooling: Efficient heat dissipation is crucial for the compressor's lifespan and continuous performance. The specially designed cooling system minimizes temperature fluctuations, thereby protecting the internal components.
Fully Automatic Drainage: The system automatically manages condensate drainage and excess pressure release, thereby reducing the need for user intervention and ensuring optimal operating conditions.
Long Maintenance Intervals: The robust construction and high-quality materials guarantee exceptionally long maintenance cycles, which significantly reduces downtime and annual service costs.
The performance and capabilities of the SV 1100/40 compressor are defined by the following precise technical parameters:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Maximum Ultimate Pressure (Max. Ultimate pressure) | 40 | bar | Extremely high operating pressure |
| Volume flow (Volume flow) | 1100 | l/min | Equivalent to 66.0 m³/h |
| Pressure stages / Cylinder | 3 / 3 | – | Three-stage compression |
| Electric Motor Power (Electric motor) | 18,5 | kW | Powerful Drive |
The combination of a 66.0 m³/h volume flow rate and a maximum pressure of 40 bar makes this model ideal for critical processes such as:
High-pressure gas charging (e.g., natural gas or special gases).
Industrial processes where pressure stability is essential.
Supplying high-pressure pneumatic systems.
The SV 1100/40 is a first-class product in every respect. J.A. Becker & Söhne compressors are renowned for their reliability, especially in the field of gas compressors, where precision and safety are paramount.
This three-stage design ensures that the temperature generated during compression is optimally managed at each stage, thereby maximizing efficiency and minimizing mechanical stress. The 18.5 kW electric motor provides sufficient power to reach 40 bar pressure, while the 3 cylinders ensure a continuous and steady volume flow.
The product is excellently applicable for:
Energy Industry: Gas transmission and storage systems.
Chemical and Petrochemical Industry: Compression of process gases.
Special High-Pressure Applications: Any industrial environment where pressures exceeding 40 bar are essential for operation.
J.A. Becker & Söhne is committed to quality, evidenced by the product's long lifespan and infrequent maintenance requirements. During the design of the unit, special attention was paid to easy accessibility for planned inspections and minimizing service needs.
This compressor guarantees reliable, high-performance compressed air supply, minimizing the risk of unexpected downtime.
