The J.A. Becker & Söhne TwinRam 350 AN de luxe is a premium two-post vehicle lift, specifically designed for lifting solutions with an integrated design combined with a runway lift (post lift). This model is an ideal choice for workshops where maximum space utilization, a flush-with-the-floor installation, and seamless vehicle positioning are essential.
The „de luxe” version emphasizes user convenience and safety, offering integrated solutions to eliminate traditional ramps and curbs.
The TwinRam 350 AN de luxe is not an average (NO 08/15) product. The engineering solutions from J.A. Becker & Söhne guarantee a long service life and excellent operational safety.

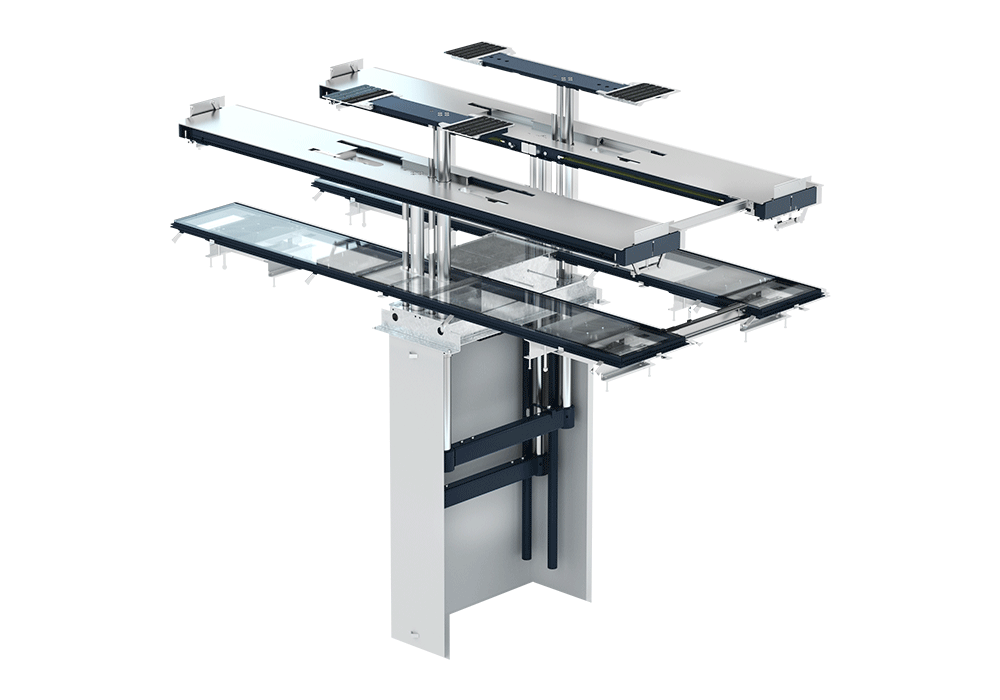

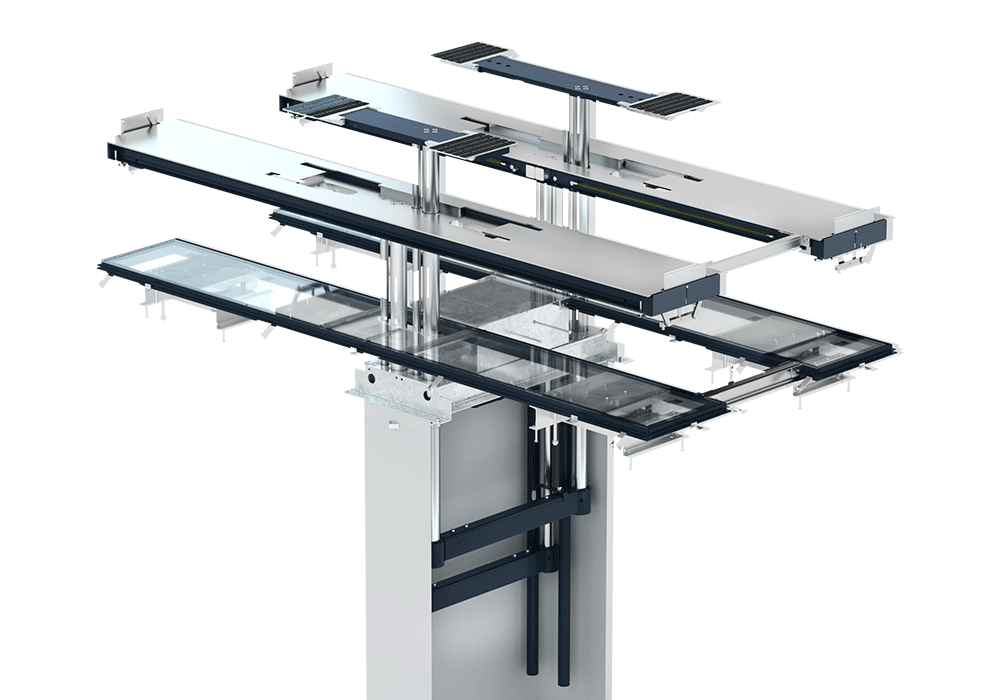

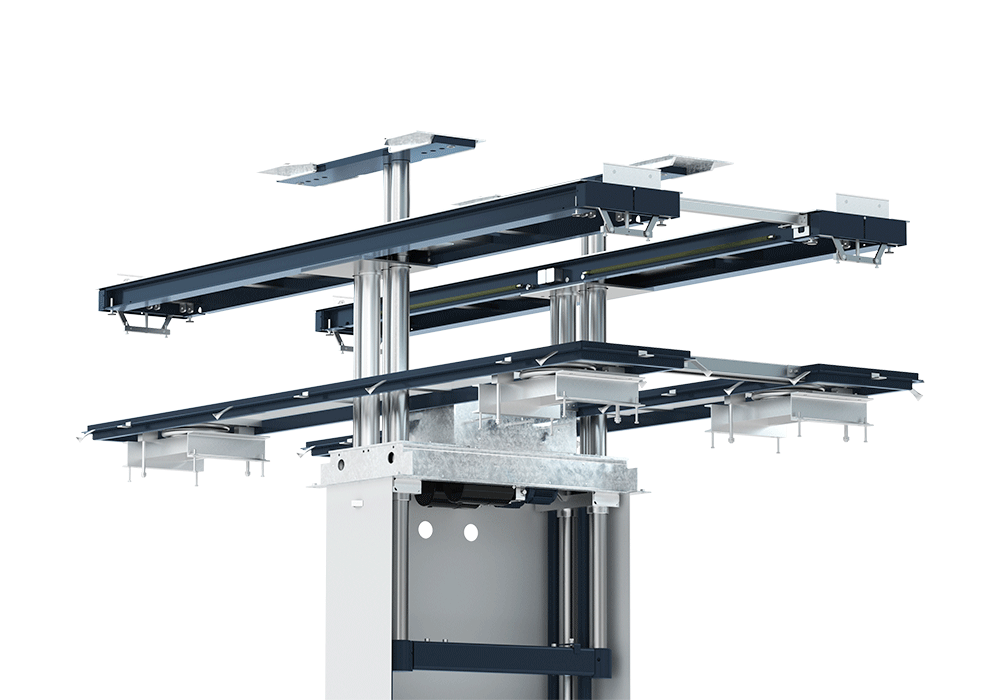

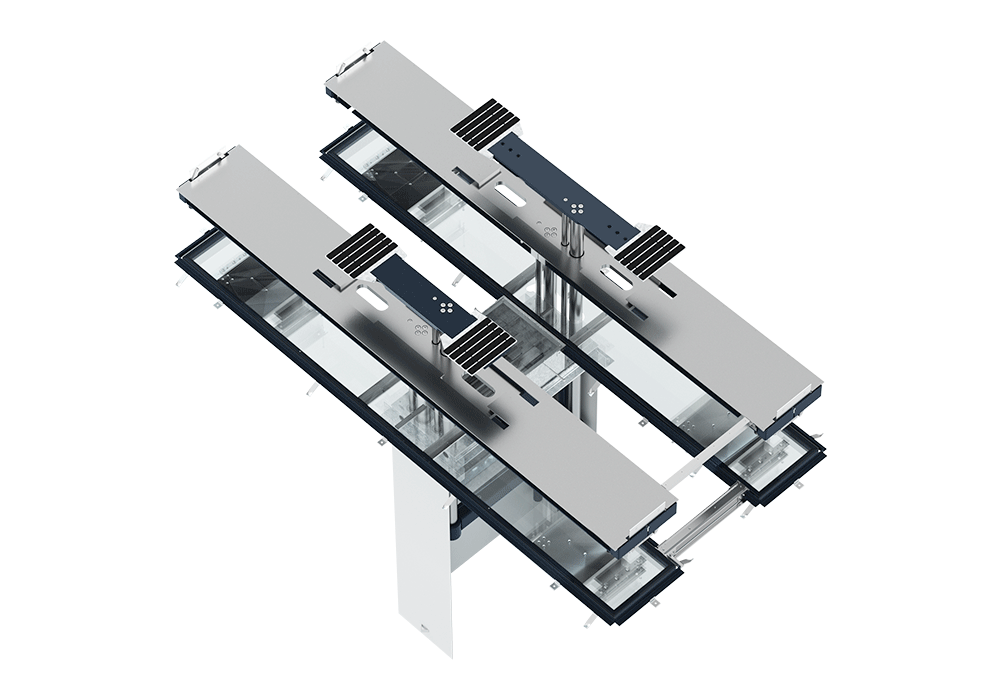

Two separate lifting platforms: The system consists of two independent lifting platforms that lift the vehicle with precise synchronization.

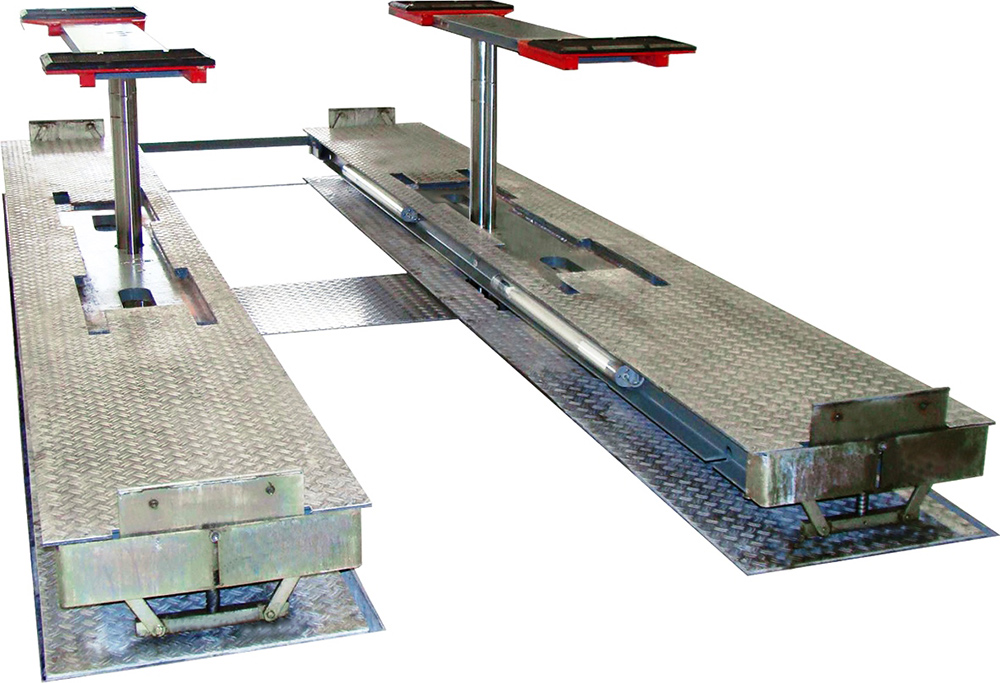

Integrated Runway Lift (Post-Lift): The in-ground (recessed) runway lift allows for convenient and trouble-free access to the vehicle's undercarriage or jacking points, without creating obstacles on the workshop floor.

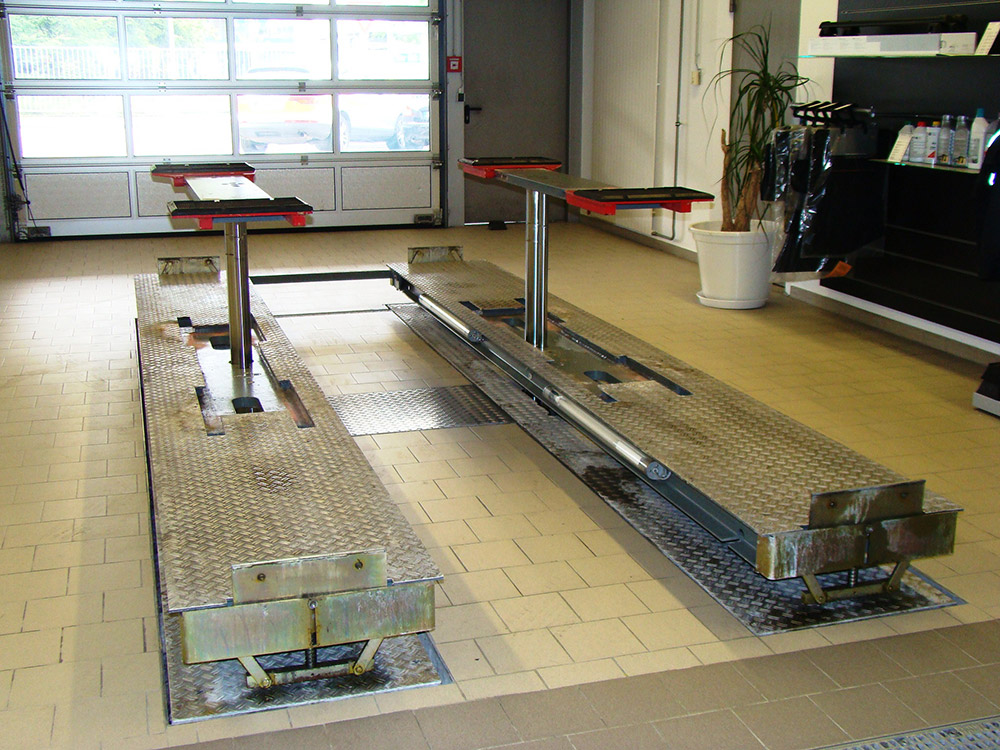

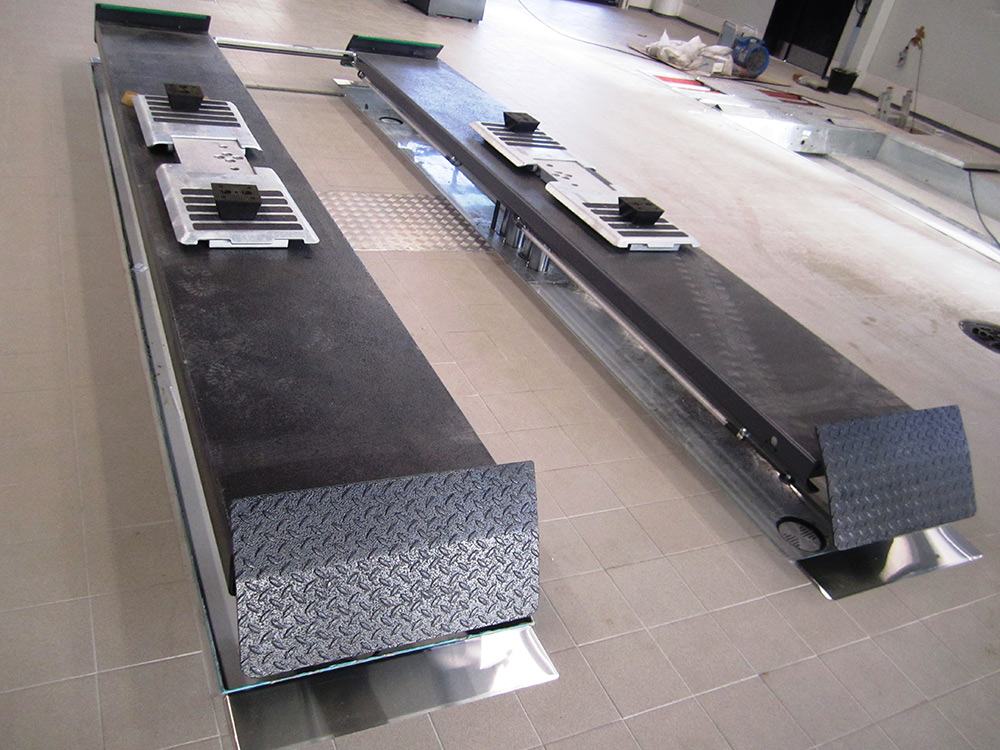

Completely flush workshop floor in the lowered end position: When the lift is fully lowered, the lifting platforms and the integrated recessed rails form a completely flush surface with the workshop floor, ensuring an unobstructed working area.
Integrated wheel chocks: The roll-off guards integrated into the front and rear rails eliminate the need for separate ramps or tilting plates, allowing vehicles to drive on without obstruction.
Full stroke anti-rotation system: For safe lifting, an effective anti-rotation mechanism ensures stability throughout the entire lifting height.
Loads absorbed by the base frame: All operational forces are absorbed by the base frame, which minimizes the load on the floor and increases the structure's lifespan.
Easy access to the drive unit: The hydraulic drive unit and all critical components are easily accessible for maintenance.
The precise and robust design of the TwinRam 350 AN de luxe lift features the following technical parameters:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting distance (Punch distance) | 1,500 mm | The maximum lifting height. |
| Installation Depth (Installation depth) | 2,350 mm | The minimum depth required under the floor. |
| Oil quantity | 20 liter | The amount required to fill the hydraulic system. |
| Connected Load (Connected load) | 2 x 2 kw | Performance of two separate drive units. |

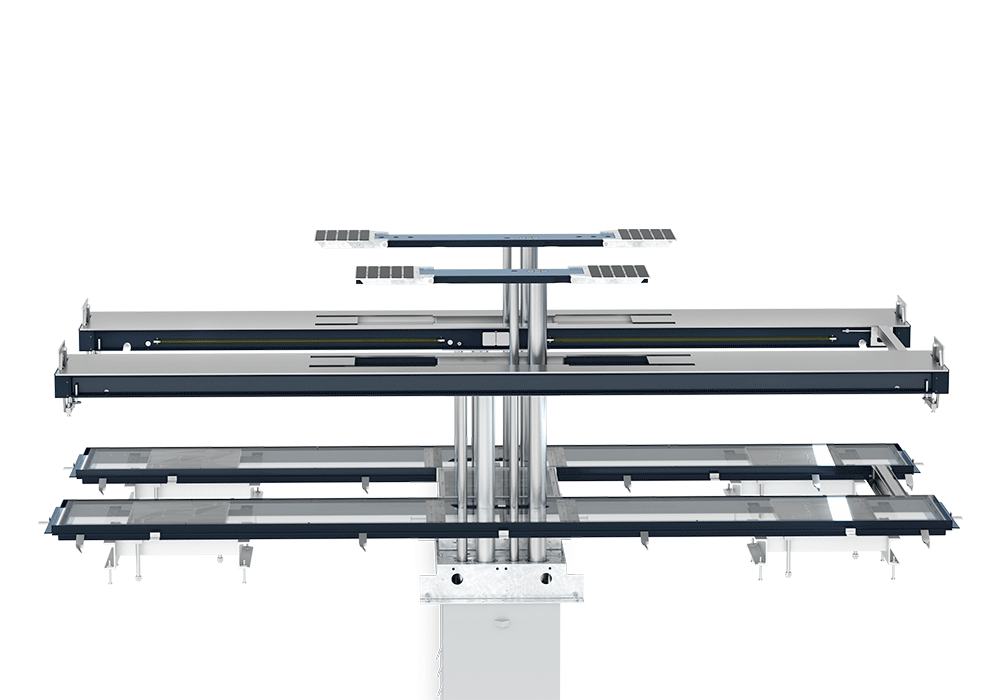

The TwinRam 350 AN de luxe is a specially designed two-post lift that enables problem-free vehicle loading using built-in tracks and the post lift recessed into them. This configuration is ideal for diagnostic and service environments where vehicles must approach the lift level with the floor, and then maximum undercarriage access must be provided during the full lift operation.
Safety was a priority during the design process. The integrated roll-off guards guarantee that vehicles cannot move from their position during lifting, thus eliminating the need for additional securing elements.
Optionally available a floor leveler (floor leveler), which further increases safety and handling convenience, especially when using the deck lift. This accessory ensures that the deck lift platform also perfectly aligns with the plane of the main lifting platforms when it is not in use.
True to J.A. Becker & Söhne products, the TwinRam 350 AN de luxe also represents first-class quality. Every element of the structure is designed to withstand heavy use while maintenance requirements remain minimal. The placement of the hydraulic system and control units ensures optimized access for servicing, reducing downtime.
This lift is the ideal solution for modern service environments where efficiency and quality of work execution are paramount. Thanks to the built-in design, the workshop remains aesthetically neat when the lift is not in use.
