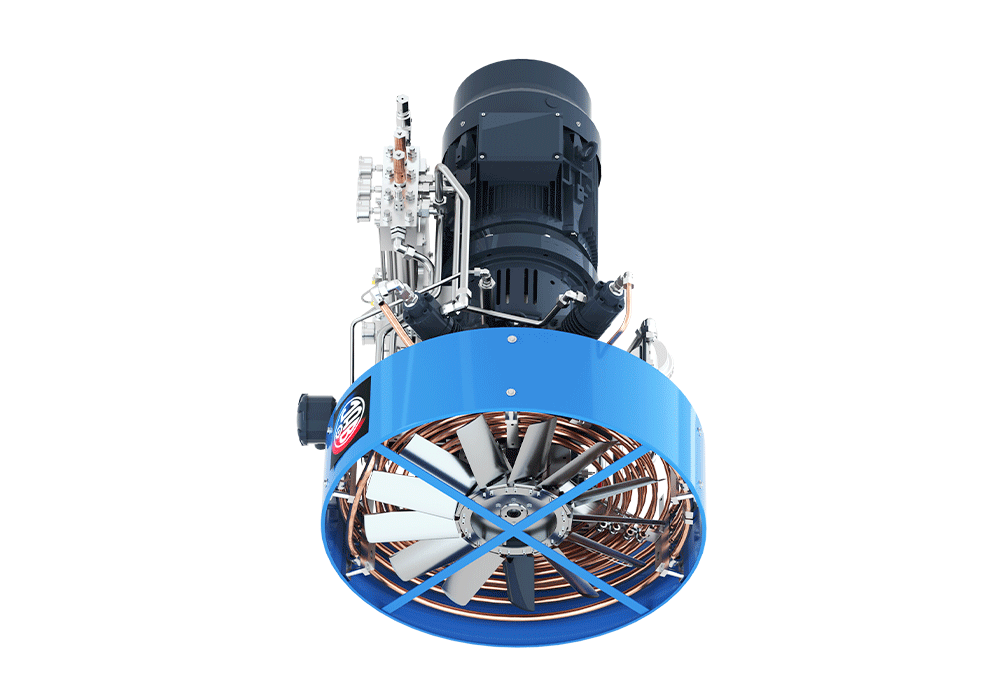

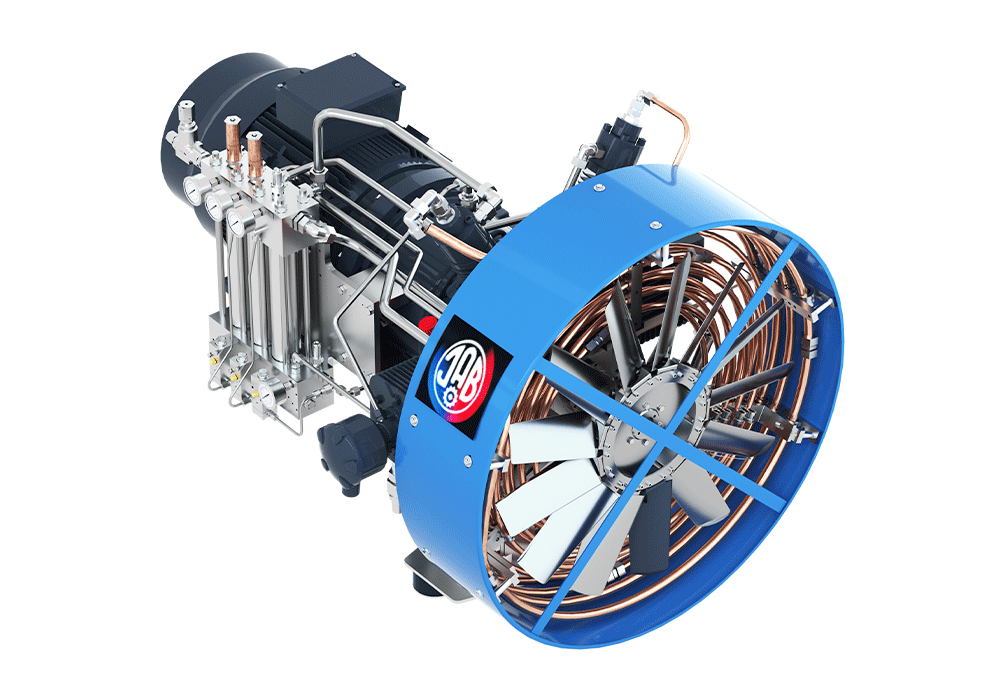

The J.A. Becker & Söhne SVB 1300/350 model is an extremely high-performance, four-stage air compressor designed for the most demanding industrial applications. This unit delivers outstanding volumetric flow and extremely high operating pressure, while guaranteeing reliability and long service life in line with JAB's engineering philosophy.
This compressor is not a „mass-produced product”; J.A. Becker & Söhne's commitment to quality is evident in every single component, ensuring continuous, uninterrupted operation even under the harshest conditions.
The SVB 1300/350 series is designed to minimize downtime and maximize efficiency.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This is critically important for maintaining compressed air quality and increasing the lifespan of mechanical components.
Fully Automatic Condensate Drainage: The unit automatically and efficiently removes condensate from the system, thereby reducing maintenance requirements and preventing corrosion in the compressed air line.
Long Maintenance Intervals: Thanks to its robust construction and high-quality materials, the compressor features extremely long maintenance intervals, significantly reducing operating costs and increasing availability.
High Performance: The maximum operating pressure of 350 bar makes it possible to serve special applications that require extremely high-pressure air.
The SVB 1300/350 compressor offers precise engineering solutions in the perfect balance of performance and reliability.
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Volume flow | 1.390 | l/min | Equivalent to 83.4 m³/h |
| Maximum Operating Pressure | 350 | bar | For extremely high-pressure applications |
| Nyomásfokozatok / Hengerek | 4 / 4 | – | Four-stage compression |
| Electric Motor Power | 37 | kW | Powerful Drive |
| Rotational speed | 1.500 | rpm | Optimized operating speed |
The four-stage design of the compressor ensures gradual compression of the air, which reduces the thermal load on individual stages and increases mechanical stability.
Compression Stages:
The 4-cylinder, 4-stage system guarantees that the air reaches the final pressure of 350 bar efficiently, with minimal energy loss. This construction is ideal for high-pressure charging tasks where thermal management is crucial.
Cooling System:
The built-in, highly efficient cooling system is essential for reaching 350 bar. The efficiency of the cooling directly influences the compressor's lifespan and the temperature of the compressed air, which is especially important during charging processes.
Drive:
The 37 kW electric motor running at 1500 revolutions/minute provides the necessary energy to maintain the high volumetric flow rate and pressure. The close integration of the motor and compressor unit minimizes transmission losses.
The SVB 1300/350 is the pinnacle of J.A. Becker & Söhne's quality assurance. Durability and reliability were the focus in every phase, from design to manufacturing.
This compressor is the ideal choice in areas such as:
Filling of high-pressure air receivers.
Industrial processes that require extremely high-pressure air.
Critical systems where continuous operation is essential.
The equipment's design ensures that users receive the highest level of performance while maintenance and operating costs remain low due to long-life components.
Further Product Information:
More detailed technical documentation, including the complete datasheet and product brochure, can be downloaded from the manufacturer's official sources. These documents provide deeper insight into the installation requirements and maintenance procedures.
