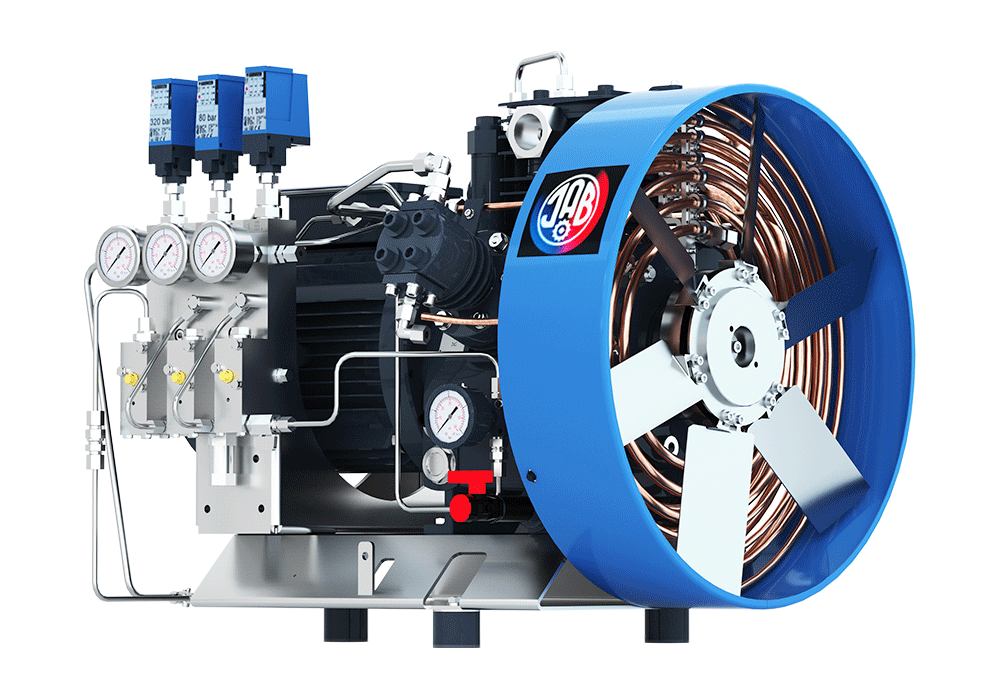

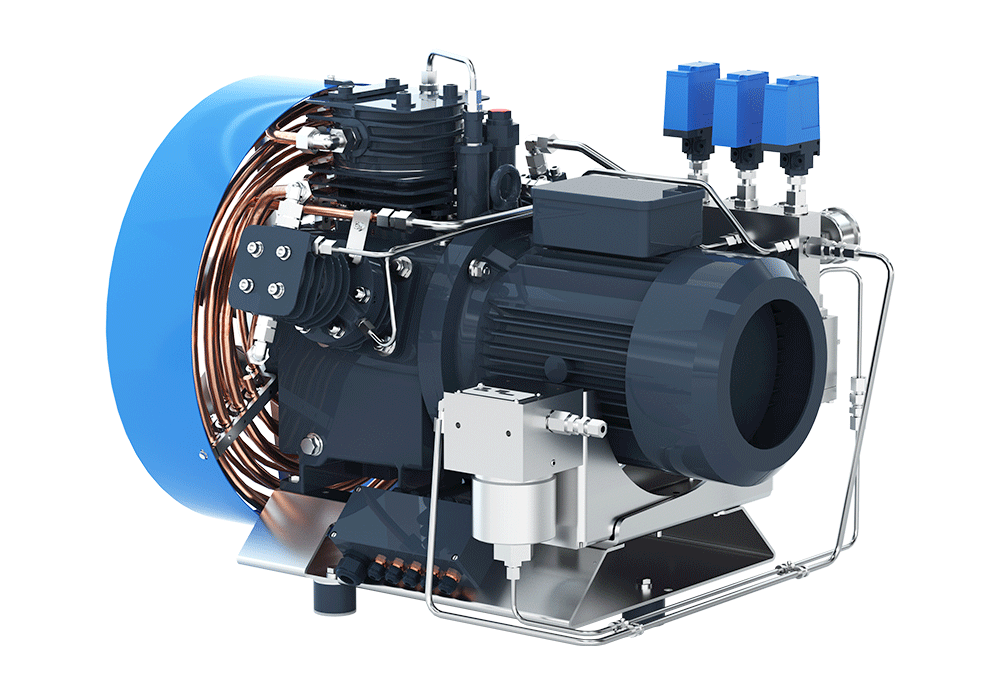

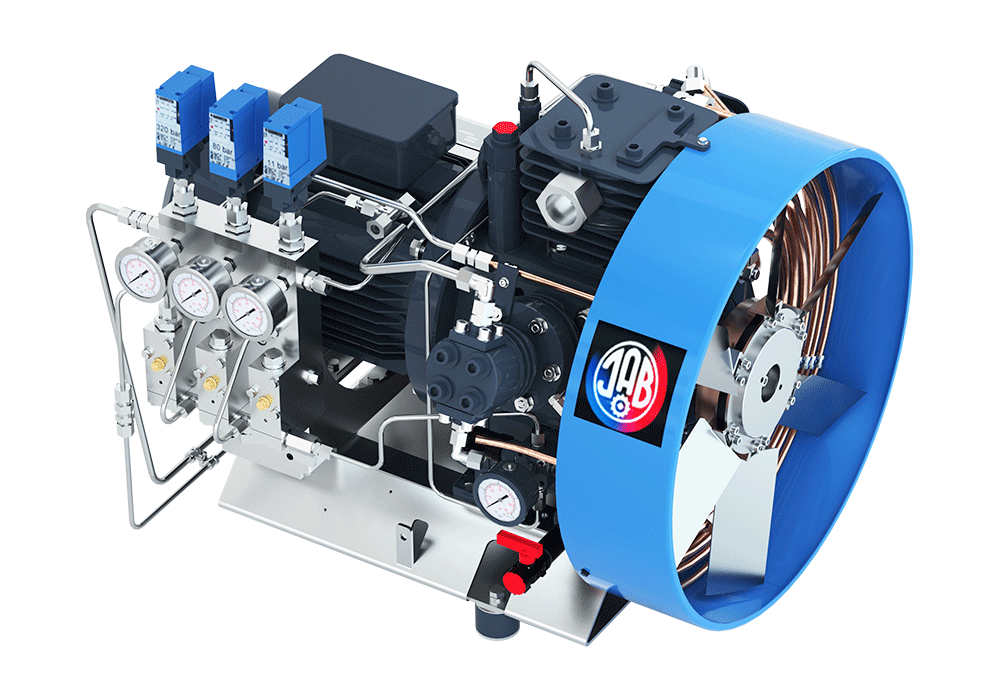

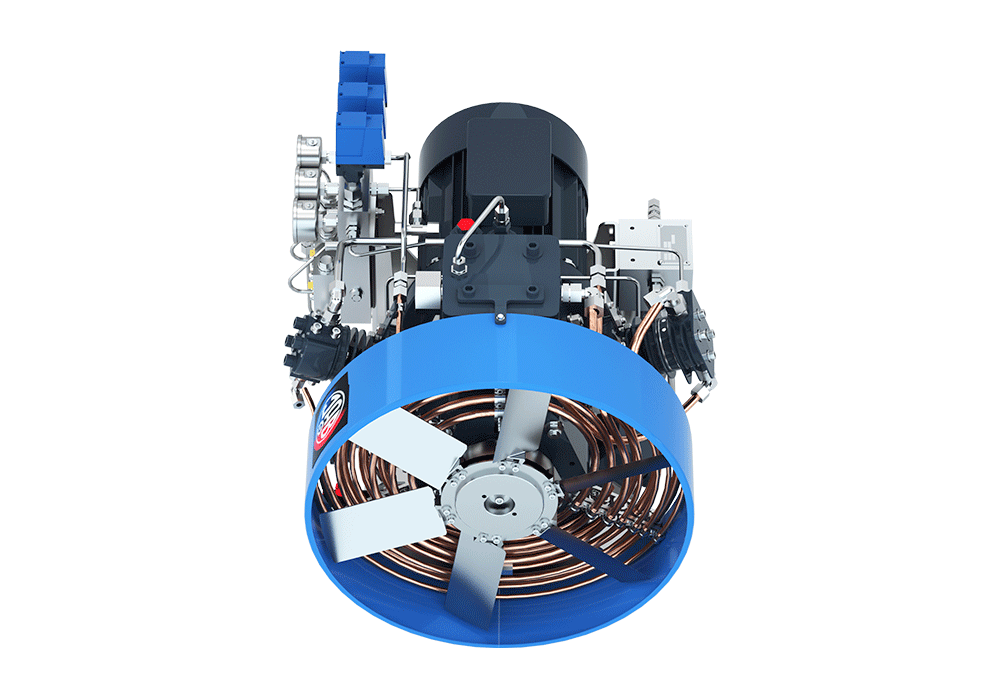

The SV 2400/50 air compressor represents the engineering excellence of J.A. Becker & Söhne, designed for high-performance, reliable compressed air generation. This three-stage reciprocating compressor offers an ideal solution for industrial applications requiring high pressure (up to 50 bar) and significant flow rates (141.0 m³/h) of air. This unit is not an „off-the-shelf product,” but a specially designed, highly efficient piece of equipment that guarantees a long service life and minimal maintenance requirements.
During the design of the SV 2400/50 compressor, durability, efficiency, and simple operation were the main focus.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This not only increases the lifespan of the components but also improves the quality of the compressed air by reducing condensate formation.
Fully Automatic Drainage: The system features an automatic condensate drain function, which minimizes the need for user intervention and ensures continuous, uninterrupted operation.
Long Maintenance Cycles: The robust construction and the use of quality components allow for extremely long maintenance intervals, thereby reducing downtime and operating costs.
High Performance: The 37 kW electric motor provides sufficient energy to achieve the desired flow rate and pressure, making the compressor suitable even for high-demand systems.
Versatile Application: The maximum operating pressure of 50 bar allows the unit to be used in specialized fields such as high-pressure gas filling, testing of pneumatic systems, or specific industrial processes.
The precise engineering solutions of the SV 2400/50 compressor are summarized in the following table:
| Parameter | Value | Note |
|---|---|---|
| Típus | SV 2400/50 | Three-stage air compressor |
| Volume flow | 141.0 m³/h | Corresponds to 2350 l/min capacity |
| Maximum Operating Pressure | 50 bar | |
| Maximum Final Pressure | max. 40 bar | Note: The source contains conflicting data (50 bar operating vs. 40 bar max. final pressure). 50 bar is the primary specification. |
| Pressure Stages / Cylinder | 3 / 4 | Three pressure stages, four cylinders |
| Electrical Power | 37 kW | Drive motor power |
The construction and operating principle of the compressor serve maximum reliability:
Staged Compression: The three-stage design ensures that the air is gradually compressed at an optimal temperature in each stage. This significantly reduces mechanical stress and increases efficiency when reaching high pressures.
Number of Cylinders: The four cylinders distribute the load, contributing to reduced vibration and balanced operation.
Cooling System: Efficient cooling is crucial for high-pressure compressors. The built-in cooling elements ensure that the heat generated during compression is removed quickly and effectively, protecting the seals and pistons from overheating.
The SV 2400/50 is not just a machine, but a well-thought-out system that meets the highest quality expectations. J.A. Becker & Söhne is committed to supplying products that do not fall into the category of conventional, „off-the-shelf” solutions, but offer unique engineering performance.
The unit is the ideal choice for critical industrial environments where compressed air quality and continuous availability are essential for the smooth running of manufacturing processes. The design, engineered for a long service life, minimizes the risk of unexpected failures, ensuring long-term, cost-effective operation.
Further product information and detailed datasheets can be downloaded based on the manufacturer's official documentation.
