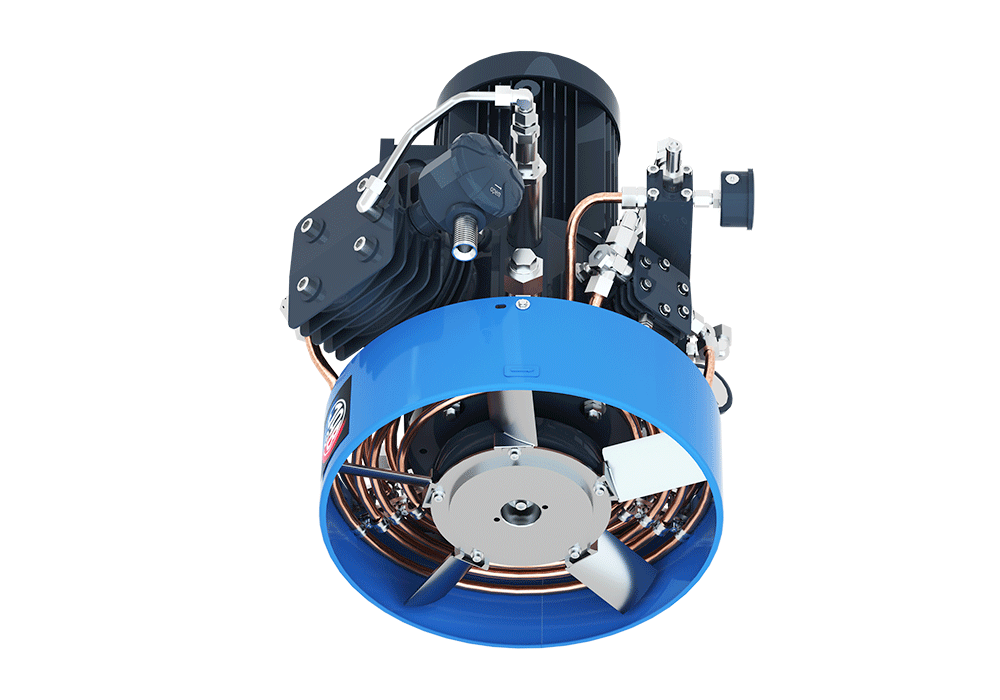

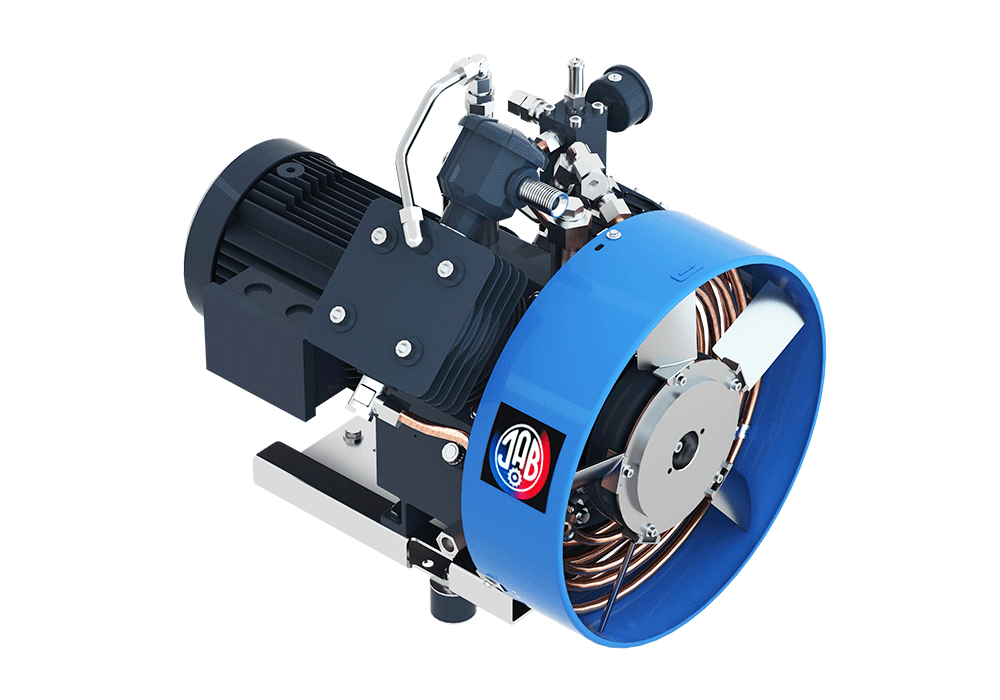

The J.A. Becker & Söhne SV 245/40 N model is a high-performance, two-stage nitrogen compressor designed to meet the highest industrial demands. This equipment offers an optimal solution for applications requiring reliable, high-pressure nitrogen supply, with a maximum operating pressure of 40 bar and significant flow rate. Becker's commitment to quality and durability is also reflected in this model, avoiding „off-the-shelf solutions” (NO 08/15 PRODUCTS).
The SV 245/40 N compressor features several functions that ensure efficient, long-term, trouble-free operation:
High-Efficiency Cooling: The advanced cooling system guarantees optimal operating temperature, which increases the compressor's lifespan and maintains gas quality during the compression process.
Fully Automatic Discharge: The fully automated pressure reduction and discharge system minimizes the need for human intervention, increases safety, and ensures consistent performance.
Long Maintenance Cycles: As a result of the robust construction and high-quality components, maintenance intervals are significantly extended, reducing downtime and operating costs.
Outstanding Quality in Every Respect: Every element of the product is designed according to the highest quality standards, ensuring reliability even in the harshest industrial environments.
The precise technical parameters of the SV 245/40 N compressor ensure accurate performance according to the specified configurations.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Flow Rate | 15.1 – 17.9 | m³/h | Corresponds to 252/298 l/min |
| Maximum Operating Pressure | 40 | bar | For high-pressure applications |
| Inlet Pressure (Inlet Pressure) | 0.1 / 0.3 | bar | |
| Nyomásfokozatok / Hengerek | 2 / 2 | Two-stage design | |
| Electric Motor Power | 4.8 | kW | |
| Speed (Speed) | 1.500 | rpm |
The technical data provides the flow rate in two different units of measurement, which aids in user integration:
Liters/minute (l/min): 252 l/min – 298 l/min
Cubic meters/hour (m³/h): 15.1 m³/h – 17.9 m³/h
The SV 245/40 N is a piston, two-stage compressor specifically optimized for nitrogen (N₂) compression. The two-stage compression arrangement allows for more efficient and safer delivery of the gas to the final pressure of 40 bar, minimizing heat generation between stages thanks to the built-in cooling system.
The 4.8 kW electric motor drives the two cylinders at a speed of 1500 revolutions/minute, ensuring stable and reliable operation. The relatively low inlet pressure (0.1-0.3 bar) indicates that the compressor generally takes over pre-compressed or stored gas, or starts from atmospheric pressure, but minimal pre-pressure is preferred for system efficiency.
This type of compressor can be an ideal choice for industrial processes such as:
Inerting & Filling: Filling gas cylinders, tanks, or systems with nitrogen, where 40 bar pressure is sufficient for the intended application.
Laboratory and Research Applications: Provision of high-volume, stable pressure nitrogen supply for testing equipment.
Industrial Gas Supply Systems: Support for manufacturing processes that require a nitrogen protective atmosphere or pressure tests.
J.A. Becker & Söhne summarizes its commitment to quality in the philosophy of „NO 08/15 PRODUCTS” (No mass-produced items). In the case of the SV 245/40 N, this quality manifests in the following areas:
Structural Integrity: The compressor housing and internal mechanics are resistant to continuous load and pressure fluctuations.
Long-Life Components: The manufacturer carefully selects materials to minimize wear, which directly contributes to long maintenance cycles.
Energy Efficiency: Although the main focus is on reliability, the optimal utilization of the 4.8 kW motor with the two-stage system helps control energy consumption relative to performance.
This equipment is a first-class product in every respect, guaranteeing continuous and safe nitrogen supply even in the most demanding industrial environments. Further detailed product information, datasheets, and brochures can be downloaded from the manufacturer's official sources.
