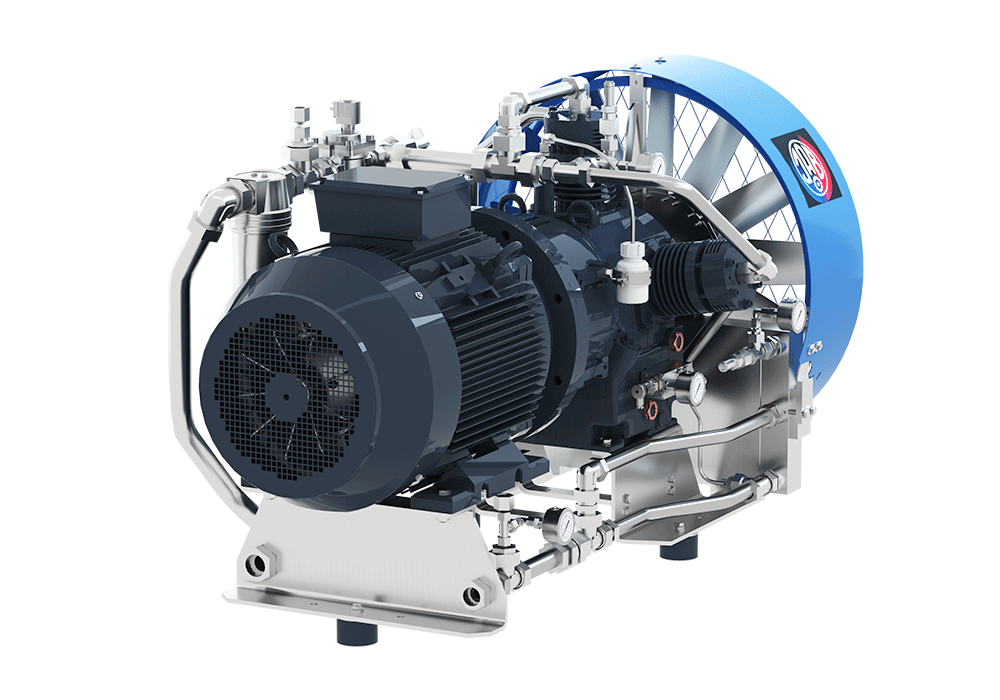

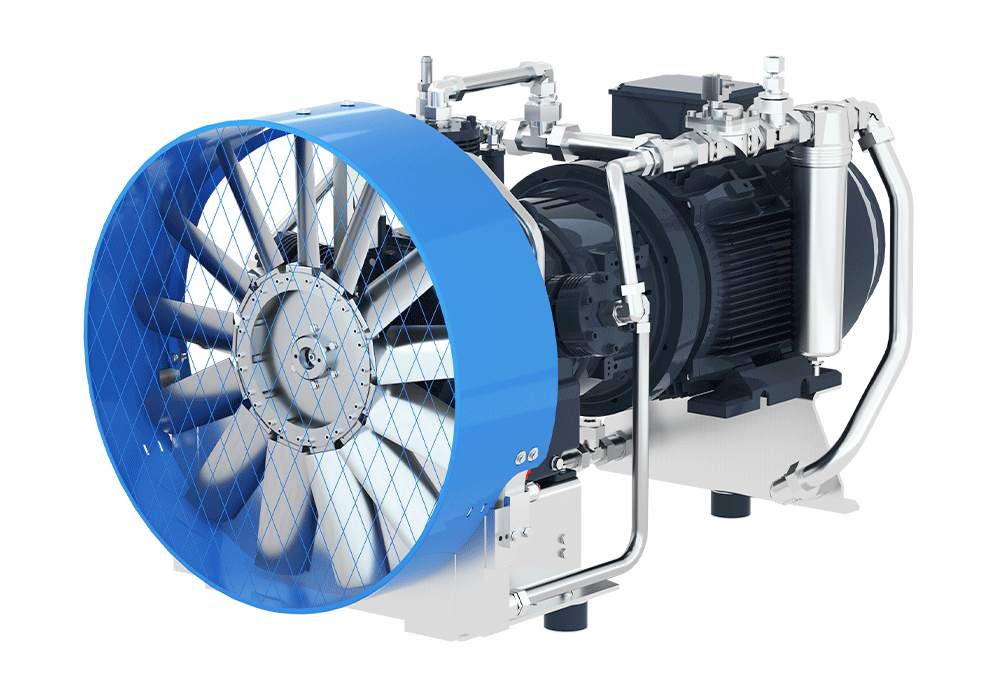

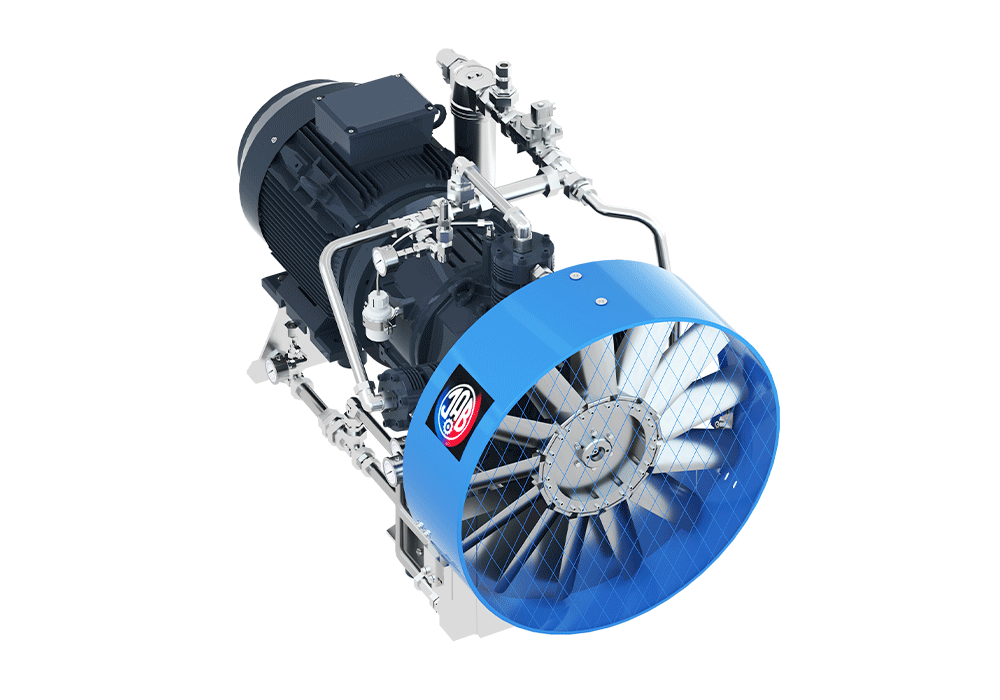

The J.A. Becker & Söhne V 5461-3/40, a 30 kW single-stage air compressor, is an excellent choice for those seeking a reliable, high-performance, and efficient compressed air generation solution. This model combines robust construction with flexible operating parameters, covering a wide range of industrial requirements.
This compressor is not an „off-the-shelf product”; J.A. Becker & Söhne is committed to quality and longevity, guaranteeing optimal equipment operation even in the most demanding environments.
The V 5461-3/40 series is made special by outstanding technical solutions:
Excellent Efficient Cooling: The advanced cooling system ensures optimal operating temperature, which increases compressor lifespan and maintains high efficiency even under continuous load.
Fully Automatic Draining (Condensate Removal): The built-in, fully automatic condensate drainage minimizes maintenance requirements and ensures the compressed air remains dry, protecting connected systems from corrosion and damage.
Long Maintenance Cycles: Thanks to the high-quality components and precise engineering work, maintenance intervals have been significantly extended, thereby reducing downtime and operating costs.
Robust Construction: The compressor has 3 cylinders and a speed of 1500 rpm, guaranteeing stable and reliable operation.
The V 5461-3/40 model is equipped with a 30 kW motor and has a single-stage design. The performance (flow rate) and maximum operating pressure are extremely flexibly configurable depending on the inlet pressure.
| Parameter | Value | Note |
|---|---|---|
| Power | 30 kW | Electric motor performance |
| Number of Cylinders | 3 | |
| Number of stages | 1 | Single-stage compression |
| Rotational speed | 1.500 rpm | |
| Volume flow range | 348.9 – 666.0 m³/h | Depending on the inlet pressure |
| Operating pressure range | 20 – 40 bar | Depending on the inlet pressure |
The compressor performance (flow rate and maximum pressure) adjusts to the given inlet pressure (suction side pressure):
| Maximum Operating Pressure | Flow rate (l/min) | Flow Rate (m³/h) |
|---|---|---|
| 30 bar | 6100 l/min | Approx. 366 m³/h |
| 40 bar | 5815 l/min | Approx. 348.9 m³/h |
| Maximum Operating Pressure | Flow rate (l/min) | Flow Rate (m³/h) |
|---|---|---|
| 20 bar | 8770 l/min | Approx. 526.2 m³/h |
| 30 bar | 8350 l/min | Approx. 501 m³/h |
| 40 bar | 7950 l/min | Approx. 477 m³/h |
| Maximum Operating Pressure | Flow rate (l/min) | Flow Rate (m³/h) |
|---|---|---|
| 20 bar | 11,100 l/min | Approx. 666 m³/h |
| 30 bar | 10,560 l/min | Approx. 633.6 m³/h |
| 40 bar | 10,060 l/min | Approx. 603.6 m³/h |
Note: The above m³/h values were calculated based on the given l/min values (1 hour = 60 minutes).
The V 5461-3/40 compressor is the ideal choice for industrial processes requiring high-pressure, clean, and stable compressed air. The flexible pressure and volume flow range allows for precise dimensioning of the equipment to user requirements.
Ideal application areas:
High-pressure pneumatic systems.
Special manufacturing processes where pressure above 20 bar is essential.
Plants where reliability and long service life are critical factors.
This compressor is a first-class product in every respect, guaranteeing efficient and economical operation in accordance with the quality standards of J.A. Becker & Söhne. Detailed technical documentation (data sheets and brochures) can be downloaded for further information.
