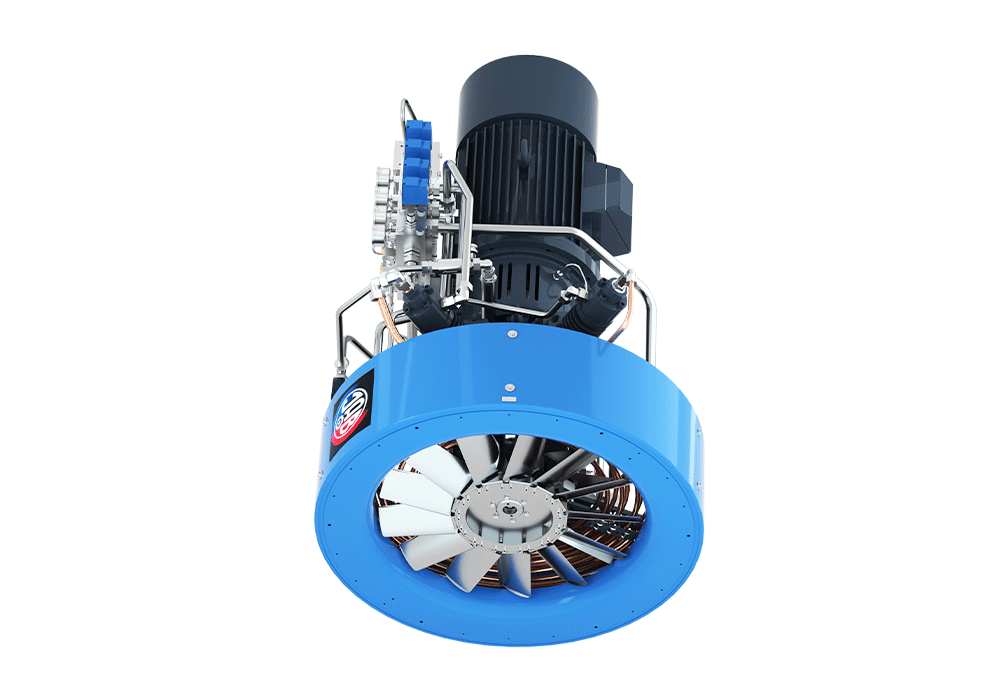

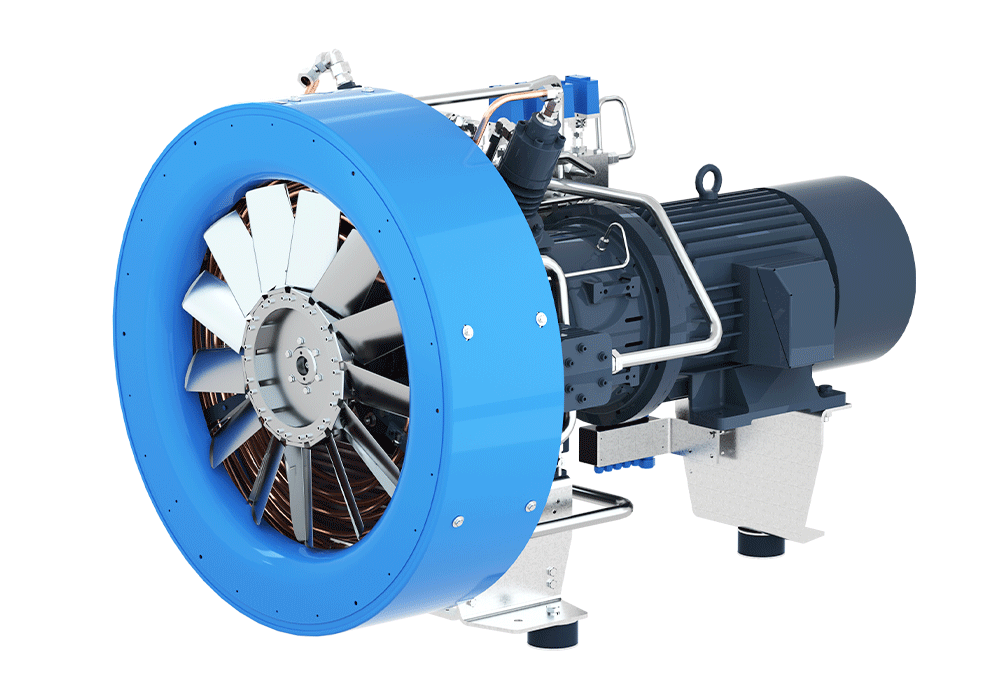

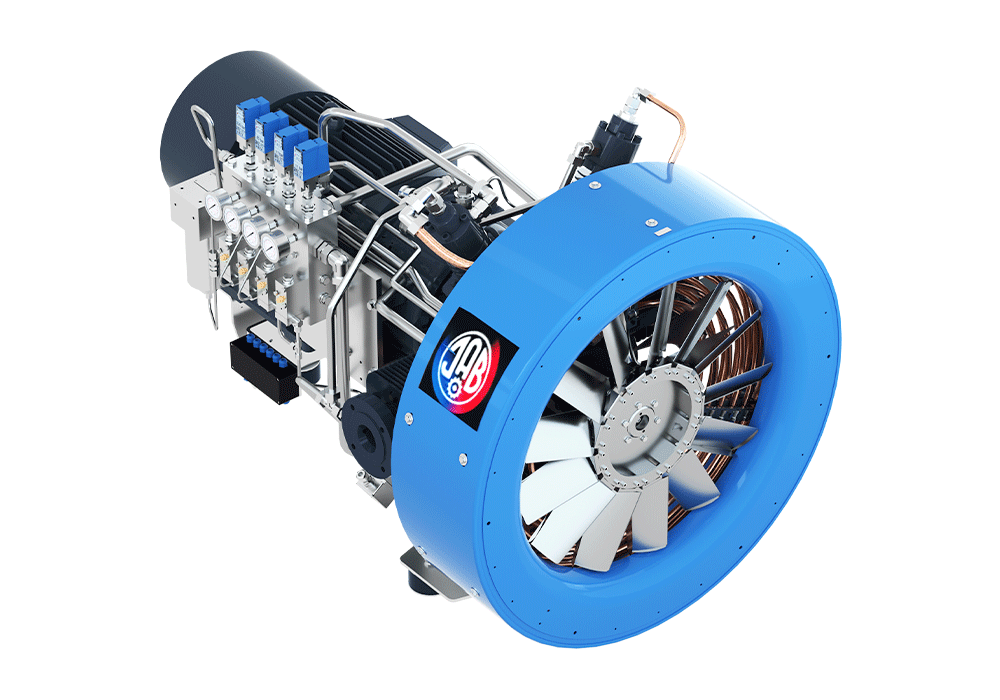

The SVB 1100/350 N type nitrogen compressor is a distinguished piece of the J.A. Becker & Söhne top-tier lifting technology and compressor portfolio. This high-performance, four-stage reciprocating compressor is specifically designed to meet high-pressure nitrogen supply requirements, ensuring exceptional reliability and efficiency even in the most demanding industrial applications.
This model is not an „everyday” solution, but a premium category equipment that meets the highest quality standards. J.A. Becker & Söhne is committed to offering products that guarantee long service life and minimal downtime.
The SVB 1100/350 N compressor has several features that set it apart from the competition:
Outstandingly Efficient Cooling: The advanced cooling system ensures that the heat generated during the compression process is dissipated optimally. This not only increases the lifespan of the machine but also contributes to energy efficiency by stabilizing the gas temperature between the different pressure stages.
Fully Automatic Drain (Condensate Removal): The unit is equipped with a fully automated condensate removal system. This is critically important for maintaining nitrogen purity, as the automatic removal of moisture selectively separated during compression guarantees dry, clean discharge gas, minimizing the need for user intervention.
Long Maintenance Cycles: Thanks to its robust construction and high-quality components, the compressor features extremely long maintenance intervals. This significantly reduces operating costs and maximizes availability time.
High Performance: The maximum operating pressure of 350 bar and the significant volumetric flow rate (up to 85.8 m³/h) make it ideal for high-volume, high-pressure nitrogen supply tasks.
The SVB 1100/350 N compressor integrates precise engineering solutions for maximum performance. The table below details the most important technical parameters:
| Parameter | Value | Unit | Note |
|---|---|---|---|
| Típus | SVB 1100/350 N | – | Four-stage nitrogen compressor |
| Volumetric Flow Rate (at Normal Conditions) | 72.0 – 85.8 | m³/h | |
| Volume flow rate (Suction side) | 1,200 – 1,430 | l/min | |
| Maximum Operating Pressure | 350 | bar | |
| Inlet Pressure | 0,1 / 0,3 | bar | |
| Pressure stages / Number of cylinders | 4 / 4 | – | |
| Electric Motor Power | 30 | kW | |
| Rotational speed | 1.500 | revs/min |
The SVB 1100/350 N is a first-class product in every respect, which can be excellently integrated into numerous industrial processes where reliable, high-pressure inert gas supply is required.
Application Areas (Examples):
Industrial gas supply systems
Laser technology (cutting and welding)
Special welding processes
High-pressure gas distribution for laboratory and research purposes
Filling stations and storage systems
The compressor's design guarantees the production of gas that complies with strict quality specifications, especially thanks to the four-stage compression arrangement, which efficiently manages the temperature increase at each stage. The 30 kW electric motor provides sufficient power to reach 350 bar, while the 1500 rpm speed creates an optimal balance between performance and mechanical stress.
This equipment represents the quality of J.A. Becker & Söhne, which focuses on durability, precision, and long-term economy. The product is a first-class solution in every respect for professional high-pressure nitrogen generation.
