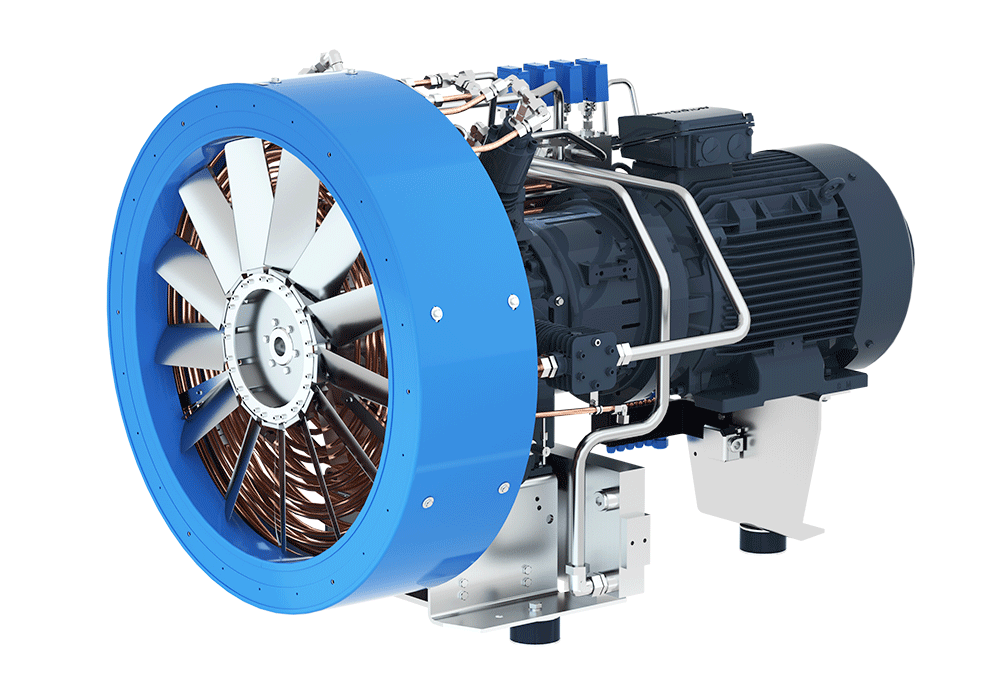

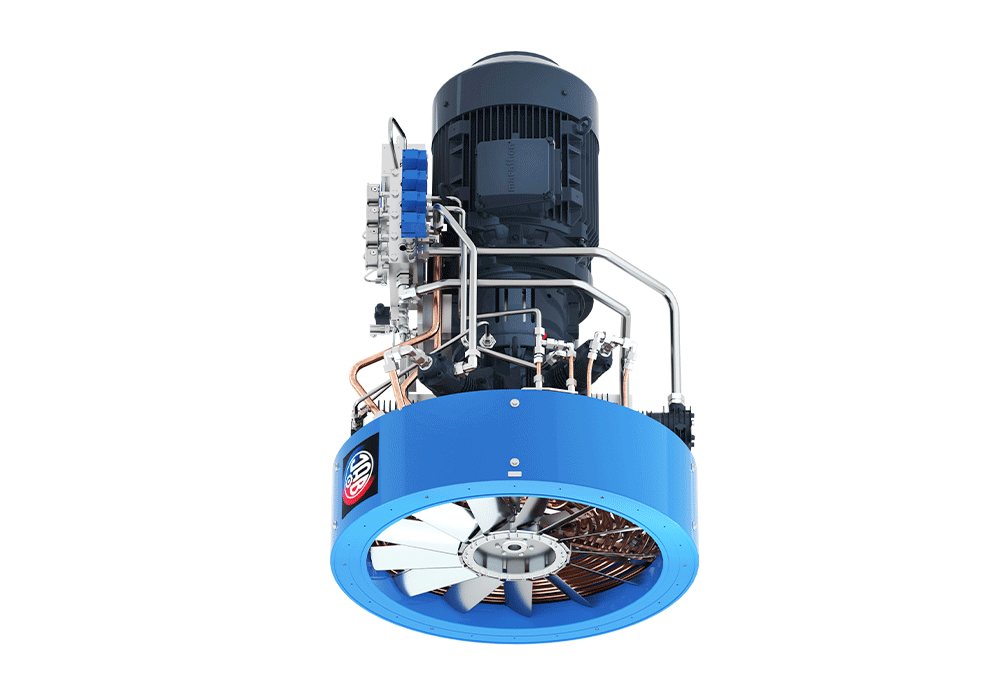

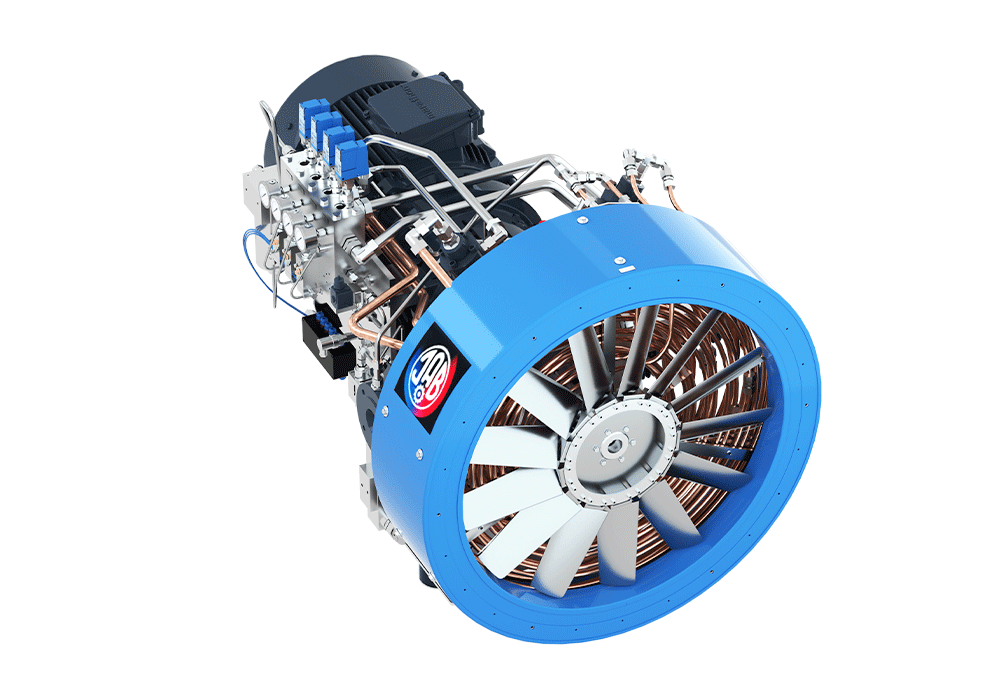

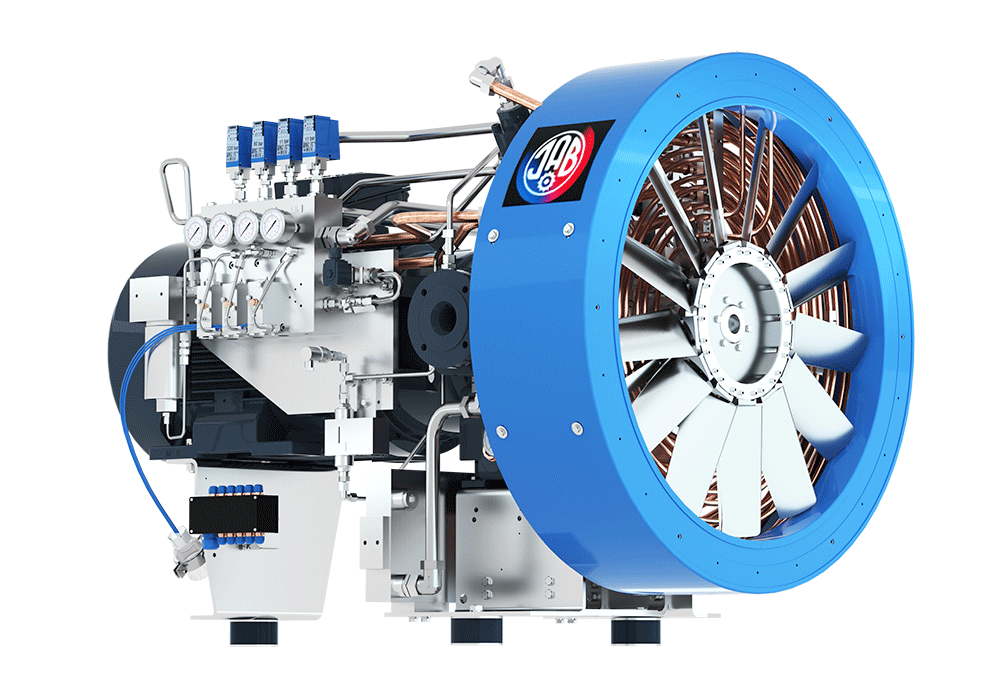

The J.A. Becker & Söhne V 5760/300 NG16 model is a pinnacle category, four-stage natural gas booster compressor specifically designed for high-pressure applications. This equipment is excellently suited for natural gas transmission and storage processes where reliable and efficient pressure boosting is required within the specified parameters. The compressor reflects J.A. Becker & Söhne's commitment to quality, long service life, and outstanding technical performance, avoiding „off-the-shelf solutions” (NO 08/15 PRODUCTS).
The V 5760/300 NG16 compressor features several outstanding characteristics that ensure efficient and economical operation:
High-Efficiency Cooling: The unit's advanced cooling system guarantees that the heat generated during the compression process is dissipated optimally. This is essential not only for regulating the gas temperature but also for increasing the overall system efficiency and extending the lifespan of the components.
Fully Automatic Discharge: The fully automated blow-down function simplifies operation and maintenance. This function ensures a safe shutdown and a fast and controlled reduction of the operating pressure, minimizing the need for user intervention.
Long Maintenance Intervals: As a result of the robust construction and the use of high-quality components, the compressor operates with extremely long maintenance intervals. This significantly reduces downtime and operating costs.
First-Class Engineering: The product represents first-class quality in every respect, ensuring reliability even in critical industrial environments.
The performance of the V 5760/300 NG16 compressor is supported by the following detailed technical specifications:
| Parameter | Value | Note |
|---|---|---|
| Maximum Operating Pressure | 300 bar | Ideal for high-pressure natural gas systems. |
| Number of stages / Number of cylinders | 4 / 4 | Four-stage compression system. |
| Inlet Pressure (Inlet Pressure) | 8 / 12 / 16 bar | Support for multiple inlet pressure options. |
| Volume Flow (Volume Flow) | 1,450 / 2,014 / 2,683 l/min | Volume flow rate range depending on the inlet pressure. |
| Flow Rate (m³/h) | 87.0 – 161.0 m³/h | Converted volume flow rate range. |
| Electric Motor Power | 27 kW | Drive unit performance. |
| Rotational Speed (Rotational Speed) | 1.000 U/min | Stable and efficient operating speed. |
The compressor's performance varies depending on the inlet pressure, providing flexibility to adapt to different network conditions:
Lower inlet pressure (8 bar): Achieving maximum volume flow rate at the upper limit of the specified range.
Higher inlet pressure (16 bar): The volumetric flow scales according to the specifications, but reaching the final pressure of 300 bar is guaranteed.
The V 5760/300 NG16 compressor is an ideal choice for industrial and energy sectors requiring natural gas post-compression:
Natural Gas Distribution Networks: Increasing the network pressure after evacuation from the storage tanks, or to maintain the delivery pressure.
CNG (Compressed Natural Gas) Filling Stations: Compression of natural gas to the high pressure required for fueling vehicles.
Energy Facilities: Supporting processes where precise and high-pressure gas supply is required.
Further detailed information about the product, including the complete technical data sheet and product leaflet, is also available for download. These documents provide deeper insights into the design philosophy and the built-in technologies.
Technical Data Sheet Download: Detailed technical specifications.
Product Information (Leaflet) Download: Comprehensive overview of functions and benefits.
J.A. Becker & Söhne is committed to providing the most suitable solution for its customers. If you have specific requirements or need further advice regarding the integration of the V 5760/300 NG16 compressor, our team of experts is ready to assist you.
