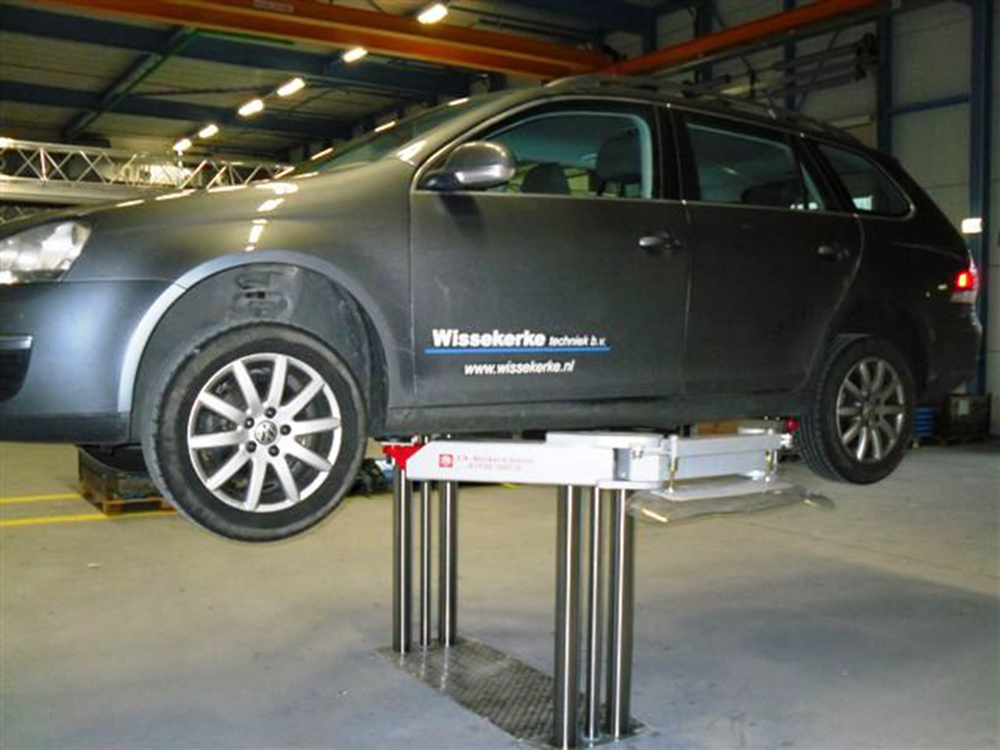

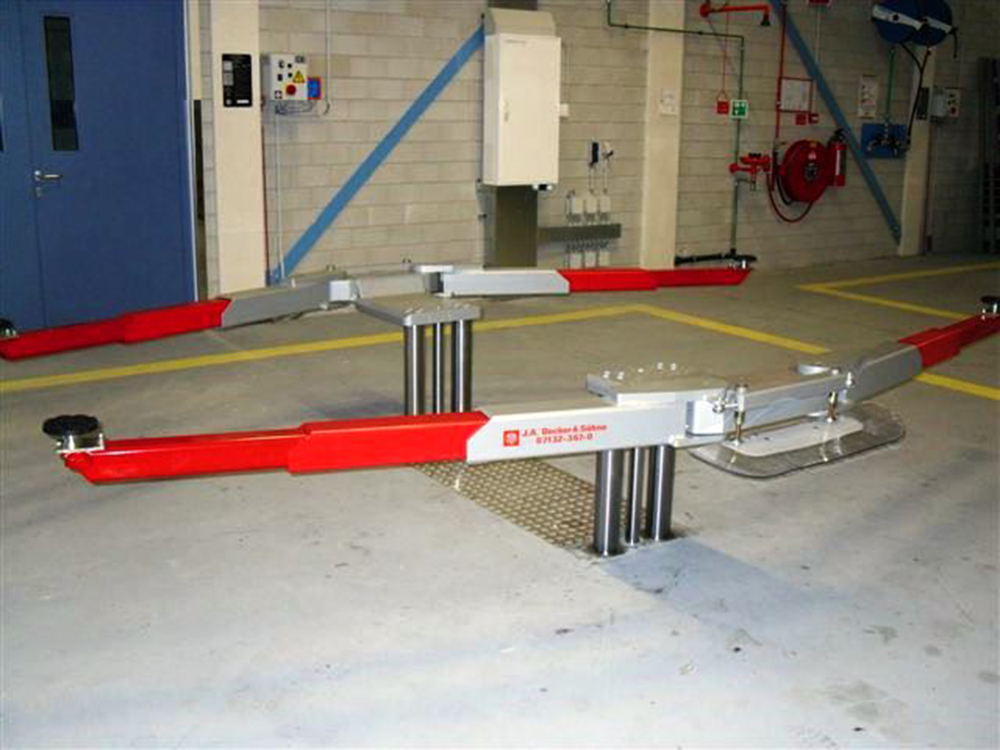

The JAB TwinRam 55 S2/2500 is an excellent quality, double-telescopic lift arm machine with height-adjustable support plates, specifically designed for the most demanding repair tasks. This lift arm hoist provides optimal access to the vehicle underbody, guaranteeing efficient and safe working.
The TwinRam 55 S2/2500 is not an average (NO 08/15) product, but a carefully designed, robust lift that prioritizes reliability and user-friendly design.
Redundant Design: Two independent hydraulic cylinders secure the system, which guarantees an outstanding level of safety and reliability throughout the entire service life.
Full Stroke Anti-Rotation System: During the lifting and lowering of the vehicle, unwanted rotation is prevented throughout the entire range of motion, ensuring stable positioning.
Base Frame Force Absorption: All applied loads are absorbed by the base frame, which minimizes structural stress and increases the lifespan of the lift.
Easy Access to Components: The drive unit and all critical parts are easily accessible, which simplifies maintenance and servicing.
Extensive Support Area: The design allows for a wide range of vehicle setups for large vehicles.

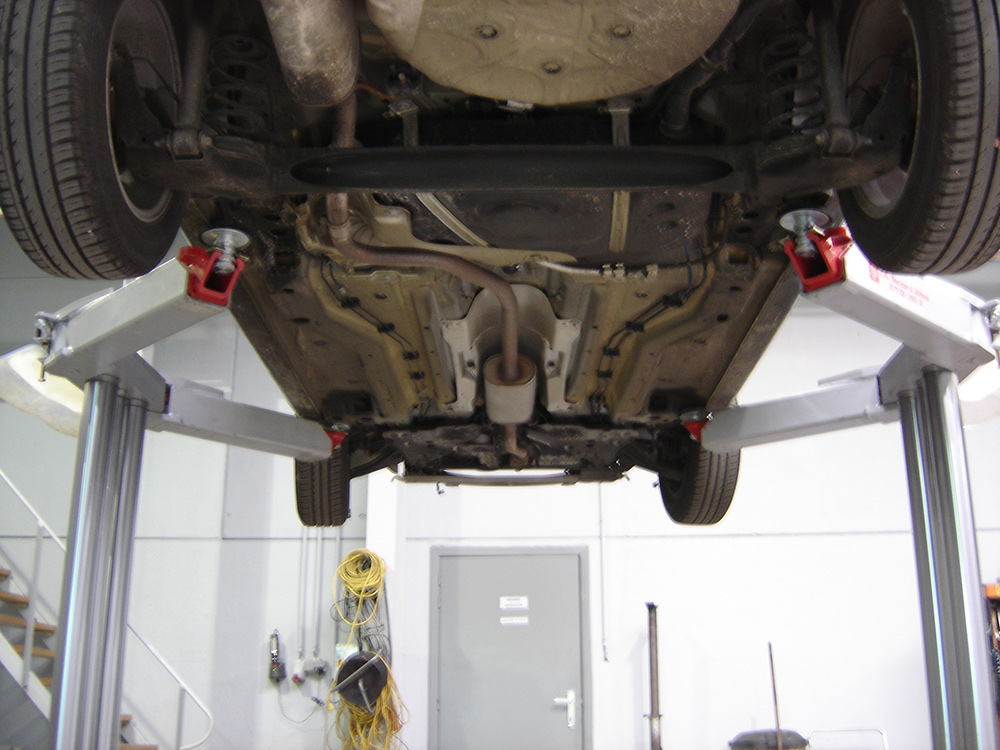

Optimal Undercarriage Access: Thanks to the swing arm design, the vehicle underside is accessible almost without restrictions, creating ideal conditions for all undercarriage work.
The TwinRam 55 S2/2500 lifting machine offers precise engineering solutions for high-load applications.
| Parameter | Value | Unit of Measure |
|---|---|---|
| Load Capacity | 5.500 | kg |
| Distance between support points (Punch distance) | 2.500 | mm |
| Minimum Underswing Height (Underswing height) | 97 | mm |
| Installation Depth (Installation depth) | 2.350 | mm |
| Hydraulic Oil Quantity | 10 | liter |
| Connected Load (Connected load) | 2 | kW |

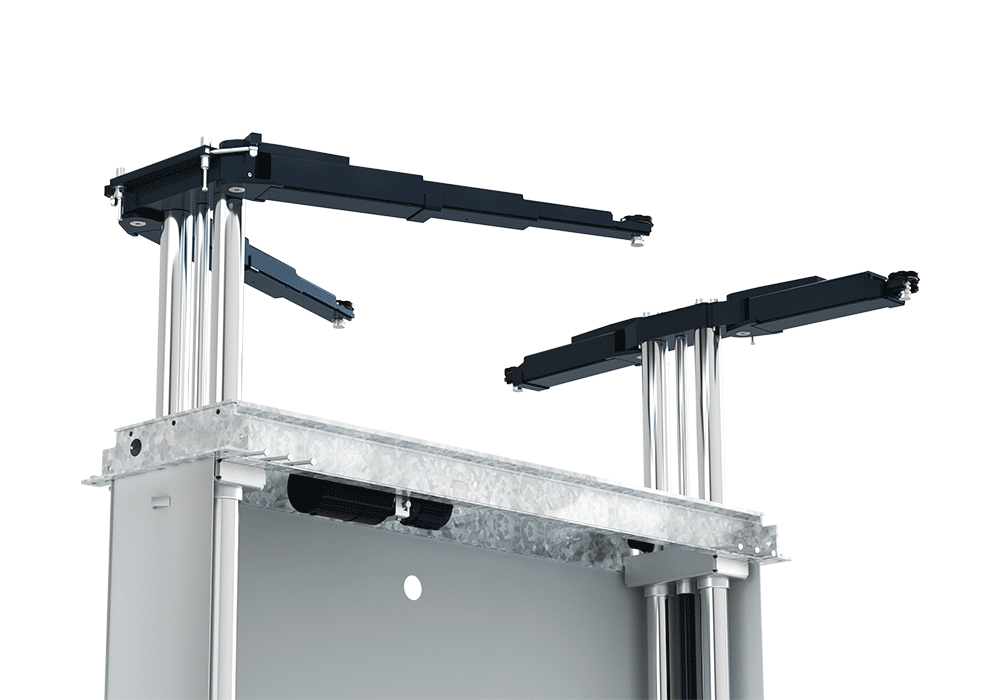

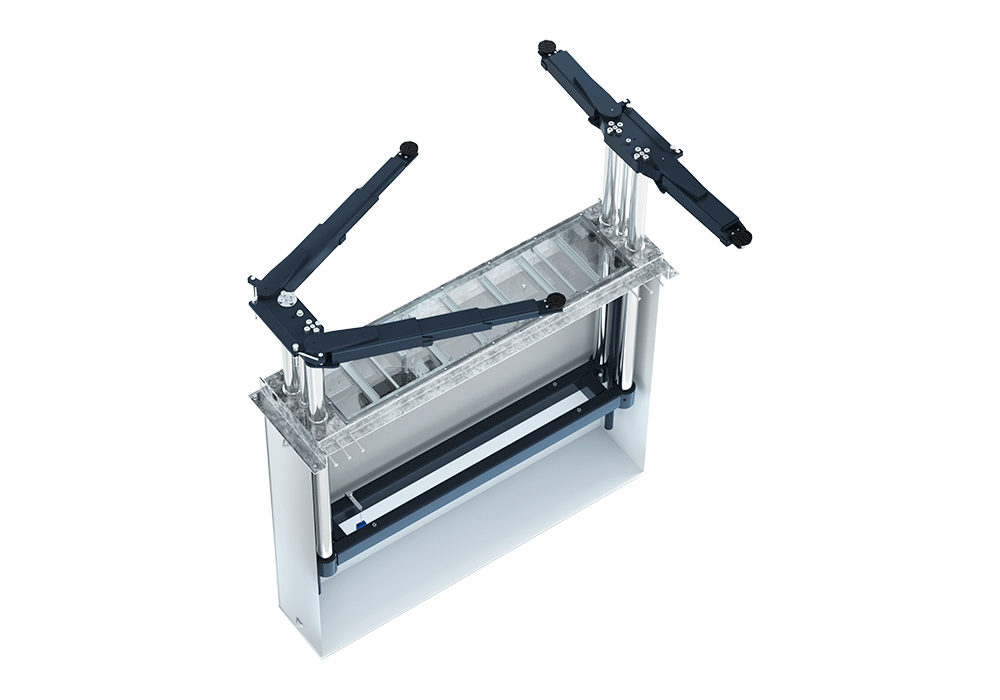

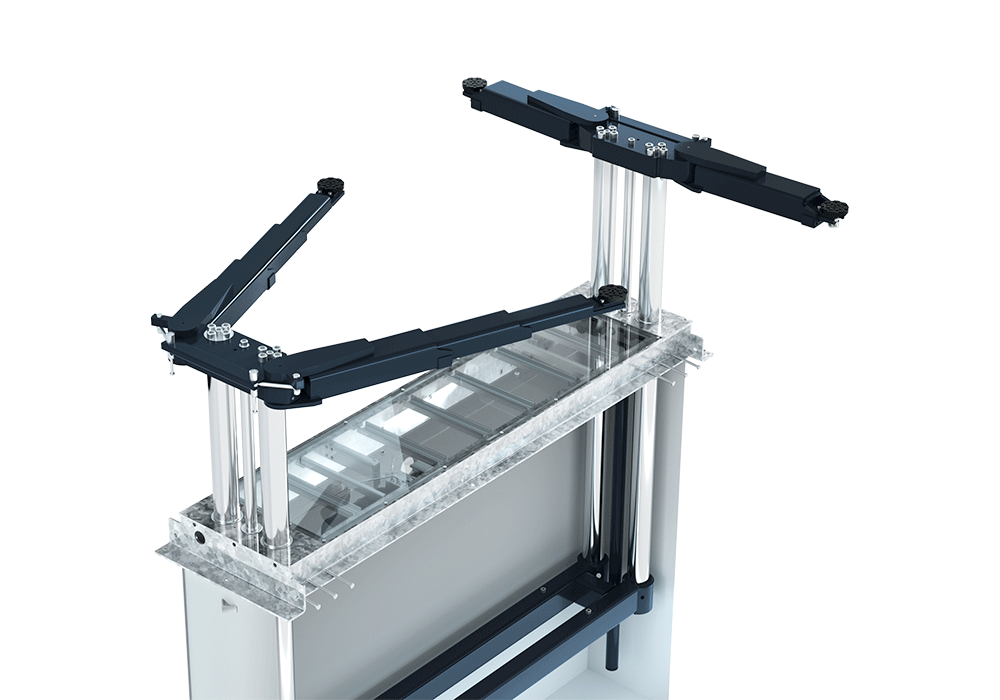

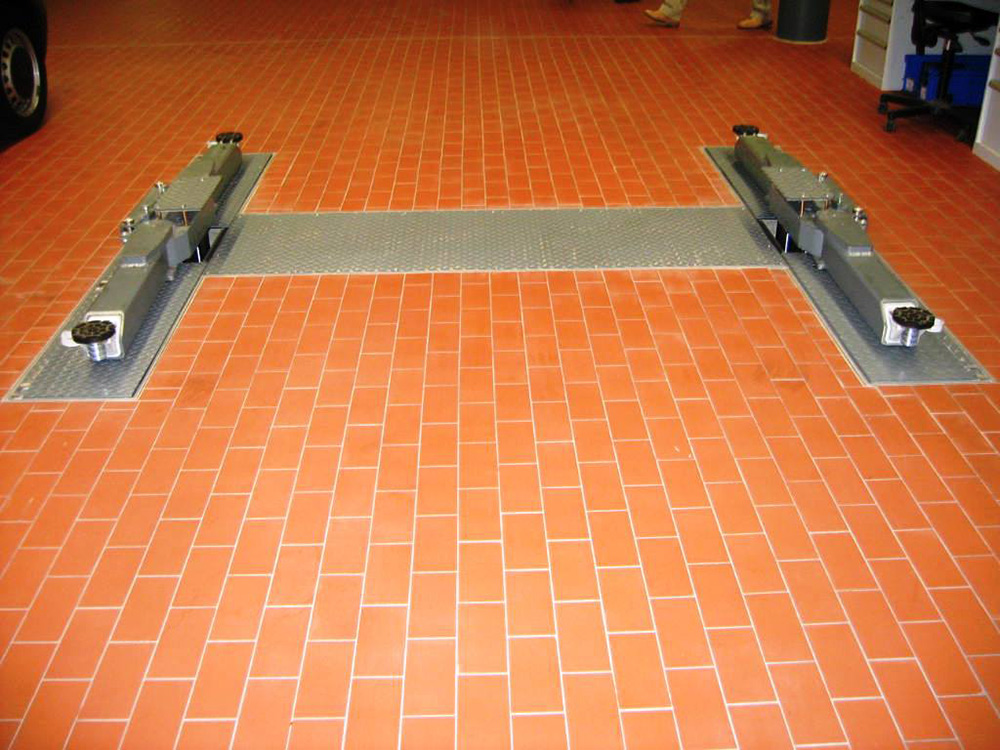

The TwinRam 55 S2/2500 is a flush-mount lift platform (affected by the 2.350 mm installation depth) equipped with double telescopic lift arms and height-adjustable pickup plates. This configuration is extremely flexible in handling vehicles with different wheelbase and undercarriage heights.
The minimum underswing height of 97 mm means the vehicle can be lowered to an extremely low level, facilitating setup, while the 2500 mm support point distance provides sufficient stability for a 5.5-ton load.
The hydraulic system requires 10 liters of oil and operates with a connected load of 2 kW, enabling reliable and energy-efficient lifting/lowering cycles.

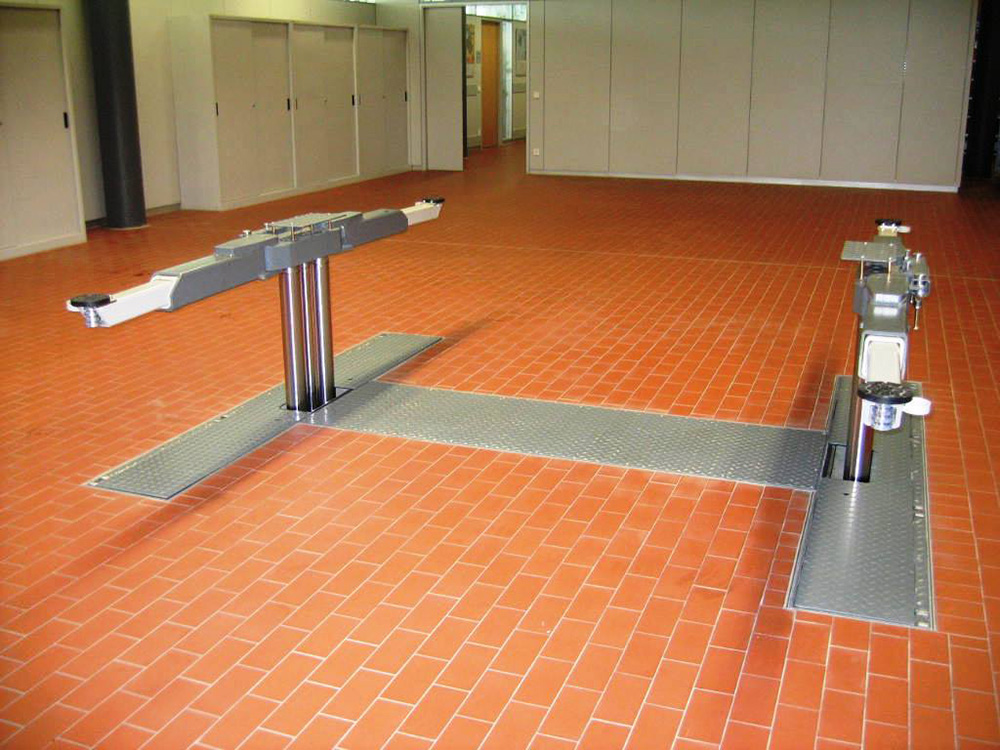

J.A. Becker & Söhne is committed to quality, which is reflected in the robust construction of the TwinRam series. The lift can be fully integrated into the floor, thus almost completely disappearing when not in use, ensuring maximum space utilization in the workshop. The delivery package includes the necessary foundation installation drawings and dimension sheets for professional installation.

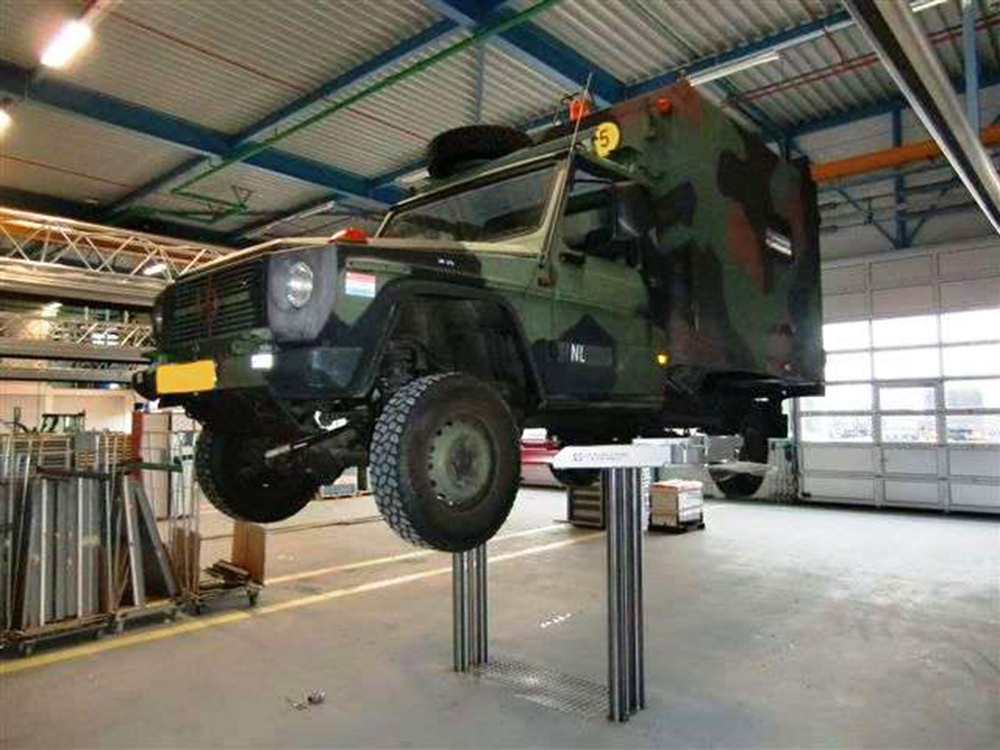

This lift is an ideal choice for mid-sized service centers, brand dealerships, and general repair shops where high-capacity yet flexible lifting solutions are essential. The double telescopic arms also allow for the safe lifting of wider vehicles (e.g., light trucks or wider passenger cars) while keeping the work area clear.
