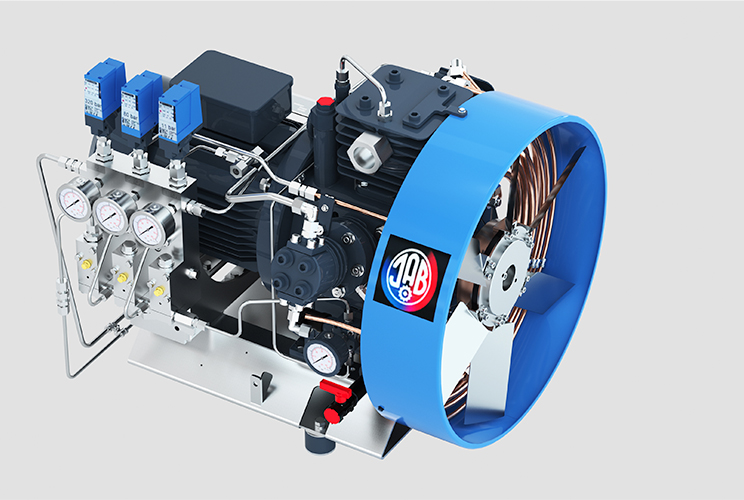

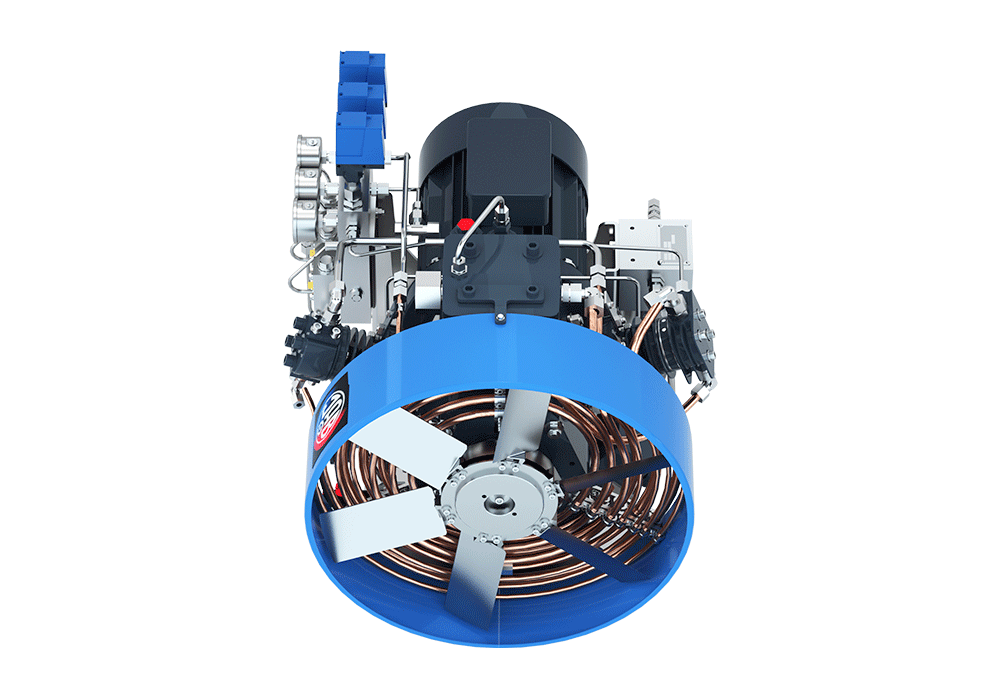

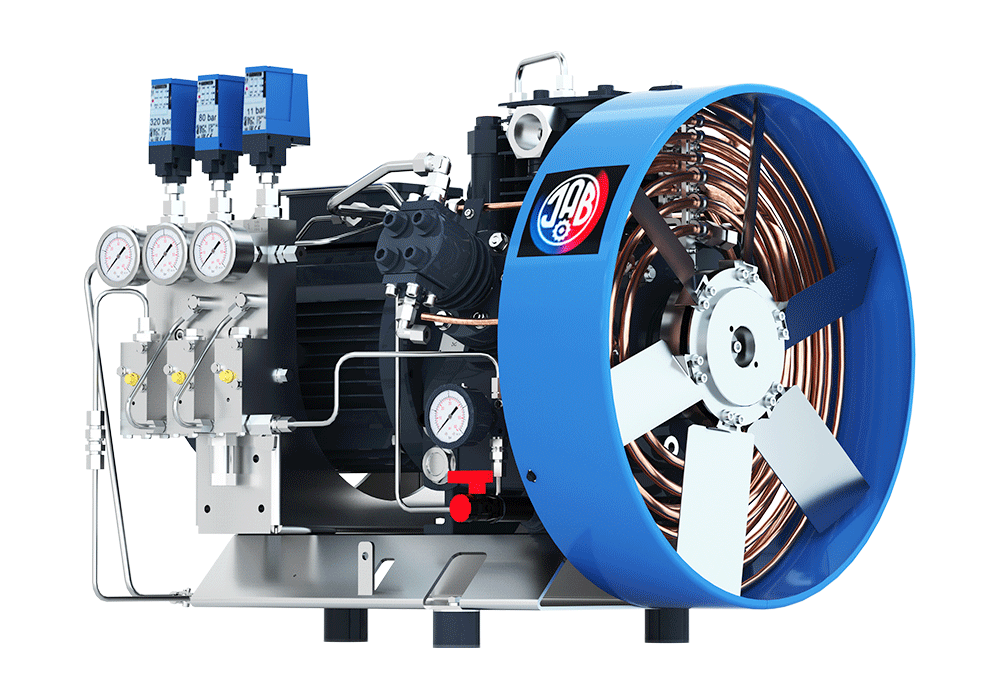

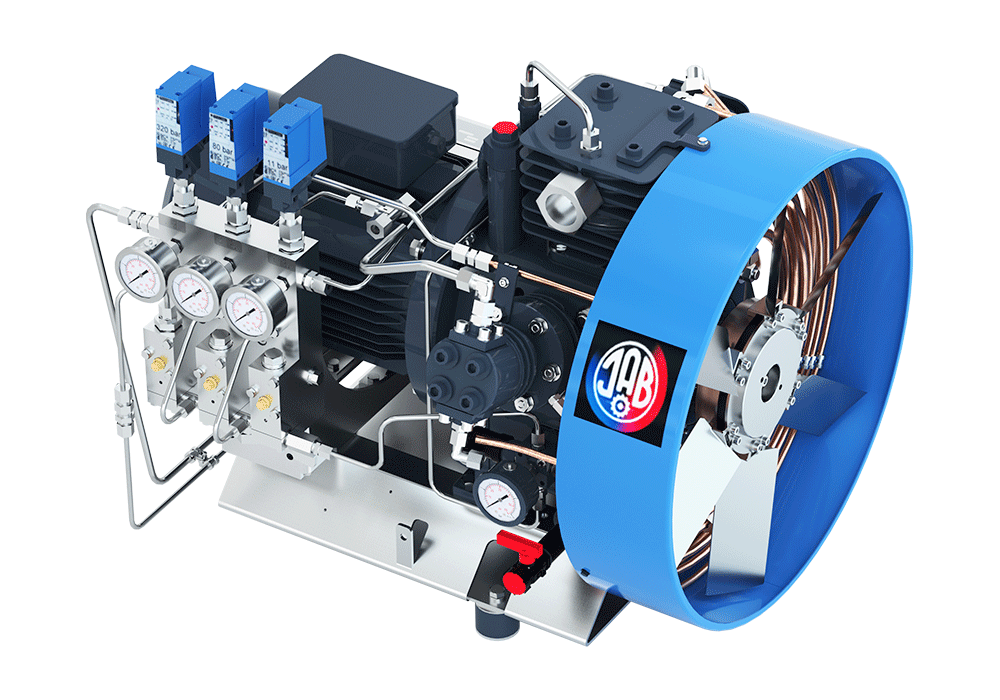

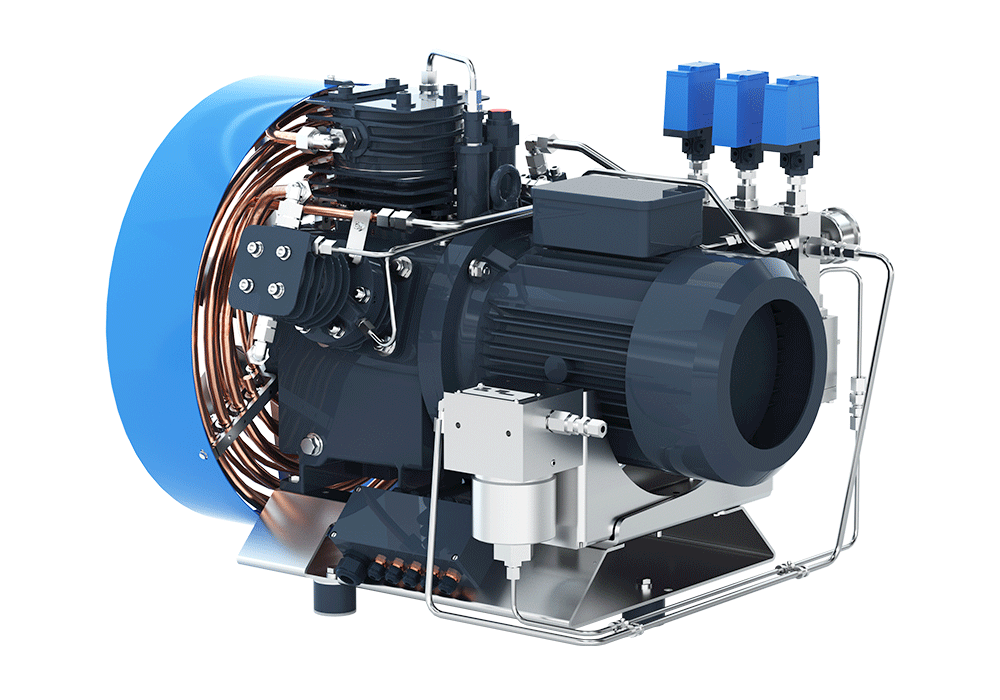

The SV 245/40 air compressor is a highlight of the J.A. Becker & Söhne product range, developed specifically for high-pressure industrial applications. This two-stage, piston compressor delivers excellent performance at a maximum operating pressure of 40 bar while providing a volumetric flow rate of 14.7 m³/h (245 l/min). The unit is engineered for reliability, efficiency, and longevity, making it the ideal choice in areas requiring a stable and high-performance compressed air supply.
The SV 245/40 compressor is not a „standard product” (NO 08/15 PRODUCTS), but a carefully designed, premium quality piece of equipment that possesses numerous advantageous features:
Excellent Efficient Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This not only increases efficiency but also significantly contributes to the machine's long service life, minimizing heat-induced wear.
Fully Automatic Drainage: The unit features a fully automatic condensate drain system. This function eliminates the need for manual intervention, ensuring the system remains dry and reducing maintenance requirements.
Long Maintenance Cycles: As a result of its robust construction and high-quality components, the SV 245/40 compressor operates with exceptionally long maintenance intervals. This minimizes downtime and reduces operating costs.
Premium Quality in Every Respect: The highest quality standards were applied during the design and manufacturing of the unit, guaranteeing reliable operation even in the most demanding industrial environments.
The precise technical parameters of the SV 245/40 compressor ensure accurate performance and system integrability.
| Parameter | Value | Note |
|---|---|---|
| Maximum Ultimate Pressure | 40 bar | Capable of achieving extremely high pressure. |
| Volume flow (Volume flow) | 245 l/min | Corresponds to a volumetric flow rate of 14.7 m³/h. |
| Pressure stages / Cylinder | 2 / 2 | Two-stage compression system. |
| Electric Motor Power (Electric motor) | 4 kw | Energy-efficient drive. |
The SV 245/40 is a two-stage piston compressor that provides an ideal solution for applications where traditional, lower-pressure systems are no longer sufficient. The 40 bar maximum pressure allows it to supply special pneumatic systems, high-pressure filling equipment, or specific industrial processes.
The two-stage design is crucial for achieving high pressure and maintaining efficiency.
First Stage: The air is first compressed in the first cylinder to an intermediate pressure. This step generates significant heat.
Intermediate Cooling: The compressor's excellent cooling system efficiently reduces the air temperature after the first stage. This step is critical because compressing cooler air requires less energy in the second stage, thus increasing overall efficiency.
Second Stage: The cooled air at intermediate pressure then enters the second cylinder, where it reaches the desired operating pressure of 40 bar.
This technology ensures that the machine achieves high performance despite the 4 kW motor, while minimizing mechanical stress.
Durability was the primary consideration in the design of J.A. Becker & Söhne compressors. The 2/2 cylinder configuration allows for optimal load distribution between the two stages. The Fully automatic discharge system ensures that moisture and condensate generated during the compression process are immediately removed from the system. This prevents corrosion and damage to internal components, which is essential for long-term operation at 40 bar.
The SV 245/40 is an ideal choice for sectors such as gas processing, special pressure testing, or any industrial process where compressed air quality and stable, high pressure are essential prerequisites. The unit is a first-class product that meets the needs of professional users in every respect.
