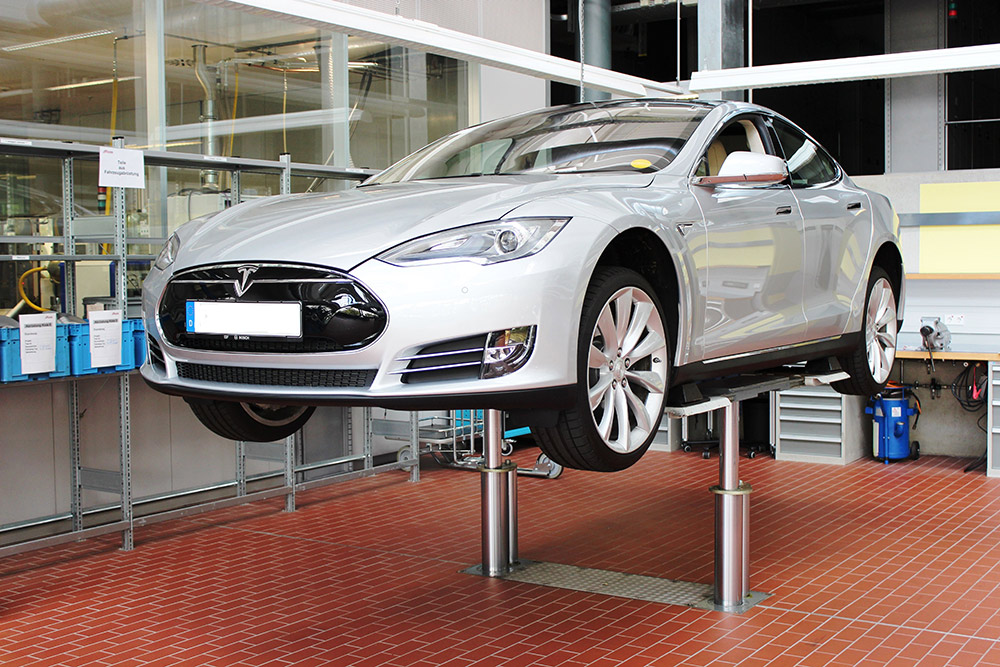

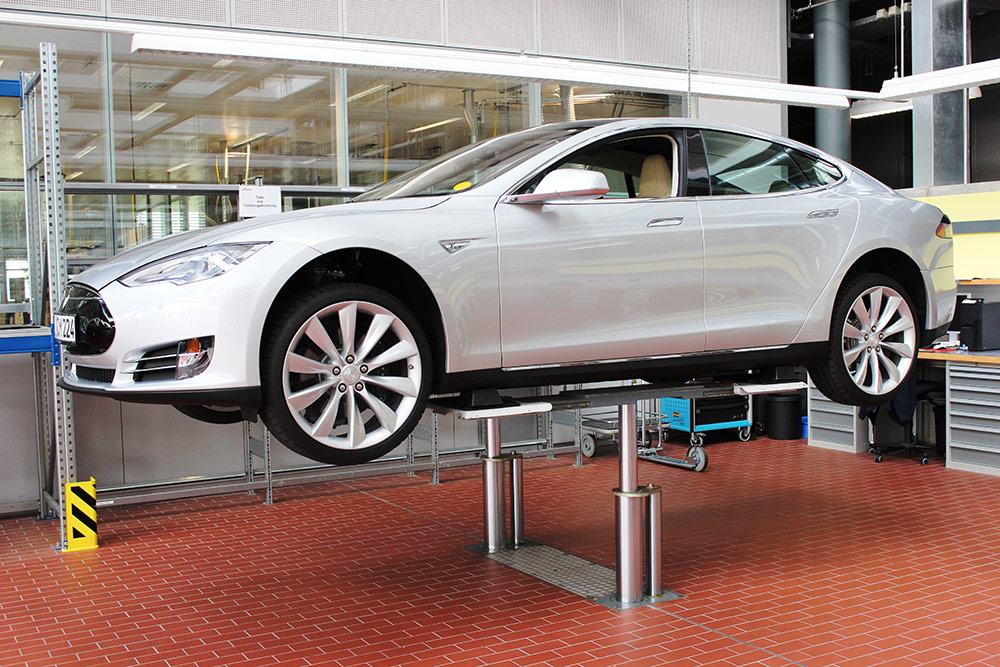

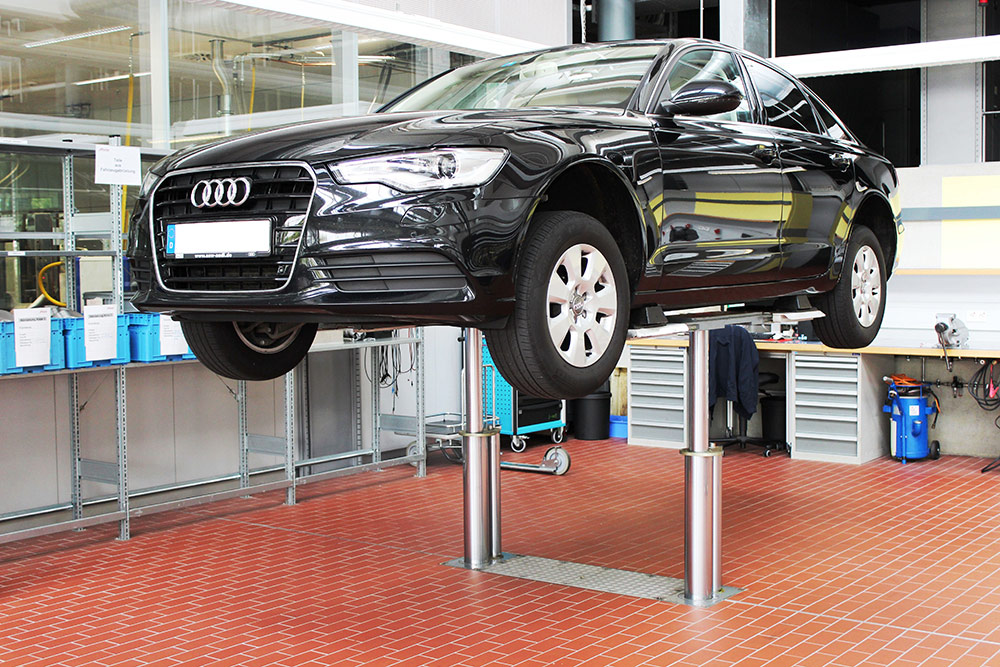

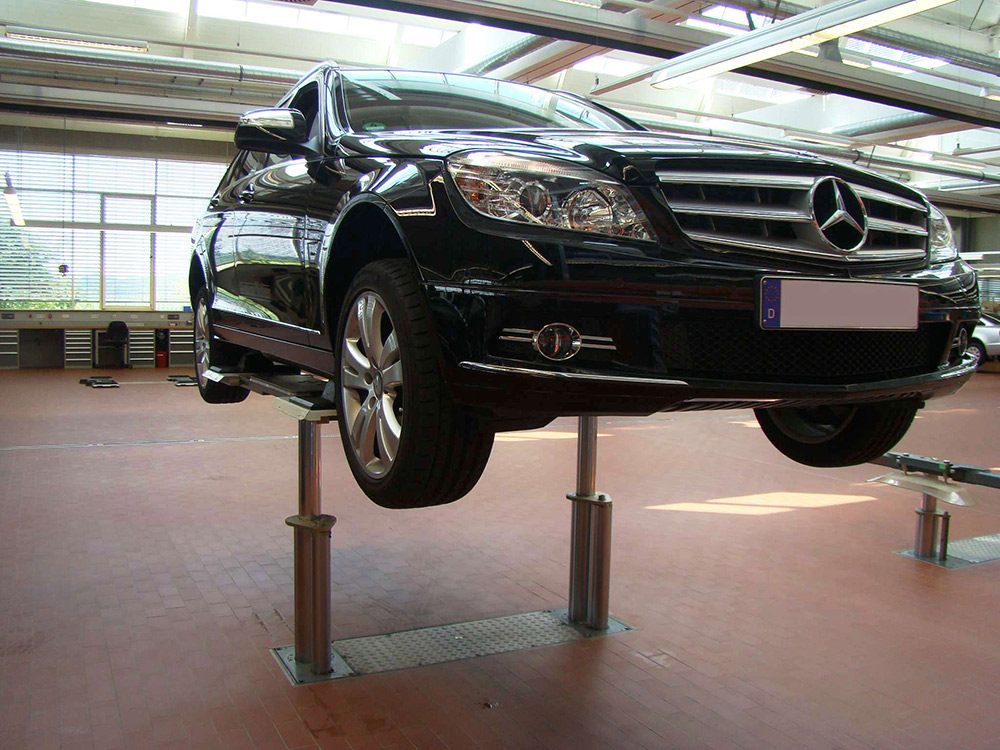

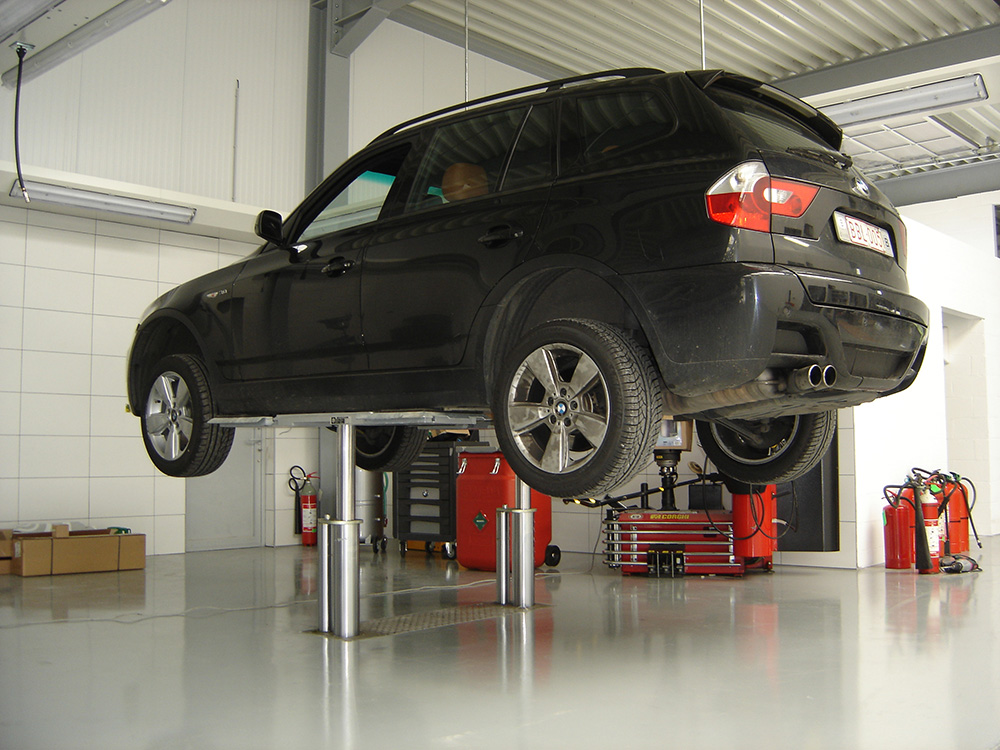

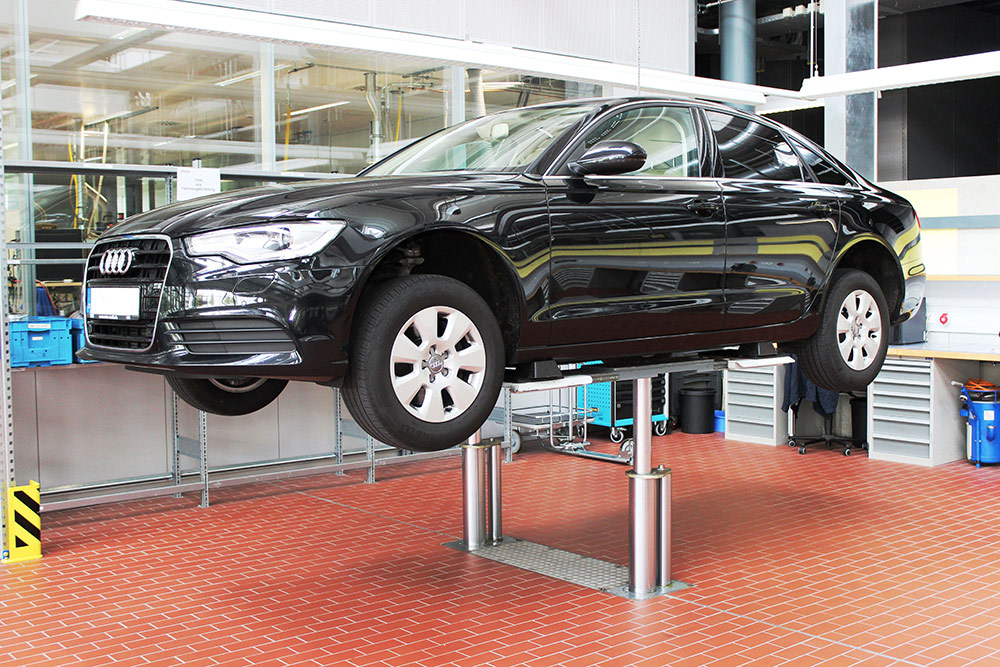

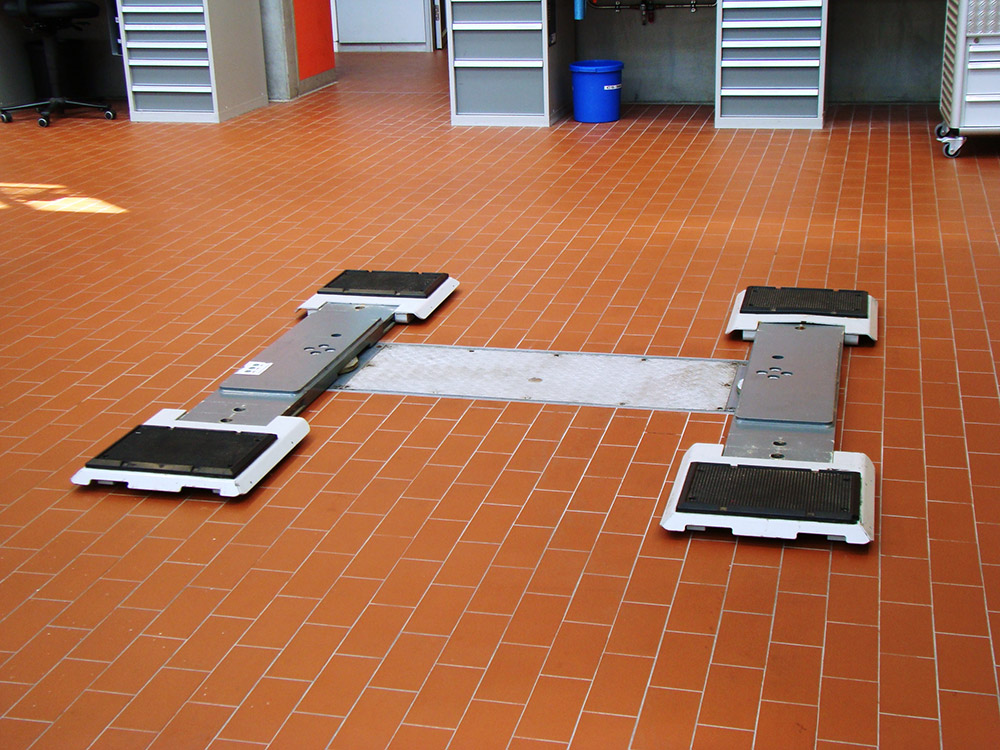

J.A. Becker & Söhne presents the TwinRam 35 Tele lift, which features a patented electro-hydraulic telescopic structure with a flat main beam and adjustable sliding pads. This model is exceptionally suited for handling complex installation situations or serves as a versatile, universal solution thanks to its extremely low installation depth and resulting minimal space requirement.
The TwinRam 35 Tele significantly simplifies vehicle retrieval, reduces preparation time, and ensures optimal access to all areas of the vehicle.
The TwinRam 35 Tele is not an average (08/15) product. During its design, the highest quality and functionality requirements were met:
Minimum Installation Depth: The extremely low installation depth allows for the discreet and space-saving integration of the structure into the floor, which is particularly advantageous in narrow or specially designed workshops.
Anti-Rotation System Over the Entire Stroke Length: The integrated anti-rotation mechanism guarantees the stability and safety of the vehicle throughout the entire lifting process.
Forces Absorbed by the Base Frame: All load forces are absorbed by the base frame, which increases the durability and load-bearing capacity of the structure, and minimizes the load exerted on the surrounding floor structure.
Easily Accessible Power Unit and Components: Easy access to the drive unit and all critical components simplifies maintenance and servicing.

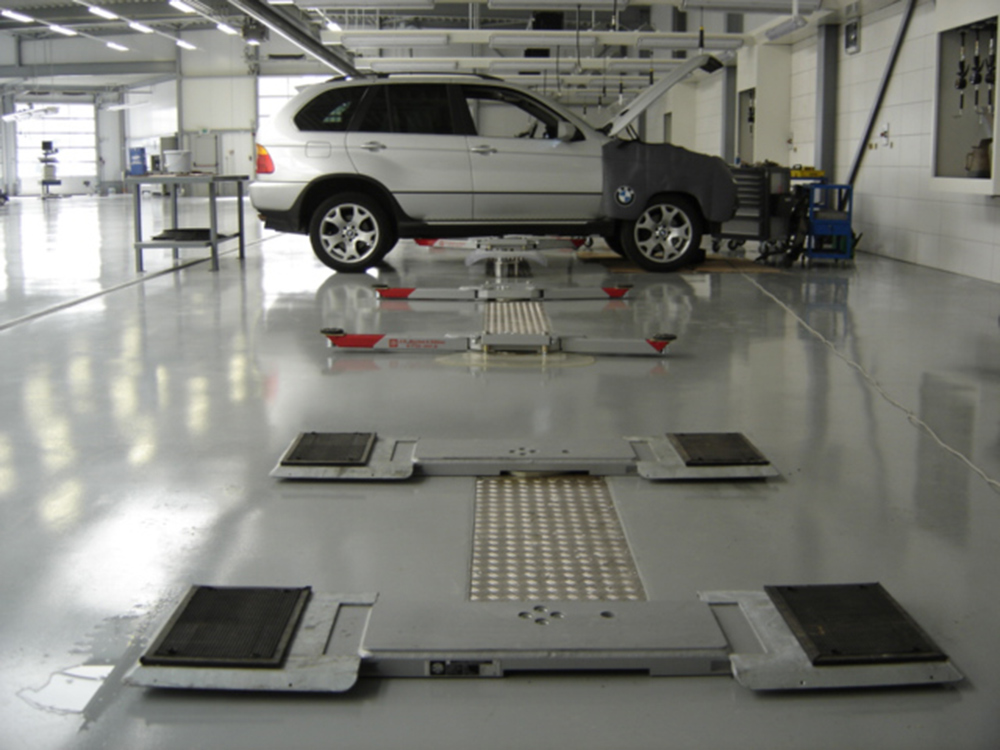

Minimum Traversing Height: The extremely low drive-over height facilitates the drive-on of vehicles, even in the case of low-chassis sports cars.
The TwinRam 35 Tele lift offers precise and reliable performance based on the following specifications:
| Parameter | Value | Unit of Measure |
|---|---|---|
| Load Capacity | 3.500 | kg |
| Drive-over Distance (Track Width) | 1.300 | mm |
| Lifting Height | 65 | mm |
| Installation Depth | 1.300 | mm |
| Oil quantity | 50 | l |
| Connection Power | 4 | kW |
The TwinRam 35 Tele is a top-tier, patented electro-hydraulic telescopic lift specifically designed to meet modern service requirements.
The electro-hydraulic operation of the system guarantees fast, smooth, and reliable lifting/lowering cycles. The 4 kW connection power provides sufficient force for the safe handling of a 3.5-ton load. The 50-liter oil reservoir ensures the proper functioning of the hydraulic system over a long period.

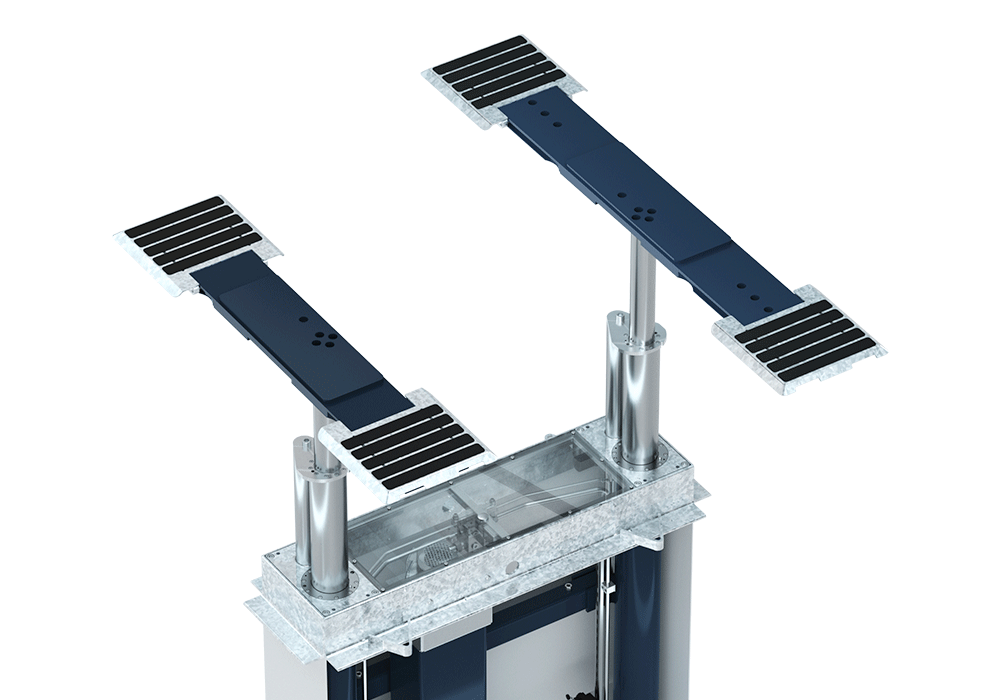

The flat beam profile design is crucial for achieving the minimum installation depth. The adjustable wheel chocks provide flexibility for the precise positioning of vehicles with different track widths and wheelbases. This flexibility makes the lift ideal for workshops with complex or varied vehicle fleets.
Safety was a central element of the design. The anti-rotation system prevents lateral movement of the vehicle during lifting over the entire stroke length. Furthermore, all operating forces are guided by the base frame down into the ground, which increases the structural integrity and minimizes point loads in the surrounding floor structure.
The engineers at J.A. Becker & Söhne ensured that the system is not only efficient but also easy to service. The drive unit and all important hydraulic and electrical components are located in easily accessible positions, which significantly reduces downtime in case of a malfunction.
The TwinRam 35 Tele is a first-class product in every aspect, combining precision, reliability, and space-saving in lifting technology.
Further detailed information, blueprints, and dimensioning tables can be downloaded from the product page.
