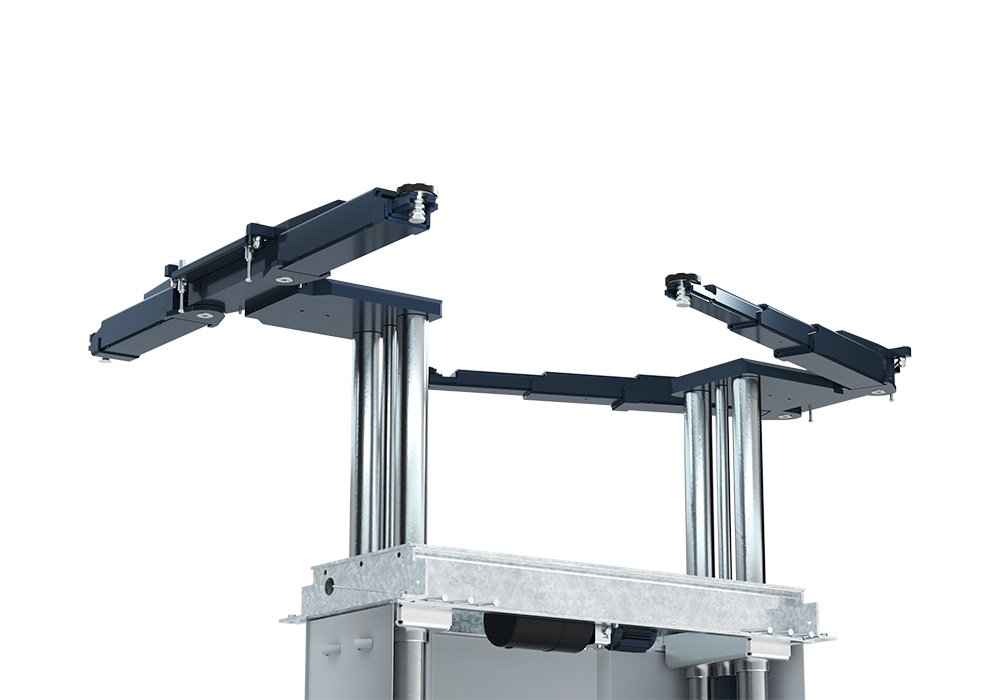

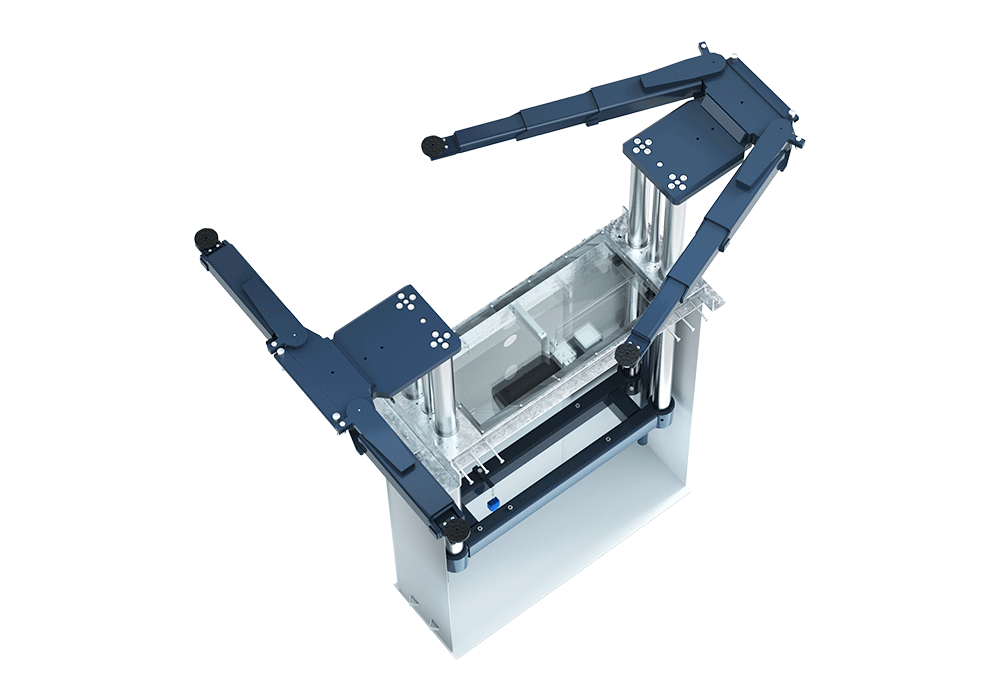

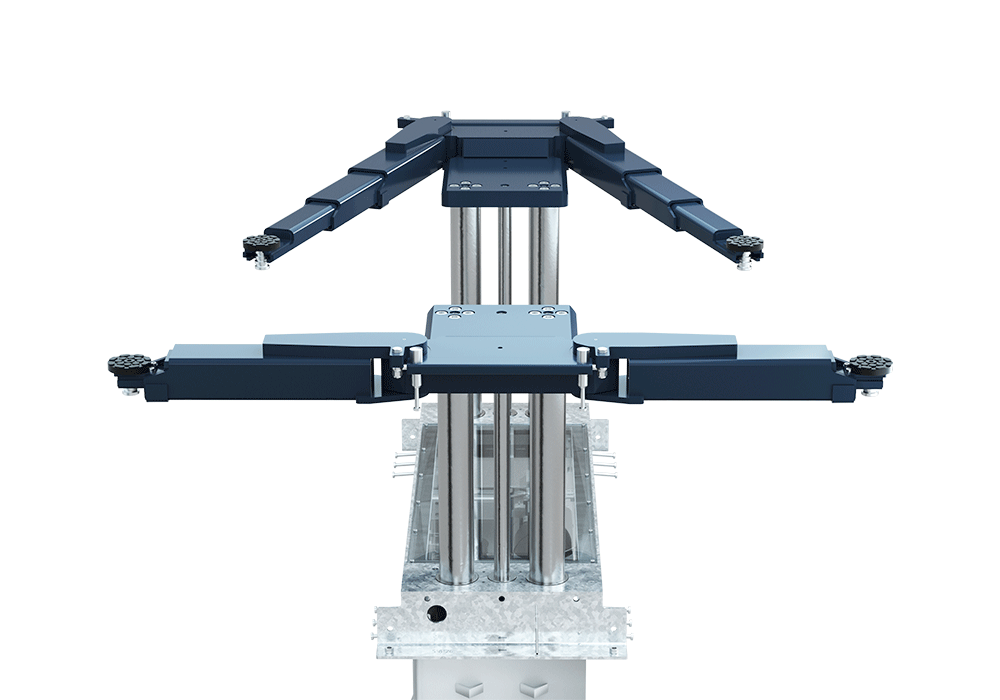

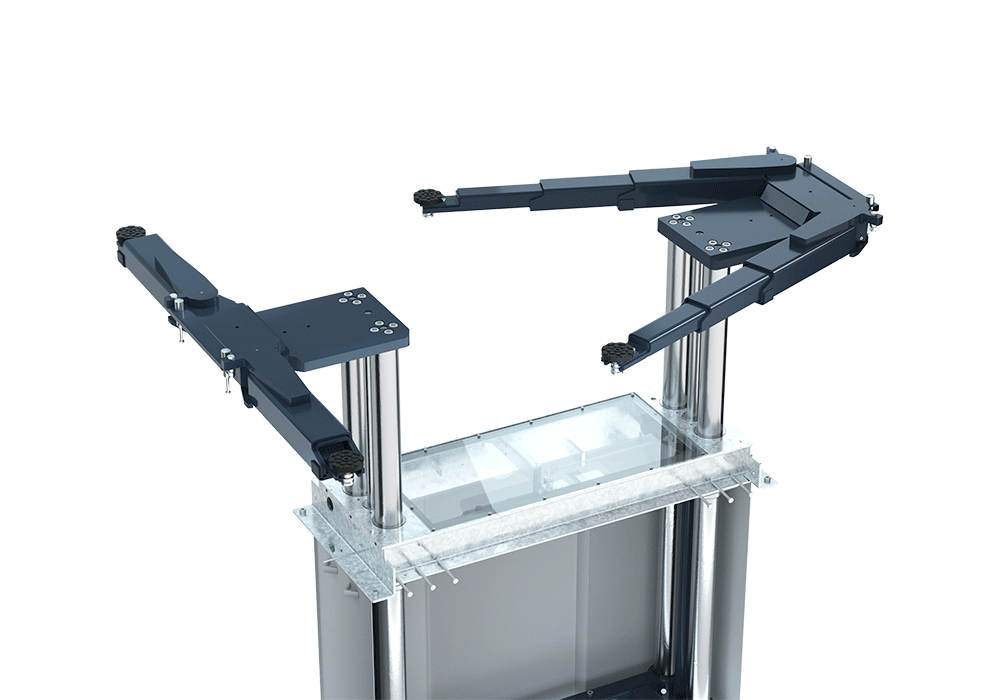

A TwinRam 55 S2/1500 A premium class, high-capacity hydraulic scissor lift, specially designed for workshop environments where space is limited, but maximum accessibility and safety are essential. Thanks to the double telescopic arms and height-adjustable lifting platforms, this lift provides excellent working conditions, making the underbody and lower part of the vehicle accessible with almost no restrictions.
This model reflects the J.A. Becker & Söhne „NO 08/15 PRODUCTS” philosophy, combining robust design with sophisticated technical solutions.
The TwinRam 55 S2/1500 lift has several outstanding features that guarantee long service life, reliability, and user-friendly operation:
Redundant Design: Two independent hydraulic cylinders secure the system, increasing safety and reliability. The system remains stable even in the event of any failure.
Full Stroke Anti-Rotation System: During vehicle lifting and lowering, it prevents unintended rotation over the entire path, ensuring precise positioning.
Base Frame Force Absorption: All lifting and loading forces are absorbed by the base frame, minimizing the load on the floor and increasing structural stability.
Easy Access to Components: The drive unit and all critical components are easily accessible, which simplifies maintenance and servicing.
Large Lifting Area: Thanks to the design, even wider vehicles can be conveniently positioned on the lift.
Minimal Space Requirement: The compact design makes it an ideal solution for narrow workshops while offering maximum lifting capacity.
Double Telescopic Arms: These arms enable the pickup of vehicles across a wide range and flexible positioning.
Height-Adjustable Lifting Platforms: The precise adjustment capability ensures that vehicles with different wheelbases and underbody heights can be safely secured.
The technical parameters of the TwinRam 55 S2/1500 lift guarantee high performance and reliable operation:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Load Capacity | 5.500 | kg | Maximum Load Capacity |
| Punch distance (Punch distance) | 1.500 | mm | The distance between the pickup points |
| Underswing height (Underswing height) | 97 | mm | Extremely low installation height |
| Installation Depth (Installation depth) | 2.450 | mm | The required depth beneath the floor |
| Oil quantity | 10 | liter | Hydraulic system capacity |
| Connected Load (Connected load) | 2 | kW | Electric drive power |
The TwinRam 55 S2/1500 is a lift that meets the highest quality requirements. The combination of double telescopic arms and height-adjustable lifting pads offers an ideal solution for modern service centers.
This hydraulic lift is excellently suited for lifting passenger cars and smaller commercial vehicles where traditional two-post lifts are not ideal due to confined spaces. With the extension of the arms and fine-tuning of the lifting pads, vehicles can be optimally positioned for work.
Safety is the top priority in the design of J.A. Becker & Söhne products. In addition to the redundant hydraulic system, the stability of the structure is guaranteed by the base frame, which distributes the load onto the floor. The anti-rotation system ensures that the vehicle does not move sideways during lifting, which is critically important during work execution.
Easy access to the drive unit and all hydraulic components significantly reduces downtime, as routine inspections and necessary maintenance can be performed quickly.
The extremely low underswing height of just 97 mm means that most vehicles can be lifted with minimal preparation, even if they have low ground clearance. The installation depth of 2450 mm ensures that the lift can be fully lowered beneath the floor, so it almost completely disappears when not in use, maximizing the free space in the workshop.
The TwinRam 55 S2/1500 is truly a first-class product in every respect, prioritizing precision, load capacity, and workshop efficiency.
Further detailed information, floor plans, and dimension tables can be downloaded based on the manufacturer's official documentation.
