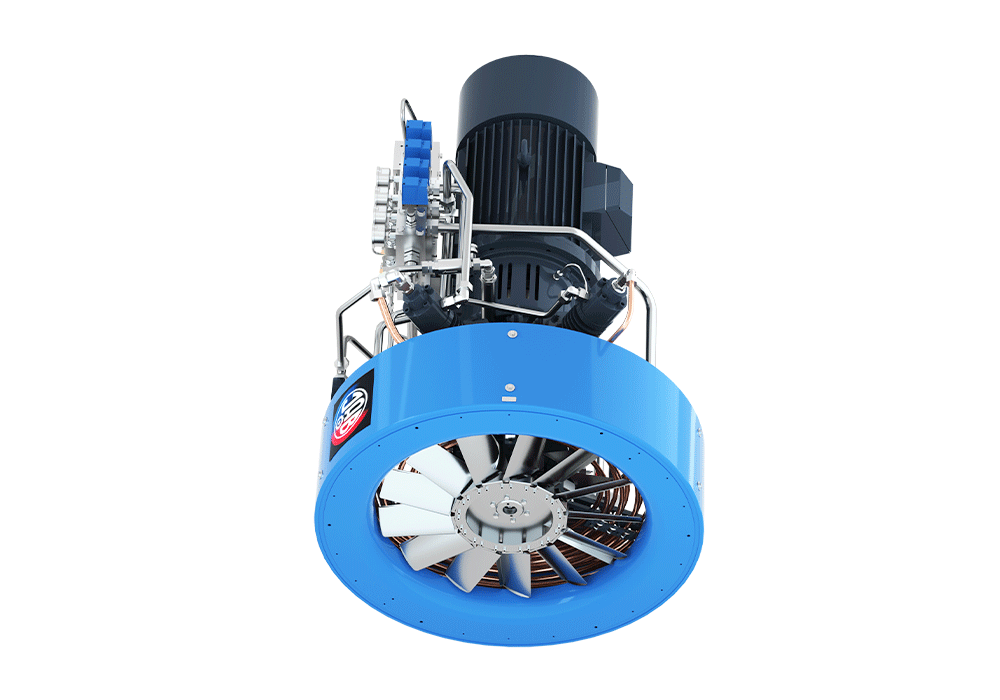

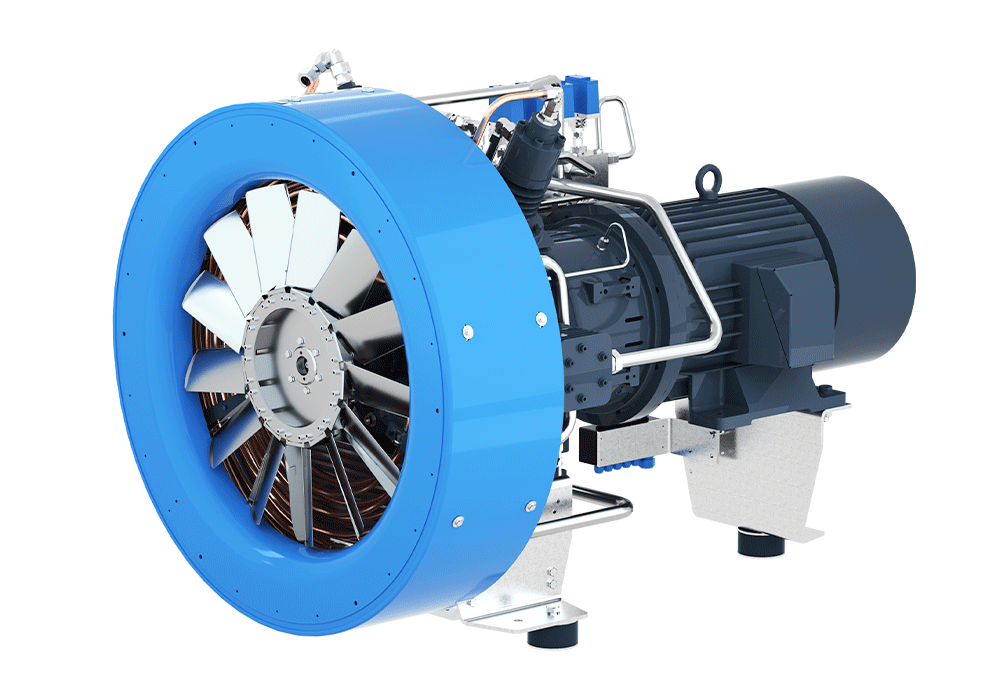

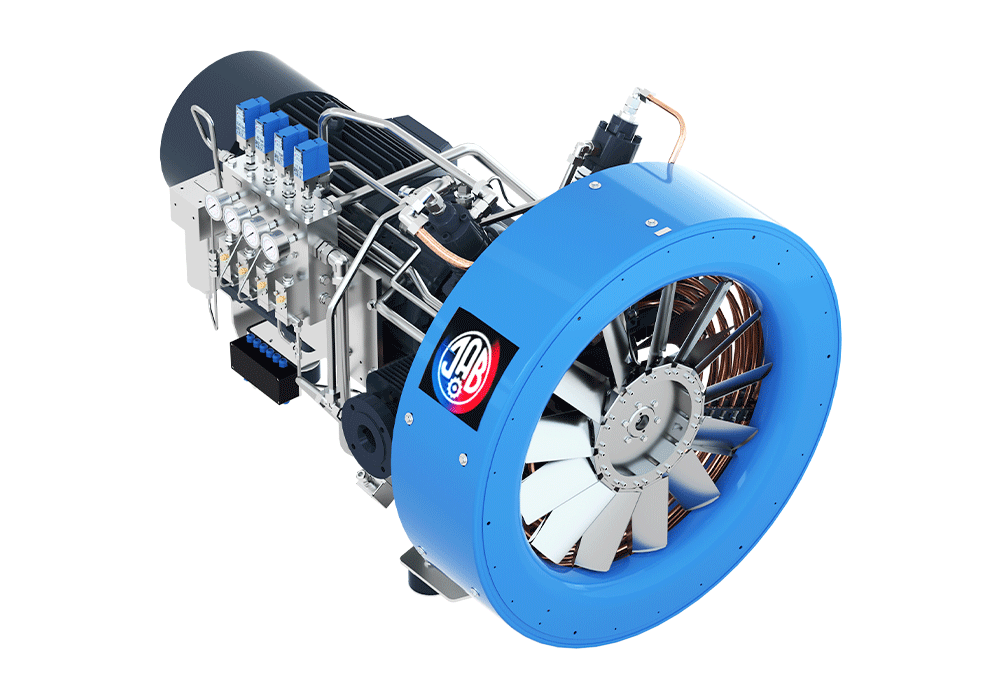

The J.A. Becker & Söhne SVB 1300/350 N model is a flagship, four-stage nitrogen compressor designed for high-performance, reliable gas compression tasks. This equipment is an ideal choice for industrial applications requiring a stable high-pressure (up to 350 bar) nitrogen supply with outstanding flow rates. Becker's commitment to quality and uniqueness is also reflected in this model, avoiding „standard” (NO 08/15) solutions.
The SVB 1300/350 N compressor offers a combination of efficiency, long service life, and automated operation:
High-efficiency cooling: The advanced cooling system ensures the optimal operating temperature in the compression stages, thereby maximizing efficiency and minimizing wear. This crucial factor contributes to the long-term reliability of the equipment.
Fully automatic depressurization: The built-in automatic purging function facilitates maintenance and ensures a safe shutdown, reducing the need for human intervention.
Long maintenance intervals: The robust construction and use of high-quality components have significantly extended maintenance intervals, resulting in reduced downtime and operating costs.
Unique, premium quality: In line with Becker's philosophy, this compressor is also a unique, high-standard product that delivers first-class performance in every aspect.
The SVB 1300/350 N is the result of precise engineering work, featuring the following key parameters:
| Parameter | Value | Note |
|---|---|---|
| Inlet pressure | 0.1 / 0.3 bar | Minimum and nominal inlet pressure |
| Flow Rate (Suction) | 1,500 l/min | Corresponds to 90.0 m³/h |
| Flow Rate (Suction) | 1,807 l/min | Corresponds to 108.4 m³/h |
| Maximum Operating Pressure | 350 bars | Compressor final pressure |
| Pressure stages / Number of cylinders | 4 / 4 | Four-stage compression system |
| Electric Motor Power | 45 kW | Drive unit power |
| Rotational speed | 1,500 RPM | Nominal engine speed |
The SVB 1300/350 N is a piston compressor specifically optimized for the compression of nitrogen (N₂). The four-stage design enables the gradual, efficient compression of the gas up to the desired final pressure of 350 bar.
Stages and Cooling:
An integrated cooling system is located between each compression stage to dissipate the heat generated during compression. This cooling strategy is critically important because achieving high pressure involves significant heat generation. Efficient heat dissipation not only keeps the gas temperature at an optimal level (improving compression efficiency) but also protects the seals and pistons from excessive thermal load, thus increasing service life.
Performance Range:
The compressor flexibly handles the inlet conditions, capable of operating at suction pressures between 0.1 and 0.3 bar. The volumetric flow rate varies between 1500 l/min (90 m³/h) and 1807 l/min (108.4 m³/h), ensuring the required gas volume across a wide range. The 45 kW electric motor provides the necessary mechanical energy for high-speed, high-pressure operation at a speed of 1500 revolutions per minute.
Construction Quality:
Typical of J.A. Becker & Söhne products, the SVB 1300/350 N is also built for durability. The robust frame structure and precisely machined internal components guarantee minimal vibration and long-term, uninterrupted operation even in the most demanding industrial environments.
This high-performance nitrogen compressor can be an ideal choice for:
Industrial Gas Supply: On-site production of high-volume, high-pressure nitrogen, avoiding the logistical challenges of bottled gases.
Laser Technology: Supply of inert gas required for high-power laser systems.
Chemical and Petrochemical Industry: For inerting and purging processes.
Testing and Calibration Facilities: Maintenance of high-pressure test environments.
The SVB 1300/350 N is in every respect a first-class product that prioritizes reliability and high performance.
