The J.A. Becker & Söhne DuoRam AE 35 lifting system represents an advanced concept that prioritizes fast, simple, and safe vehicle access. This hydraulic scissor lift is the ideal choice for workshops where efficiency and reliability are paramount. The „Essmann” jacking system is particularly impressive due to its extremely low jacking height and the ability for automatic wheel centering, which minimizes setup time and maximizes safety.
The DuoRam AE 35 is not just a standard product; it reflects J.A. Becker & Söhne's commitment to quality and engineering precision.
The system features outstanding safety characteristics that guarantee stable operation even under extreme conditions:
Redundant Design: Two independent hydraulic cylinders ensure operational reliability and safe load distribution. This dual system significantly increases the safety margin.
Anti-Rotation System: An anti-rotation mechanism effective over the entire stroke length guarantees that the lift platform remains stable, avoiding unwanted lateral movements.
Momentum Damping: Auxiliary guide rods absorb all occurring torque, ensuring the structural integrity and stability of the vehicle during lifting.
During the design process, great emphasis was placed on creating optimal working conditions for the mechanic:
Excellent Accessibility: Thanks to the design, optimal access is provided to the engine bay, vehicle passenger compartment, and the lower parts of the chassis.
Minimum Setup Time: The fast jacking concept and automatic centering drastically reduce the time required for vehicle positioning, thereby increasing workshop productivity.
The DuoRam AE 35 is especially suitable for use in areas equipped with washing equipment:
The „Essmann” jacking system revolutionizes vehicle placement:
Low Lifting Height: The spring plates' extremely low jacking height of just 20 mm- makes it easy for sporty or low-chassis vehicles to get on the lift.
Wheel Centering: Automatic wheel centering ensures that the vehicle is always optimally positioned on the lift.
The precise specifications of the DuoRam AE 35 lift guarantee reliable performance even in the most demanding workshop environments.
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 3,500 kg | Ideal for passenger cars and light commercial vehicles. |
| Lifting Height | 1,880 mm | Ensuring a comfortable working height. |
| Clearance Height (Traverse Height) | 80 mm | The minimum height above floor level. |
| Installation Depth | 2,350 mm | The minimum depth required under the floor. |
| Oil quantity | 10 liter | The quantity required for the operation of the hydraulic system. |
| Connection Power | 2 kw | Power consumption of the electric drive. |
| Suitable Axle Distance | 1,800 mm – 3,400 mm | The width and adjustability of the bridge. |

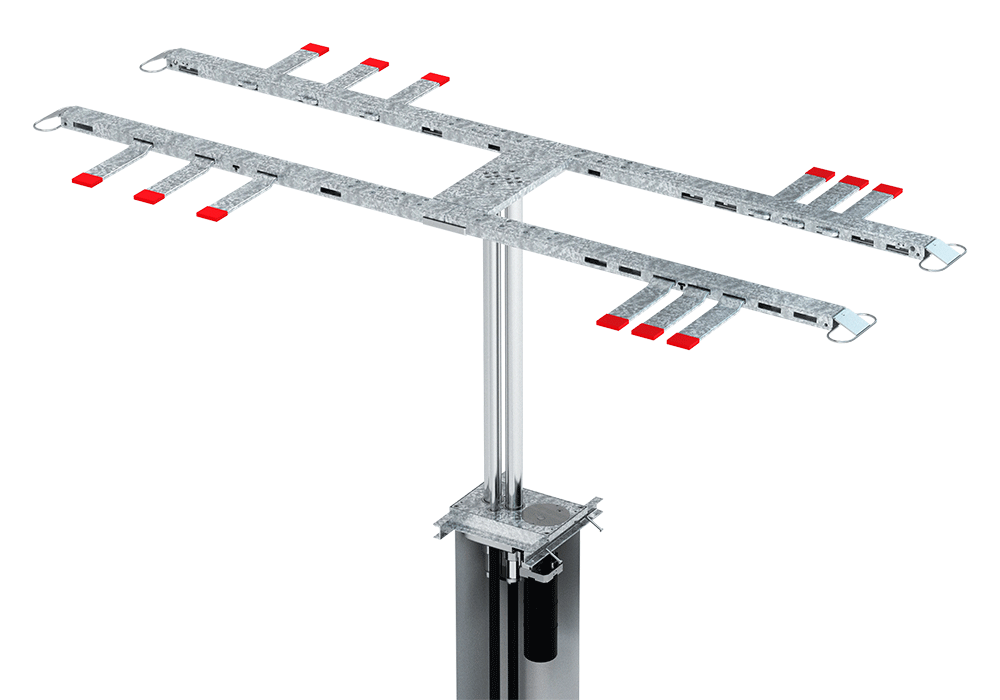

The DuoRam AE 35 backbone bridge is specifically optimized for the wide range of passenger vehicles, covering axle distances from 1,800 mm up to 3,400 mm.
The hydraulic unit is flanged directly onto the lifting structure, which optimizes power transmission, reduces connection losses, and simplifies maintenance. The two independent cylinders ensure symmetrical and safe load lifting.
Thanks to the hot-dip galvanized finish, the AE 35 is the ideal choice for:
Vehicle Accommodation: Excellent corrosion resistance guarantees a long service life in wet and chemically exposed environments.
General Services: Quick setup and excellent accessibility increase the speed of daily workflows.
Body Repair Shops: Stable lifting and precise positioning are essential for body repairs.
This product offers a first-class solution in every respect for modern vehicle services, where speed, safety, and durability are all expected. Detailed technical documentation (drawings, dimensioning tables) is available to support the design and installation phases.
