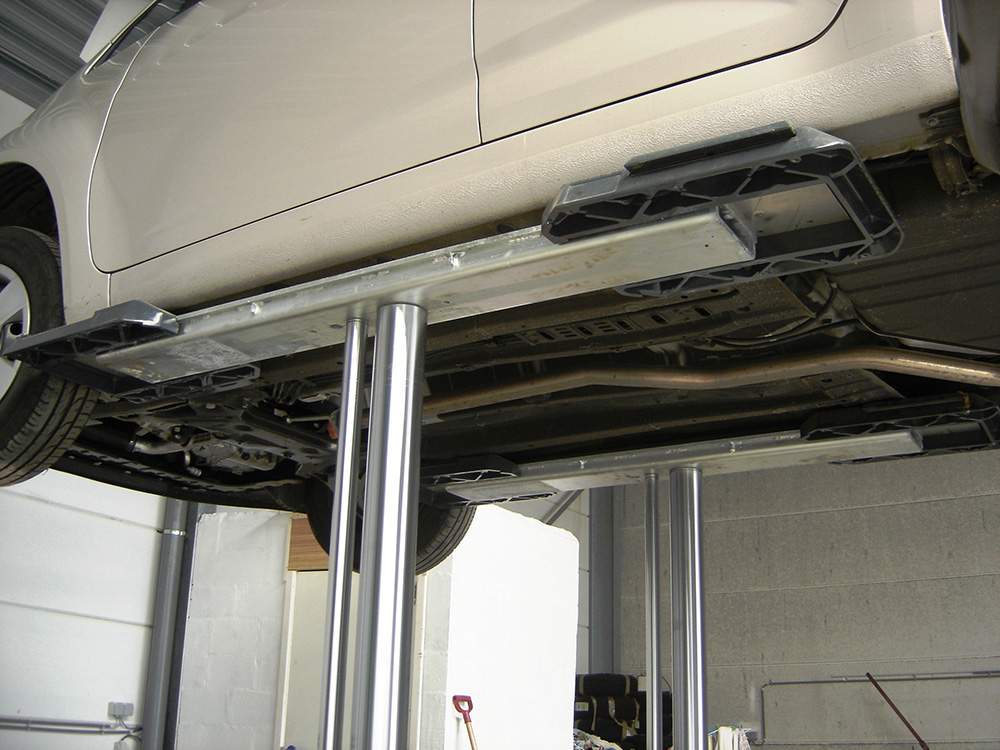

J.A. Becker & Söhne presents the TwinRam 35 XY an electro-hydraulic lift that offers a unique solution for the fast and safe lifting of vehicles. This model features a low-profile gantry design, with lifting arms adjustable in both longitudinal and transverse directions, thus providing exceptional flexibility and accessibility during workshop operations.
The TwinRam 35 XY, equipped with a hot-dip galvanized main beam as standard, significantly simplifies vehicle pickup, minimizes preparation time, and guarantees optimal access to all parts of the vehicle, especially the undercarriage. The optional transverse adjustment possibilities of the pickup adapters provide unparalleled versatility for various vehicle types.
Thanks to the minimal space requirement of the TwinRam 35 XY, it is a truly universal solution, making it an ideal choice for any workshop.
The TwinRam 35 XY is not an average product; it reflects the engineering precision of J.A. Becker & Söhne in terms of safety and efficiency:
Redundant Design: Two independent hydraulic cylinders ensure safe and stable operation, thereby increasing reliability.
Swivel Lock System Over Full Stroke Length: Precise positioning and stability are guaranteed throughout the entire path during vehicle lifting and lowering.
Base Frame Force Absorption: All lifting forces are absorbed by the base frame, ensuring optimal load distribution and a long service life for the structure.
Easy Access to Spare Parts: The drive unit and all critical components are easily accessible, which simplifies maintenance and servicing.

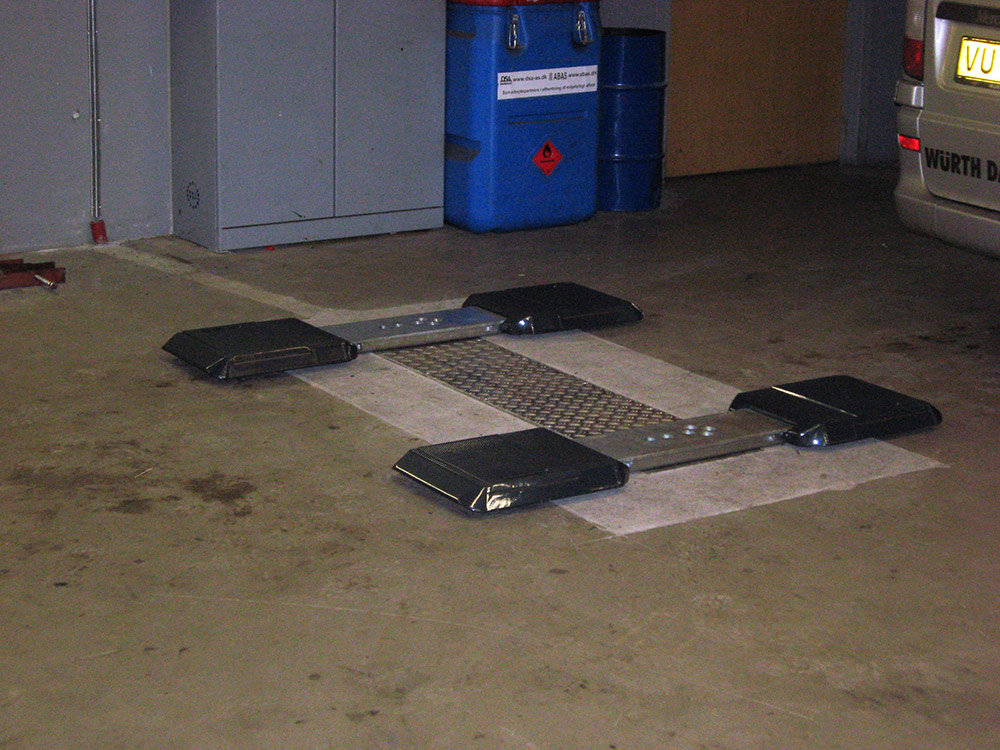

Minimum Traversing Height: The extremely low drive-over height facilitates positioning vehicles onto the lift.
Large Lifting Area: The design provides large clearance and flexibility for vehicles with different wheelbases and track widths.

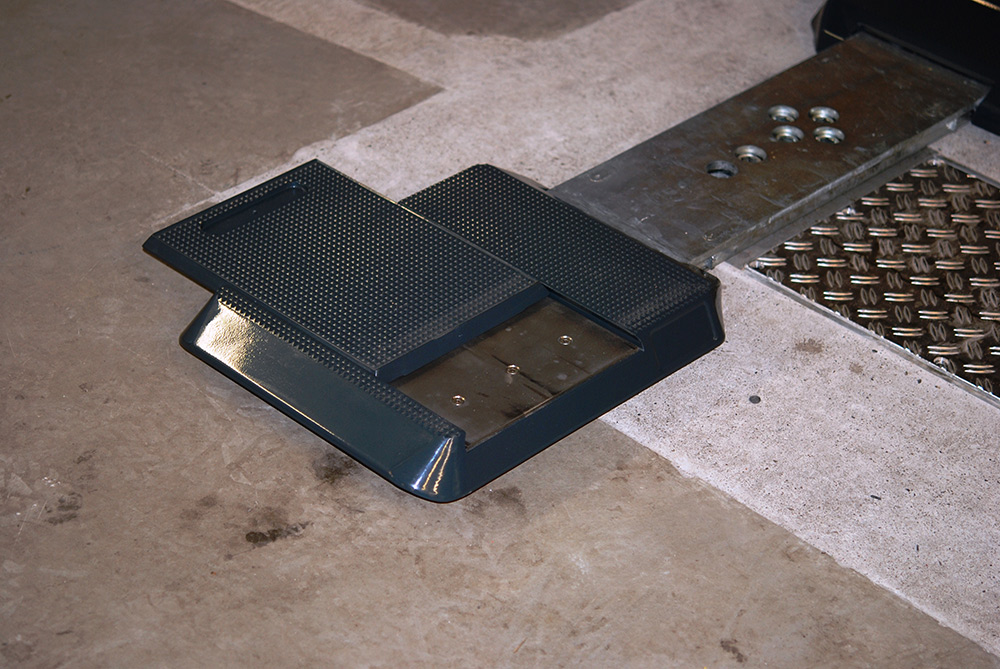

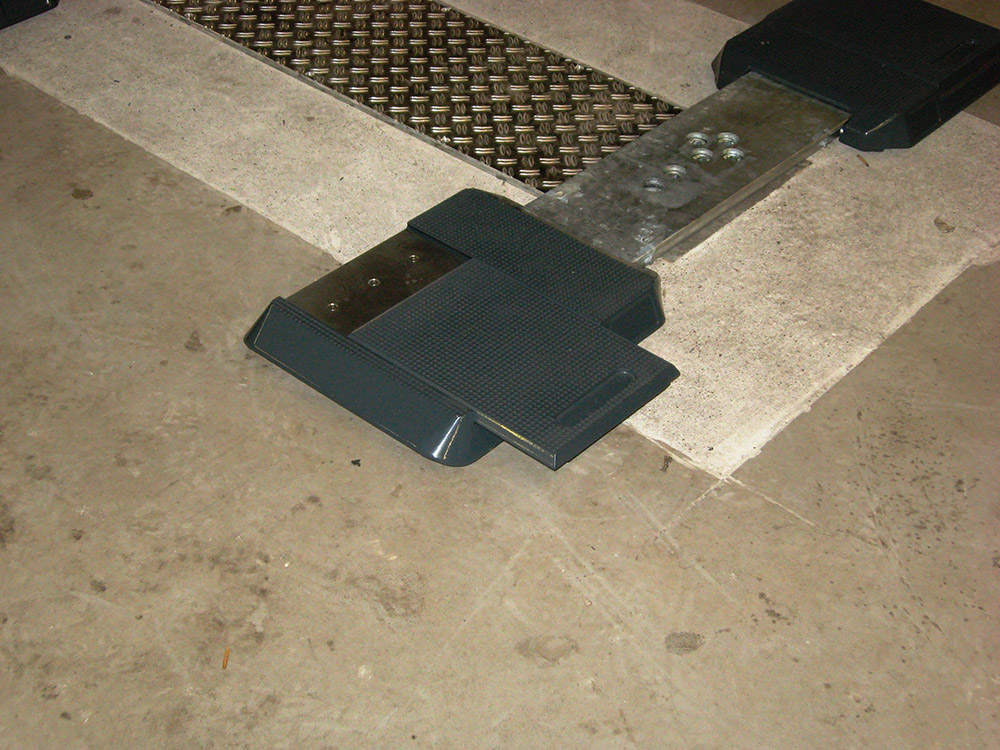

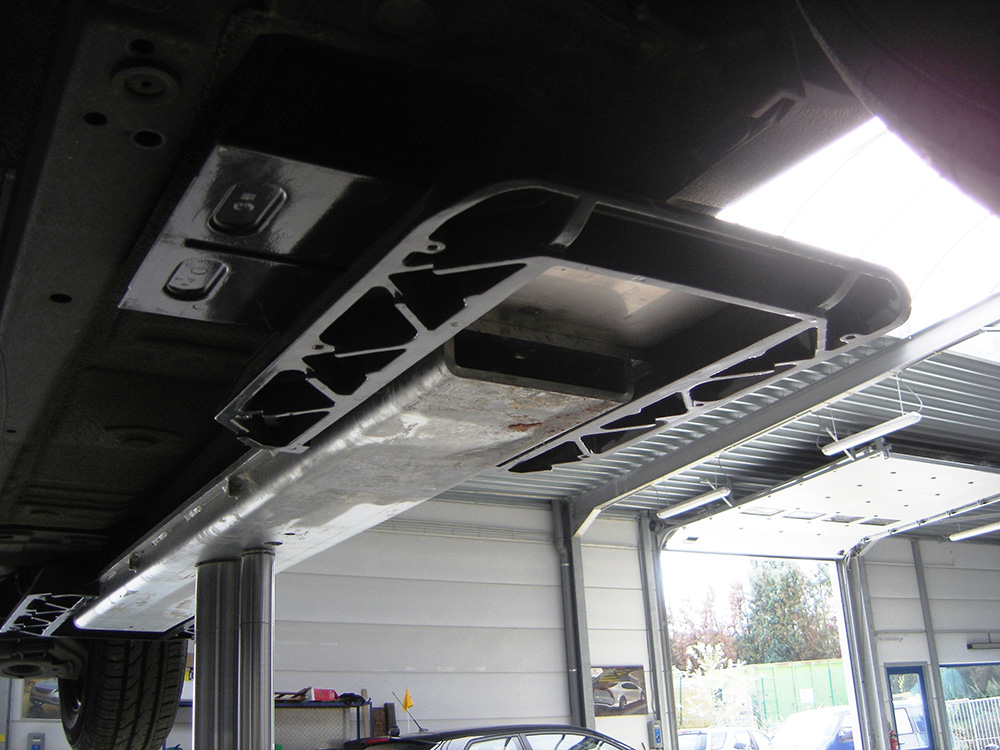

Excellent Undercarriage Accessibility: Thanks to the transverse adapter adjustability, the entire area of the undercarriage becomes easily accessible.
The precise technical parameters of the TwinRam 35 XY lift ensure professional performance:
| Parameter | Value | Unit of Measure |
|---|---|---|
| Load Capacity | 3.500 | kg |
| Adjustable Distance (Hole Spacing) | 1.300 | mm |
| Lifting Height | 68 | mm |
| Installation Depth | 2.350 | mm |
| Oil quantity | 10 | liter |
| Connection Power | 2 | kW |

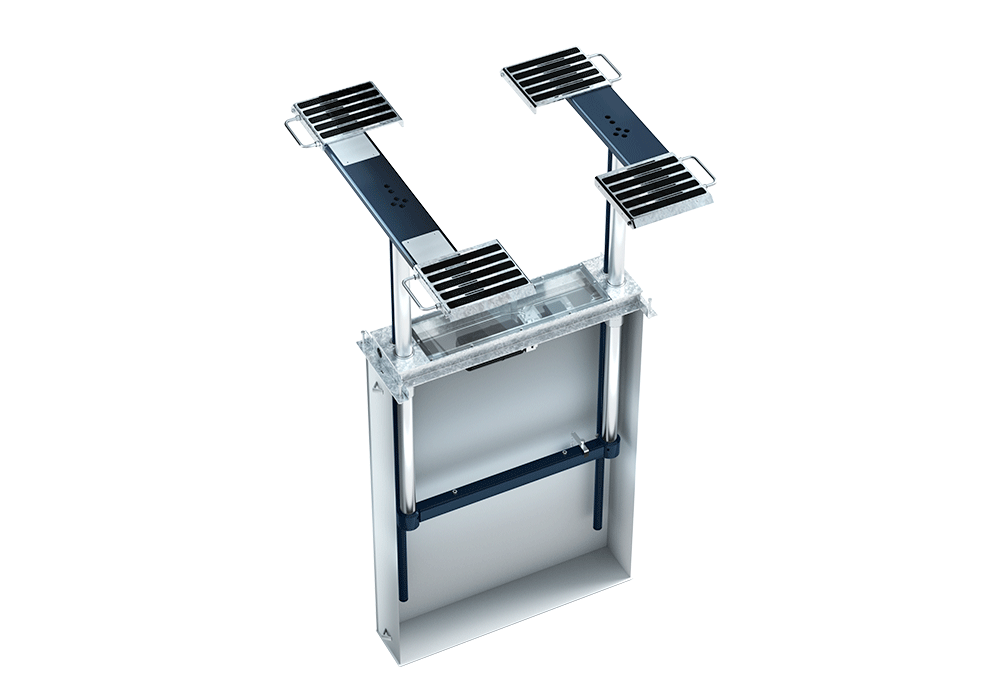

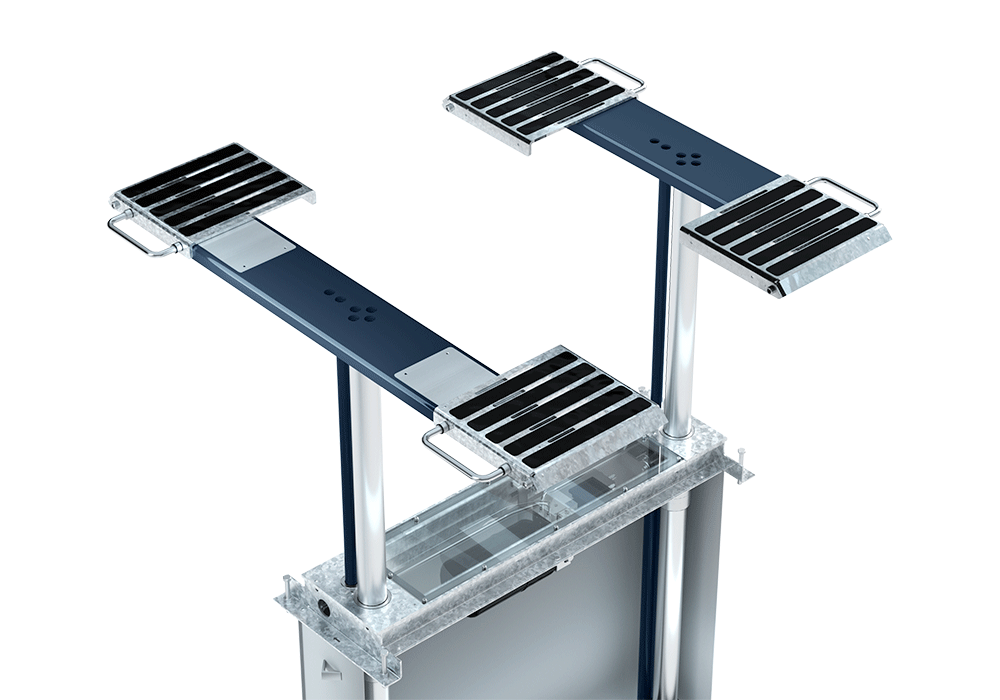

The TwinRam 35 XY is an electro-hydraulic lift that uses flat main beam technology. The galvanized main beam is outstanding not only for corrosion protection but also contributes to the rigidity of the structure.
The transverse adjustment capability (XY function) on the pickup adapters is a key advantage. This function enables workshops to safely and centrally secure almost any passenger vehicle, including models with wider track widths or special chassis geometries. The adjustment range is optimized for fast and repeatable positioning.
The two independent hydraulic systems provide redundancy. Even in the event of a failure, the lift safely holds the load. The anti-rotation system guarantees that the lifting arms do not move sideways during the hydraulic process, which is critical for vehicle stability.
The installation depth of only 2350 mm is extremely favorable, especially when the lift is installed in a pit. This depth minimizes necessary ground work, while the minimum drive-over height of 68 mm ensures that vehicles can easily drive onto it. The 2 kW connection power allows for economical operation.
The TwinRam 35 XY is the ideal choice for high-volume service centers where fast throughput time and maximum flexibility are essential for efficient work. This lift is a first-class product in every respect.
