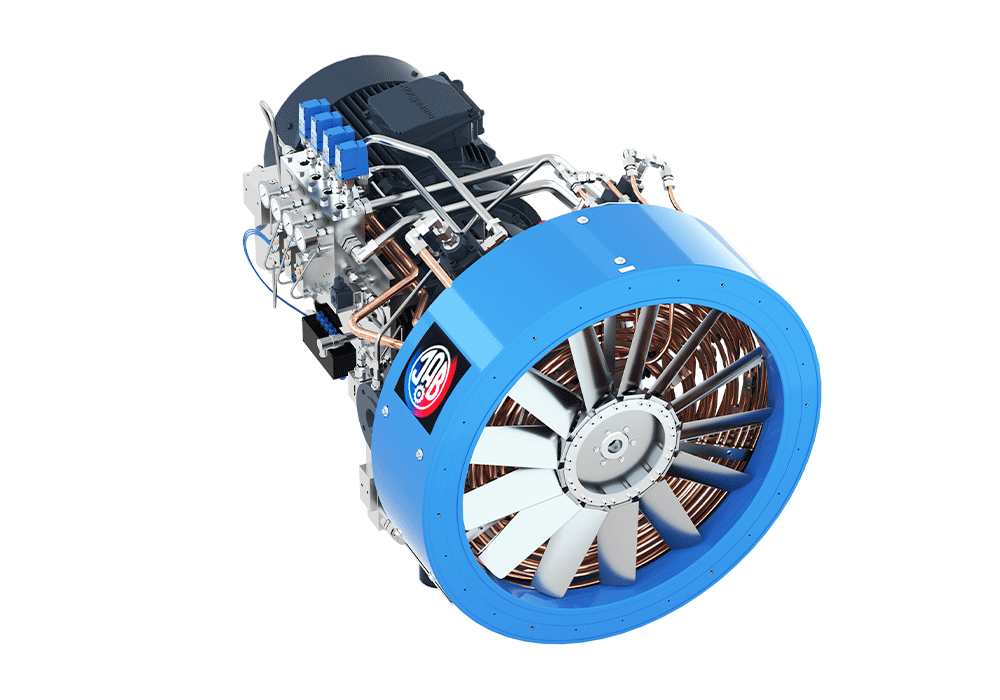

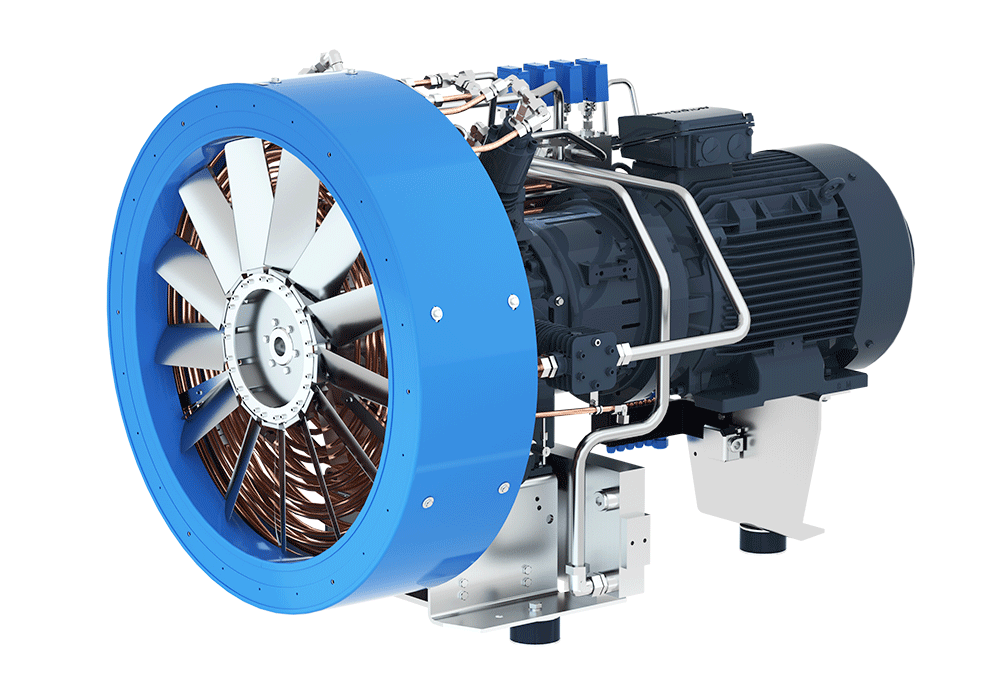

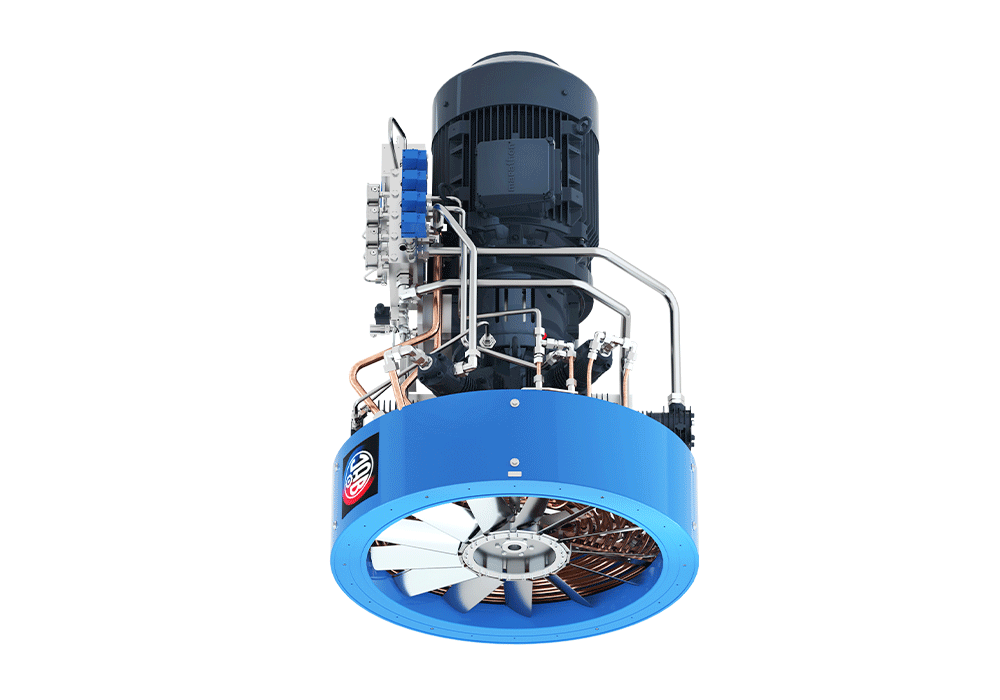

The J.A. Becker & Söhne V 5660/300 NG4 model is a top-tier, three-stage natural gas compressor specifically designed for high-pressure applications. This unit is excellently suited for natural gas after-compression, ensuring a maximum operating pressure of 300 bar with a volumetric flow rate of 35.1 m³/h. In line with the JAB philosophy, this model is also free from „tot-lot solutions” (NO 08/15 PRODUCTS), guaranteeing reliability and a long service life.
The V 5660/300 NG4 compressor features several outstanding characteristics that optimize performance and reduce operating costs:
High-Efficiency Cooling: The advanced cooling system ensures efficient dissipation of heat generated during the compression process. This not only increases the lifespan of the machine but also contributes to energy efficiency by minimizing heat loss.
Fully Automatic Discharge: The unit is equipped with an automatic filling function, which simplifies operation and increases safety, especially in managing pressure fluctuations.
Long Maintenance Cycles: Thanks to its robust design and the use of high-quality components, the compressor operates with extremely long maintenance intervals, significantly reducing downtime and annual service costs.
First Class Quality: The product represents first-class quality in every respect, ensuring continuous and reliable operation even in the most demanding industrial environments.
The precise technical parameters of the V 5660/300 NG4 compressor ensure the achievement of specific performance targets:
| Parameter | Value | Note |
|---|---|---|
| Model | V 5660/300 NG4 | Three-stage natural gas compressor |
| Inlet Pressure | 4 bar | |
| Volumetric Flow Rate (Suction Side) | 585 l/min | Corresponds to 35.1 m³/h |
| Maximum Operating Pressure | 300 bar | |
| Pressure Stages / Cylinder | 3 / 3 | Three compression stages |
| Electric Motor Power | 13.5 kW | |
| Rotational speed | 1.500 U/min |
The V 5660/300 NG4 is a compressor featuring a three-cylinder, three-stage design. This configuration allows for the gradual pressurization of the gas, which is critical for reaching the final pressure of 300 bar while minimizing the thermal load on each stage.
First Stage: The natural gas with an inlet pressure of 4 bar is drawn in by the first cylinder and compressed to a specified intermediate pressure.
Second Stage: The already pre-compressed gas enters the second cylinder, where its pressure is further increased.
Third Stage: In the final compression stage, the third cylinder delivers the natural gas to the required maximum operating pressure of 300 bar.
The 13.5 kW electric drive, operating at 1500 rpm, provides the necessary power for the efficient handling of the 35.1 m³/h (585 l/min) flow rate.
This high-performance compressor is an ideal choice for industrial and commercial applications where reliable booster compression of natural gas to high pressures is required, such as:
Filling or boosting gas pipelines.
Preparatory units for CNG (Compressed Natural Gas) filling stations.
Industrial processes that require high-pressure inert or flammable gases.
Further detailed information regarding the product, including the complete technical description and product overview, is also available for download. These documents provide deeper insights into the design philosophy and the built-in technologies.
Data Sheet: Detailed technical specifications.
Leaflet: Comprehensive product overview of the V 5660/300 NG4 series.
J.A. Becker & Söhne is committed to ensuring that all its products meet the highest quality standards, guaranteeing long-term, trouble-free operation. The V 5660/300 NG4 model offers the perfect combination of reliability and performance for high-pressure gas handling tasks.
