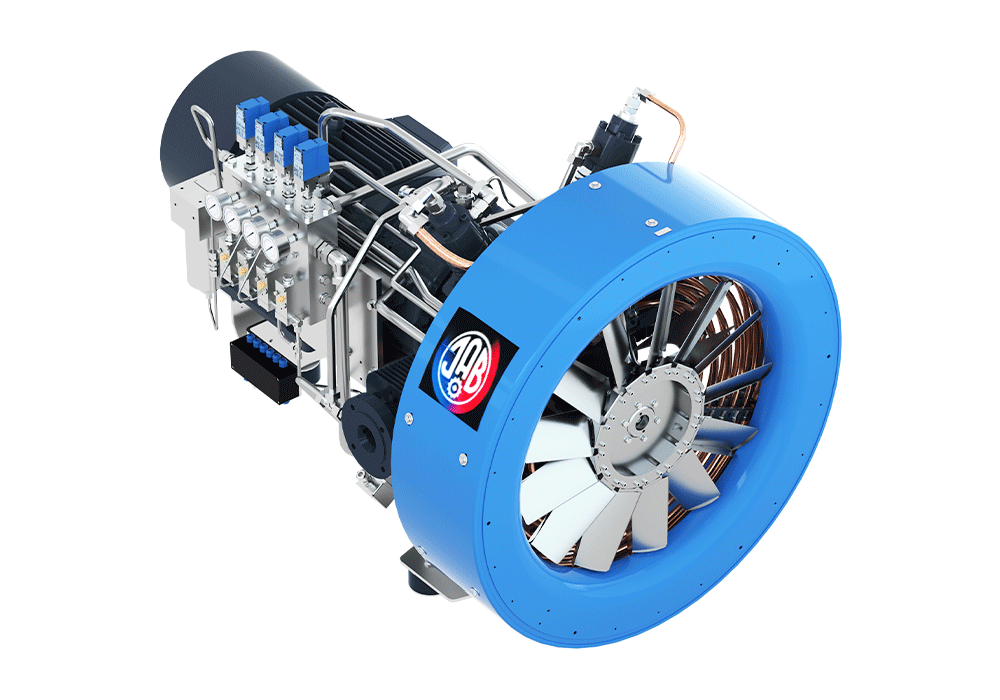

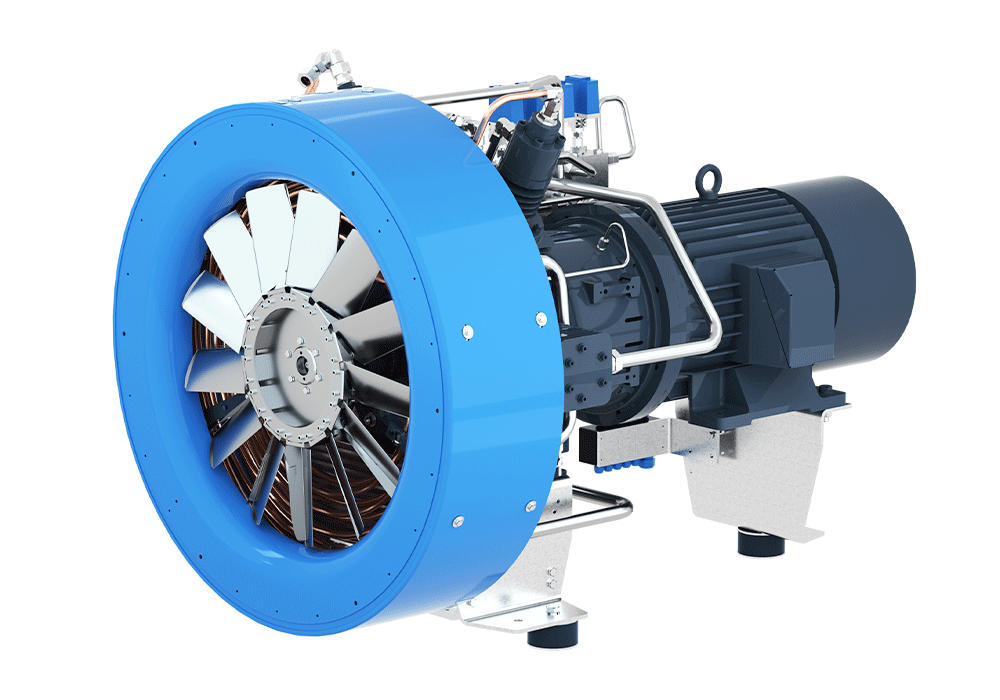

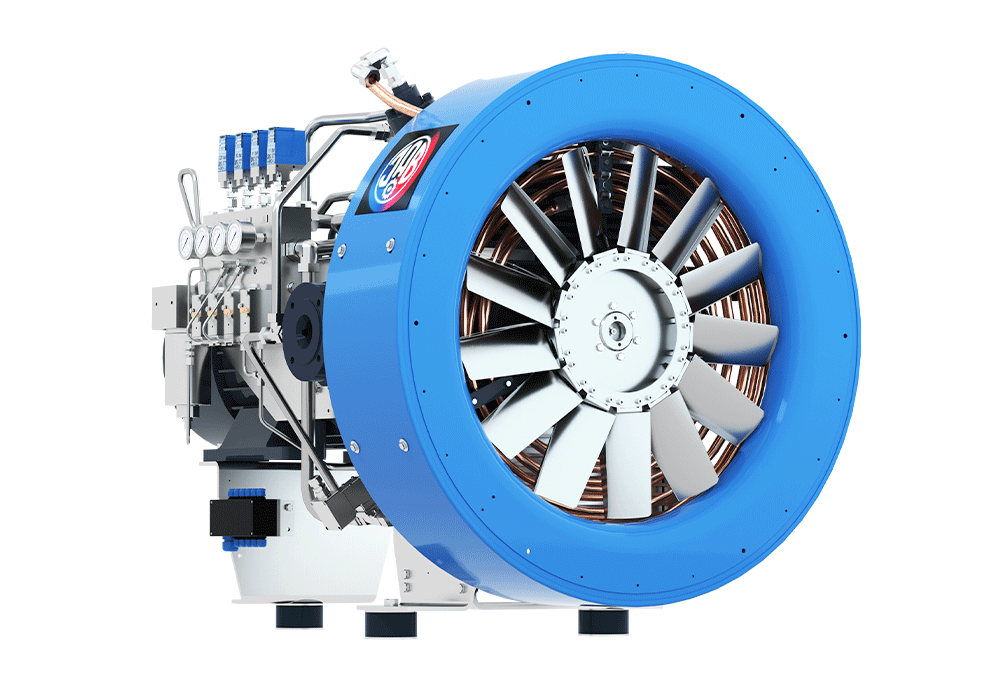

The J.A. Becker & Söhne SVB 950/300 NG model is a state-of-the-art, four-stage natural gas compressor designed for the highest performance and reliability. This equipment offers an ideal solution for industrial applications requiring the compression of large volumes of natural gas up to an operating pressure of 300 bar. The „NG” (Natural Gas) designation emphasizes the design optimized for the specific processing of natural gas.
The SVB 950/300 NG compressor is not just a standard piece of equipment; in line with the J.A. Becker & Söhne philosophy, it is a „not zero-eight-fifteen” product, offering outstanding technical solutions:
Outstandingly Efficient Cooling: A cooling system that effectively dissipates the heat generated during the compression process ensures stable operation, minimizes thermal load, and increases service life. This function is crucial when compressing high-pressure gases.
Fully Automatic Discharge: The system automatically manages the venting of pressurized gas, which increases safety and reduces the need for operator intervention. This function optimizes cycles and simplifies operation.
Long Maintenance Cycles: Thanks to the robust construction and quality components, maintenance intervals have been significantly extended, which reduces downtime and operating costs.
Reliability and Durability: The compressor is a first-class product in every aspect, guaranteeing long-term, uninterrupted operation even in the most demanding environments.
The performance and parameters of the SVB 950/300 NG are detailed in the table below, presenting the precise specifications of the equipment:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Inlet pressure (Inlet pressure) | 0,02 / 0,3 | bar | Minimum / Maximum Inlet Pressure |
| Volume flow (Volume flow) | 956 / 1.430 | l/min | Flow rate range |
| Maximum operating pressure (Max. operating pressure) | 300 | bar | Maximum pressure load of the compressor |
| Pressure stages / Cylinder (Pressure stages/cylinder) | 4 / 4 | – | Compression takes place in four stages |
| Electric motor performance | 30 | kW | Drive unit power |
| Speed (Speed) | 1.500 | rpm | Nominal engine speed |
The compressor flexibly adapts to different requirements within the specified volume flow range:
Minimum Flow Rate: 956 liters/minute (equivalent to 57.4 m³/h)
Maximum volumetric flow rate: 1,430 liters/minute (equivalent to 85.8 m³/h)
This wide range ensures that the equipment operates optimally under varying load conditions while maintaining the final pressure of 300 bar.
Due to the maximum pressure of 300 bar and the specific handling of natural gas (NG), the SVB 950/300 NG is an ideal choice for:
Refueling Infrastructure: For high-pressure natural gas (CNG) filling stations requiring fast and reliable refueling.
Industrial Gas Supply: For processes that require high-pressure natural gas in the production or energy supply chain.
Energy Solutions: For natural gas storage systems where the gas must be compressed to high pressure for space-saving storage.
As is typical for J.A. Becker & Söhne products, the SVB 950/300 NG is also manufactured from the highest quality materials and with precise manufacturing processes. The four-stage design guarantees that compression occurs step-by-step, at an optimal temperature, minimizing mechanical stress in the individual cylinders. The 4-cylinder configuration ensures balanced operation and reduced vibration.
The 30 kW electric motor provides sufficient power for reliable operation at 1500 RPM, even when reaching the maximum pressure of 300 bar.
More detailed documentation regarding the product, including the full technical data sheet and product description, can be downloaded from the manufacturer's official sources. These documents provide deeper insight into installation requirements, maintenance procedures, and safety regulations.
Downloadable Documents:
Technical Data Sheet (Natural Gas Compressors Tech. Data)
Brochure (Natural Gas Compressors)
The SVB 950/300 NG is the perfect combination of performance, efficiency, and long service life for high-pressure natural gas compression tasks.
