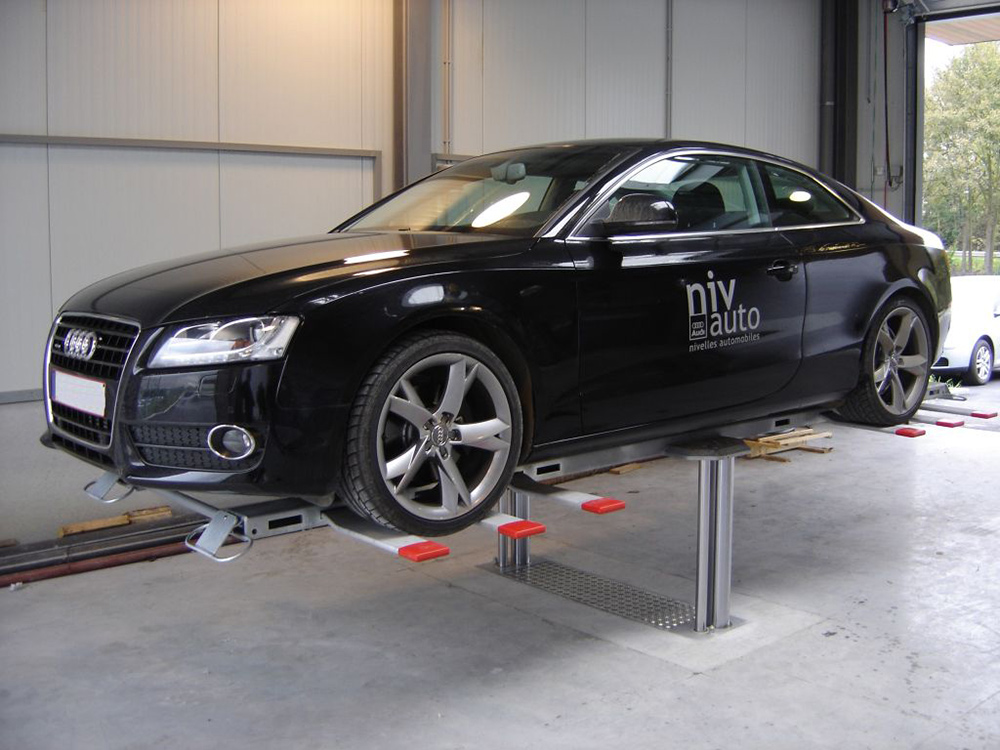

The JAB TwinRam 35 AE 1300 is an excellent quality two-post lift equipped with proven Essmann technology. This model is ideally suited for use at direct service points and in vehicle wash systems where fast and safe vehicle handling is essential. The extremely low lifting height and automatic locking functions guarantee efficient and trouble-free operation.
The TwinRam 35 AE 1300 is not an ordinary product; it reflects the engineering precision of J.A. Becker & Söhne, focusing on reliability and long service life.

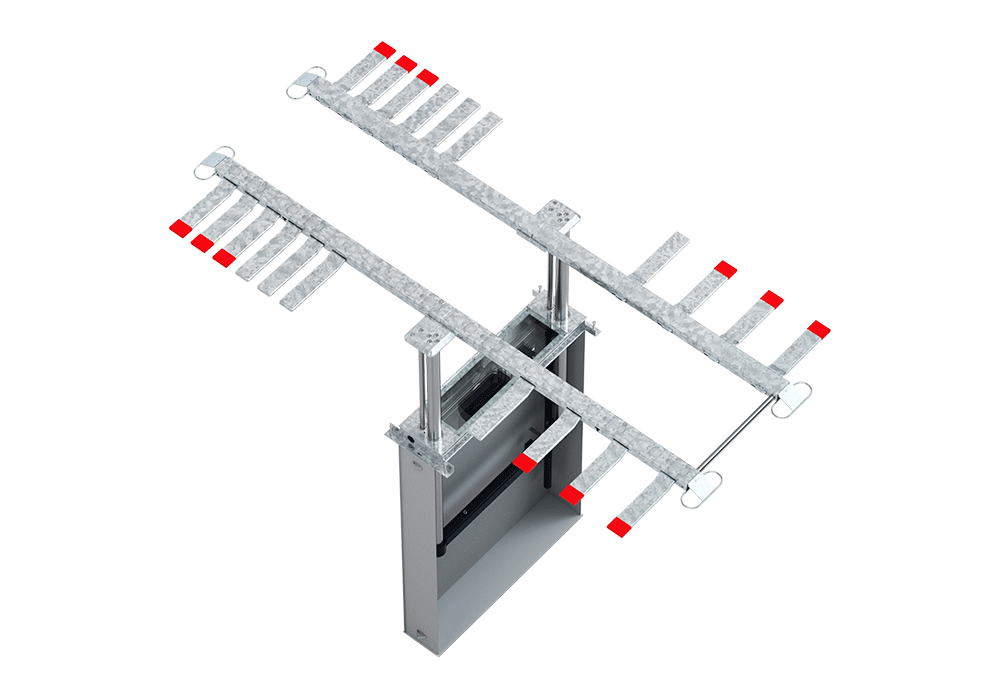

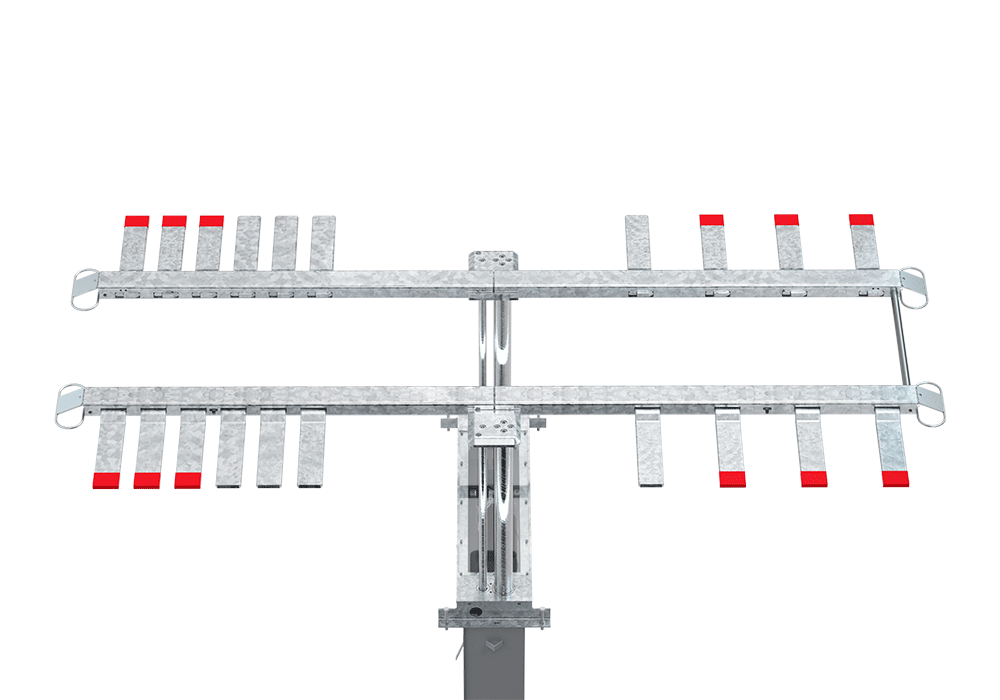

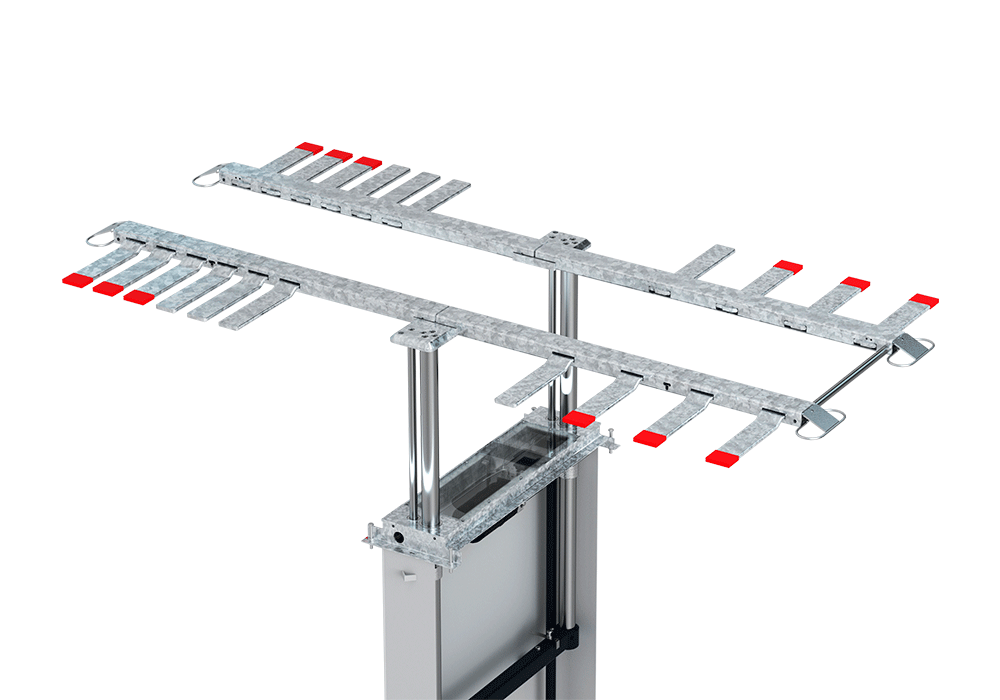

Redundant Design with Two Independent Hydraulic Cylinders: To maximize safety, the lift is equipped with two independently operating hydraulic cylinders. This redundancy ensures the load remains stable even in the event of a failure, minimizing the risk of accidents.
Full Stroke Length Controlled Anti-Tilt System: The lift prevents the vehicle from tilting or slipping over its entire lifting height, which is critical during precision work and washing processes.
All Force Absorbed By The Foundation Frame: The structure is designed to transfer all load forces to the floor via the massive foundation frame, thereby reducing the stress on other components of the lift.

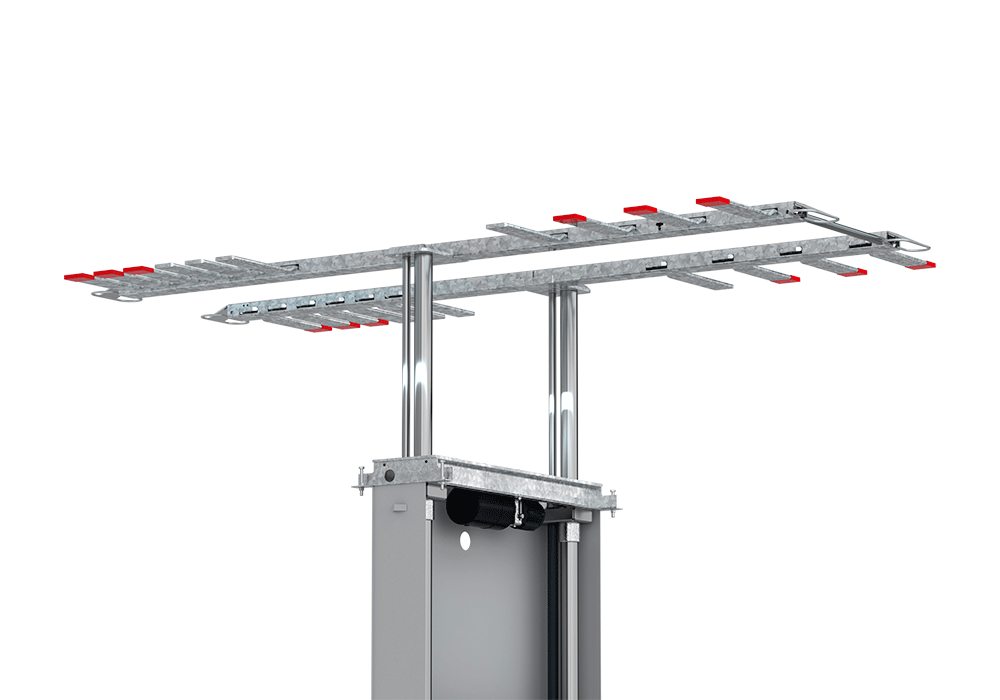

Easily Accessible Drive Unit And Components: For ease of maintenance and potential repairs, the drive unit and all important components are located in an easily accessible location.
Large Intake Surface: The wide design allows for the comfortable positioning of vehicles of different sizes.
Short Installation Times: Thanks to the efficient design, the lift can be quickly brought to operational status, increasing workshop productivity.
One of the greatest advantages of the TwinRam 35 AE 1300 is its extremely low lifting height.

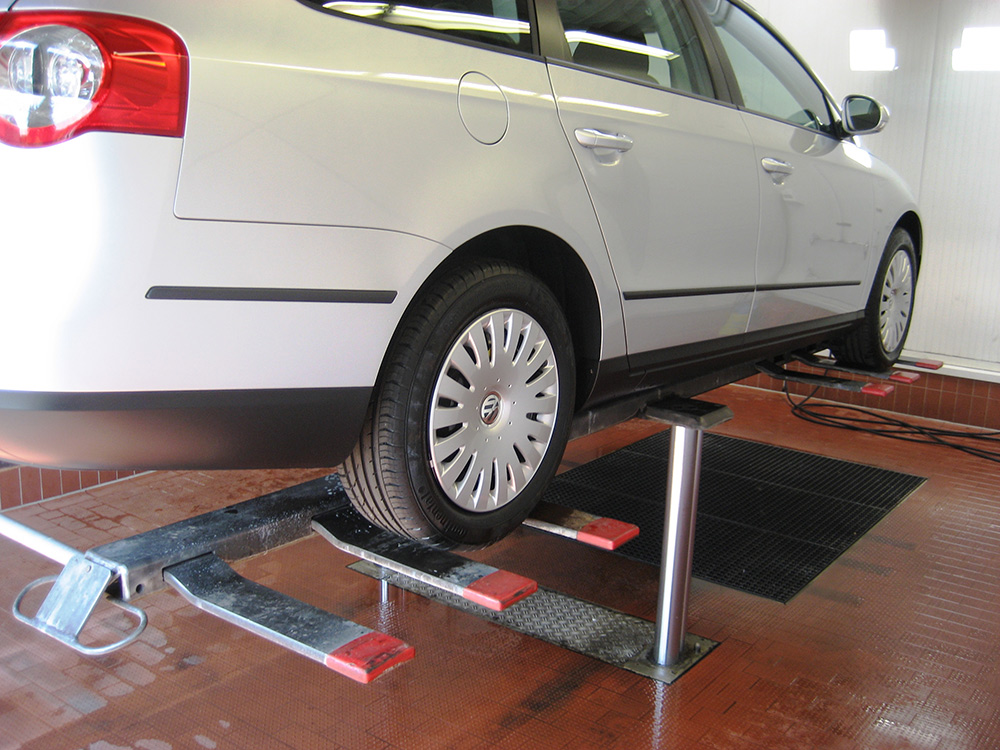

No Ramps Needed: Vehicles can be driven directly onto the just 20 mm high, flat spring plates. This eliminates the need for separate ramps, saving time and reducing potential errors during approach.
Self-Centering And Automatic Locking: The vehicle automatically centers itself on the spring plates and is simultaneously locked against accidental rolling.
The table below summarizes the key technical parameters of the TwinRam 35 AE 1300 lift:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Load Capacity | 3.500 | kg | Maximum permissible weight |
| Opening Width (Punch Spacing) | 1.300 | mm | The distance between the two lift arms |
| Lifting Height | 20 | mm | Extremely low profile |
| Installation Depth | 2.350 | mm | Required underfloor depth |
| Oil quantity | 10 | liter | Hydraulic system capacity |
| Connection Power | 2 | kW | Electrical Power Requirement |
The TwinRam 35 AE 1300 is a two-post lift that can also be supplied with ramps (although the standard model uses the 20 mm flat plates). This configuration provides flexibility for meeting various workshop requirements.
This lift is ideally suited for environments where fast loading and unloading of vehicles, as well as full underbody access, are crucial, such as:

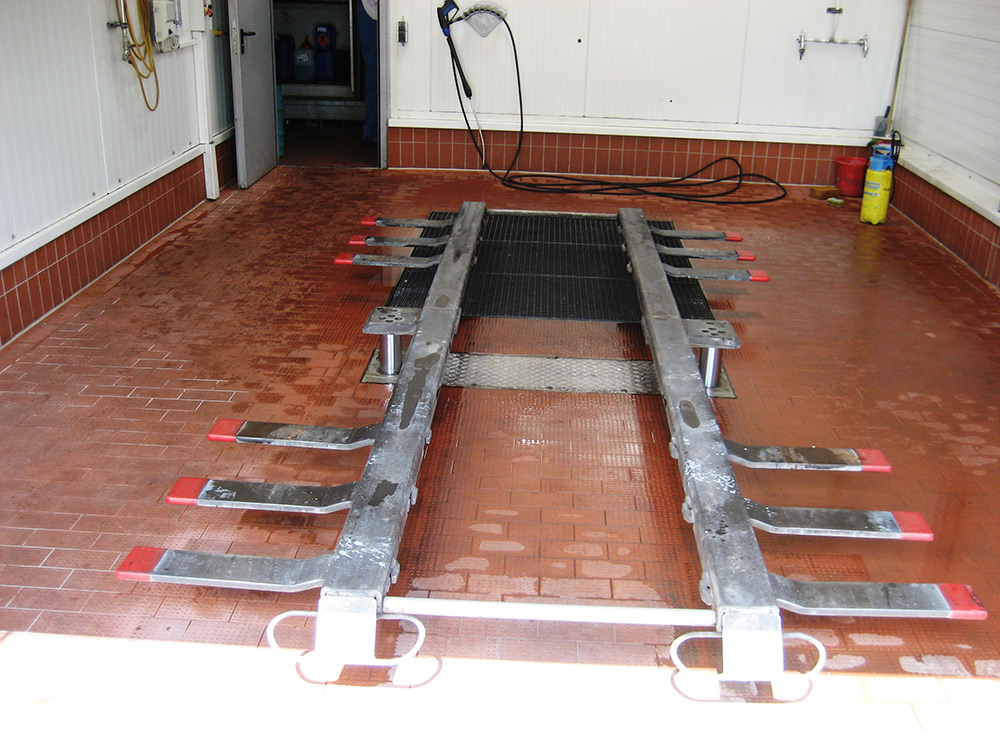

Vehicle Accommodation: The low profile facilitates the introduction of vehicles into the wash bay, and the full lift height allows for thorough cleaning of the underbody.
Quick Service and Transfer Points: Fast loading and unloading times maximize throughput speed.
J.A. Becker & Söhne products represent first-class quality in every respect, ensuring long-term, reliable operation in industrial environments. Detailed blueprints, dimensioning tables, and brochures are available for the product to precisely understand installation and specifications.
