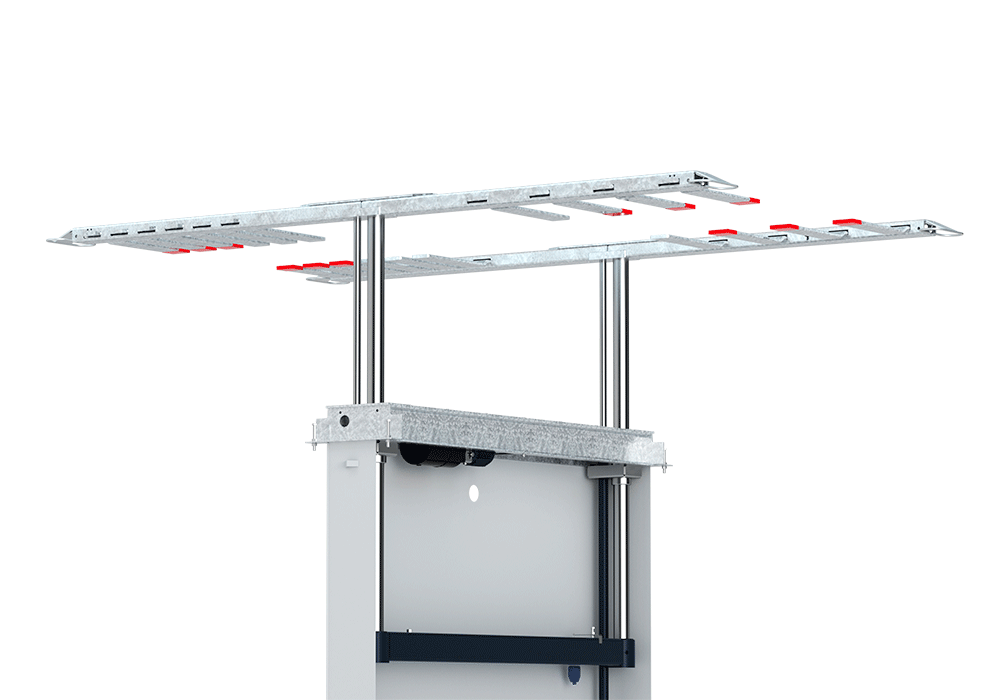

The JAB TwinRam 35 AE 2300 is a high-quality two-post lift built upon proven Essmann technology. This model is ideally suited for direct vehicle transfer, pit work, and is particularly suitable for battery replacement in electric vehicles. The extremely low lifting height and excellent underbody access make this system one of the most competitive solutions on the market.
The TwinRam 35 AE 2300 is not just any lift; it reflects the engineering precision of J.A. Becker & Söhne, prioritizing safety, reliability, and efficiency.
Excellent Underbody Access: Thanks to the 2300 mm track width, the entire vehicle underbody becomes fully accessible, which is essential for complex repair and maintenance tasks.

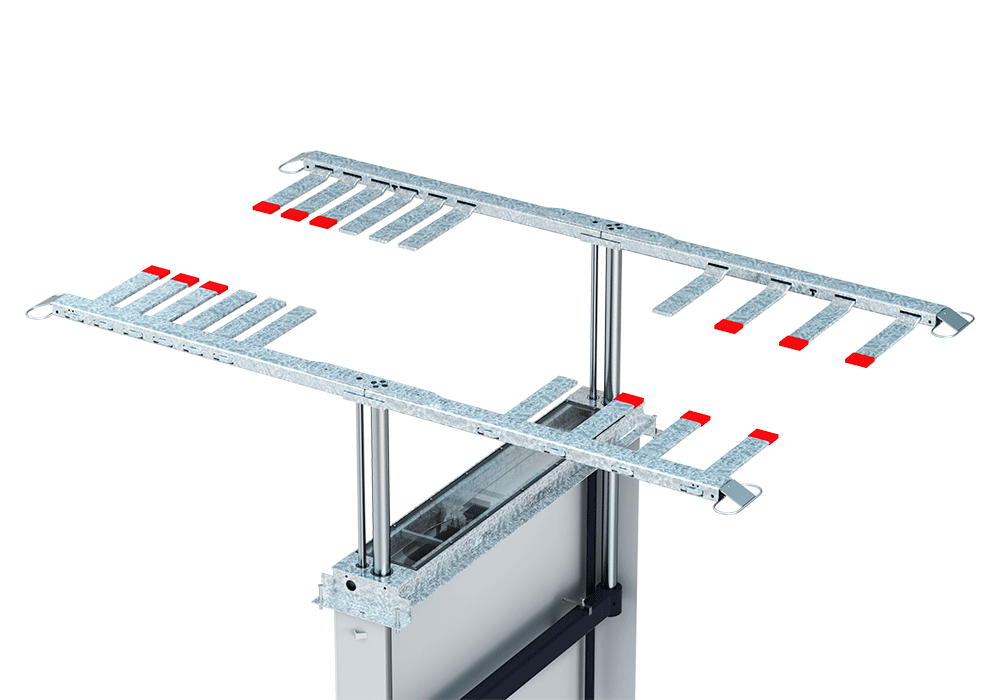

Extremely Low Lift-Up Height: With a lift-up height of just 20 mm, there is no need for ramps. Vehicles can drive directly onto the flat spring steel plates, significantly reducing setup time and increasing safety.
Self-Centering and Locking Function: The vehicle automatically centers itself on the flat steel plates and is simultaneously locked against accidental rolling, ensuring a stable working environment.
Safety was the foremost consideration during the design of the TwinRam 35 AE 2300, especially when lifting electric vehicles (EVs), where center of gravity and specific requirements may vary.
Redundant Design: Two independent hydraulic cylinders secure the system, offering double protection against malfunctions.
Full Stroke Length Controlled Anti-Tilt System: Prevents the vehicle from tilting throughout the entire lifting process for safe elevation.
Base Frame Force Absorption: The lift's base frame absorbs all operational loads and forces, minimizing stress on the surrounding floor structure.
Easily Accessible Drive Unit: The drive unit and all critical components are easily accessible for quick and simple maintenance.
Short Installation Times: Thanks to the efficient design, setup and preparation times are minimized, maximizing workshop productivity.
Large Intake Surface: The wide design is also suitable for accommodating large vehicles.
The precise specifications of the TwinRam 35 AE 2300 ensure reliable performance even in the most demanding workshop environments.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Load Capacity | 3.500 | kg | Maximum Load Capacity |
| Track Width (Hole Spacing) | 2.300 | mm | Distance between the vehicle lifting points |
| Lifting Height | 20 | mm | Extremely low, ramp-free approach |
| Installation Depth | 2.350 | mm | The required depth below the floor |
| Hydraulic Oil Capacity | 10 | liter | |
| Connection Power | 2 | kW | Electrical Power Requirement |
The TwinRam 35 AE 2300 is a first-class product in every respect, combining the quality of J.A. Becker & Söhne with the reliability of Essmann technology. This lift is the ideal choice for modern workshops where speed, safety, and full underbody access are essential prerequisites. The 20 mm lift-up height is particularly advantageous when servicing modern, low-profile vehicles and battery-powered electric cars.

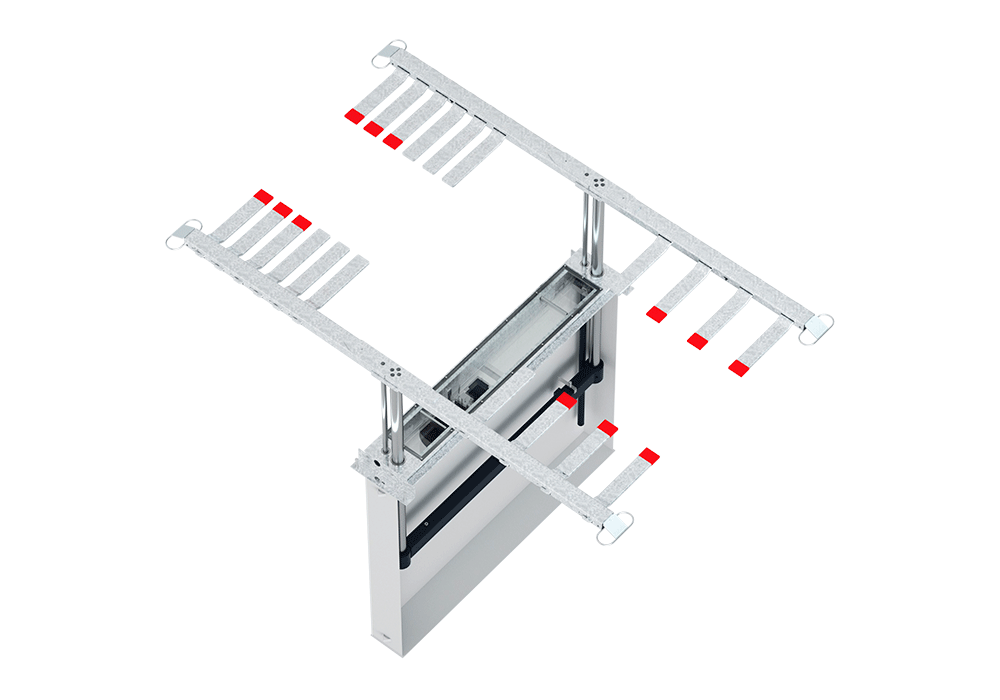

The system can be fully built under the floor (installation depth 2350 mm), so the workshop floor remains completely level when the lift is not in use, improving the general flow and safety of the workshop. The 2300 mm track width guarantees that most passenger vehicles can be optimally positioned for maximum access.
This two-post lift demonstrates J.A. Becker & Söhne's commitment to high-quality, durable, and user-friendly lifting solutions.
