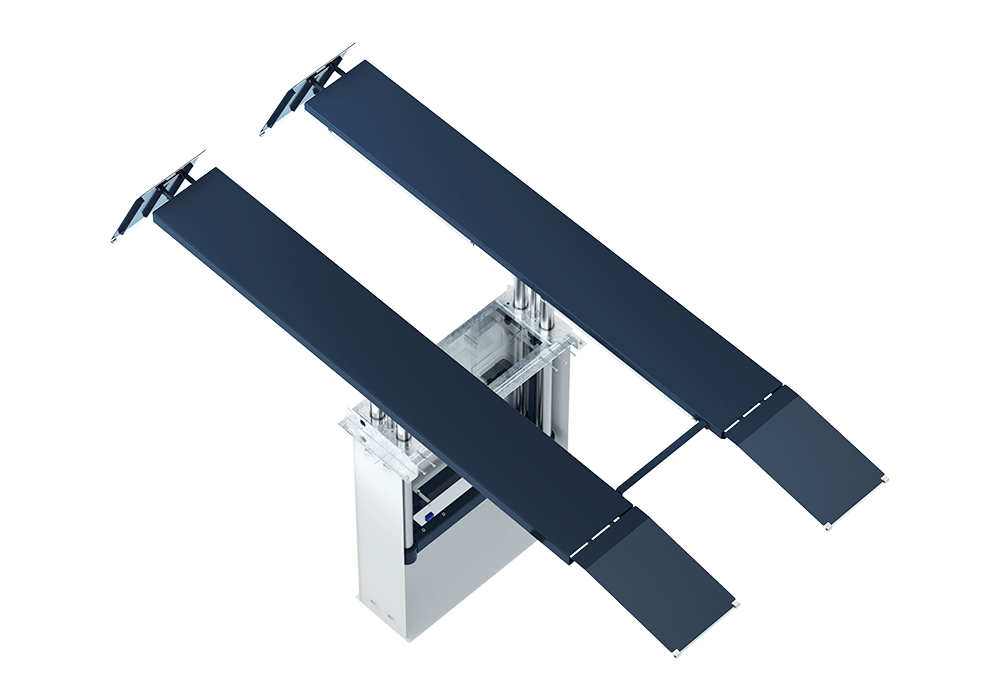

The J.A. Becker & Söhne TwinRam 50.1 A/1500 two-post lift is a premium category solution designed to flexibly handle almost any vehicle, from smaller passenger cars to vans and light trucks. With integrated ramps and outstanding technical features, this lift is the ideal choice for modern service centers and workshops, especially for seamless installation in reception areas.
The TwinRam 50.1 A/1500 is not an average (NO 08/15) product. JAB's engineering solutions guarantee maximum safety, reliability, and a long service life.
Redundant Design: Safety is the primary concern. The lift features two independent hydraulic cylinders, which ensure redundant operation, thereby increasing the safety level throughout the entire lifting process.
Full Stroke Anti-Rotation System: The stability of the vehicle and precise positioning are guaranteed by an anti-rotation mechanism extending over the full stroke length, preventing unwanted lateral movement of the platform.
Base Frame Force Absorption: Every operating load and force is absorbed by the base frame, which minimizes point loads on the floor and increases the structural integrity of the lift.
Easy Access to Components: The drive unit and all critical components are easily accessible, simplifying maintenance and servicing, thereby reducing downtime.
Large Lifting Area: The design allows for the comfortable placement and lifting of large vehicles.
Short Installation Times: Thanks to the efficient design, the lift can be quickly brought to operational readiness, increasing workshop efficiency.

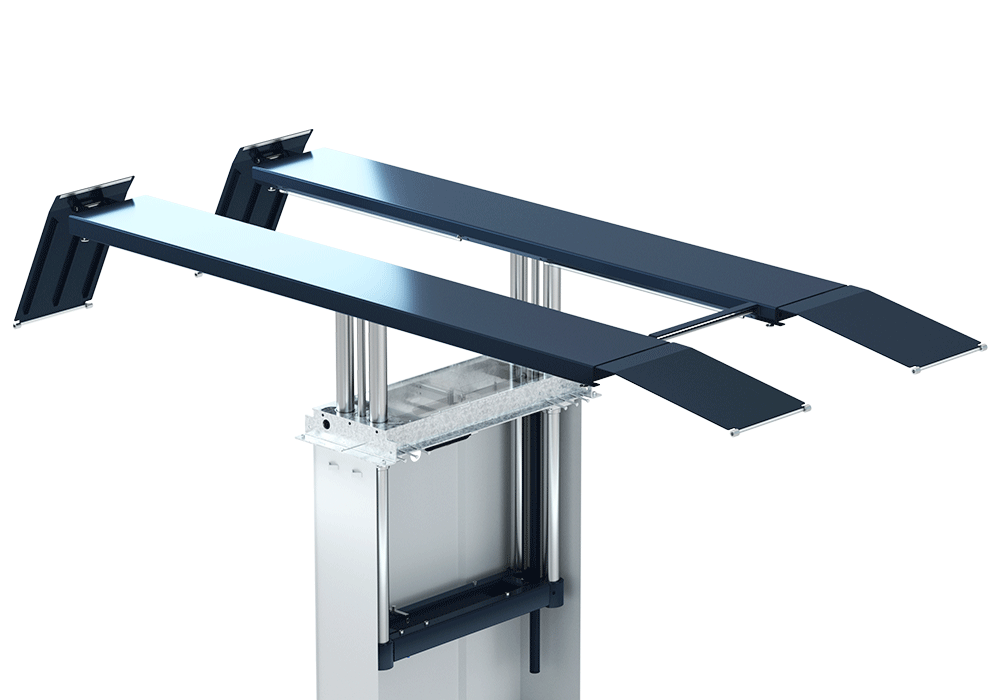

Ramp Design: The included approach ramps make it possible for vehicles with low ground clearance (sports chassis) as well as vans and light trucks to be driven onto the lift problem-free.
Integrated Axle Lift: The axle lift integrated into the platform makes the lift particularly suitable for work in reception areas (quick handover areas) where fast and precise lifting is required.
The precise specifications of the TwinRam 50.1 A/1500 lift ensure professional performance:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 5.000 kg | Maximum Load Capacity |
| Punch distance | 1,500 mm | Parameter determining the lifting height |
| Drive-up height | 175 mm | Extremely low drive-up height with ramps |
| Installation Depth (Installation depth) | 2,350 mm | Depth of the part to be recessed into the floor |
| Oil quantity | 10 l | Hydraulic system capacity |
| Connected Load (Connected load) | 2 kw | Electrical Requirement |

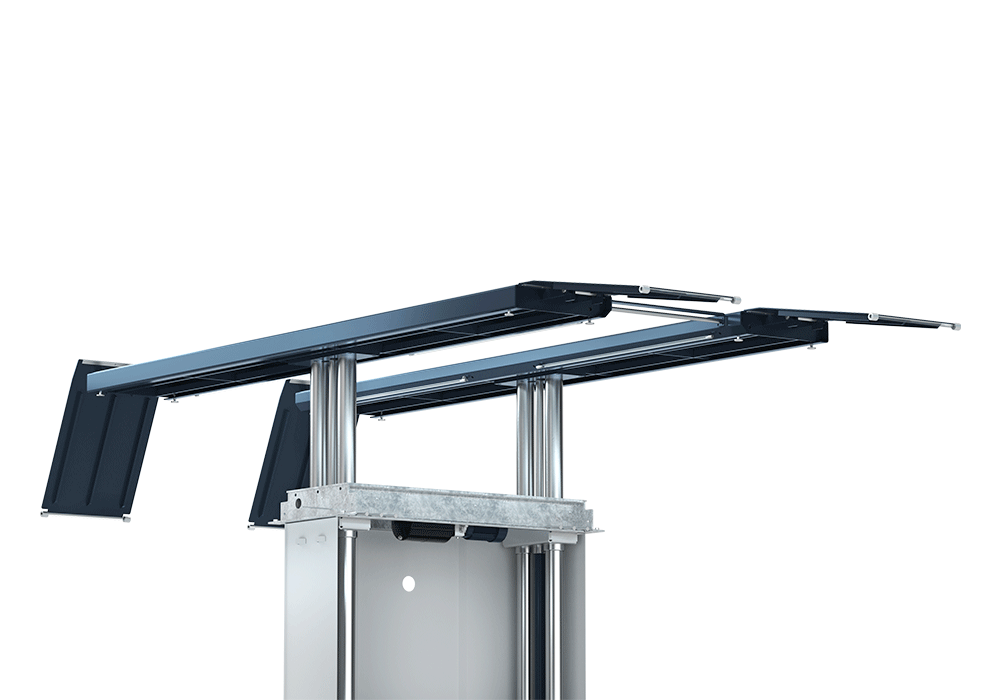

The TwinRam 50.1 A/1500 is a two-ram lift complemented by approach ramps. This configuration is ideal for workshops where fast and safe loading and unloading of vehicles is crucial.
Low Lifting Height: The drive-up height of only 175 mm (including the ramps) allows even the lowest sports cars to easily drive onto the lift, which is a significant advantage in terms of versatility.
Integrated Axle Lift: The built-in axle lift function allows the lifting of vehicle axles without the need for an additional, separate lifting device. This is ideal for diagnostic and quick repair work on the vehicle's chassis.
Robust Structure: The lift is manufactured entirely according to the quality standards of J.A. Becker & Söhne, ensuring that the 5-ton load capacity is reliably met even over the long term. All loads are carried by the base frame, which guarantees structural stability and floor protection.
Easy Maintainability: The drive unit and the components of the hydraulic system are easily accessible, which minimizes service time and costs. Maintenance tasks can be performed quickly and efficiently.
This product represents first-class quality in every aspect, ensuring efficiency and safety for the workshop. The included layouts and dimensioning tables help plan the professional installation.
