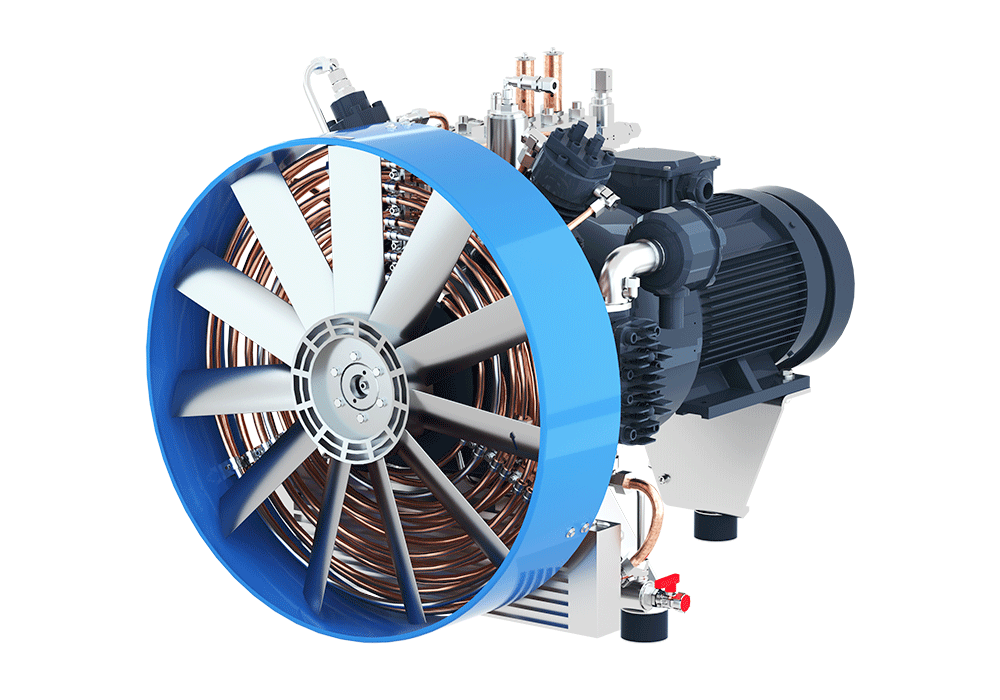

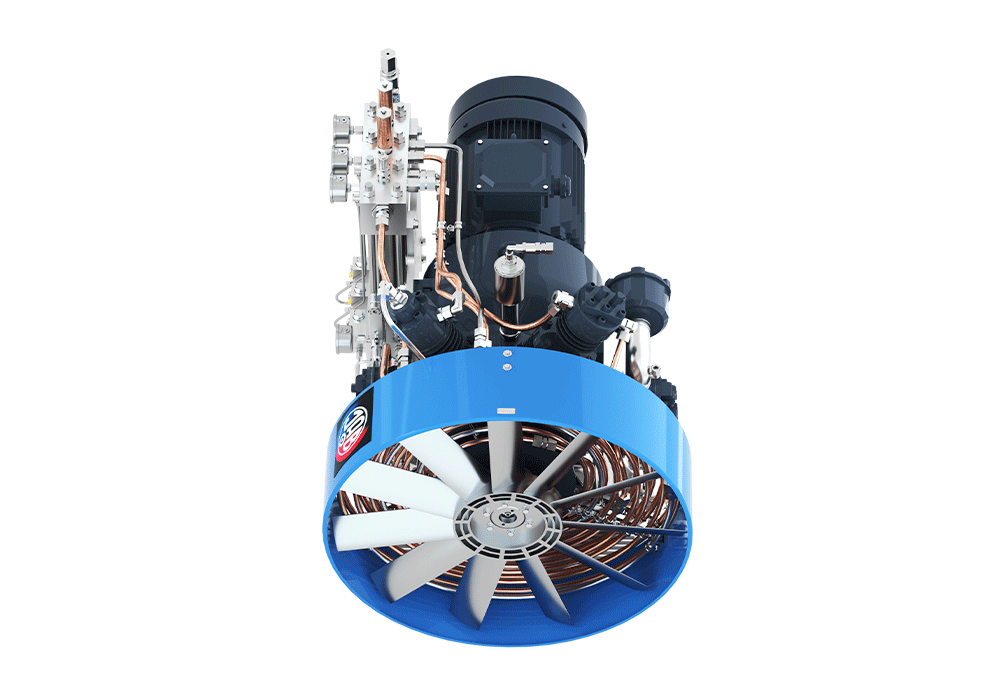

The J.A. Becker & Söhne SVD 700/350 model is an extremely robust and high-performance, four-stage air compressor, designed specifically to meet the highest pressure requirements. This equipment is ideally suited for industrial applications requiring reliable, high volumetric flow rate, and extremely high operating pressure compressed air. In line with the JAB philosophy, this model is not an „08/15” product, but a premium category solution that guarantees a long service life and minimal maintenance requirements.
The SVD 700/350 compressor offers the perfect combination of performance and reliability, featuring outstanding technical solutions:
High-Efficiency Cooling: The compressor's advanced cooling system ensures optimal operating temperature even under intensive load. This not only increases efficiency but also significantly contributes to the machine's long service life by minimizing heat-induced wear.
Fully Automatic Condensate Drainage: The built-in, fully automatic condensate drain system ensures the system always remains dry, preventing corrosion and degradation of compressed air quality. This function reduces the need for user intervention and increases operational reliability.
Long Maintenance Cycles: As a result of high-quality components and precise engineering, the compressor features extremely long maintenance intervals. This minimizes downtime and reduces operating costs.
Premium Quality in Every Respect: J.A. Becker & Söhne is committed to quality, which is evident in every component of the SVD 700/350, ensuring reliable operation even under the harshest conditions.
The SVD 700/350 is a four-stage reciprocating compressor that delivers excellent performance under the specified parameters.
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow rate (Suction side) | 42,0 | m³/h | Meets 700 l/min capacity |
| Maximum Operating Pressure | 350 | bar | Extremely High Pressure Value |
| Compression Stages / Cylinder | 4 / 4 | – | Four-stage compression |
| Electric Motor Power | 18,5 | kW | Powerful Drive |
| Rotational speed | 1.500 | RPM (revolutions/minute) | Optimized operating speed |
The nominal capacity of the compressor is 700 liters/minute (l/min), which corresponds to a flow rate of 42.0 cubic meters/hour (m³/h). This capacity is ideal for serving high-volume, yet extremely high-pressure (350 bar) air requirements.
To achieve the maximum operating pressure of 350 bar, the compressor operates in four separate pressure stages, ensuring efficient and gradual pressure increase. The arrangement of the four cylinders guarantees balanced operation and a long service life.
The drive is provided by an 18.5 kW electric motor operating at a speed of 1500 revolutions/minute. Thanks to JAB's optimization processes, this motor-speed combination ensures maximum energy efficiency within the 350 bar pressure range.
The SVD 700/350 compressor is ideally suited for critical areas where compressed air quality and pressure stability are essential:
High-Pressure Gas Filling Stations: Ideal for filling compressed air (CDA) or special gases (e.g., nitrogen, if the machine is convertible) up to 350 bar pressure.
Industrial Testing Applications: Laboratory or manufacturing environments where high-pressure air is needed for testing hydraulic or pneumatic systems.
Special Manufacturing Processes: Processes that require high-energy, high-pressure air for operation.
J.A. Becker & Söhne provides comprehensive documentation for the SVD 700/350 type, so users have complete information on installation, operation, and maintenance.
The following documents are available for further details:
Technical Data Sheet: Detailed technical descriptions and dimensions.
Brochure: Comprehensive product overview of the concept and benefits.
This compressor is the culmination of J.A. Becker & Söhne's engineering expertise, guaranteeing continuous, trouble-free operation even in the most demanding industrial environments. Durability, energy efficiency, and user-friendly operation were the focal points during the design of this equipment.
