JAB (J.A. Becker & Söhne) offers a wide range of accessories and optional solutions aimed at making the use of lifting equipment in workshops faster, simpler, and safer. These „handy” options optimize workflows, reduce downtime, and increase personal safety.
The range of JAB accessories extends from program-controlled approaches to radio remote control, significantly improving efficiency.

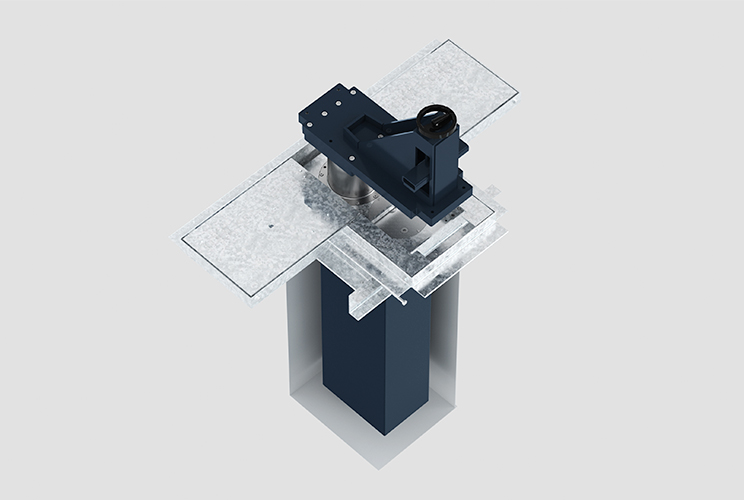

JAB offers two main types of steel cassettes that significantly simplify the installation of the lift, especially for existing buildings, thereby optimizing foundation costs and construction time.
This cassette is welded, leak-proof, tested according to German Water Resources Act (WHG), and primed.
Function: Serves as permanent formwork, simplifying the construction process.
Advantage: Reduces foundation costs, especially when integrating into new buildings.
This self-supporting, double-walled steel cassette consists of internal and external formwork, featuring a filling chamber design.
Statistics: Comes with proprietary static calculations and detailed documentation.
Construction: It is filled with concrete on-site, thus eliminating the need for additional on-site formwork.
Advantage: Minimizes construction time – the process essentially works on the principle of „order, install, done”.
JAB offers several options that drastically shorten the time required for vehicle setup.
The electromotive adapter adjustment allows for precise, individual (left/right) positioning of the load adapters with a single button press, using a remote control.
Plug & Play Solution: Available for both new projects and existing systems.
Előnyök: Minimizes setup time, significantly improves ergonomics, and increases safety.
The position of the load adapters is monitored by two cameras per lifting unit.
Display: The image is displayed on a color screen, which can be on the control panel or the remote control.
Retraction: The cameras can be pneumatically retracted under the covers when not in use.
Every lift control can be equipped with a touchscreen.
Data Display: Vehicle information, real-time data, and parameters of the lifting system can be displayed on the screen.
AWBP Function: Enables a program-controlled approach to defined lifting points, minimizing setup time.
Fleet Management: The vehicle fleet with vehicle-specific information stored in advance. This parameterization allows for calling up vehicle-specific lifting positions and automatic positioning of the lifting units.
In addition to the wired control panel, the lifting system can also be operated with a radio remote control.
Advantage: The user can operate the lift without the constraints of a cable.
Safety: The radio remote control features an integrated range limiter, so no separate trigger button is needed. The receiver unit can be connected via a machine plug.
JAB lifting platforms are designed for use in modern, networked workshops.
Integration: Information exchange with control centers, adjacent machinery, roofing structures, or hall gates is now a basic requirement.
Customization: A concept tailored to the IT requirements is developed.
Remote Maintenance: An additional remote maintenance concept supports servicing and reduces maintenance costs through targeted queries on the technical status.
JAB pays close attention to the protection of users and vehicles by incorporating additional safety features.
This function is available for fully or partially recessed lifts.
Operation: During lifting, the recesses under the load carriers are automatically covered by pneumatically operated panels.
Safety: Minimizes the risk of tripping and injury.
This indicator light signals the lower end position of the lift's load-bearing unit.
Sensing: Every lifting unit is equipped with a limit switch.
Signaling: The red/green light on the electronic control unit indicates that in the case of a „green” light, all lifting units are in the lowest position, and the vehicle can safely drive on or off the lift.
Expandability: The indicator light can be expanded with further colors and functions. This is particularly ideal for vehicles with low ground clearance, such as low-floor buses.
Adapters are essential for enabling the widest possible range of vehicle types to be lifted, whether it involves classic vehicles, trailers, or industrial trucks.
Mobile Adapter Trolley: For quick changes, a mobile adapter trolley ensures that the adapters are always tidy and easily accessible.
Quick Change: The vehicle restraint adapters can be changed in a few simple steps.
Organization: Unused adapters can be quickly returned to the trolley, organized and ready for use at another lifting station. JAB offers a wide selection of additional adapters.
| Function | Description | Advantage |
|---|---|---|
| Steel Cassette (Single Wall) | Welded, WHG tested, primed, permanent formwork. | Simpler construction, reduced foundation costs. |
| Steel Cassette (Double Wall) | Self-supporting design with filler chamber and its own statics. | No need for on-site formwork, minimized construction time. |
| Electromotive Adapter Adjustment | Remotely controlled, precise, unique positioning. | Plug & Play, minimal setup time, improved ergonomics. |
| Camera system | Two cameras per lifting unit, image display on a monitor. | Visual inspection of the position of the load adapters. |
| Touchscreen Control | Real-time display of vehicle data and lifting parameters. | Intuitive operation. |
| AWBP (Automatic Wheelbase Preselection) | Program-controlled approach to stored lifting points. | Significant setup time savings. |
| Radio Remote Control | Cable-free operation with integrated range limiter. | Maximum freedom of movement and safety. |
| System Communication | Information exchange with control centers, machines, gates. | Support for networked workshops, remote maintenance capability. |
| Pneumatic Floor Leveling | Automatic panels cover the recessed pits during lifting. | Eliminates the risk of tripping. |
| Red/Green End Position Indicator | Feedback that every unit is in the lowest position. | Safe lifting and lowering, especially for vehicles with low ground clearance. |
| Mobile Adapter Cart | Transport cart for the organized storage of vehicle lifting adapters. | Quick adapter change and organization between workstations. |
