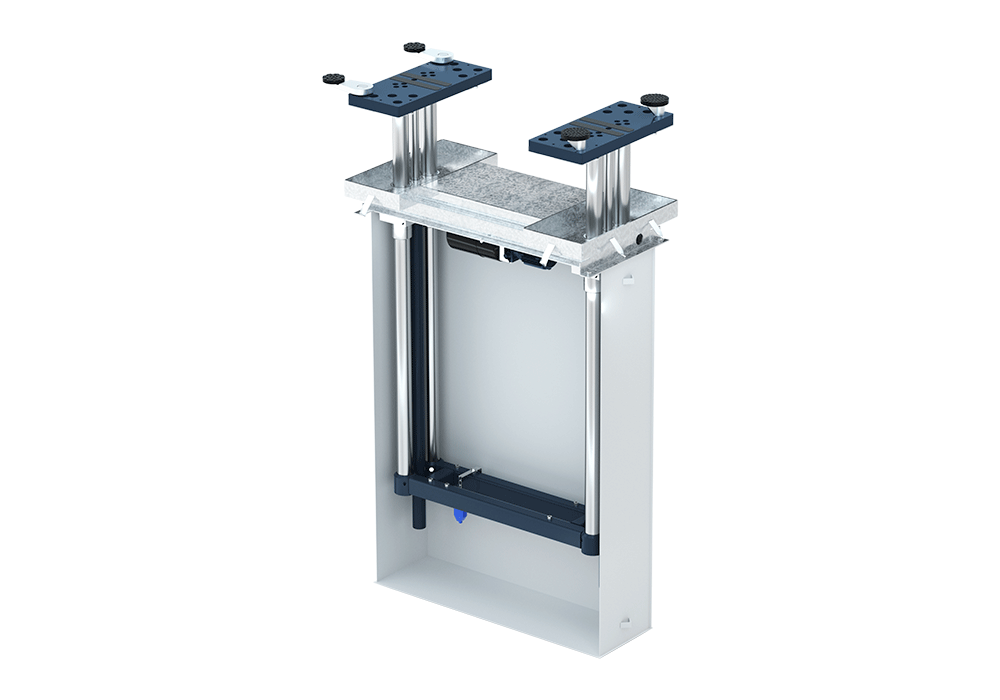

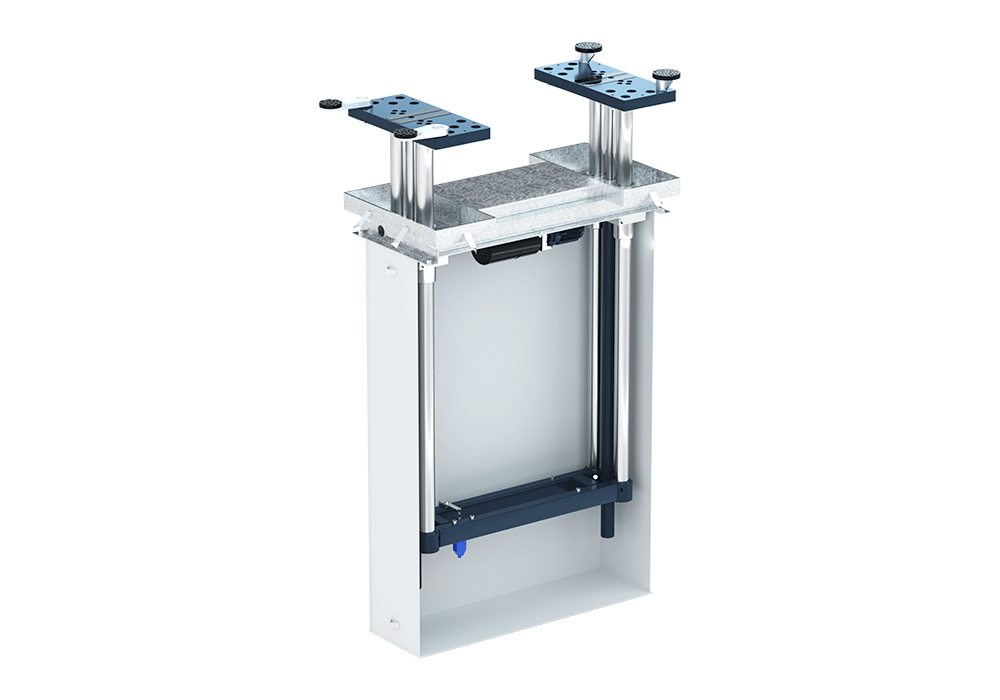

J.A. Becker & Söhne proudly presents the HF 5 type hydraulic, 2-cylinder, in-ground installation frame, which was specially developed for lifting and servicing industrial commercial vehicles and stackers (flurförderfahrzeuge). This equipment guarantees the highest level of safety, reliability, and optimal accessibility during maintenance work.
The HF 5 is not an average (NO 08/15) product; it reflects the engineering precision of J.A. Becker, ensuring it stands up even in the most demanding industrial environments.
The HF 5 lift is designed to provide maximum safety and user convenience:
Redundant Design: Safety is the primary concern. The equipment features two independent hydraulic cylinders, which provide a redundant system, thereby increasing operational safety even in the event of a malfunction.
Full Stroke Length Controlled Anti-Tilt System: During the lifting and lowering of the vehicle, the stability of the load is guaranteed over the entire lifting height by a special anti-tilting mechanism.
Additional Guide Rods for Absorbing Torque: The structure is equipped with additional guide rods that effectively absorb all momentary loads and lateral forces occurring during lifting, ensuring a stable and even lift.
Optimal Access: Thanks to the in-ground installation design, the load-bearing elements can be recessed flush with the floor level. This ensures completely barrier-free access to the vehicles, especially when servicing the chassis and drivetrain.

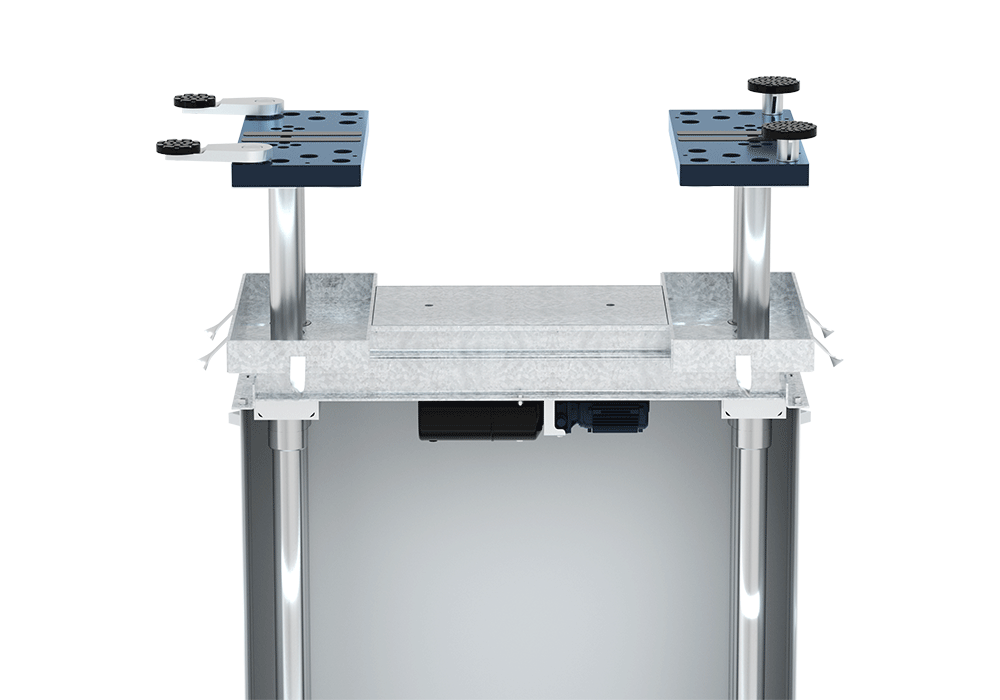

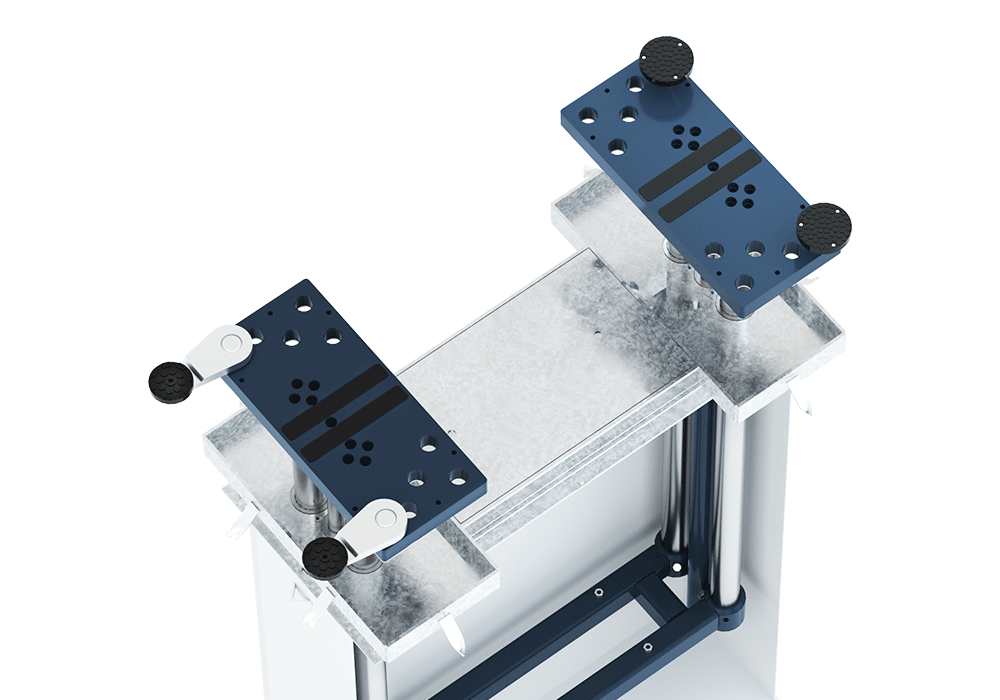

In-Ground Recessable Load-Bearing Elements: The load is handled by load-bearing units recessed into a galvanized base frame, which are flush with the floor, allowing vehicles to be easily positioned.
The HF 5 is a premium quality, hydraulic, 2-cylinder in-ground lift whose load-bearing devices can be integrated into the floor level. This design offers an ideal solution for workshops where space-saving and a flexible work area are essential.
The installation of the equipment takes place in a hot-dip galvanized base frame , which guarantees a long service life and corrosion resistance, even in wet or aggressive environments.
The following table details the critical technical parameters of the HF 5 lift:
| Parameter | Value | Note |
|---|---|---|
| Load Capacity | 5,000 kg (5 tons) | Ideal for medium-sized industrial commercial vehicles and heavy-duty stackers. |
| Lifting Height | 1,880 mm | Sufficient height for comfortable working. |
| Installation Depth | 2,430 mm | The depth of the in-ground system. |
| Oil quantity | 10 liter | The quantity required for the operation of the hydraulic system. |
| Connection Power | 2.2 kW | Power consumption of the electric drive. |
| Installation | In a hot-dip galvanized base frame | The load-bearing equipment is recessed flush with the floor. |
The HF 5 installation frame is manufactured according to the quality assurance standards of J.A. Becker & Söhne. The robust construction, precise hydraulics, and advanced safety functions collectively ensure that this equipment will reliably serve industrial maintenance requirements in the long run. The in-ground design is not only aesthetic but also extremely practical, as the floor surface remains completely clear when the lift is not in use, maximizing workshop space utilization.
A detailed Foundation installation drawing (Foundation installation drawing) and Stacker brochure is also available for further information.
