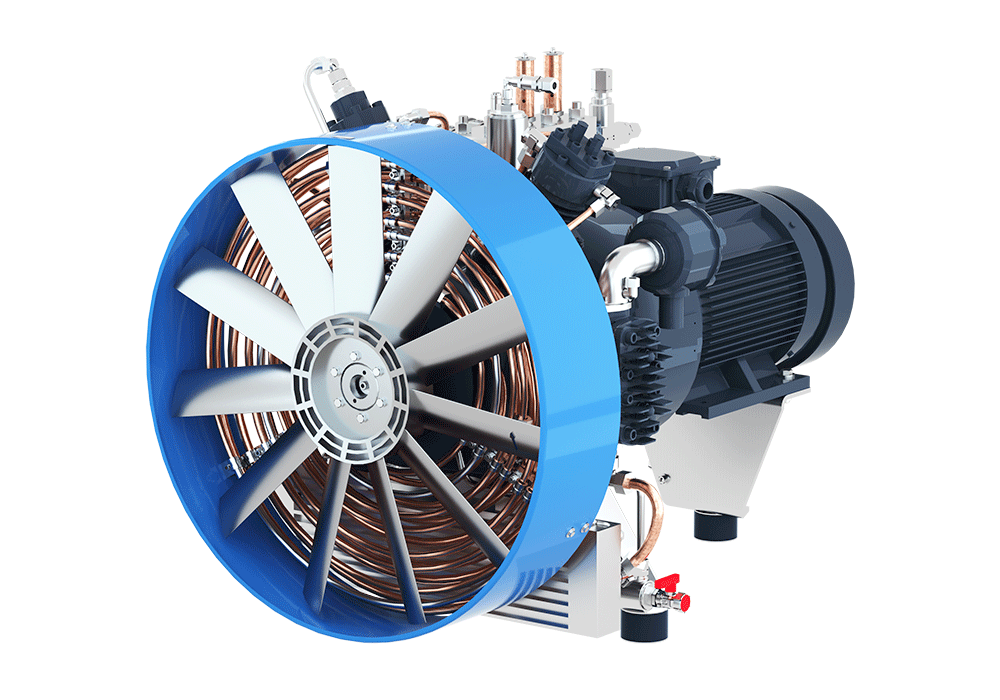

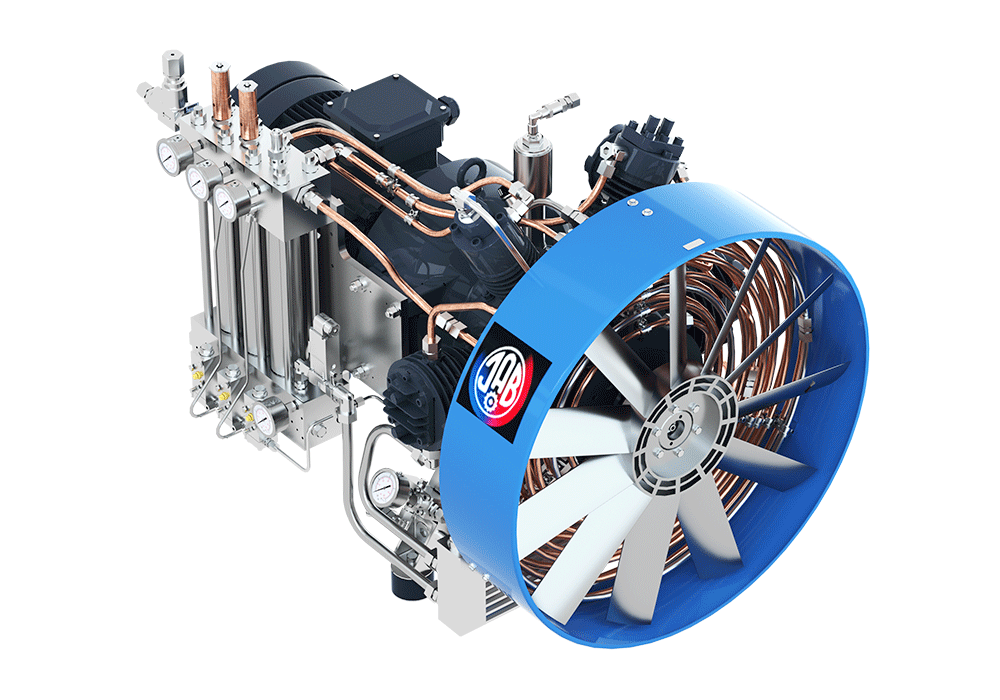

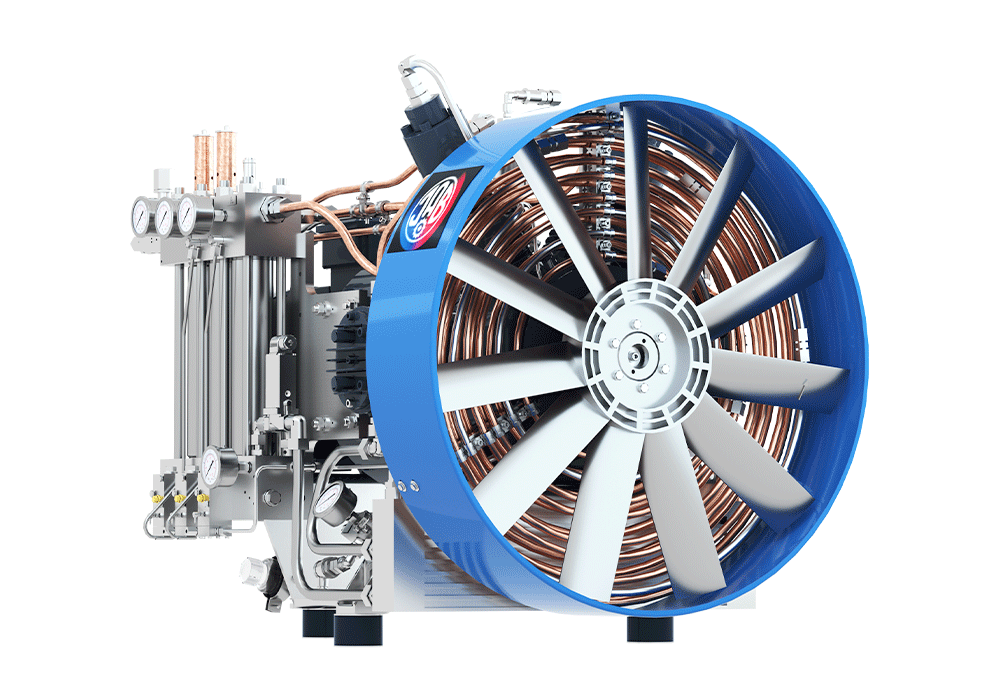

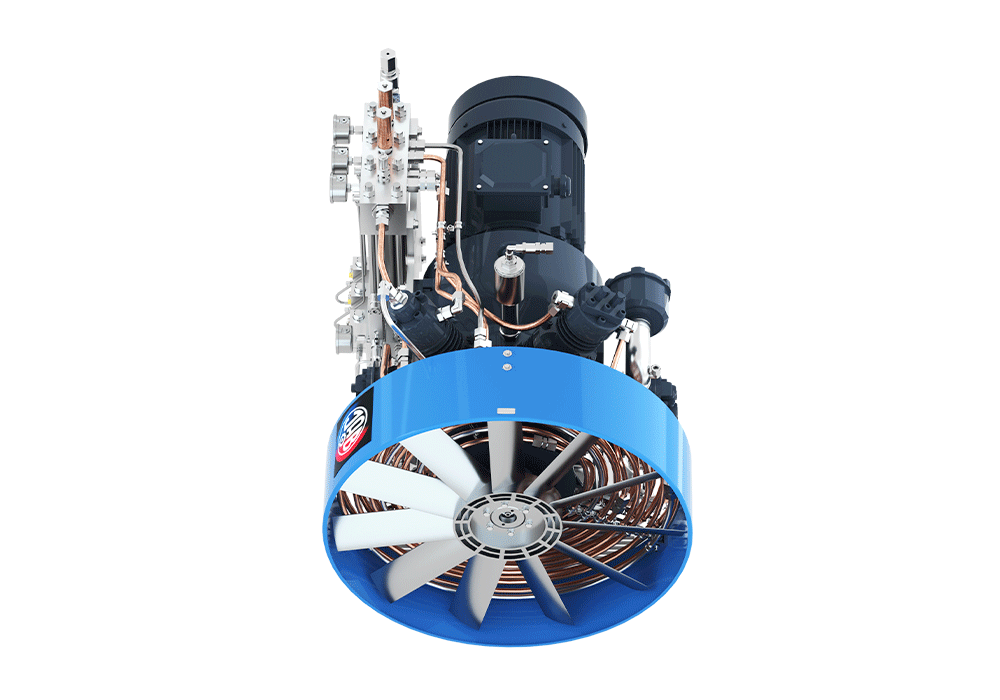

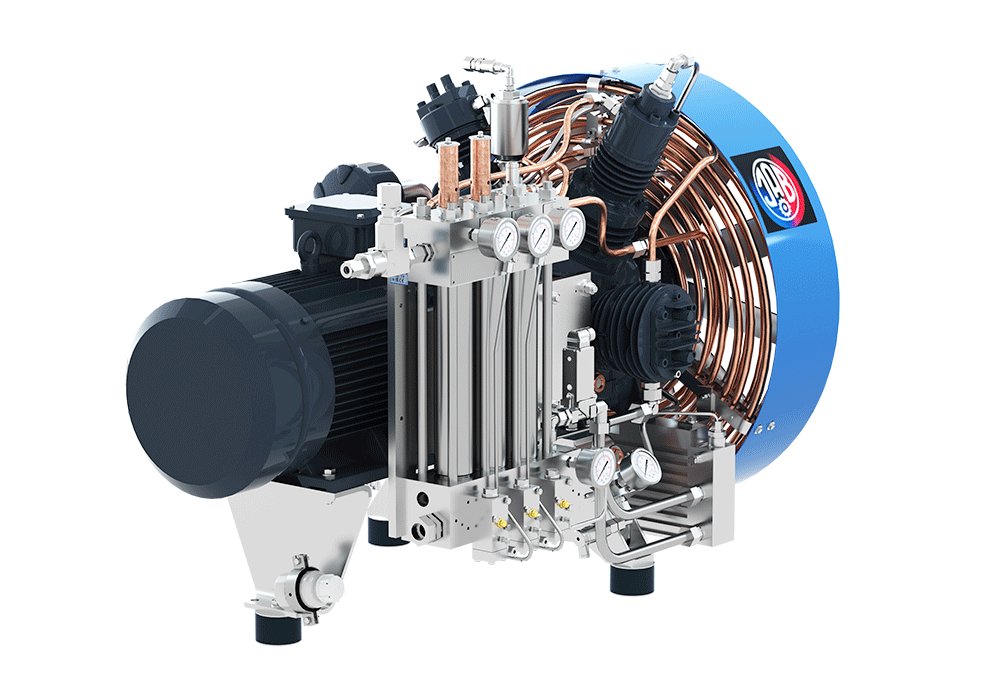

The J.A. Becker & Söhne SVD 700/250 model is a top-category, four-stage air compressor designed to meet the highest performance requirements. This equipment is ideally suited for industrial applications where reliable, high-pressure air supply is needed, featuring outstanding efficiency and long service life. The compressor reflects the Becker & Söhne philosophy: not a „commodity product,” but a carefully engineered, premium quality solution.
The SVD 700/250 compressor features several outstanding characteristics that ensure continuous and economical operation:
High-efficiency cooling: The advanced cooling system minimizes heat generation during the compression process, which increases the system's lifespan and reduces energy consumption. This is especially important for high-load, continuous operating modes.
Fully automatic condensate drain: The built-in, fully automatic condensate drain system ensures the system always remains dry, preventing corrosion and performance degradation. This minimizes the need for manual intervention, increasing operational reliability.
Long maintenance intervals: The robust construction and use of high-quality components have significantly extended maintenance intervals, resulting in reduced downtime and operating costs.
Premium quality in every aspect: Becker & Söhne is committed to exceptional quality, guaranteeing long-term, trouble-free operation even in the harshest industrial environments.
The precise technical parameters of the SVD 700/250 compressor ensure the specified performance and reliability:
| Parameter | Value | Note |
|---|---|---|
| Volume flow (Volume flow) | 700 l/min | This capacity corresponds to 42.0 m³/h. |
| Maximum operating pressure (Max. operating pressure) | 250 bar | Capable of achieving extremely high pressure. |
| Pressure stages / Number of cylinders | 4 / 4 | Four-stage compression to maximize efficiency. |
| Electric Motor Power | 18.5 kW | Powerful drive for continuous load. |
| Speed (Speed) | 1,500 RPM | Optimized speed for longevity and efficiency. |
The SVD 700/250 compressor is a standout piece in the J.A. Becker & Söhne lifting technology and compressor portfolio. The four-stage design allows for gradual air compression, which reduces the load and heat generation in individual stages, thereby increasing the compressor's lifespan and reliability.
The maximum operating pressure of 250 bar provides an extremely wide range of application possibilities, whether for special pneumatic systems, high-pressure gas storage, or other industrial processes operating at high pressures.
The 18.5 kW electric drive at a speed of 1500 revolutions/minute ensures the necessary power to maintain the volume flow of 700 liters/minute. This speed has been carefully selected to balance performance and mechanical stress, contributing to long maintenance intervals.
Managing the heat generated during compressor operation is critically important. The outstanding cooling efficiency of the SVD 700/250 model ensures that the temperature of the compressed air remains at an optimal level, which is essential for the lifespan of valves and seals. The design of the cooling system minimizes condensate formation, but the removal of any resulting moisture is handled by the fully automatic drainage system, so the user does not have to worry about system dewatering.
This high-performance compressor is an ideal choice for:
For industrial gas supply systems where high-pressure air is required.
For manufacturing processes that require a continuous, reliable air supply.
In any sector where standard compressors cannot reach the required pressure level.
J.A. Becker & Söhne products carry the guarantee of German engineering precision, and the SVD 700/250 continues this legacy as a first-class product in every aspect. Further detailed information, data sheets, and brochures can be downloaded from the product page.
