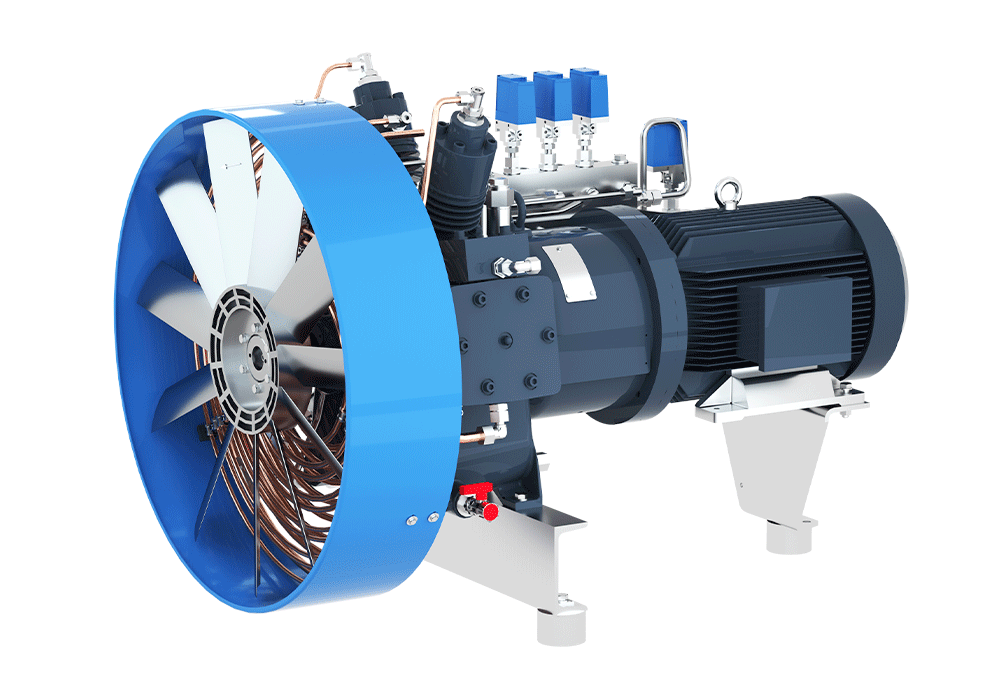

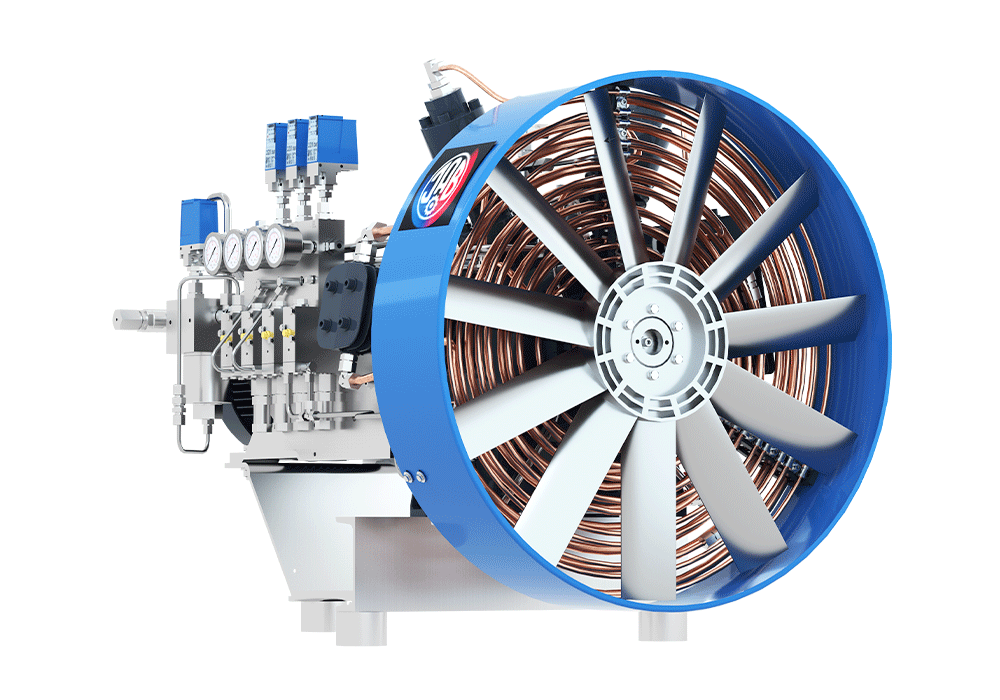

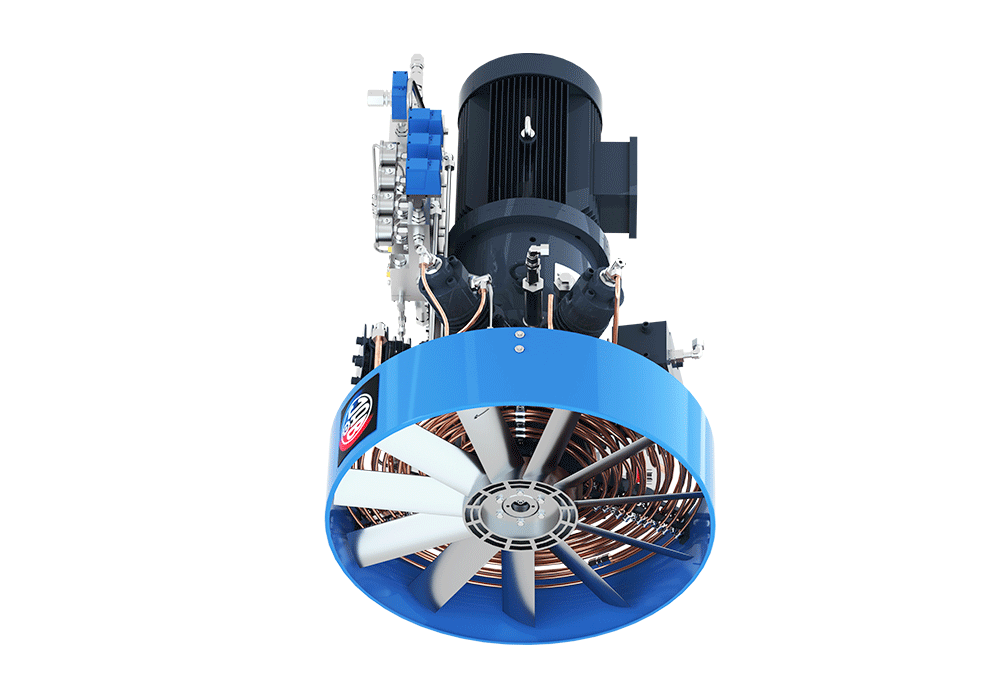

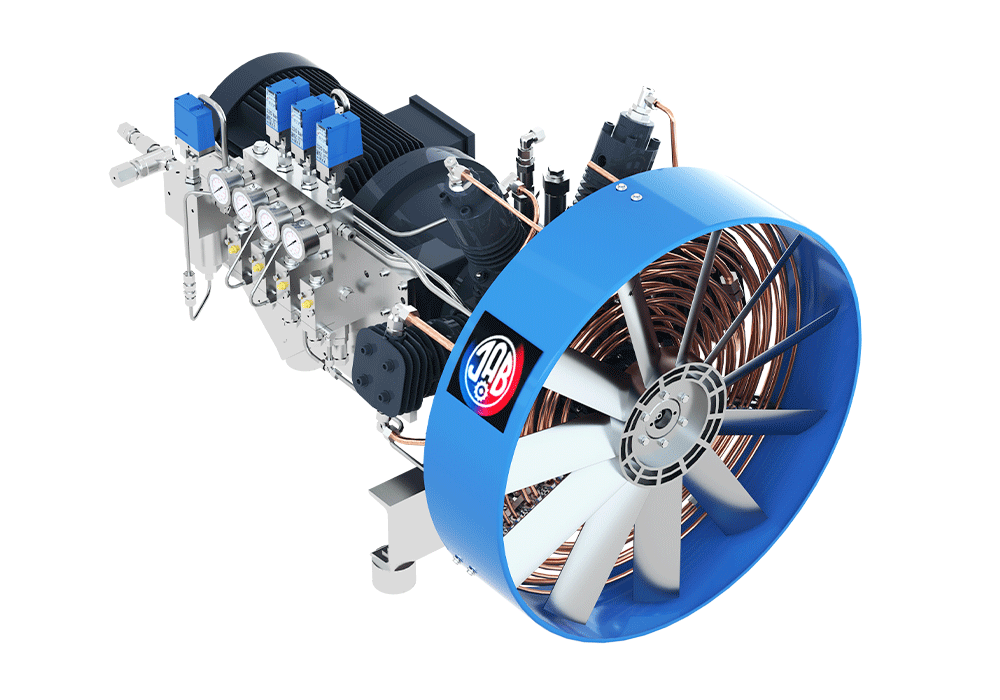

The J.A. Becker & Söhne SVD 600\/350 He model is a cutting-edge, four-stage helium compressor specifically designed to meet the highest pressure requirements. This equipment is ideally suited for industrial and research applications where high-purity helium is needed at an extremely high operating pressure of 350 bar. The unit represents the premium category of JAB compressors, guaranteeing reliability and a long service life.
The SVD 600\/350 He compressor is not a „mass-produced product”; it is the result of J.A. Becker & Söhne's engineering precision and decades of experience in handling special gases.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures optimal regulation of the gas temperature during the compression process. This not only increases safety but also contributes to the long-term stability and energy efficiency of the system.
Fully Automatic Discharge: The equipment features an automatic purging function, which minimizes the need for human intervention, thereby increasing process safety and convenience.
Long Maintenance Cycles: The robust construction and the use of high-quality components significantly extend maintenance intervals, thereby reducing downtime and operating costs.
Special Helium Compression: Due to the special properties of helium (small atomic size, high thermal conductivity), it requires special design. This model is specifically optimized for the efficient and safe high-pressure compression of helium.
The table below details the critical technical parameters of the SVD 600/350 He compressor:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow (Volume flow) | 575 | l/min | Corresponds to 34.5 m³/h capacity |
| Maximum Operating Pressure | 350 | bar | Extremely High Pressure Value |
| Compression Stages / Cylinder | 4 / 4 | – | Four-stage compression system |
| Electric Motor Power | 15 | kW | Drive unit power |
| Speed (Speed) | 1.500 | RPM (revolutions/minute) | Motor Speed |
The maximum pressure of 350 bar is achieved in four separate compression stages, ensuring the gradual and efficient densification of the helium while minimizing heat generation in each step.
Volumetric Flow Conversion: A volumetric flow rate of 575 liters per minute (l/min) precisely corresponds to a capacity of 34.5 cubic meters per hour (m³/h) under standard conditions. This capacity is ideal for medium to large volume helium recharging or circulation tasks.
Motorization: The 15 kW electric motor provides sufficient power to reach 350 bar pressure at 1500 revolutions per minute, ensuring stable operation.
The SVD 600/350 He compressor is excellently suited for areas where helium needs to be stored, transported, or circulated at high pressure:
Scientific Research & Laboratories: For experiments with high energy consumption, cooling systems for superconducting magnets (e.g., MRI devices), or for the preparation of special gas mixtures.
Industrial Gas Supply: Recharging of helium cylinders where high pressure is essential to achieve maximum storage density.
Special Welding Applications: Processes that require an inert, high-pressure helium atmosphere.
J.A. Becker & Söhne is committed to quality, which is reflected in the product's first-class design in every aspect. The robust construction guarantees long-term, trouble-free operation even in the most demanding environments.
Detailed technical data sheets and brochures are available for the product for further information.
