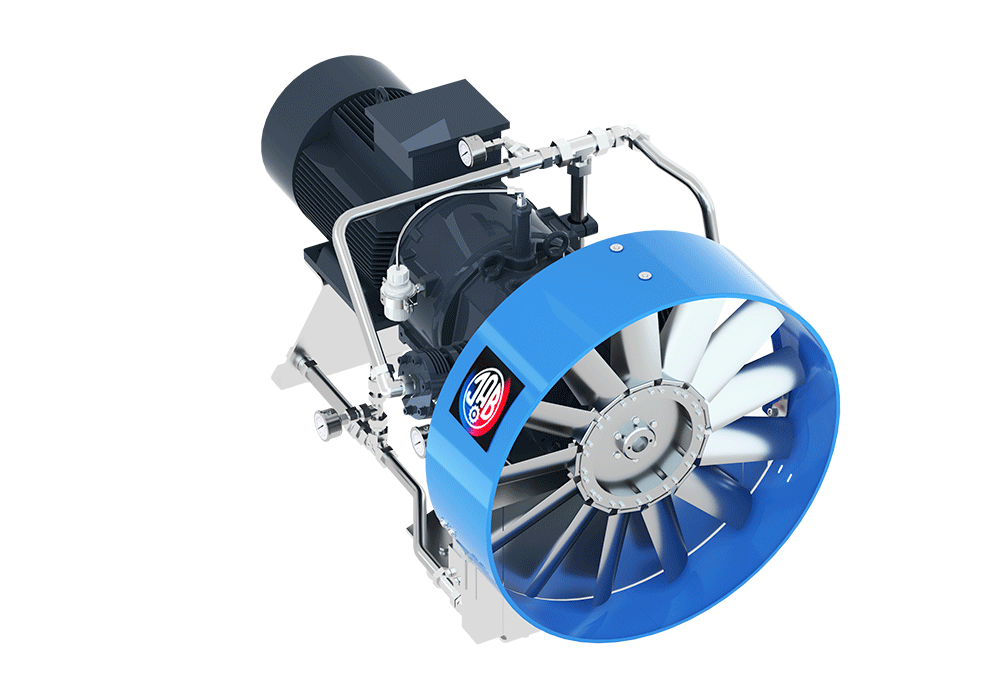

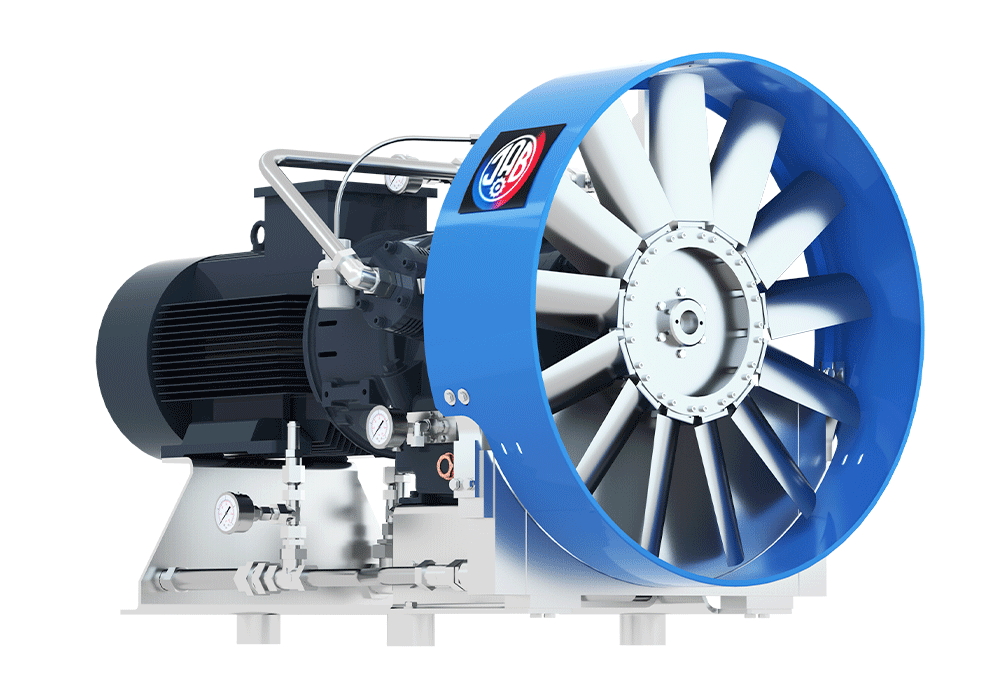

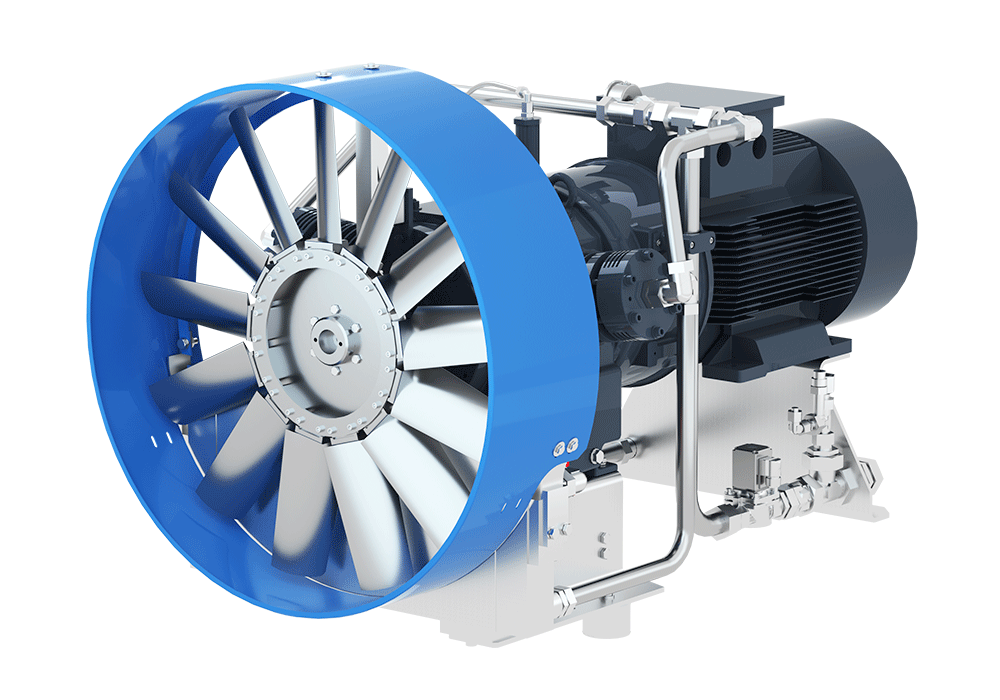

The J.A. Becker & Söhne V 5360-2/40 type, 11 kW single-stage air compressor is a screw-technology-based, high-performance unit specifically designed for the most demanding industrial applications. This model offers a combination of reliability, efficiency, and long service life, ensuring a stable and clean compressed air supply.
This compressor is not an „average” product (NO 08/15 PRODUCTS), but a premium category solution that brings significant advantages in terms of maintenance costs and energy consumption.
The V 5360-2/40 series is characterized by excellent build quality and user-friendly operation:
Outstandingly Efficient Cooling: The advanced cooling system ensures the optimal operating temperature, which increases the compressor's lifespan and maintains the quality of the compressed air. Efficient heat dissipation minimizes thermal stress on critical components.
Fully Automatic Draining (Discharge): Automatic and reliable removal of condensate water ensures the system stays dry, preventing corrosion and degradation of compressed air quality. This reduces the need for manual intervention.
Long Maintenance Intervals: The robust construction and use of high-quality components have significantly extended maintenance intervals, resulting in reduced downtime and operating costs.
The specifications of the V 5360-2/40 model are optimized to meet high-performance industrial requirements.
| Parameter | Value | Note |
|---|---|---|
| Típus | Single-stage air compressor | |
| Volume flow rate (Suction side) | 1,800 l/min (108.0 m³/h) | Under standard conditions |
| Volume Flow Rate (Suction side, Max.) | 2,730 l/min (163.8 m³/h) | Maximum Capacity |
| Max. Operating Pressure | 25 bar (First stage) / 20 bar (Second stage) | The specified values refer to the different stages. |
| Inlet Pressure | 5 bar / 7.5 bar | The required pre-pressure for the compressor's operation. |
| Compression Stages / Cylinder | 1 / 2 | Single-stage design with two cylinders. |
| Electric Motor Power | 11 kW | High-performance drive. |
| Rotational speed | 1.500 U/min | Optimized operating speed. |
| Compressed Air Pressure Range | 20 – 40 bar | The range of the actual operating pressure. |
| Flow Rate Range | 108.0 – 207.9 m³/h | Volume flow rate adjusted to the pressure range. |
Note: The differences between the inlet pressure (5/7.5 bar) and the maximum operating pressure (25/20 bar) indicate the flexibility of the compressor configuration, enabling adaptation to various system pressures.
The single-stage design of the V 5360-2/40 is ideal for applications requiring relatively high, but not extreme, compressed air pressure, where reliability and continuous operation are critical.
Ideal application areas:
Industrial Pneumatic Systems: Stable pressure supply for production lines.
Painting and Spraying Equipment: Clean and uniform pressure is essential for quality surface treatment.
Machine Drives: Supply for higher power pneumatic tools and equipment.
Post-compression Compressors (Nachverdichter): Capable of boosting air pressure after existing lower-pressure systems to the desired higher pressure level.
J.A. Becker & Söhne is committed to quality, which is evident in every element of the V 5360-2/40. The robust construction guarantees long-term, trouble-free operation, even in the harshest industrial environments. The 11 kW electric motor provides sufficient power to achieve the specified volume flow and pressure, while the 1500 rpm speed is favorable in terms of mechanical stress.
Maintenance considerations were a priority during the design of this equipment, minimizing service requirements, which results in direct cost savings for the operator.
This compressor is the benchmark for reliable, high-capacity compressed air generation in the 20-40 bar pressure range.
